Description
Brand: Coolgear

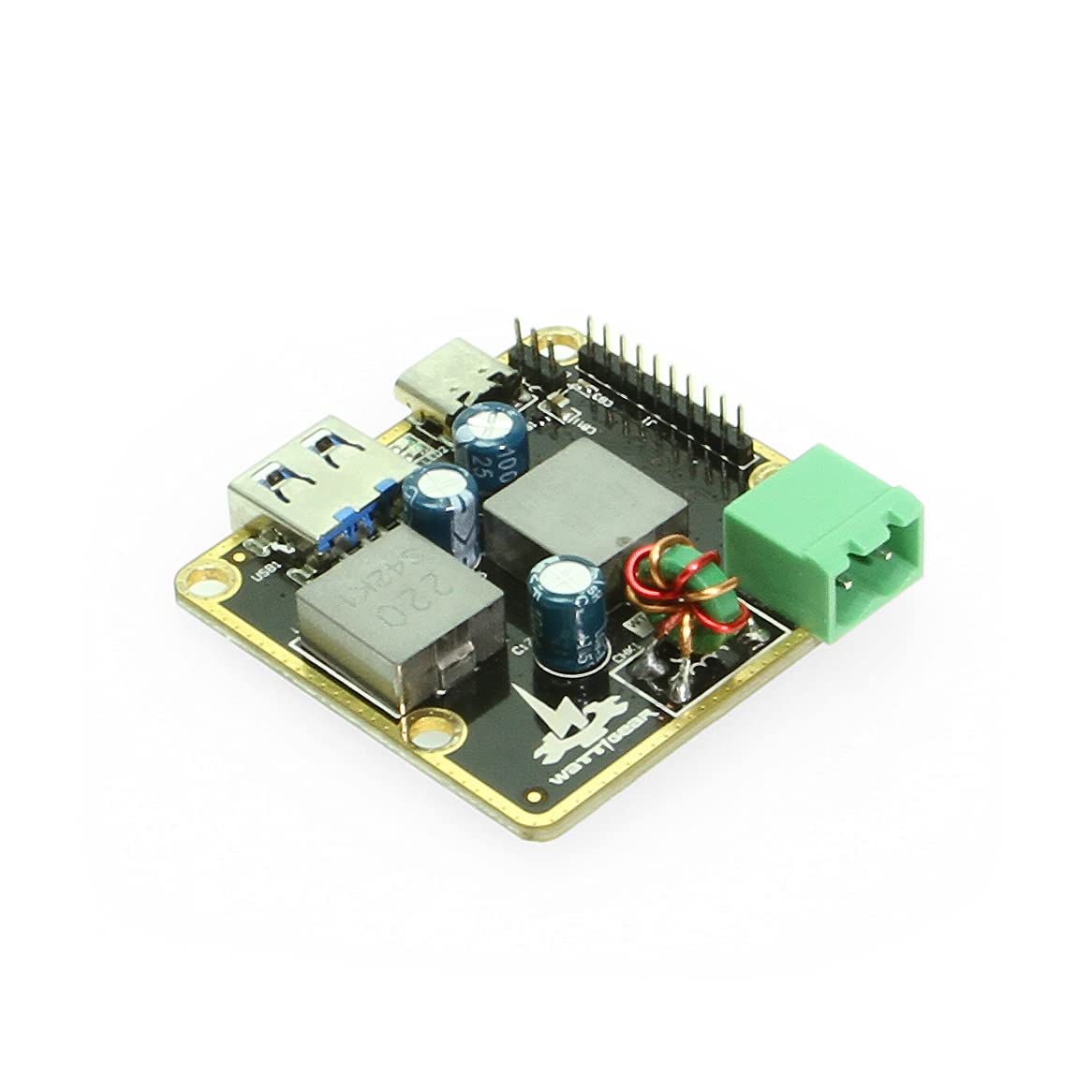

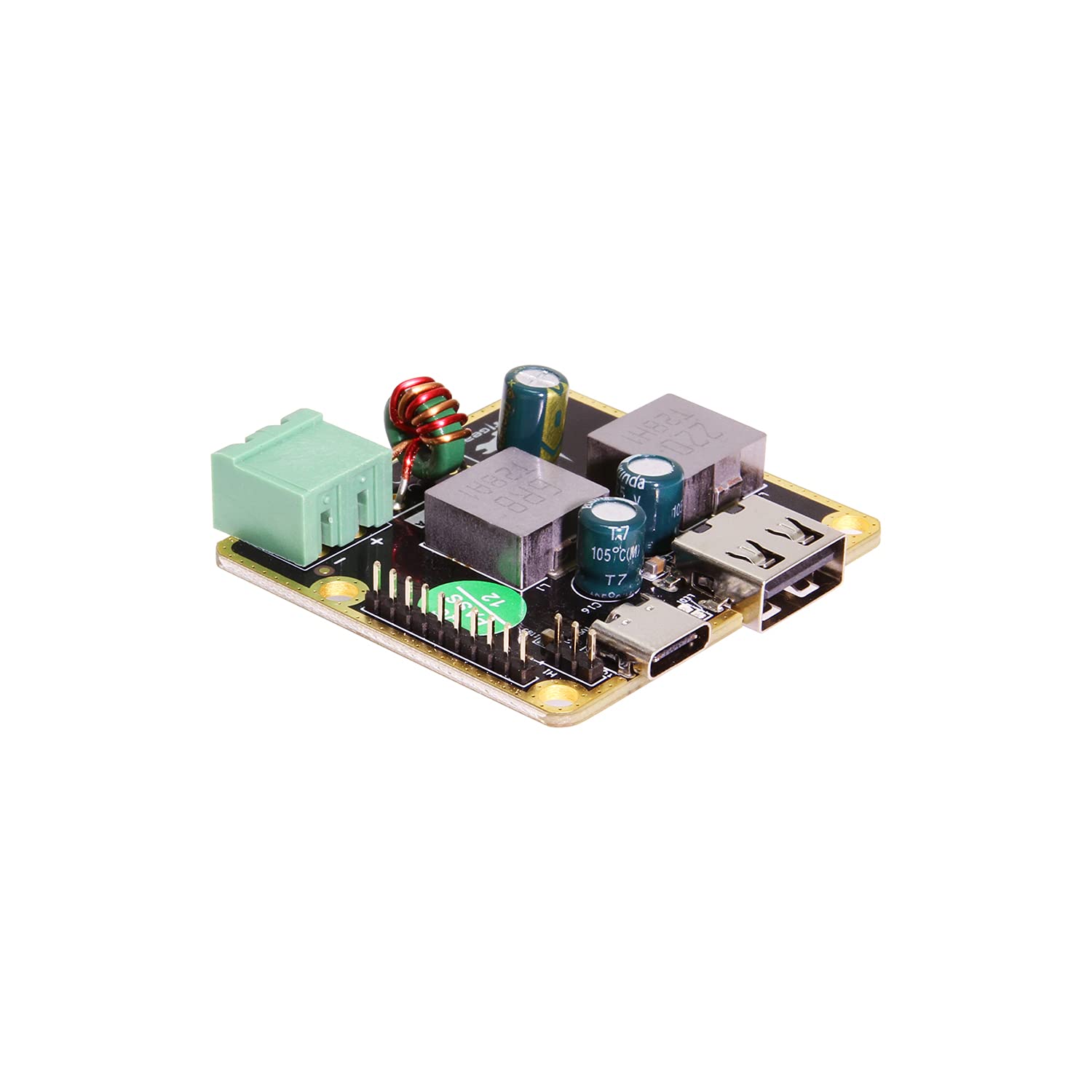

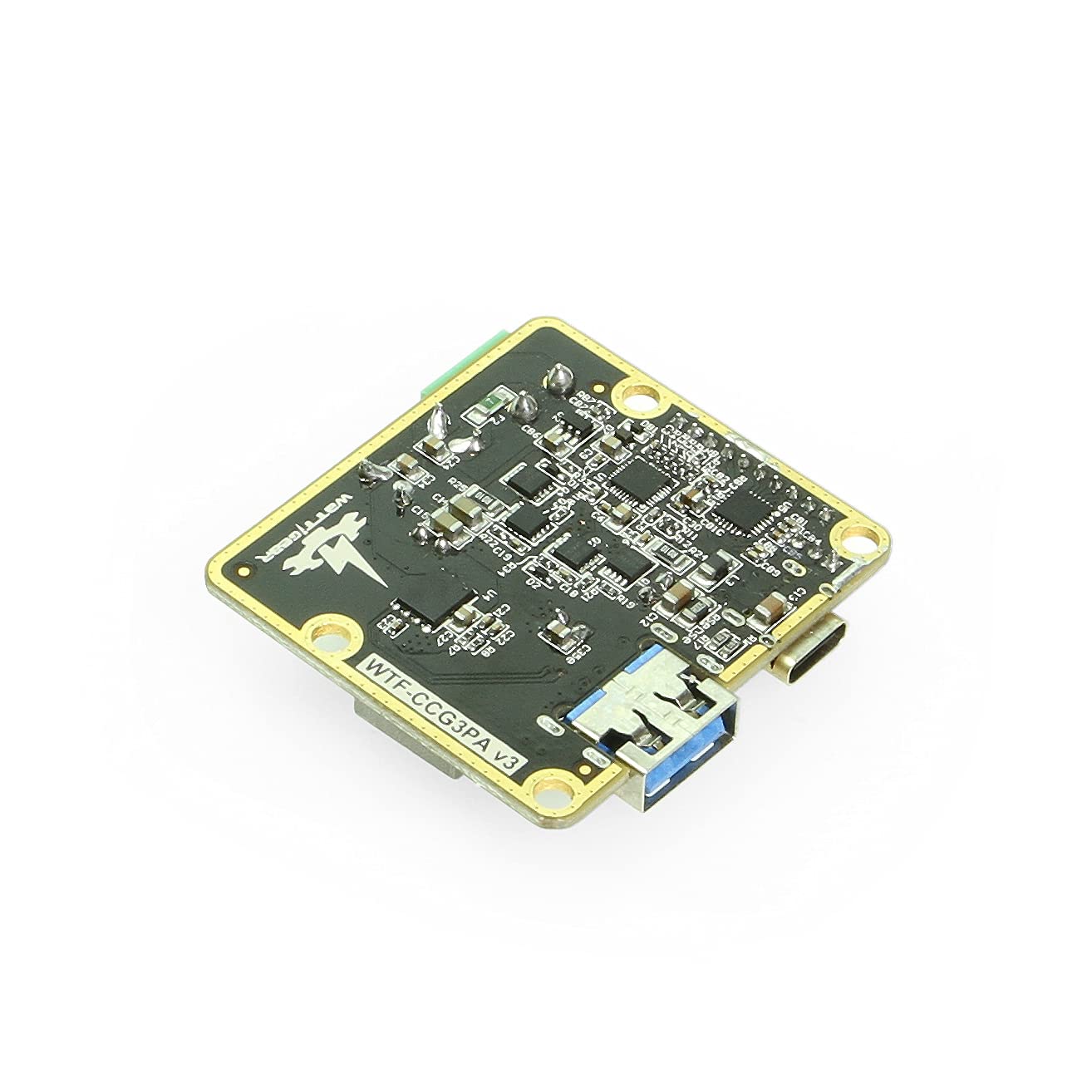

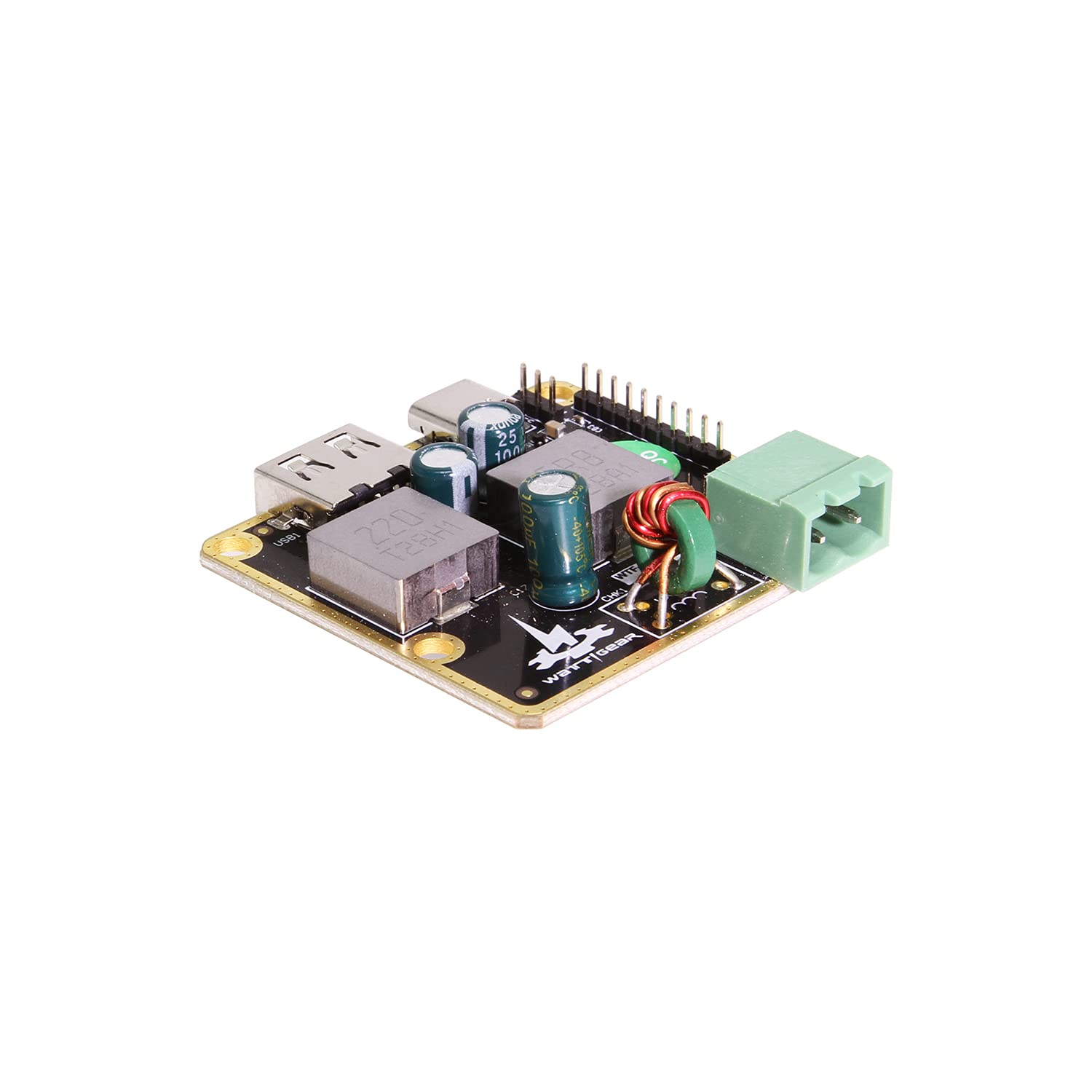

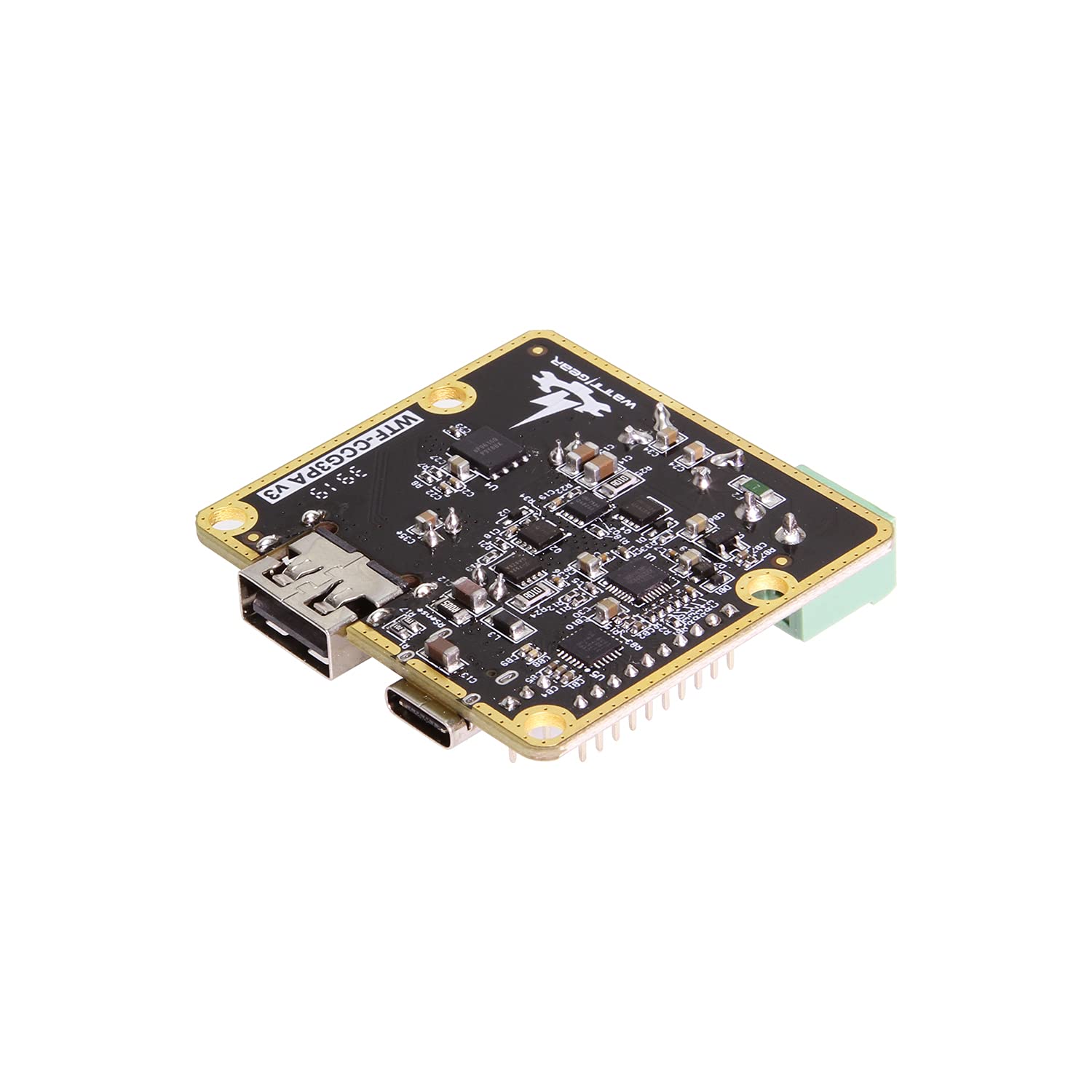

USB 60W PCBA - Type-C Power Delivery and Legacy Charging with Cypress CCG3PA Chip This High Power Dual Port Industrial PCBA uses the Cypress CCG3PA, a highly integrated USB-C port controller that complies with the latest USB-C and PD standards. Intended for use in PC power adapters, mobile chargers, car chargers and power bank applications. This charging board provides one USB Type-C PD port and one USB Type-A QC 3.0 port for legacy charging. USB Type-C PD 3.0 with Programmable Power Supply Capability BC v1.2, Apple Charging, Qualcomm Charging 4.0, Samsung AFC System-Level ESD Protection 32-bit MCU Subsystem High Power 60W USB-C PD PCBA with Cypress CCG3PA Chip This High Power Dual Port Industrial PCBA uses the Cypress CCG3PA, a highly integrated USB-C port controller that complies with the latest USB-C and PD standards. Intended for use in PC power adapters, mobile chargers, car chargers and power bank applications. The CGL-CCG3PAv3 charging board provides one USB Type-C PD port and one USB Type-A QC 3.0 port for legacy charging. With 12~24Volt DC input range, this device provides USB-C PD profiles up to 20V and Type-A with true support for QC 3.0 as well as Samsung/LG/Apple fast charging up to 2.4A. The CGL-CCG3PAv3 PCBA also comes equipped with integrated voltage regulation, system-level fault and ESD protection. Supports USB-PD 3.0 including Programmable Power Supply Programmable Power Supply (PPS) capability allows for small incremental changes in voltage and current. PPS capability allows for constant current charging (with gradual voltage increase), followed by constant voltage charging (with gradual current reduction). The USB-PD 60W PCBA supports 5~20V PD profiles on the Type-C Port with 60 Watt maximum output. It connects to a standard 12V automotive power input or industrial 24V power input via 2-Pin Phoenix Connector. Compatible with ALL USB power delivery devices. 60W PCBA Dual Port Charger Dual USB Port Industrial Charger PCBA: USB-C (Type-C) port with power delivery with QC 4.0 and USB-A QC 3.0 Port USB-A with Quick Charge 3.0 technology that provides up to 18W of charging power and a USB-C with Power Delivery CYPD CCG3PA Chipset provides up to 60W. Over Voltage Protection (OVP), Over Current Protection (OCP) Item Dimensions: 49.00 mm(L) x 45.00 mm(W) x 11.92 mm(H) Power Output Specifications 60 Watts USB-C PD (5V/3A, 9V/3A, 15V/3A, 20V/3A) 18 Watts USB-A QC 3.0 (12V 1.5A, 9V 2A, 5V 3A) 78 Watts Peak Total Combined Power Output (Recommended 75 Watts Total Combined Output) The innovative, high-performance, universal 60W PCBA allows for one of the fastest and most efficient charging experiences for new Macbook / Macbook Pro, Chromebook, and all other USB-C laptops and notebooks. Power Delivery (PD) Safety: With the built-in Cypress PD chipset, our product dynamically detects devices to deliver optimum power level for maximum battery life and performance. Equipped with advanced circuit protection to prevent over charging to your device. Power Delivery (PD) with Programmable Power Supply (PPS): Intelligently detects your device and delivers the optimal Voltage/current for a specific device. Meets new energy efficiency requirements of DOE Level VI - the highest energy efficiency rating. Tested Devices by our Customers using this Circuit: galaxy s9, galaxy s10, galaxy note 8, galaxy note 5, galaxy note 4, galaxy note 3, galaxy note 2, galaxy s8 ,galaxy s8+, galaxy s7, galaxy s7 edge, galaxy s6, galaxy s6 edge, galaxy s5, galaxy s5 active, iphone 8, iphone 8 plus, iphone 7s, iphone 7s plus, iphone 7, iphone 7 plus, iphone 6s, iphone 6, iphone 6s plus, iphone 6 plus, iphone se, iphone 5, iphone 5s, iphone 5c, ipad, ipad mini, ipad air, ipad pro, ipad retina, htc one a9, htc 11, htc 10, htc one m9, htc one m8, htc one m7, sony xperia, motorola, moto e, moto g, oneplus 6, one plus2, lg g6, lg g5, lg g4, lg g3, lg g pad, nexus 5, nexus 6p, nexus 5x, google pixel, pixel xl, pixel 2, pixel 2 xl ,hp elite x3, lg v20, lg v10, zte axon 7, zenfone 3 dexluxe, universal, phone, tablet, gps, bluetooth speaker, powerbank, portable charger, backup battery, notebook, chromebook, laptop, speakers Identifier UPC 045079161375 Product Type Adapters > USB C Adapters > Power Delivery Power Input Voltage +12~24V DC Mechanical Color Black Item Dimensions (L × W × H) 49 x 45 x 11.92mm (LxWxH) Ports 2 USB Ports USB USB Type Type-C PD Profile Support Voltage Profiles 5V/3A, 7V/2.5A, 9V/3A, 12V/3A, 15V/3A, 20V/2.99A Weight 0.037 lbs Dimensions 2.750 × 2.000 × .500 in UPC 045079161375 Product Type Adapters > USB C Adapters > Power Delivery Input Voltage +12~24V DC Color Black Item Dimensions (L × W × H) 49 x 45 x 11.92mm (LxWxH) Ports 2 USB Ports USB Type Type-C Voltage Profiles 5V/3A, 7V/2.5A, 9V/3A, 12V/3A, 15V/3A, 20V/2.99A Weight 0.037 lbs Dimensions 2.750 × 2.000 × .500 in
• Dual USB Port High Power Industrial Charger PCB
• USB-A with Quick Charge 3.0 technology
• 60 Watt Max Power Delivery through the Type C port (5V 3A, 7V 2.5A, 9V 3A, 12V 3A, 15V 3A, 20V 2.99A)
• 18 Watts USB-A charging supports (12V 1.5A, 9V 2A, 6V 3A) profiles.
• Built-in PD Chip set dynamically detects devices to deliver optimum power level.
Model: CGL-CCG3PAv3
Color: Black
USB 60W PCBA - Type-C Power Delivery and Legacy Charging with Cypress CCG3PA Chip This High Power Dual Port Industrial PCBA uses the Cypress CCG3PA, a highly integrated USB-C port controller that complies with the latest USB-C and PD standards. Intended for use in PC power adapters, mobile chargers, car chargers and power bank applications. This charging board provides one USB Type-C PD port and one USB Type-A QC 3.0 port for legacy charging. USB Type-C PD 3.0 with Programmable Power Supply Capability BC v1.2, Apple Charging, Qualcomm Charging 4.0, Samsung AFC System-Level ESD Protection 32-bit MCU Subsystem High Power 60W USB-C PD PCBA with Cypress CCG3PA Chip This High Power Dual Port Industrial PCBA uses the Cypress CCG3PA, a highly integrated USB-C port controller that complies with the latest USB-C and PD standards. Intended for use in PC power adapters, mobile chargers, car chargers and power bank applications. The CGL-CCG3PAv3 charging board provides one USB Type-C PD port and one USB Type-A QC 3.0 port for legacy charging. With 12~24Volt DC input range, this device provides USB-C PD profiles up to 20V and Type-A with true support for QC 3.0 as well as Samsung/LG/Apple fast charging up to 2.4A. The CGL-CCG3PAv3 PCBA also comes equipped with integrated voltage regulation, system-level fault and ESD protection. Supports USB-PD 3.0 including Programmable Power Supply Programmable Power Supply (PPS) capability allows for small incremental changes in voltage and current. PPS capability allows for constant current charging (with gradual voltage increase), followed by constant voltage charging (with gradual current reduction). The USB-PD 60W PCBA supports 5~20V PD profiles on the Type-C Port with 60 Watt maximum output. It connects to a standard 12V automotive power input or industrial 24V power input via 2-Pin Phoenix Connector. Compatible with ALL USB power delivery devices. 60W PCBA Dual Port Charger Dual USB Port Industrial Charger PCBA: USB-C (Type-C) port with power delivery with QC 4.0 and USB-A QC 3.0 Port USB-A with Quick Charge 3.0 technology that provides up to 18W of charging power and a USB-C with Power Delivery CYPD CCG3PA Chipset provides up to 60W. Over Voltage Protection (OVP), Over Current Protection (OCP) Item Dimensions: 49.00 mm(L) x 45.00 mm(W) x 11.92 mm(H) Power Output Specifications 60 Watts USB-C PD (5V/3A, 9V/3A, 15V/3A, 20V/3A) 18 Watts USB-A QC 3.0 (12V 1.5A, 9V 2A, 5V 3A) 78 Watts Peak Total Combined Power Output (Recommended 75 Watts Total Combined Output) The innovative, high-performance, universal 60W PCBA allows for one of the fastest and most efficient charging experiences for new Macbook / Macbook Pro, Chromebook, and all other USB-C laptops and notebooks. Power Delivery (PD) Safety: With the built-in Cypress PD chipset, our product dynamically detects devices to deliver optimum power level for maximum battery life and performance. Equipped with advanced circuit protection to prevent over charging to your device. Power Delivery (PD) with Programmable Power Supply (PPS): Intelligently detects your device and delivers the optimal Voltage/current for a specific device. Meets new energy efficiency requirements of DOE Level VI - the highest energy efficiency rating. Tested Devices by our Customers using this Circuit: galaxy s9, galaxy s10, galaxy note 8, galaxy note 5, galaxy note 4, galaxy note 3, galaxy note 2, galaxy s8 ,galaxy s8+, galaxy s7, galaxy s7 edge, galaxy s6, galaxy s6 edge, galaxy s5, galaxy s5 active, iphone 8, iphone 8 plus, iphone 7s, iphone 7s plus, iphone 7, iphone 7 plus, iphone 6s, iphone 6, iphone 6s plus, iphone 6 plus, iphone se, iphone 5, iphone 5s, iphone 5c, ipad, ipad mini, ipad air, ipad pro, ipad retina, htc one a9, htc 11, htc 10, htc one m9, htc one m8, htc one m7, sony xperia, motorola, moto e, moto g, oneplus 6, one plus2, lg g6, lg g5, lg g4, lg g3, lg g pad, nexus 5, nexus 6p, nexus 5x, google pixel, pixel xl, pixel 2, pixel 2 xl ,hp elite x3, lg v20, lg v10, zte axon 7, zenfone 3 dexluxe, universal, phone, tablet, gps, bluetooth speaker, powerbank, portable charger, backup battery, notebook, chromebook, laptop, speakers Identifier UPC 045079161375 Product Type Adapters > USB C Adapters > Power Delivery Power Input Voltage +12~24V DC Mechanical Color Black Item Dimensions (L × W × H) 49 x 45 x 11.92mm (LxWxH) Ports 2 USB Ports USB USB Type Type-C PD Profile Support Voltage Profiles 5V/3A, 7V/2.5A, 9V/3A, 12V/3A, 15V/3A, 20V/2.99A Weight 0.037 lbs Dimensions 2.750 × 2.000 × .500 in UPC 045079161375 Product Type Adapters > USB C Adapters > Power Delivery Input Voltage +12~24V DC Color Black Item Dimensions (L × W × H) 49 x 45 x 11.92mm (LxWxH) Ports 2 USB Ports USB Type Type-C Voltage Profiles 5V/3A, 7V/2.5A, 9V/3A, 12V/3A, 15V/3A, 20V/2.99A Weight 0.037 lbs Dimensions 2.750 × 2.000 × .500 in
• Dual USB Port High Power Industrial Charger PCB
• USB-A with Quick Charge 3.0 technology
• 60 Watt Max Power Delivery through the Type C port (5V 3A, 7V 2.5A, 9V 3A, 12V 3A, 15V 3A, 20V 2.99A)
• 18 Watts USB-A charging supports (12V 1.5A, 9V 2A, 6V 3A) profiles.
• Built-in PD Chip set dynamically detects devices to deliver optimum power level.
Model: CGL-CCG3PAv3
Color: Black
