Brand: Coolgear

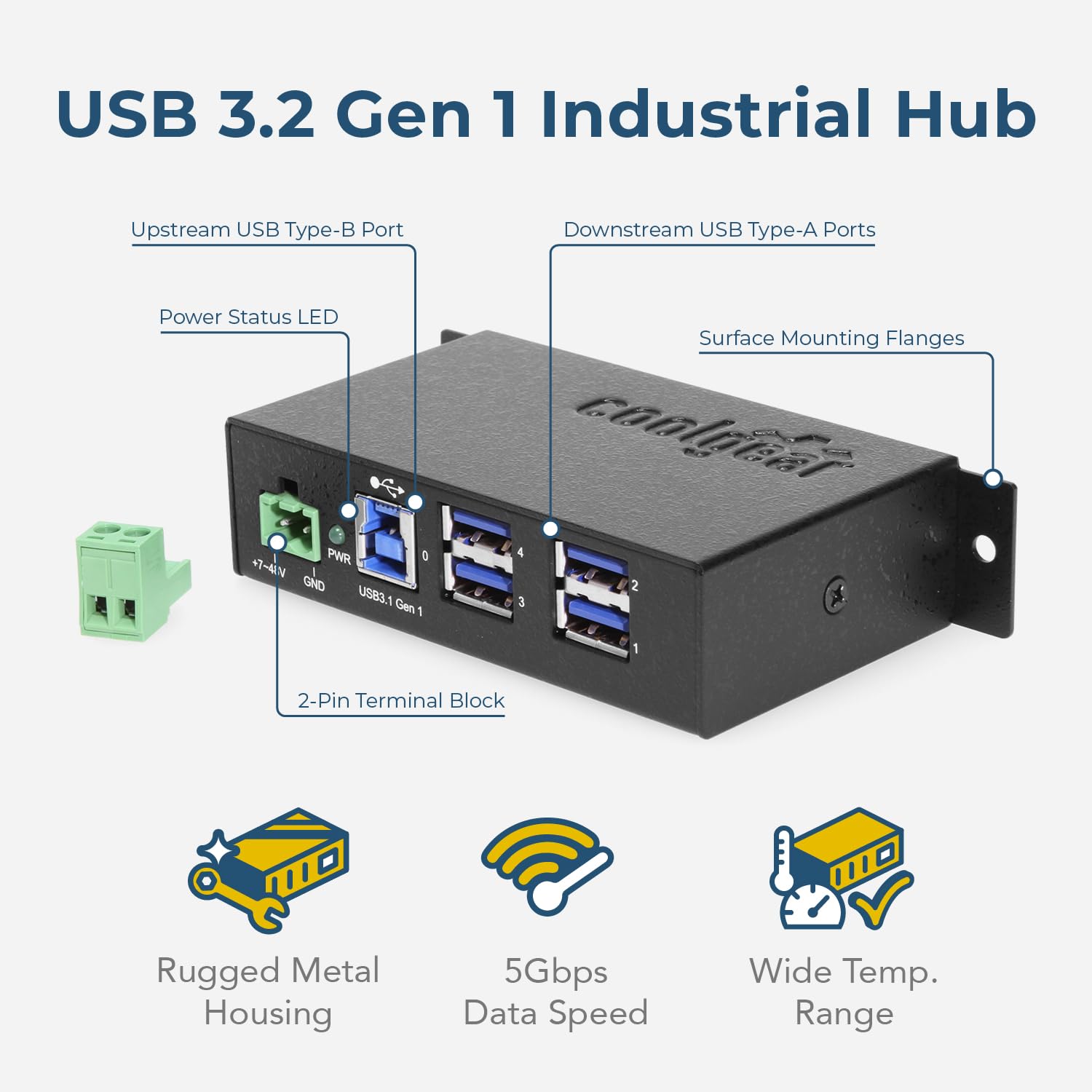

Industrial Grade | +7~48V DC Input | Surface Mountable | DIN Rail | 5 Gbps | LED Indicators Protect Your Equipment: The 4-port USB 3.2 Gen 1 features 15kV ESD surge protection per port to keep your connected peripherals safe from harm. Super Fast Speeds: This USB hub is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1. Superior Build Quality: Housed in a rugged steel chassis with built in mountable flanges, the 4-port hub is perfect for installations in offices, labs, warehouses, heavy machinery, automation equipment, and other industrial applications. Upstream: 1 USB port, Type B connector Downstream: 4 USB ports, Type A connectors Power Connector: 2-Pin Terminal Block Mounting Options: Wall, Surface, and DIN Rail Supply Current: 900mA USB Bus Power for Each Down-stream Port Description Introduction: The Coolgear USB 3.2 Gen 1 hub is a 4 port industrial hub with a small form factor that accommodates up to 5Gbps of data transmission. It’s both surface and DIN Rail mountable with its included DIN Rail clips and screws. It supports Windows 7, 8, 8.1, 10, 11 Linux, and Mac OS10.X operating systems and supports 5 hops to cascade with other hubs. The USB 3.2 Gen 1 4 port hub is small enough to fit in the palm of your hand yet can handle large amounts of super-speed data from its downstream ports. Each of the USB 3.2 Gen 1 ports supports the battery charging specification 1.2 for normal charging at .900mA per port. Normal charging allows the USB hub to charge low power devices that depend on charging to operate. Operating USB equipment such as printers, scanners, portable drives, virtual reality gear and others are not a problem with this USB 3.2 Gen 1 hub. Package Contents USB 3.2 Gen 1 Port Hub DIN Rail Clip and Mounting Screws 6ft. USB A to B USB 3.2 Gen 1 Cable Features: Supports systems with USB 3.2 Gen 1, 2.0, 1.1 ports LED indicator for power Provides 4 downstream ports supporting 5Gbps data speeds Compliant with USB 3.2 Gen 1 specifications Provides 1 upstream port to the host computer Backward compatible with data speeds of up to 5Gbps Super-Speed, 480Mbps High-Speed, and 12Mbps Full-Speed, and 1.5Mbps Low-Speed BC 1.2 compliant for normal charging Supports 15KV ESD surge protection for each port Dimensions: 3.74in(L) x 2.26in(W) x 1.03in(H) (9.49 x 5.73 x 2.63 cm) (length with ears 4.50in) Hub Weight: .431 lbs. Multi transaction translators (TT) per hub Supports +7 - 48V DC wide range self-power input (power adapter sold separately) Supports a 2-pin Terminal Block Connector for External power input from AC adapter Environmental Information: Operating Temp.: 0 - 70 C (32 to 150 F) Storage Temp.: -20 to 85 C (-4 to 185 F) Operating Humidity: 5 to 95% RH Package Contents: USB 3.2 Gen 1 4 Port Hub DIN Rail Clip and Mounting Screws 6ft. USB A to B USB 3.2 Gen 1 Cable *Surface Mounting screws not included. Specifications Product Specifications Environmental Operating Temperature 0°C to 70°C (32°F to 158°F) Storage Temperature -20°C to 85°C (-4°F to 185°F) Humidity 5% ~ 95% (non-condensing) Performance ESD Protection 15KV Surge Protection for Each Port Isolated/Surge Protected Yes Max Data Transfer Rate 5Gbps Over Current Protection Y Over Voltage Protection Y per buck Hardware Chipset GL 3523 Charging Protocols BC 1.2, Charging Downstream Port (CDP) LED Indicators Power Per USB Port Current 900mA maximum Product Information Warranty 1 year from date of purchase Power Input Voltage +7~48V DC Over Current Protection Y Over Voltage Protection Y per buck Power Source 2-Pin Terminal Block, AC Adapter Not Included Idle Consumption 7mA @ 12V Terminal Power, 9.4mA Bus Powered External Power Required No Software OS Support Win 11, Linux, Mac OSX, Win 10, Win 7, Win 8 What's in the Box Package Contents 2-Pin Terminal Block, DIN Rail Clip(s), Hub, Screw Pack, USB-A to USB-B Cable USB USB Type USB 3.2 Gen 1 Upstream USB Ports 1 Type-B Female USB Downstream USB Ports 4 Type-A Female USB Isolated/Surge Protected Yes Mechanical Color Black Item Dimensions (L × W × H) 4.50 × 2.26 × 1.03 in. Item Weight 0.431 lbs. Mounting Style Surface / Wall Mount, Din-Rail Mount Ports 4 USB Ports Material of Construction Galvanized Steel Compliance Country of Origin Taiwan Certifications REACH, RoHS Other Data UPC 736983900173 Series DRS-UH (DIN-Rail Series Hubs) Weight 1.243 lbs Dimensions 9.000 × 6.625 × 1.625 in UPC: 736983900173

• ADVANCE PROTECTION - The 4 port USB 3.1 hub protects your device with advanced 15KV ESD protection. Built in Surge protection gives you safety and insurance that your connected devices will be protected.
• SUPER FAST SPEEDS - This 4 port USB hub is 3.1 compliant guaranteeing super-fast speeds data transfer speeds of 5Gbps. Backward compatible Super-Speed, 480Mbps High-Speed, and 12Mbps Full-Speed, and 1.5Mbps Low-Speed

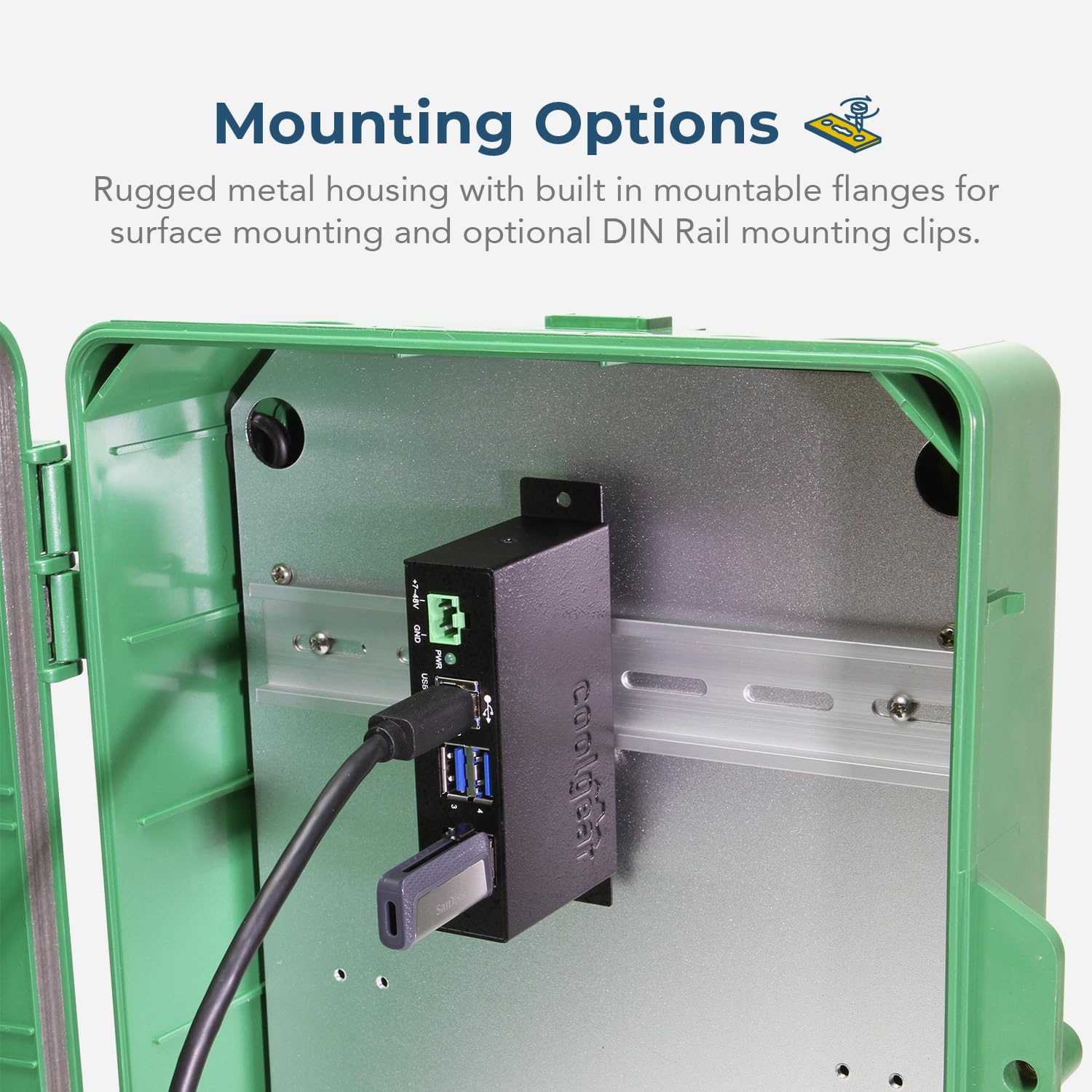

• MOUNTING OPTIONS - With an industrial rugged metal chassis and built-in DIN rail mountable brackets. This device allows for flexible and secure installations options.
• POWERED DEVICE - Supports +7 - 48V DC wide range self-power input and 2-pin Terminal Block Connector for External power input from AC adapter (power adapter sold separately)
• WHY COOLGEAR? Your Trusted Partner based in the USA, Providing Advanced Engineering, Highly Reliable and Superior Built Products to handle the most demanding industries for over 20 years. Reach out to us for CAD, Mechanical Drawings and, Data Sheets.

Color: Black

Connector: B073XV65M4
