Brand: COMPUPORT CENTRE INC

CompuPort Wide Band 5dbi 698-960/1710-3500Mhz 5G 4G LTE Omni Directional Antenna with SMA Male Connector for Microhard, Sierra, Digi, Multitech, Cradlepoint, HUAWEI, and any SMA wireless 5G Modems <Br><Br> <B>Specifications:</B><Br> Frequency(MHz): 698-960/1710-3500<Br> VSWR: ? 2.0<Br> Gain(dBi): 5<Br> Maximum Input Power: 5W<Br> Input Impedance(?): 50<Br> Polarization: Vertical<Br> Antenna Length(mm): 172<Br> Connector: SMA Male <Br> Storage Temperature: -30°C to+75°C<Br> Operating Temperature: -30°C to+75°C<Br><Br> <B>FEATURE:</B><Br> The 5G Whip Antenna is vertically polarized with an omnidirectional radiation pattern.<Br> These antennas are intended for demonstration use or short-range communications only.<Br> It does not require a ground plane to connect to.<Br> It has a quality ABS housing for use with 5G/4G/LTE terminals.<Br> Linear polarized antenna can be made very small and lightweight, especially useful for weight-critical applications <Br> It can be used straight or hinged 90 degrees.<Br> The antenna has a wide-band response and can also be used for other cellular and wireless applications such as GSM, LTE 5G, UMTS, and WI-FI.<Br>

Features:

• CompuPort 5G/LTE whip-style antenna with an SMA male connector is designed to enhance the signal reception for cellular modems operating on 5G and LTE networks. Its low-profile design makes it suitable for use in various environments where space might be limited or a more discreet antenna is desired.
• Broadband Coverage: Supports multiple frequency bands used by 5G and LTE networks, which ensures compatibility with a wide range of modems and carriers. Frequency range of 698-960/1710-3500Mhz
• CompuPort 5G Antennas offers an extremely low latency rate. The specification for true 5G calls for about 1 millisecond, while 4G’s ideal rate is 10ms. Huge difference.

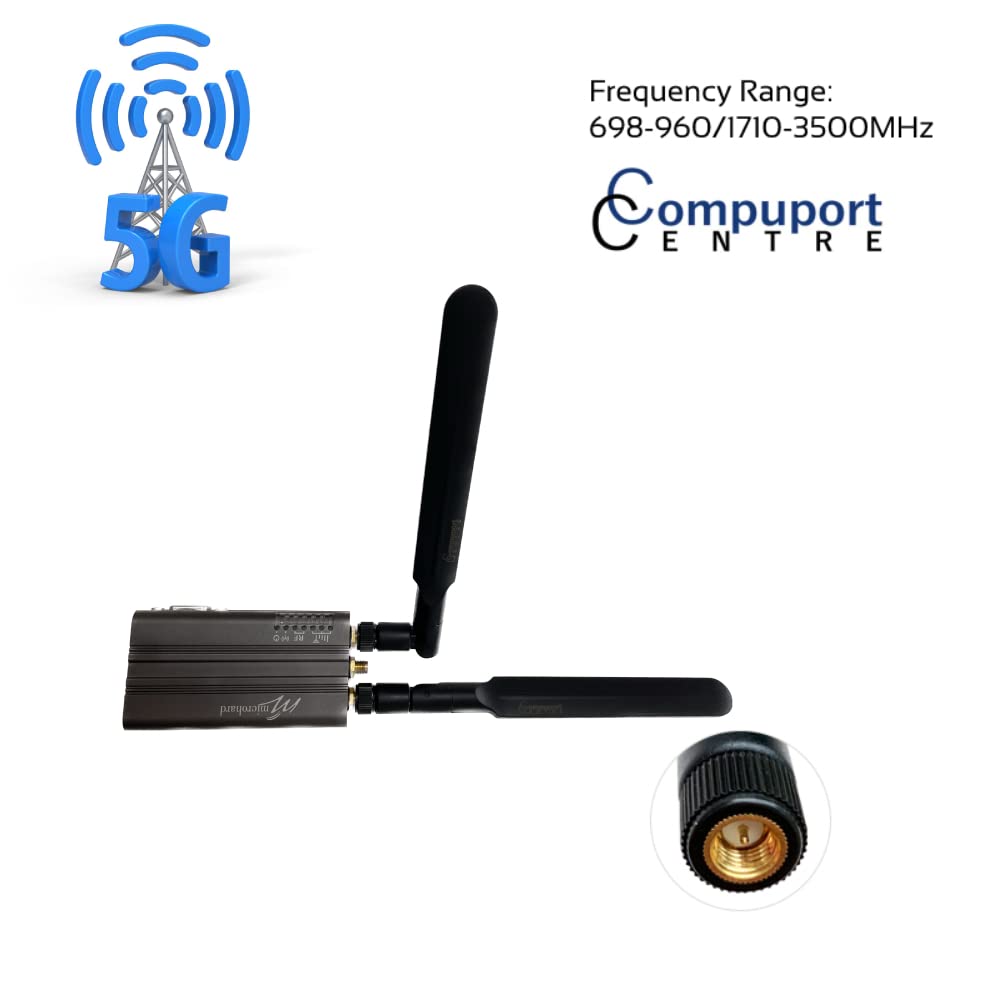

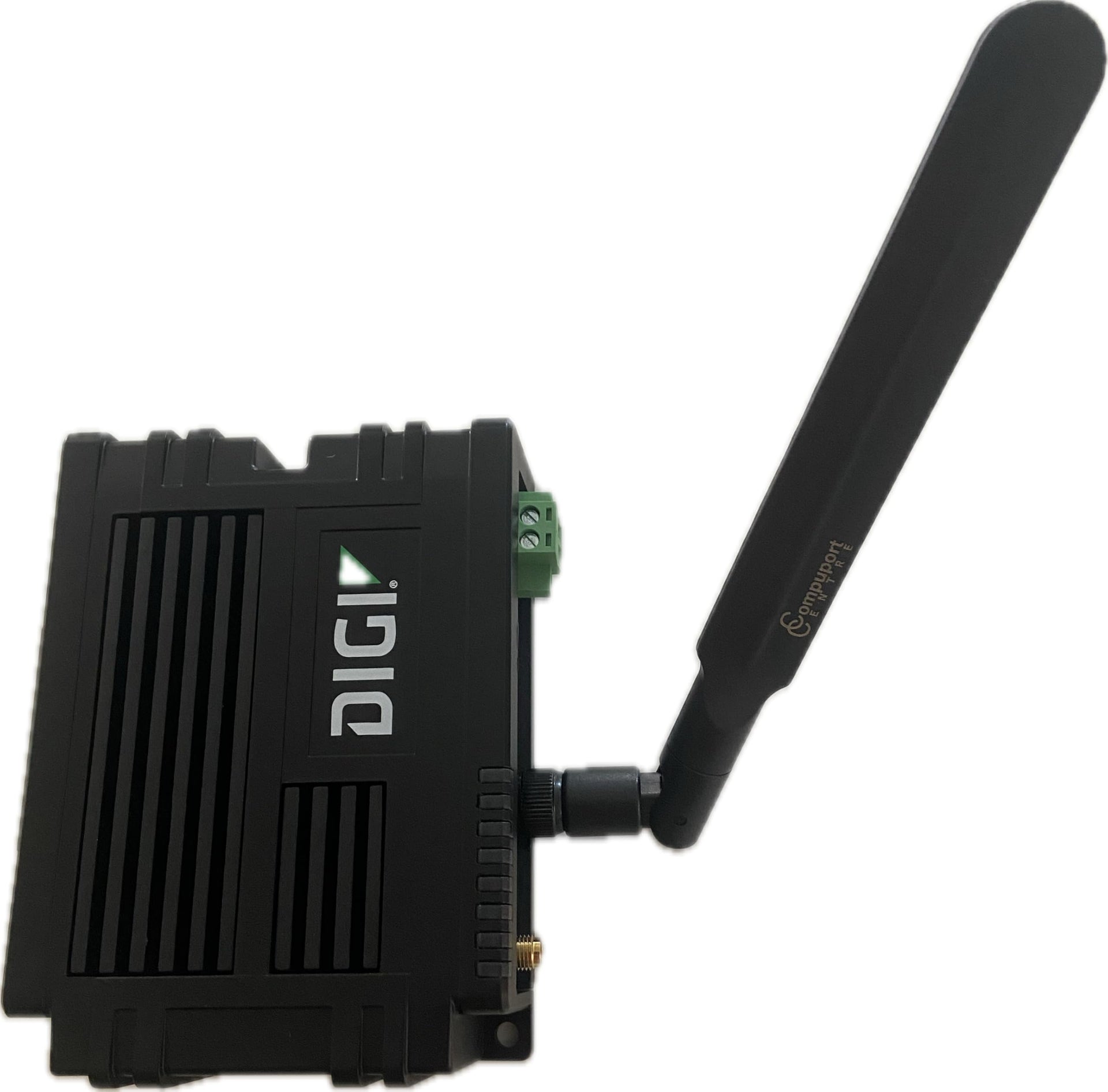

• Wireless Paddle LTE Antenna compatible with Microhard Bullet, Bullet LTE, IPN4Gii, Cube and Sierra Airlink MG90, MP70, RV55, RV50X, LX40, LX60 and any Wireless 4G Modems/Gateways
• Whip Style: The whip design generally allows for good omnidirectional signal reception, meaning it can receive signals from all directions, which is useful in various mounting scenarios.
• SMA Male Connector: This is a standard connector type for many cellular modems, ensuring a secure and stable connection between the antenna and the modem.

Product Details:

• Color: Black
• Size: Small
• Model: CPC-Q7027
• Package Quantity: 1
