Description
Brand: CNDST
***Camera was set up to AHD already, if you need change AHD to TVI or CVI or CVBS, you can change on your DVR. But your DVR should be 1080P 4-in-1 AHD/CVI/TVI/CVBS, otherwise Camera will not work***
Main Features
Min. Illumination :StarLight 0.0001 Lux (F1.2)
Signal System: NTSC
Lens: Standard 3.6mm
Camera Type: Indoor/Outdoor
Power Supply: DC12V/75Ma
Specification Of the Camera:
Model: DST-30AHD
Horizontal Resolution 3.0 Mega Pixel 1080P NTSC : 1920*1080@30fps
Min. Illumination StarLight 0.0001 Lux (F1.2)
Signal System NTSC
Electronic Shutter NTSC:1/60~1/100000s
Max Transmission Distance Common 75-3 lines can be up to 500m
S/N Ratio More than 46dB
Gamma 0.45/1.0
Exposure Auto
OSD N/A
White Balance Auto White Balance
Backlight OFF/ON/BLC/ HLC
Pic Adjust Mirror/Brightness/Contrast /Sharpness/Hue/Gain
ATR ON/OFF
Motion Det OFF/ON(Detect sense/ Area Sel)
Privacy Masking OFF/ON (4 Zone)
Day/Nigh True Day and Night (Auto/ Day / Night / Ext. D&N)
2D-NR OFF/ON (0-15/16 level)
Camera ID OFF/ON
Sync.System Internal
Video Output 1 Vp-p / 75 Ohms
Working Conditions -20~60Degree/0-93% Humidity
Power Supply Support: DC12V 500mA
Package Dimensions(L x W x H): 4.06 x 3.15 x 2.24 inch
Package Weight: 200g
Package Include:
1 x Camera
1 x Manual
1 X Bracket

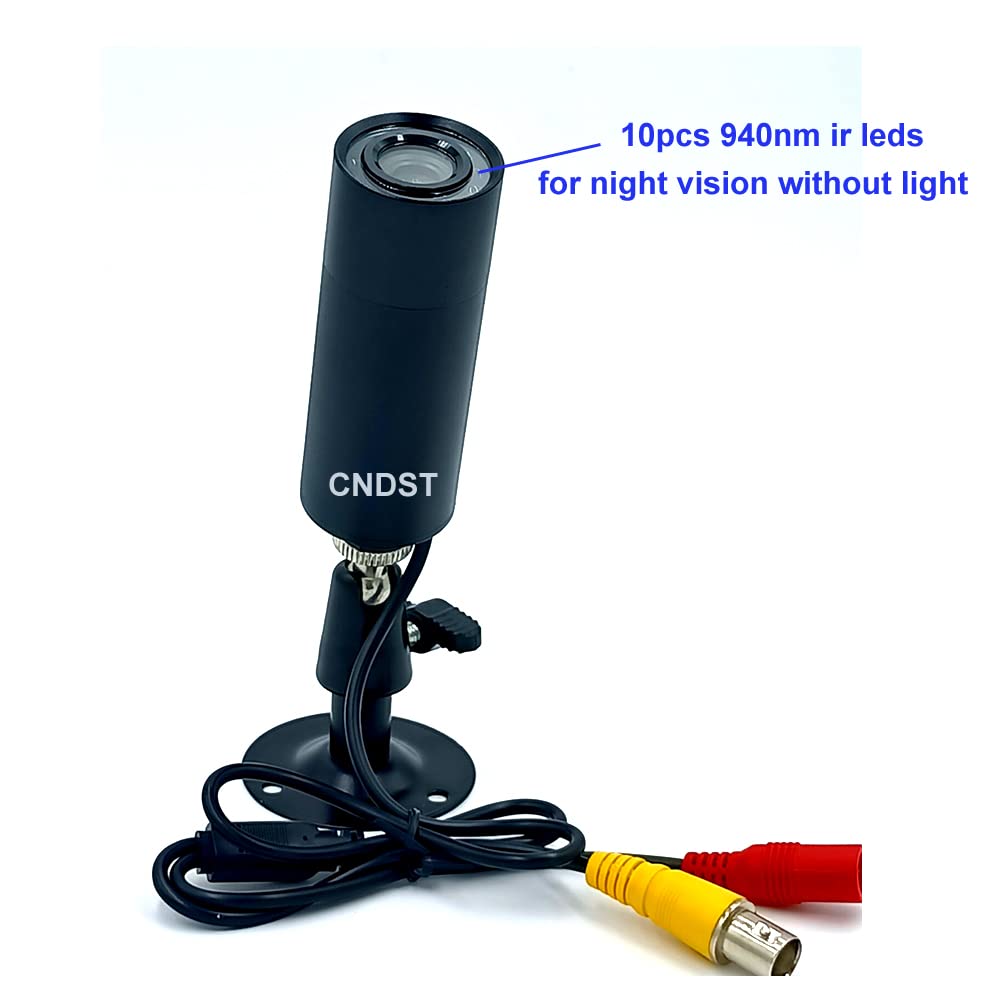

• Camera with 10pcs 940nm IR Leds for Night Vision without Light
• Pls use DC 12V 2A Power Adapter for this mini camera
• 2MP 1080P 2000TVL High Resolution Camera.
• Camera Size: Ø30mm X 80mm, Lens: f3.6mm 90 degree
• Mini in Size and Easy for Installation and Use
***Camera was set up to AHD already, if you need change AHD to TVI or CVI or CVBS, you can change on your DVR. But your DVR should be 1080P 4-in-1 AHD/CVI/TVI/CVBS, otherwise Camera will not work***
Main Features
Min. Illumination :StarLight 0.0001 Lux (F1.2)
Signal System: NTSC
Lens: Standard 3.6mm
Camera Type: Indoor/Outdoor
Power Supply: DC12V/75Ma
Specification Of the Camera:
Model: DST-30AHD
Horizontal Resolution 3.0 Mega Pixel 1080P NTSC : 1920*1080@30fps
Min. Illumination StarLight 0.0001 Lux (F1.2)
Signal System NTSC
Electronic Shutter NTSC:1/60~1/100000s
Max Transmission Distance Common 75-3 lines can be up to 500m
S/N Ratio More than 46dB
Gamma 0.45/1.0
Exposure Auto
OSD N/A
White Balance Auto White Balance
Backlight OFF/ON/BLC/ HLC
Pic Adjust Mirror/Brightness/Contrast /Sharpness/Hue/Gain
ATR ON/OFF
Motion Det OFF/ON(Detect sense/ Area Sel)
Privacy Masking OFF/ON (4 Zone)
Day/Nigh True Day and Night (Auto/ Day / Night / Ext. D&N)
2D-NR OFF/ON (0-15/16 level)
Camera ID OFF/ON
Sync.System Internal
Video Output 1 Vp-p / 75 Ohms
Working Conditions -20~60Degree/0-93% Humidity
Power Supply Support: DC12V 500mA
Package Dimensions(L x W x H): 4.06 x 3.15 x 2.24 inch
Package Weight: 200g
Package Include:
1 x Camera
1 x Manual
1 X Bracket
• Camera with 10pcs 940nm IR Leds for Night Vision without Light
• Pls use DC 12V 2A Power Adapter for this mini camera
• 2MP 1080P 2000TVL High Resolution Camera.
• Camera Size: Ø30mm X 80mm, Lens: f3.6mm 90 degree
• Mini in Size and Easy for Installation and Use
