Description
Brand: CenryKay
Performance parameters:
Input voltage range:3~35VDC(Note: the input voltage is less than 4V, voltmeter failure)
Input current:9A (max)
Output voltage range:3.5~35VDC(please to ensure that output voltage above on input voltage)
Output current: 6A (max)
Output power: 75W (when the input and output voltages greater than 20V up to 128W)
Conversion efficiency: 96.4% (max)
Voltmeter range: 4 to 40V, error ±0.1V
Short circuit protection: yes(limit current 14A). (Note: connected to high-power load, just switched on the impact of current very general meeting current limiting self-locking protection, it is recommended to be switched on firstly, and then access the load).
Input reverse polarity protection: None (if required, high current diode in series with the input).

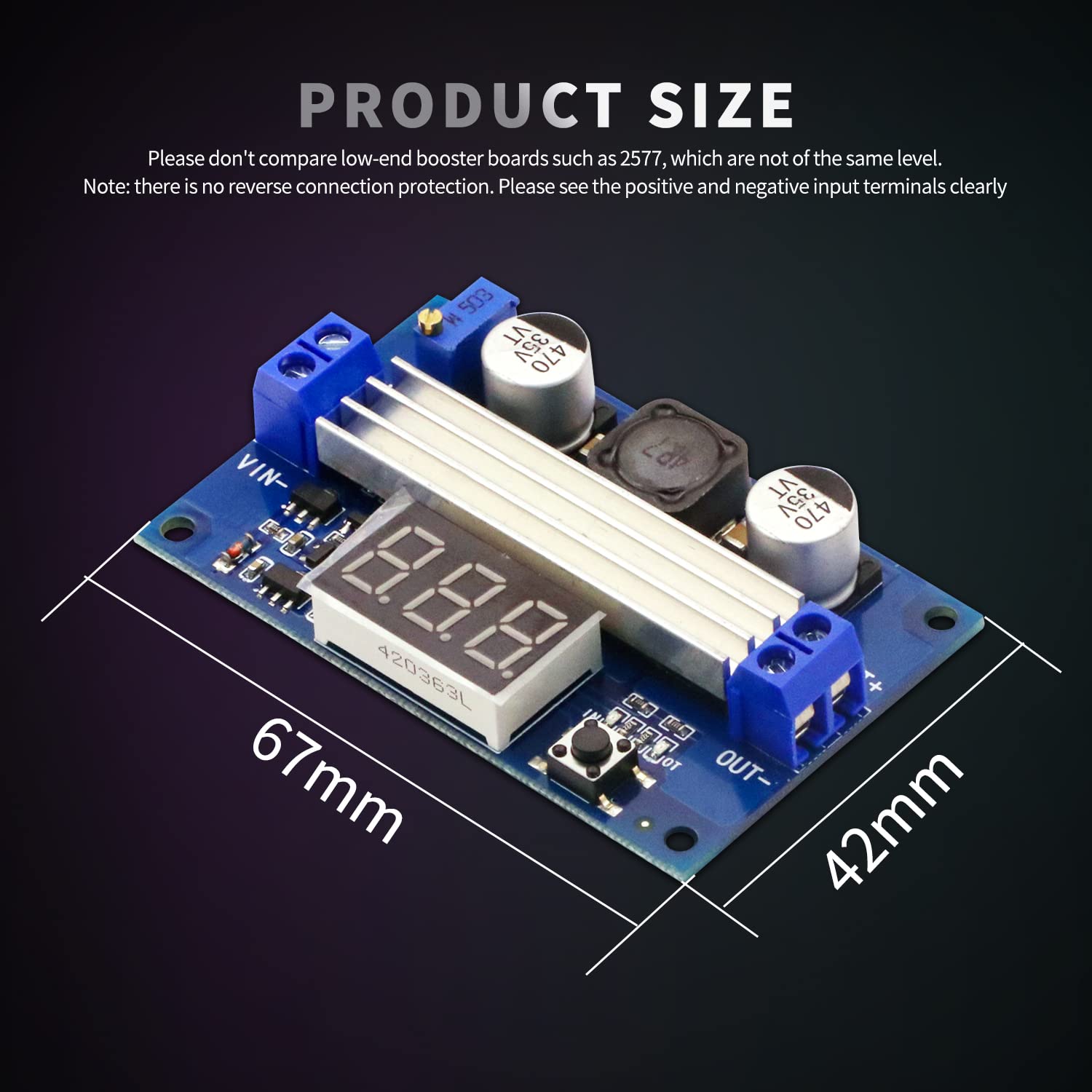

Size: 67 * 43 * 12mm (L x W x H)
Application:
DIY a regulated power supply, 5V input can be output 5-35V adjustable.
The power supply for your electronic equipment. For example, 3.7V lithium boost to 5V for mobile power; 7.4V or 12V boost to the laptop power supply to 19V.
As the vehicle power supply for your laptop, PDA or a variety of digital products supply.
Package Included:

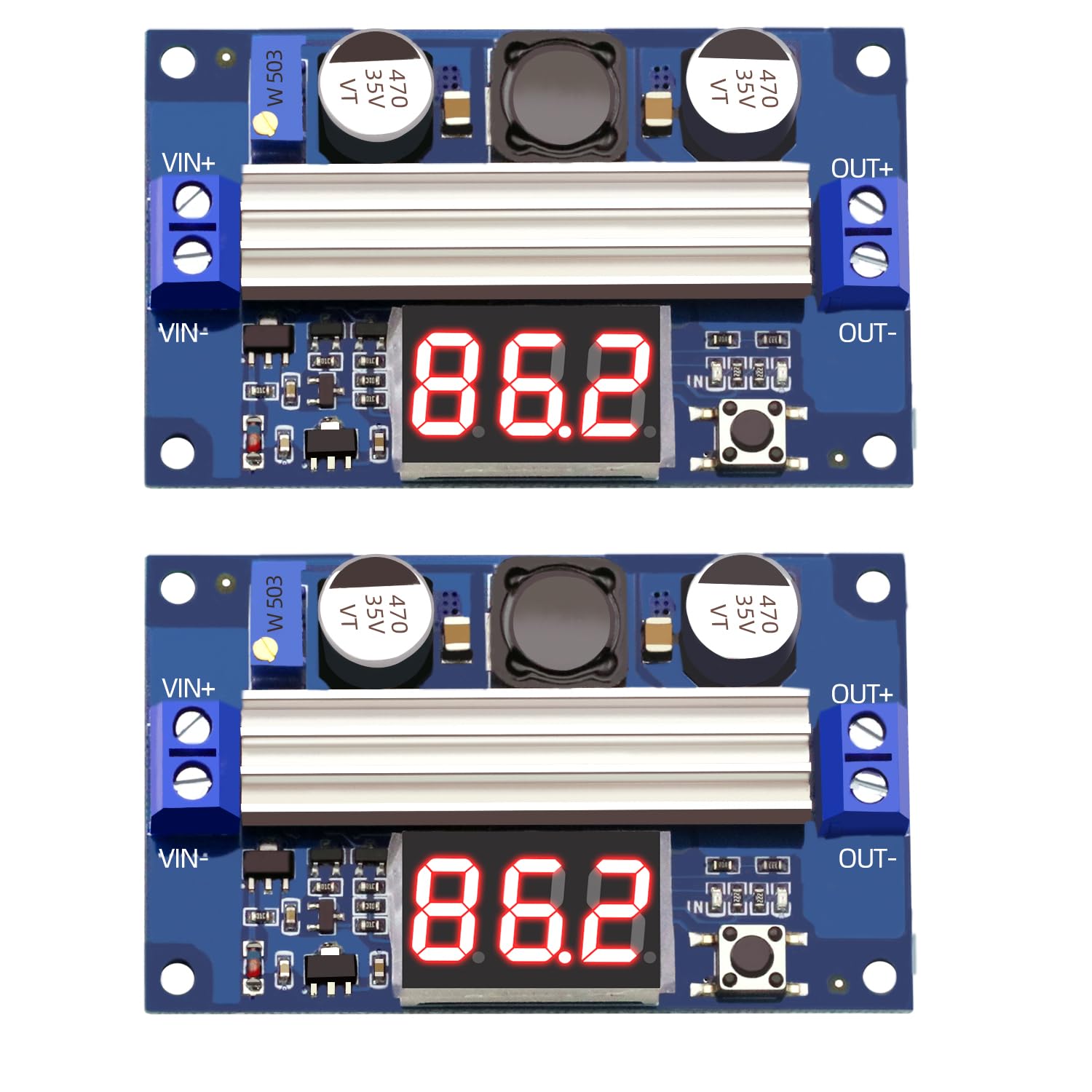

2*DC-DC Boost Step-up Voltage Converter Module

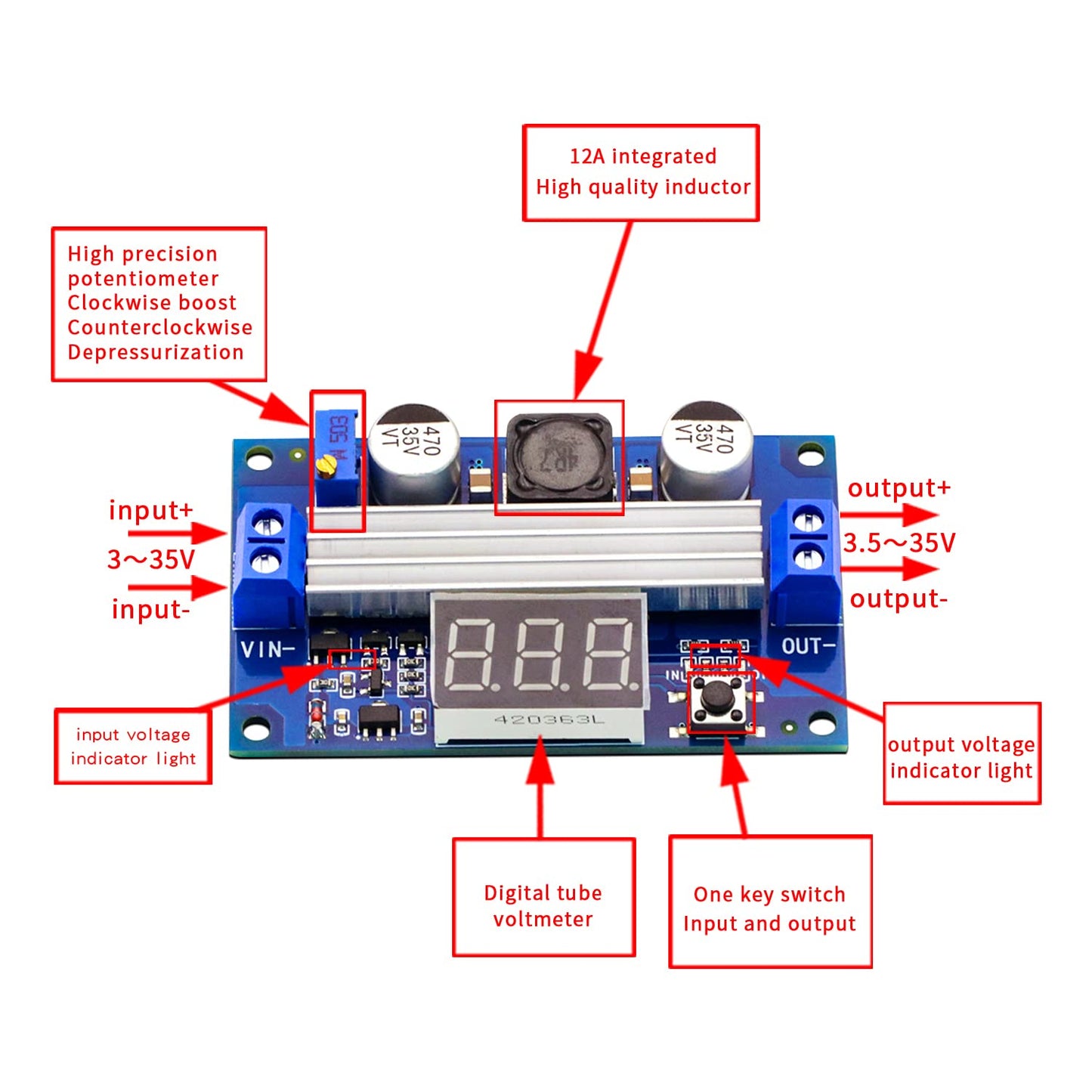

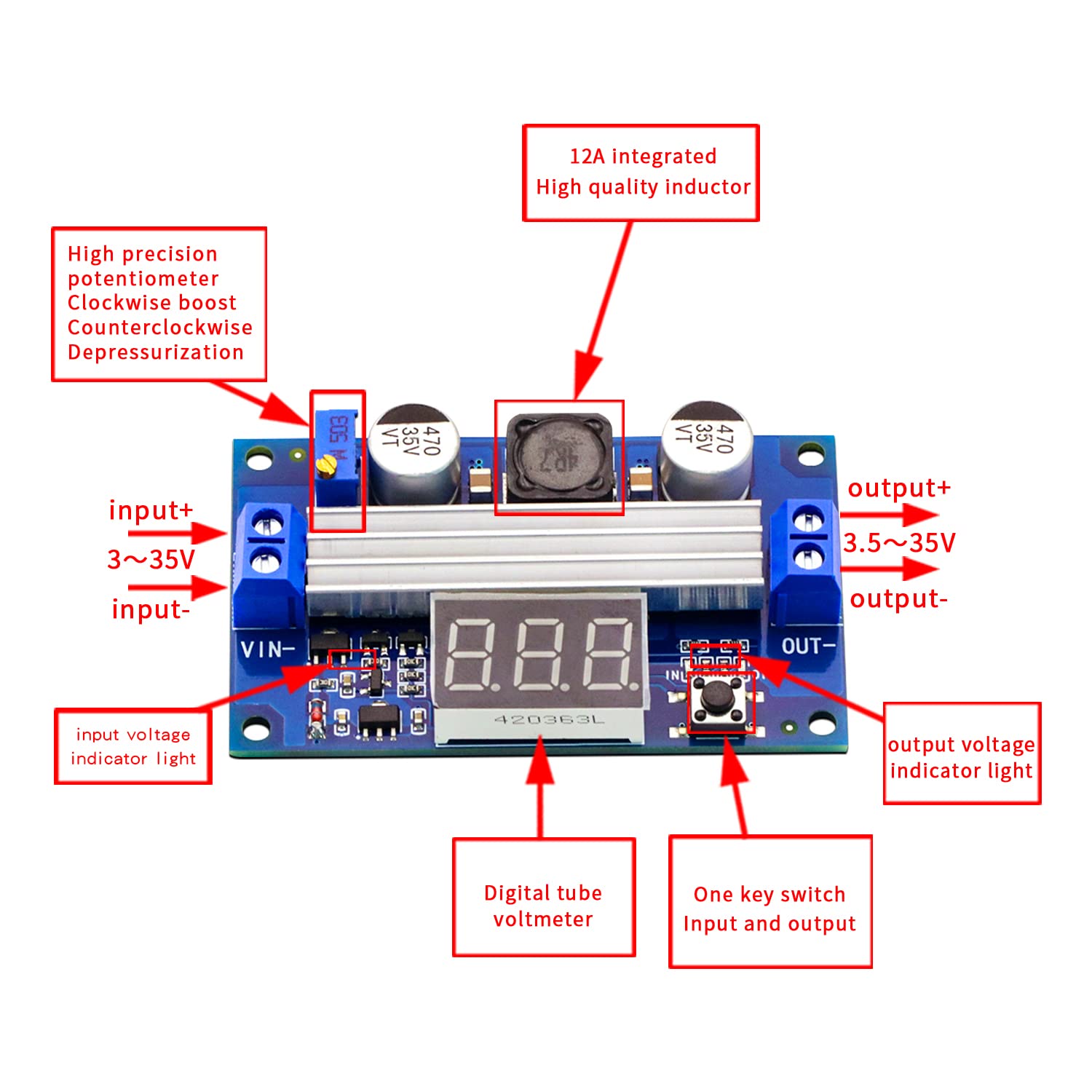

• ► The module adopts "12A-body molding superior inductance", which makes the input of the module The current can run stably for a long time within 7A (conservative parameter), greatly improving the performance of the module
• ►100W high power and high efficiency, with power indicator light! On-board voltmeter, the voltmeter can be self-calibrated, and there will be no inaccuracy of the voltmeter!
• ►By using the on-resistance of the power MOSFET to eliminate the current detection resistor, the efficiency is maximized, and the efficiency can reach 96.4%
• ►Wide voltage operation, when the input and output voltages are above 20V, the output power can reach 128W
• ►High-frequency, high-capacity, low-resistance (low ESR) aluminum electrolytic capacitors for long-life switching power supplies make the output ripple lower
Color: Boost Power
Performance parameters:
Input voltage range:3~35VDC(Note: the input voltage is less than 4V, voltmeter failure)
Input current:9A (max)
Output voltage range:3.5~35VDC(please to ensure that output voltage above on input voltage)
Output current: 6A (max)
Output power: 75W (when the input and output voltages greater than 20V up to 128W)
Conversion efficiency: 96.4% (max)
Voltmeter range: 4 to 40V, error ±0.1V
Short circuit protection: yes(limit current 14A). (Note: connected to high-power load, just switched on the impact of current very general meeting current limiting self-locking protection, it is recommended to be switched on firstly, and then access the load).
Input reverse polarity protection: None (if required, high current diode in series with the input).
Size: 67 * 43 * 12mm (L x W x H)
Application:
DIY a regulated power supply, 5V input can be output 5-35V adjustable.
The power supply for your electronic equipment. For example, 3.7V lithium boost to 5V for mobile power; 7.4V or 12V boost to the laptop power supply to 19V.
As the vehicle power supply for your laptop, PDA or a variety of digital products supply.
Package Included:
2*DC-DC Boost Step-up Voltage Converter Module
• ► The module adopts "12A-body molding superior inductance", which makes the input of the module The current can run stably for a long time within 7A (conservative parameter), greatly improving the performance of the module
• ►100W high power and high efficiency, with power indicator light! On-board voltmeter, the voltmeter can be self-calibrated, and there will be no inaccuracy of the voltmeter!
• ►By using the on-resistance of the power MOSFET to eliminate the current detection resistor, the efficiency is maximized, and the efficiency can reach 96.4%
• ►Wide voltage operation, when the input and output voltages are above 20V, the output power can reach 128W
• ►High-frequency, high-capacity, low-resistance (low ESR) aluminum electrolytic capacitors for long-life switching power supplies make the output ripple lower
Color: Boost Power
