Description
Brand: POMIACAM
? Camera test monitor Packing List:
camera CCTV Tester *1
AC/DC Adapter *1
Power Output Cable *1
Transformer *1
A/V Cable *1
Video Cable *1
Date Cable *1
Wristbands*1
?1. video tester
Video System: NTSC/PAL Automatically recognize
Video level: 1VPP

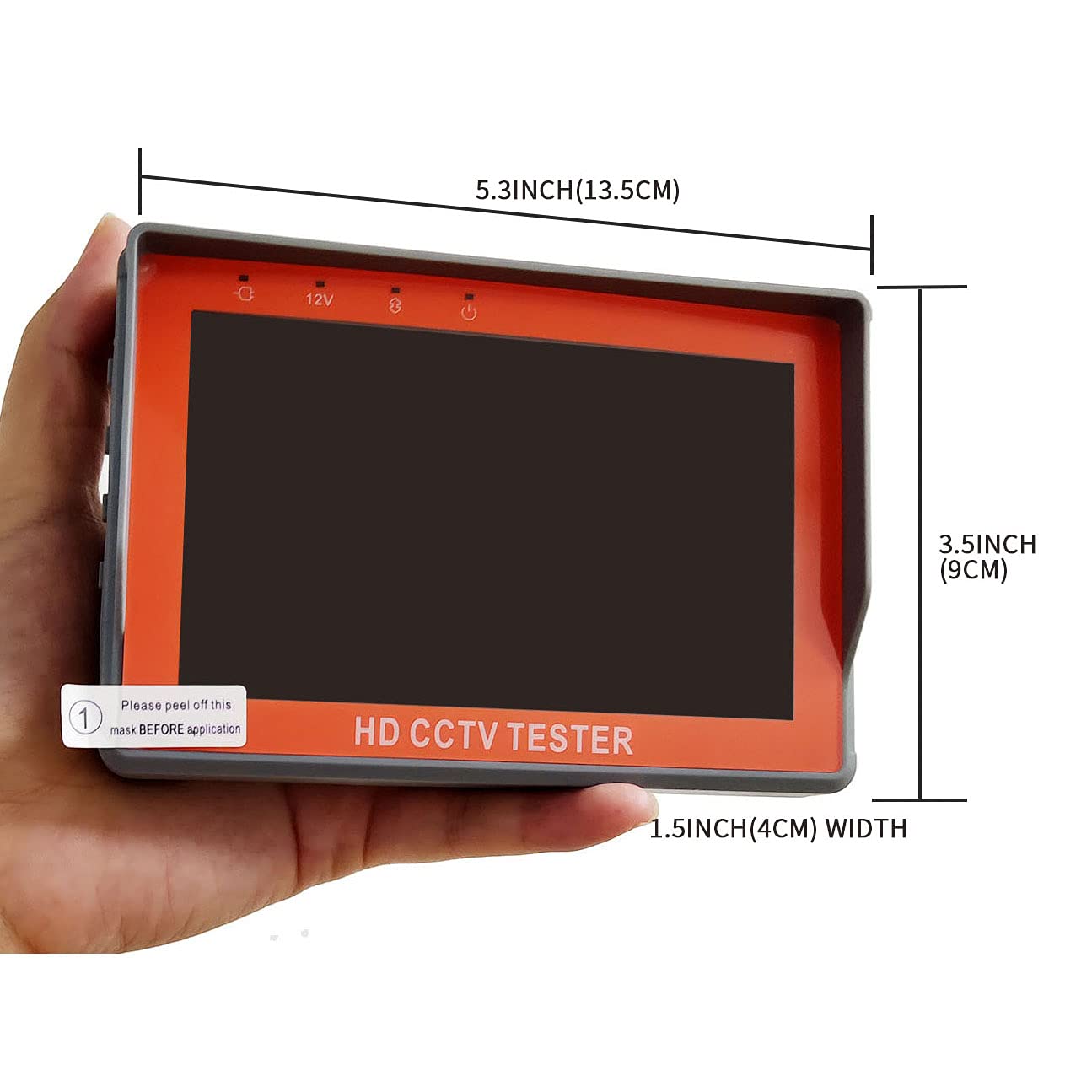

Display screen: 5 inch LCD RGB 480 * 272 (QVGA) resolution, 64K color
Screen adjustment: Video display brightness, contrast, color saturation adjustable,
LCD backlight brightness adjustable

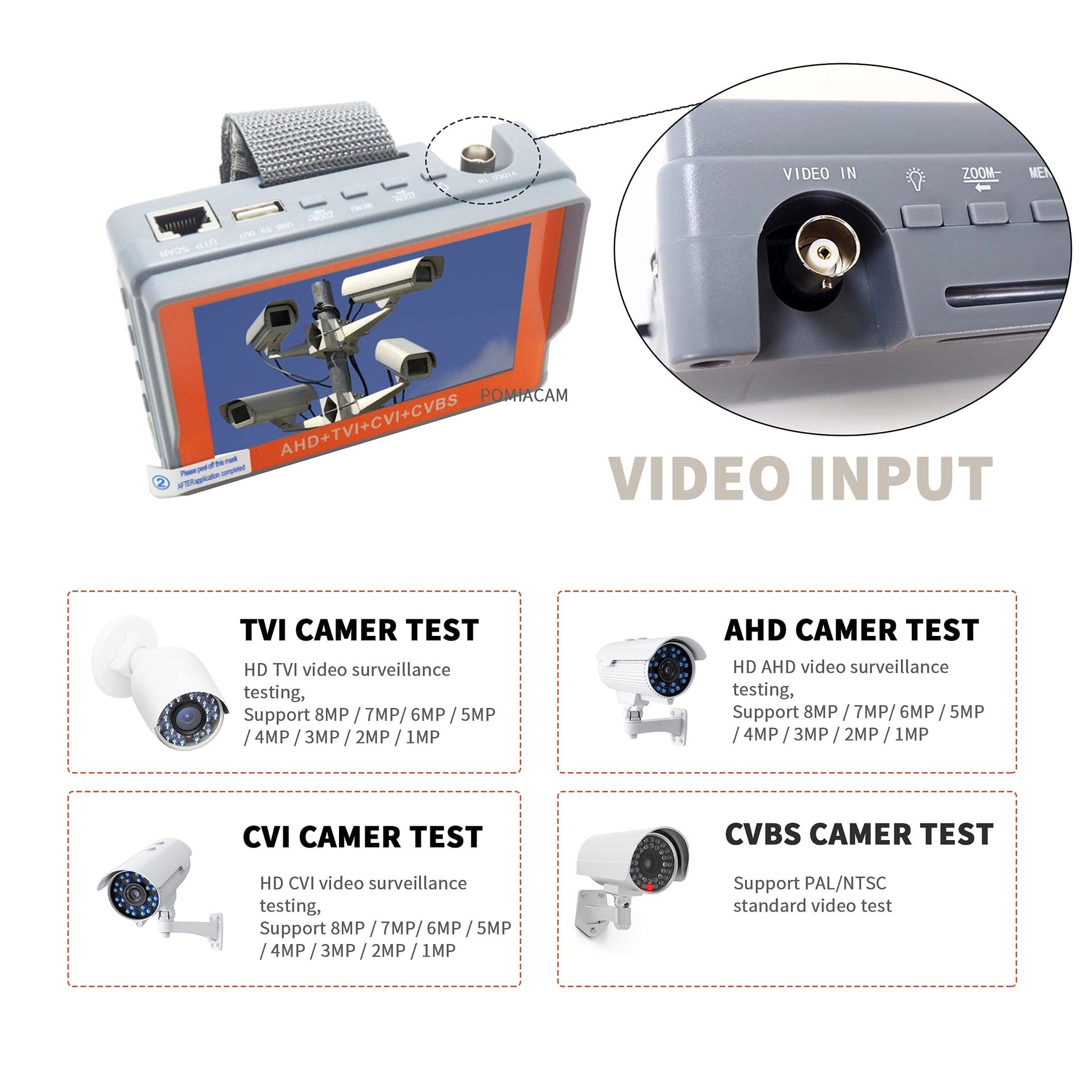

Video input / output: 1 channel BNC Video IN
?2. HD AHD ?TVI , CVI Test
SD signal Format: NTSC,PAL
Video signal: HD AHD,TVI,CVI,CVBS
Resolution :Max 8MP?
MAX Support 8MP AHD 20FPS ; 8MP TVI 20FPS, 8MP CVI
Signal Level: 1Vpp
?3. 12V power output
Power output:
Temporary power output 12V 1A
USB*1 5V1A output
?4. Audio test
Audio test: Input audio signal, and played on the internal speaker
?5. Power supply
External power supply: DC 5V?2A?
Battery-powered: Built-in 3.7V li-polymer battery, Capacity 2600mAh
Charge: Charge time 3-4 hours Battery power time 8 hours
Power saving features: Low power consumption, automatic power off, Real-time display of battery level
?6. System settings
Language settings: English
Auto power off: Disable / 5-60 minutes
?7.Cable test
cable test: Test any two or more wire cable Display connect sequence and remote number
LED Light: 1*35lm LED light
Working environment and Specifications: -20?---+70?/30%-90%R

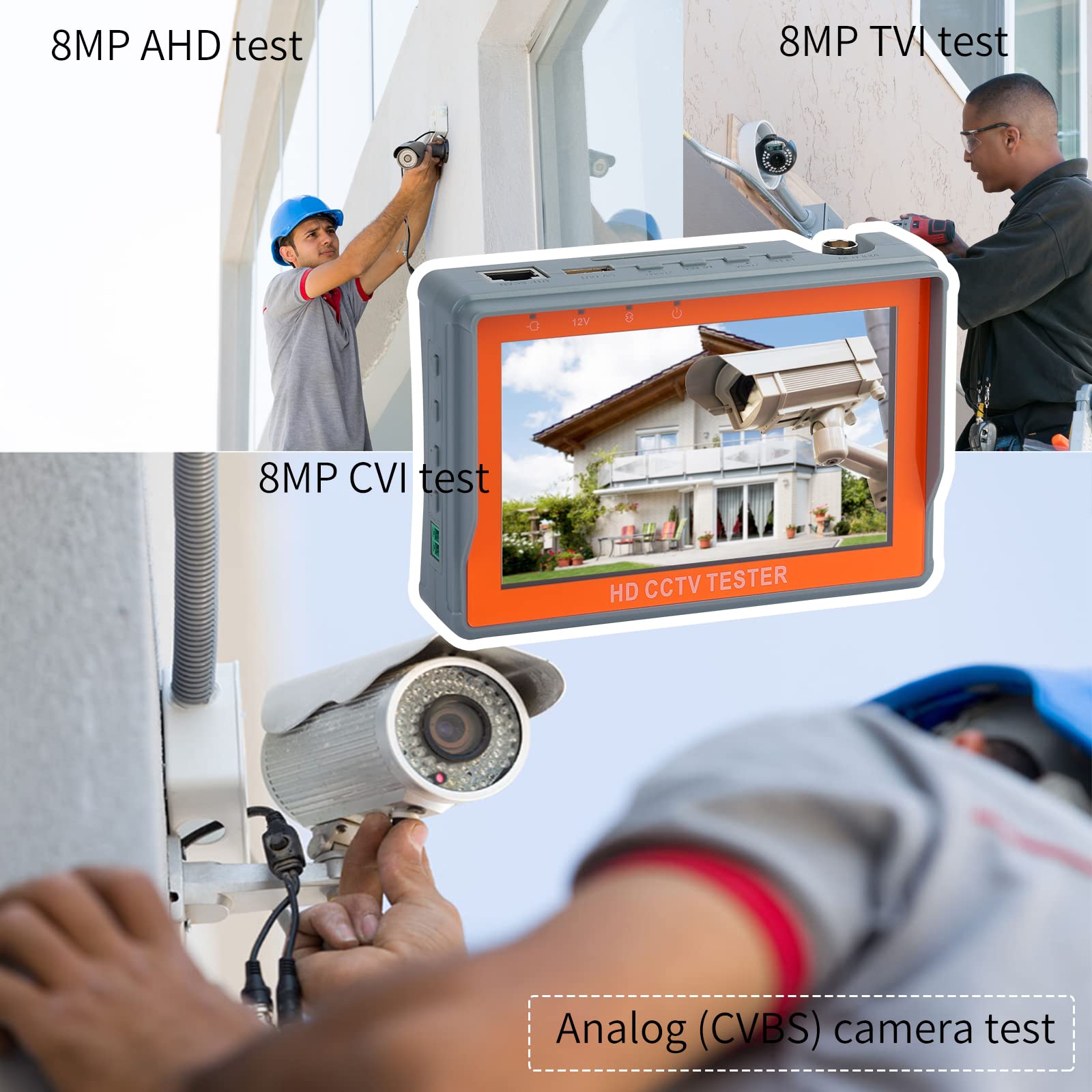

• ??4-in-1 camera test monitor ?This CCTV test monitor support CVBS + AHD (8MP) + TVI (8MP) + CVI (8MP) Camera Video Test
• ?? This ADH camera Tester support Audio test?This CCTV test monitor support Audio test: Input audio signal, and played on the internal speaker
• ??Power supply of camera test ?This camera testing monitor support External power supply: DC 5V?2A? , Temporary power output 12V 1A
• ??this CCTV testing monitor support PTZ controller?This nice camera testing monitor Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.
• ??Cable test of tester monitor ?cable test of this tester monitor : Test any two or more wire cable Display connect sequence and remote number
? Camera test monitor Packing List:
camera CCTV Tester *1
AC/DC Adapter *1
Power Output Cable *1
Transformer *1
A/V Cable *1
Video Cable *1
Date Cable *1
Wristbands*1
?1. video tester
Video System: NTSC/PAL Automatically recognize
Video level: 1VPP
Display screen: 5 inch LCD RGB 480 * 272 (QVGA) resolution, 64K color
Screen adjustment: Video display brightness, contrast, color saturation adjustable,
LCD backlight brightness adjustable
Video input / output: 1 channel BNC Video IN
?2. HD AHD ?TVI , CVI Test
SD signal Format: NTSC,PAL
Video signal: HD AHD,TVI,CVI,CVBS
Resolution :Max 8MP?
MAX Support 8MP AHD 20FPS ; 8MP TVI 20FPS, 8MP CVI
Signal Level: 1Vpp
?3. 12V power output
Power output:
Temporary power output 12V 1A
USB*1 5V1A output
?4. Audio test
Audio test: Input audio signal, and played on the internal speaker
?5. Power supply
External power supply: DC 5V?2A?
Battery-powered: Built-in 3.7V li-polymer battery, Capacity 2600mAh
Charge: Charge time 3-4 hours Battery power time 8 hours
Power saving features: Low power consumption, automatic power off, Real-time display of battery level
?6. System settings
Language settings: English
Auto power off: Disable / 5-60 minutes
?7.Cable test
cable test: Test any two or more wire cable Display connect sequence and remote number
LED Light: 1*35lm LED light
Working environment and Specifications: -20?---+70?/30%-90%R
• ??4-in-1 camera test monitor ?This CCTV test monitor support CVBS + AHD (8MP) + TVI (8MP) + CVI (8MP) Camera Video Test
• ?? This ADH camera Tester support Audio test?This CCTV test monitor support Audio test: Input audio signal, and played on the internal speaker
• ??Power supply of camera test ?This camera testing monitor support External power supply: DC 5V?2A? , Temporary power output 12V 1A
• ??this CCTV testing monitor support PTZ controller?This nice camera testing monitor Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.
• ??Cable test of tester monitor ?cable test of this tester monitor : Test any two or more wire cable Display connect sequence and remote number
