Description
Brand: CNDST

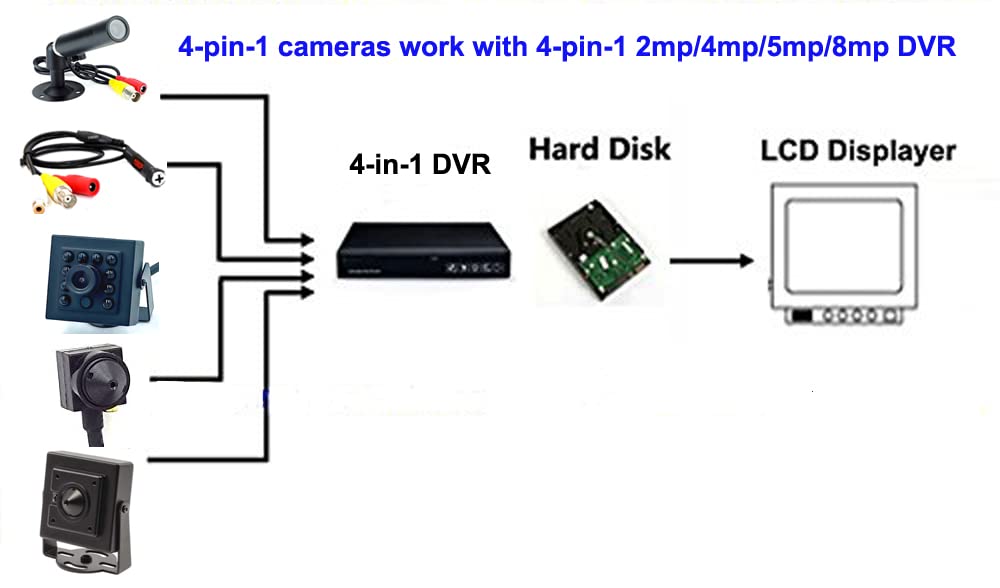

***Camera was set up to AHD already, if you need change AHD to TVI or CVI, you can change on your DVR. But your DVR should support AHD, otherwise Camera will not work***
Main Features
Min. Illumination :0.001 Lux (F1.2)
Signal System: NTSC
Lens: Wide angle pinhole lens 130 degree
Camera Type: Indoor
Power Supply: DC12V/75Ma
Specification Of the Camera:
Model DST-2AHD10W
Horizontal Resolution 2.0 Mega Pixel 1080P NTSC: 1920*1080@25fps
Min. Illumination StarLight 0.001 Lux (F1.2)
Signal System NTSC
Electronic Shutter NTSC:1/60~1/100000s
Max Transmission Distance Common 75-3 lines can be up to 500m
S/N Ratio More than 46dB
Gamma 0.45/1.0
Exposure Auto
OSD N/A
White Balance Auto White Balance
Backlight OFF/ON/BLC/ HLC
Pic Adjust Mirror/Brightness/Contrast /Sharpness/Hue/Gain
ATR ON/OFF
Motion Det OFF/ON(Detect sense/ Area Sel)
Privacy Masking OFF/ON (4 Zone)
Day/Nigh True Day and Night (Auto/ Day / Night / Ext. D&N)
2D-NR OFF/ON (0-15/16 level)
Camera ID OFF/ON
Sync.System Internal
Video Output 1 Vp-p / 75 Ohms
Working Conditions -20~60Degree/0-93% Humidity
Package Dimensions(L x W x H): 3.15 x 2.28 x 1.81 inch
Package Weight: 65g
Package Include:
1 x Camera
1 x Manual
• Camera was set up to AHD already, if you need change AHD to TVI or CVI, you can change on your DVR. But your DVR should support AHD, otherwise Camera will not work.
• Working Condition: Camera can work during daytime and night with light. If under low light, picture quality is not so good as the daytime. Pls use DC 12V 1A Power Adapter for this mini camera.
• Wide view angle lens, and the lens can be adjusted.
• Material and Item Dimention: plastic housing, Item Dimention: 0.39X0.39X2.36 inch
• Resolution: 2000TVL, 2MP, DC 12V 1A.
***Camera was set up to AHD already, if you need change AHD to TVI or CVI, you can change on your DVR. But your DVR should support AHD, otherwise Camera will not work***
Main Features
Min. Illumination :0.001 Lux (F1.2)
Signal System: NTSC
Lens: Wide angle pinhole lens 130 degree
Camera Type: Indoor
Power Supply: DC12V/75Ma
Specification Of the Camera:
Model DST-2AHD10W
Horizontal Resolution 2.0 Mega Pixel 1080P NTSC: 1920*1080@25fps
Min. Illumination StarLight 0.001 Lux (F1.2)
Signal System NTSC
Electronic Shutter NTSC:1/60~1/100000s
Max Transmission Distance Common 75-3 lines can be up to 500m
S/N Ratio More than 46dB
Gamma 0.45/1.0
Exposure Auto
OSD N/A
White Balance Auto White Balance
Backlight OFF/ON/BLC/ HLC
Pic Adjust Mirror/Brightness/Contrast /Sharpness/Hue/Gain
ATR ON/OFF
Motion Det OFF/ON(Detect sense/ Area Sel)
Privacy Masking OFF/ON (4 Zone)
Day/Nigh True Day and Night (Auto/ Day / Night / Ext. D&N)
2D-NR OFF/ON (0-15/16 level)
Camera ID OFF/ON
Sync.System Internal
Video Output 1 Vp-p / 75 Ohms
Working Conditions -20~60Degree/0-93% Humidity
Package Dimensions(L x W x H): 3.15 x 2.28 x 1.81 inch
Package Weight: 65g
Package Include:
1 x Camera
1 x Manual
• Camera was set up to AHD already, if you need change AHD to TVI or CVI, you can change on your DVR. But your DVR should support AHD, otherwise Camera will not work.
• Working Condition: Camera can work during daytime and night with light. If under low light, picture quality is not so good as the daytime. Pls use DC 12V 1A Power Adapter for this mini camera.
• Wide view angle lens, and the lens can be adjusted.
• Material and Item Dimention: plastic housing, Item Dimention: 0.39X0.39X2.36 inch
• Resolution: 2000TVL, 2MP, DC 12V 1A.
