Description
Brand: AOICRIE

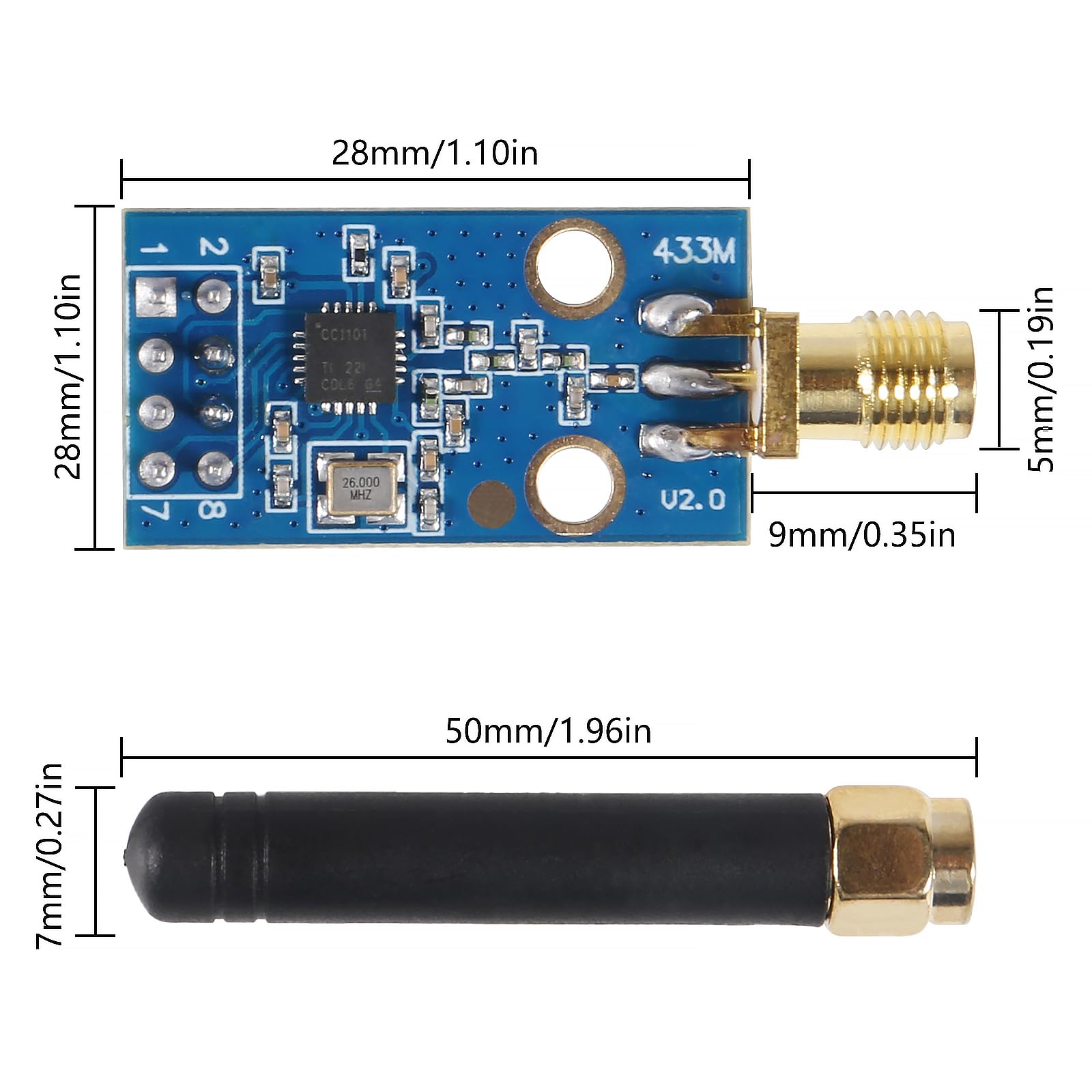

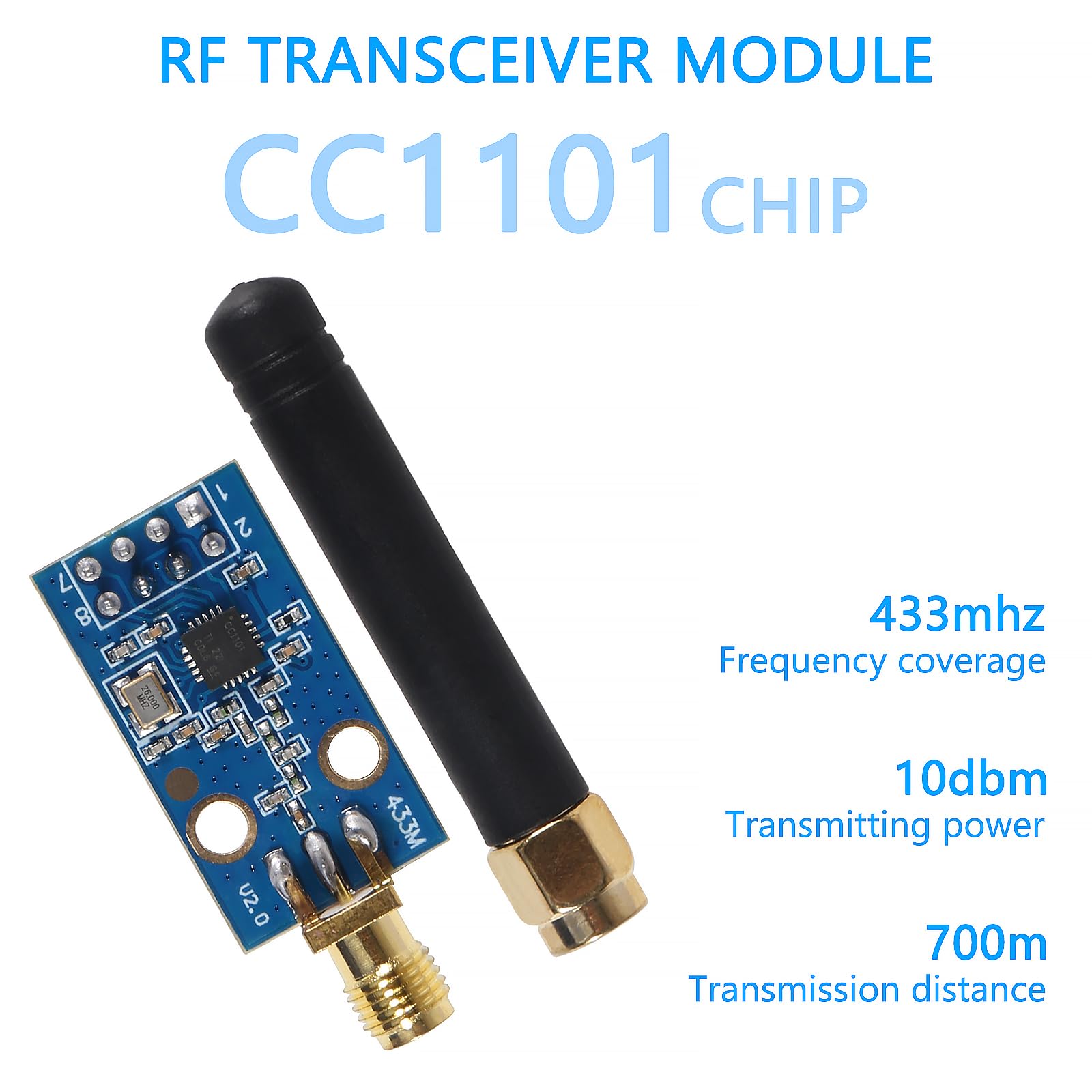

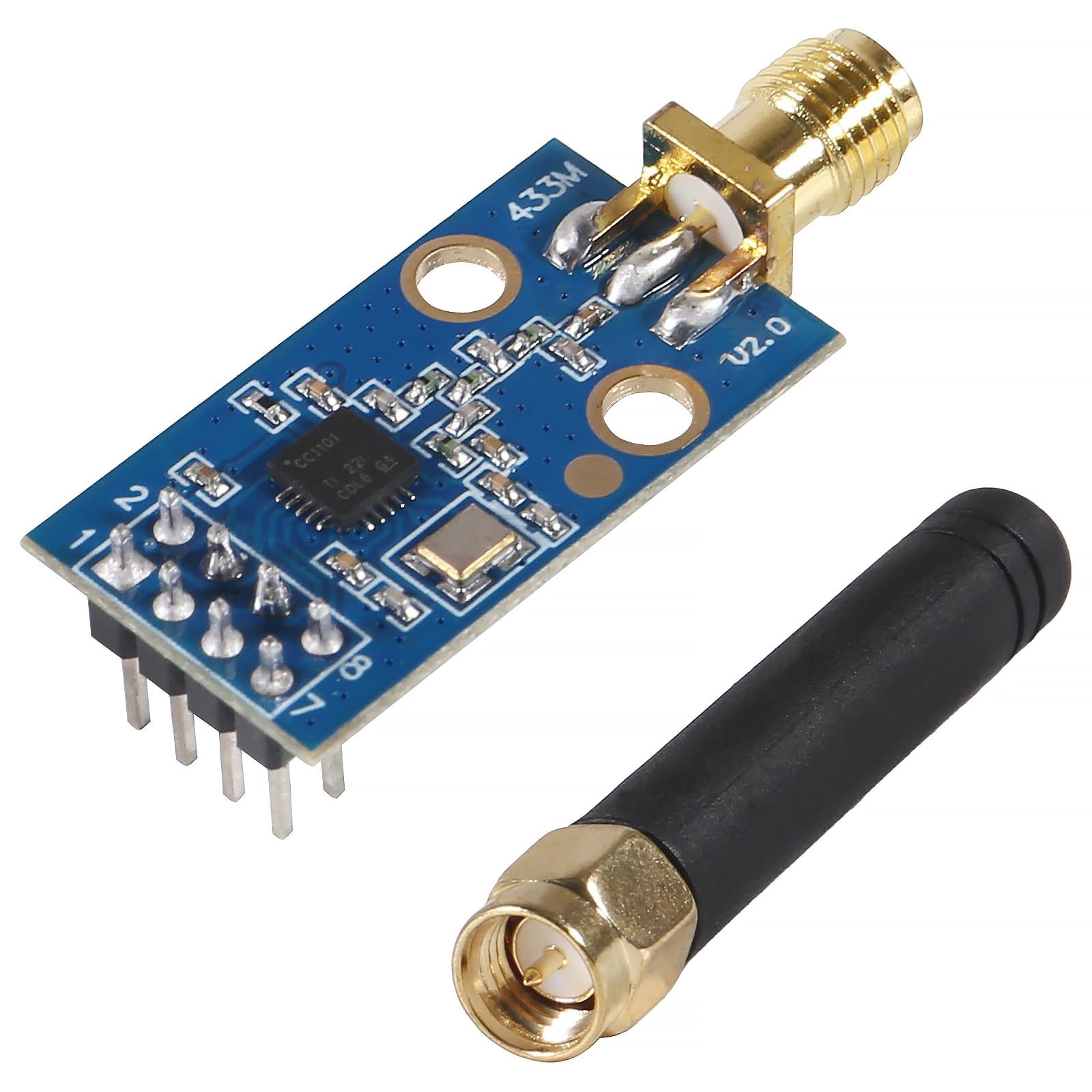

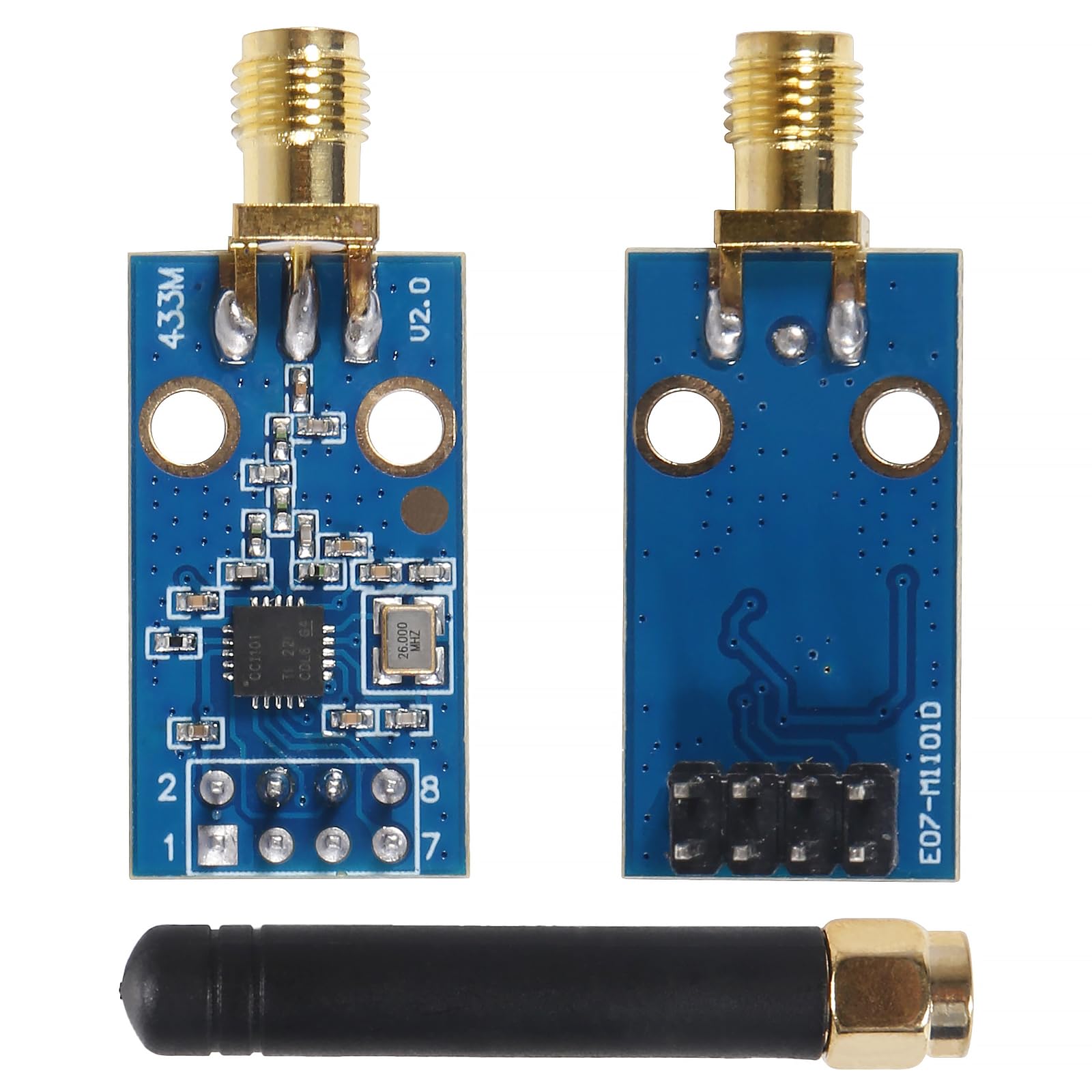

CC1101 wireless RF transceiver 315/433/868/915MHZ + SMA antenna wireless module <br> <br> Continuous frequency band expansion: <br> <br> CC1100: 400-464 MHz and 800-928 MHz <br> CC1101: 387-464 MHz and 779-928 MHz <br> Working voltage: DC 1.8V-3.6V <br> Working frequency: (module: 387-464MHZ) Default working frequency: 433Mhz <br> Maximum instantaneous working current: <30mA; <br> Maximum transmit power: 10mW (+10dBm) <br> Support 2-FSK, GFSK and MSK modulation; <br> Receiver sensitivity -110dBm, 1200 baud <br> The minimum operating speed is 1.2kbps, the maximum is 500kbps <br> Independent 64-byte RX and TX data FIFO buffer <br> Built-in hardware CRC error detection to ensure reliable data transmission <br> Support RSSI signal strength detection and carrier sensing functions <br> Low power consumption <br> Mailing address (256) Working frequency can be programmed via SPI <br> Programmable output power, supporting all frequencies up to +10 dBm <br> WOR function can be set to standby, proportional receiving state timing switch machine time, reduce power consumption <br> Fast frequency synthesizer with proper frequency hopping system <br> <br> Package list: <br> 1 * Frequency
• CC1101 wireless RF transceiver 315/433/868/915MHZ + SMA antenna wireless module made of high-quality materials, durable.
• CC1101 supports a wide supply voltage range of 1.8V to 3.6VDC, ensuring compatibility with different power sources.
• Instantaneous maximum working current: <30mA
• Maximum transmit power: 10mW (+10dBm).
• The CC1101 module has enough transmitting power, good spectrum characteristics, small harmonics, small channel crosstalk and ultra small volume.
Color: Blue
CC1101 wireless RF transceiver 315/433/868/915MHZ + SMA antenna wireless module <br> <br> Continuous frequency band expansion: <br> <br> CC1100: 400-464 MHz and 800-928 MHz <br> CC1101: 387-464 MHz and 779-928 MHz <br> Working voltage: DC 1.8V-3.6V <br> Working frequency: (module: 387-464MHZ) Default working frequency: 433Mhz <br> Maximum instantaneous working current: <30mA; <br> Maximum transmit power: 10mW (+10dBm) <br> Support 2-FSK, GFSK and MSK modulation; <br> Receiver sensitivity -110dBm, 1200 baud <br> The minimum operating speed is 1.2kbps, the maximum is 500kbps <br> Independent 64-byte RX and TX data FIFO buffer <br> Built-in hardware CRC error detection to ensure reliable data transmission <br> Support RSSI signal strength detection and carrier sensing functions <br> Low power consumption <br> Mailing address (256) Working frequency can be programmed via SPI <br> Programmable output power, supporting all frequencies up to +10 dBm <br> WOR function can be set to standby, proportional receiving state timing switch machine time, reduce power consumption <br> Fast frequency synthesizer with proper frequency hopping system <br> <br> Package list: <br> 1 * Frequency
• CC1101 wireless RF transceiver 315/433/868/915MHZ + SMA antenna wireless module made of high-quality materials, durable.
• CC1101 supports a wide supply voltage range of 1.8V to 3.6VDC, ensuring compatibility with different power sources.
• Instantaneous maximum working current: <30mA
• Maximum transmit power: 10mW (+10dBm).
• The CC1101 module has enough transmitting power, good spectrum characteristics, small harmonics, small channel crosstalk and ultra small volume.
Color: Blue
