Description
Brand: Cable Matters
Connect More with Cable Matters SAS & SATA Cabling Products
High Density Storage Migration Solution

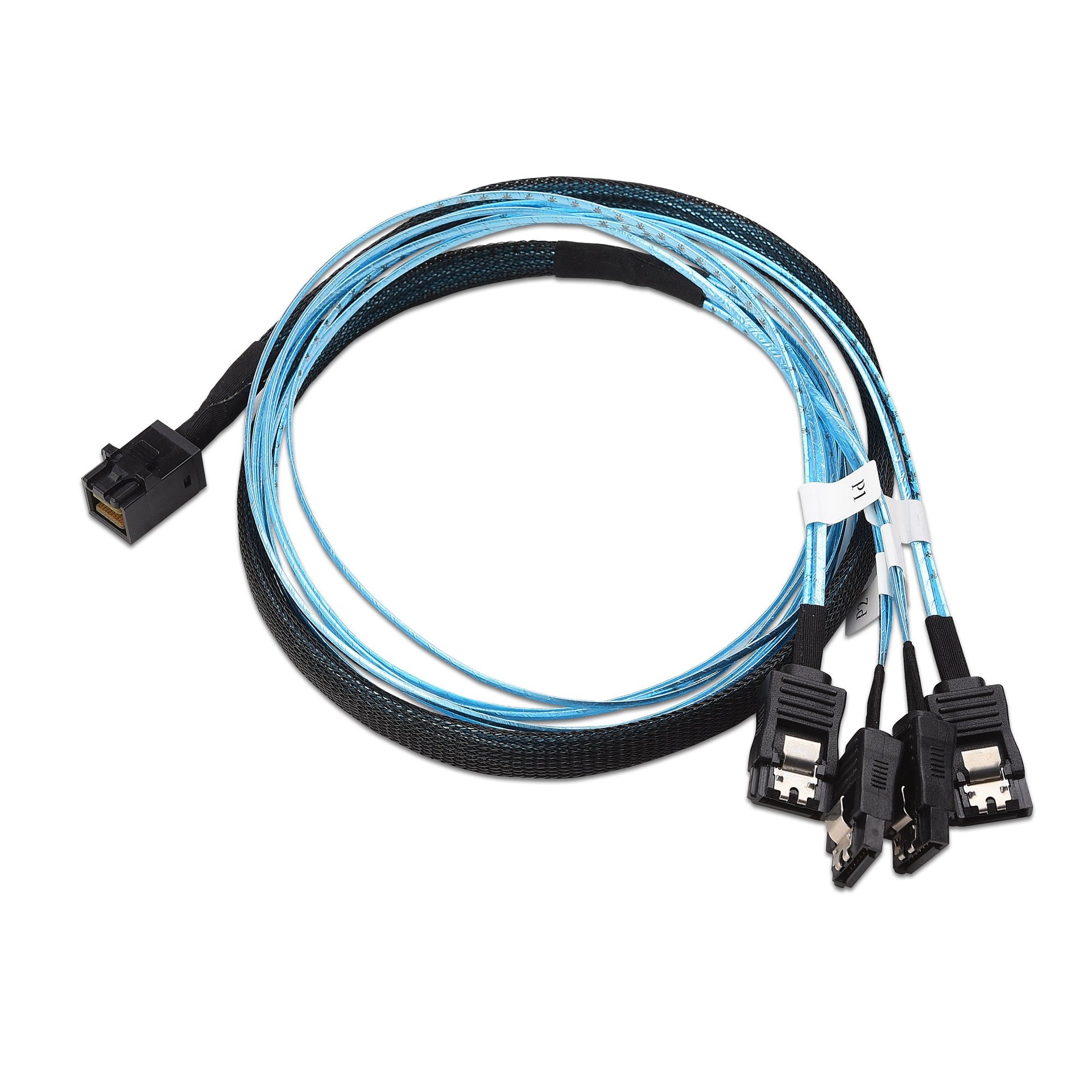

The Cable Matters Internal HD Mini-SAS 8643 to 4 x SATA Cable is an essential component for migrating from a 6 Gbps to 12 Gbps storage area network. It provides multiple lanes of high speed SATA traffic through a single cable in a sturdy but flexible cable that is built to withstand 24/7 use.
Robust Construction with a Lifetime Warranty
The combination of a slim ribbon cable design in a woven mesh sheath with locking connector latches provides a professional installation that minimizes the impact on airflow in a computer case. A lifetime warranty is included with this HD Mini SAS to SATA cable for peace of mind when purchasing.
Important Notes
- Pair with a 4 port SATA to Power Splitter Cable to provide power to the drives
- Data transfer speed is determined by the capabilities of your SAS controller and SATA drives
Cable Specifications

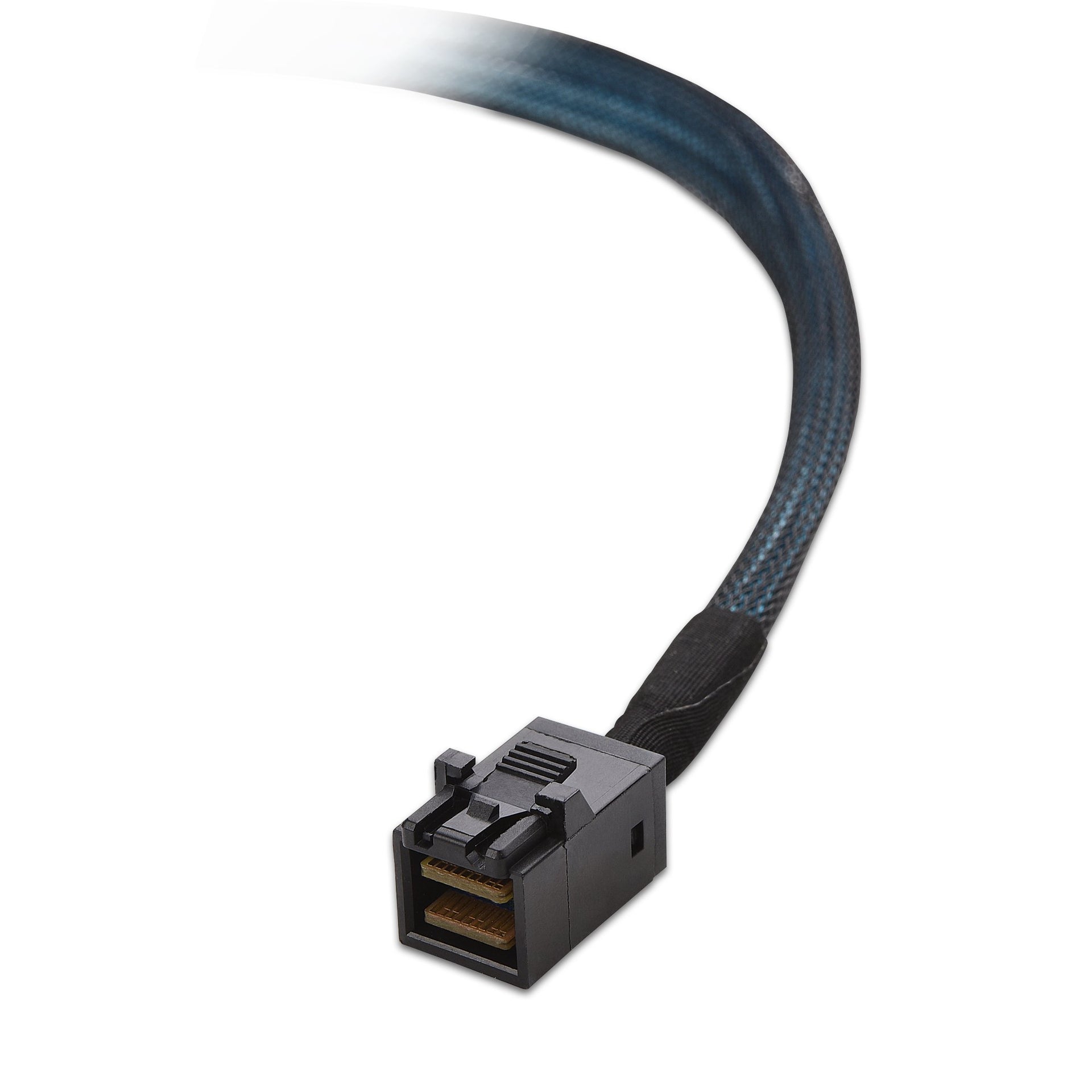

- Host/Controller Connection: 1 x 36 pin HD Mini-SAS SFF-8643 - male with latch
- SATA Drive Connections: 4 x 7 pin SATA receptacle - female with latch
- Wire - 30 AWG Style 207044 flat ribbon cable
- Compatible with 2.5", 3.5" SATA I, II, III hard drives
- RoHS compliant
Warranty
Limited Lifetime Warranty and Lifetime Product Support
• Internal HD Mini SAS cable is specifically designed to connect a 12 Gbps host bus adapter or RAID controller with SFF-8643 to 4 discrete SATA drives
• Mini SAS HD to SATA adapter cable provides reliable internal connectivity between a high density RAID controller card and direct attached storage devices with a SATA plug
• Hybrid high density SAS to SATA with a 36 pin SFF 8643 connector and 4 x 7 pin SATA connectors provides both 3 Gbps and 6 Gbps compatibility while migrating to a to 12 Gbps storage area network system

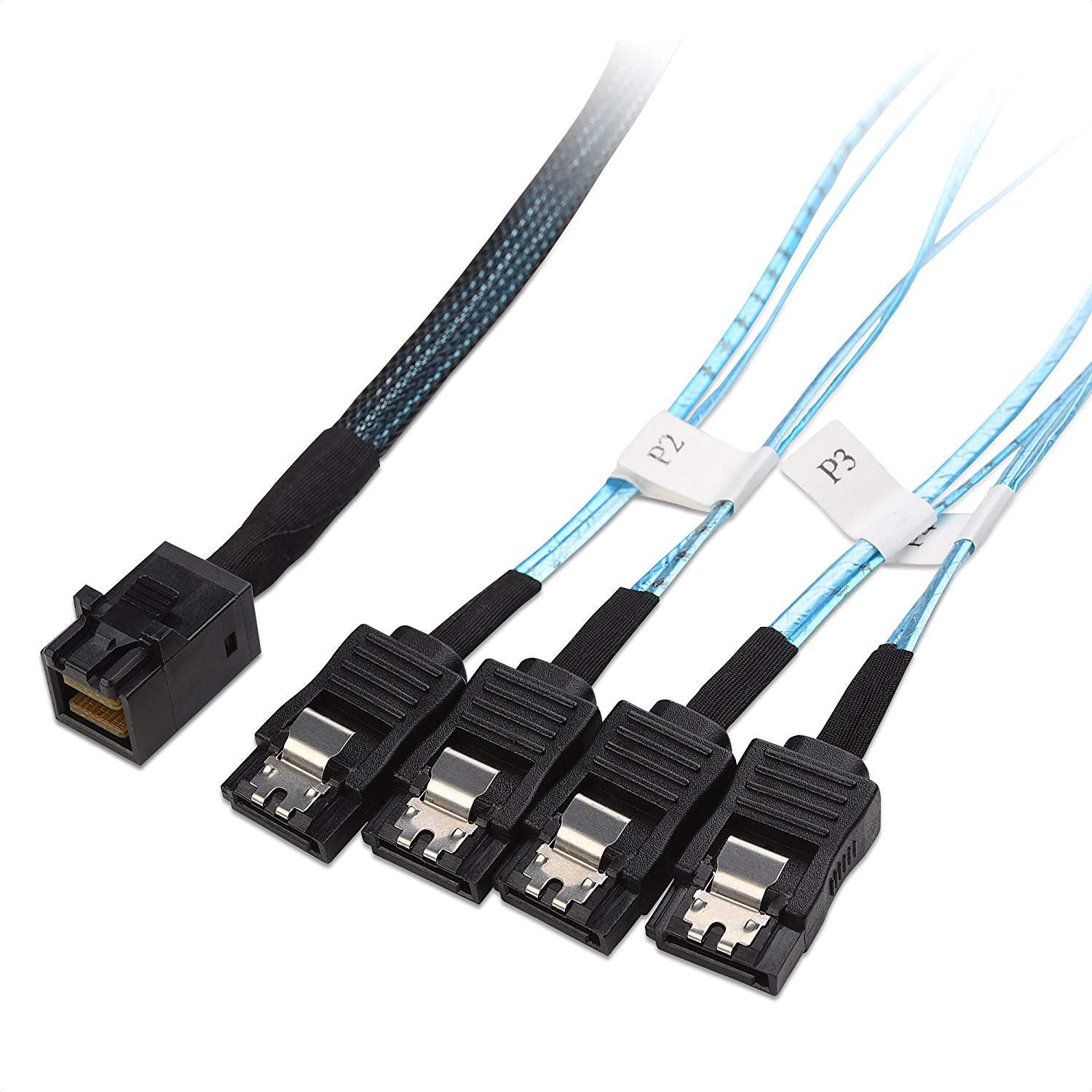

• Forward fan-out cable has an internal SFF-8643 (HOST) HD Mini-SAS 36 pin connector and 4 x SATA 7 pin (TARGET) drive connectors
• Four discrete SATA fanout drive cables are of equal length with stainless steel latches to provide a secure connection
• Multi-lane 8643 to SATA CABLE with 4 channels can drive 4 SATA drives
• Supports multiple lanes of high speed SATA traffic over a single cable
• SFF 8643 compatible with the Adaptec RAID 71605 / 7895 Storage Controllers
• Flexible design of HD mSAS breakout cable includes acetate cloth tape over slim ribbon cables for strain relief to protect cables without rigidity
• Woven mesh sheath covers half of the cable for easy routing

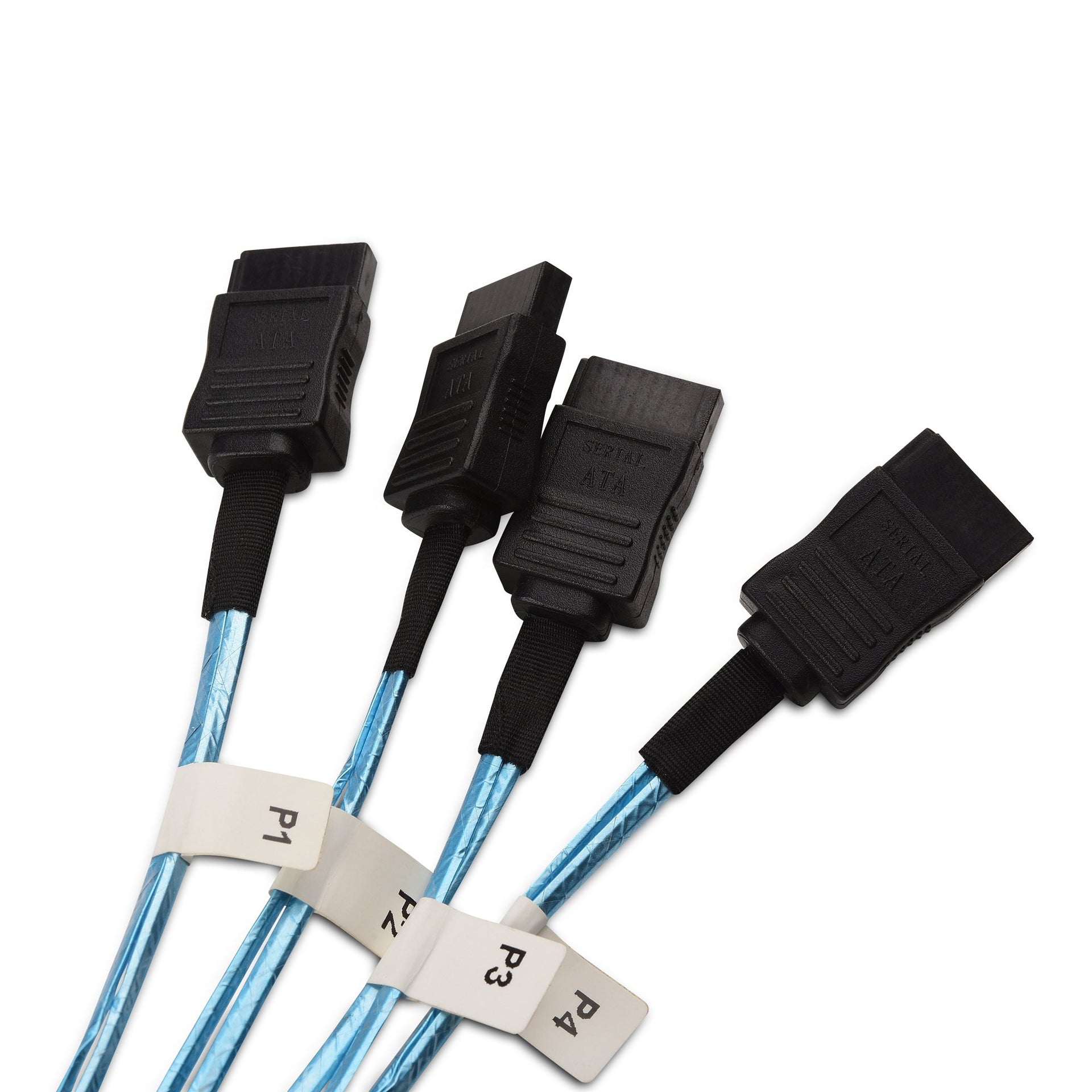

• P1 to P4 markers provide easy ID after installation

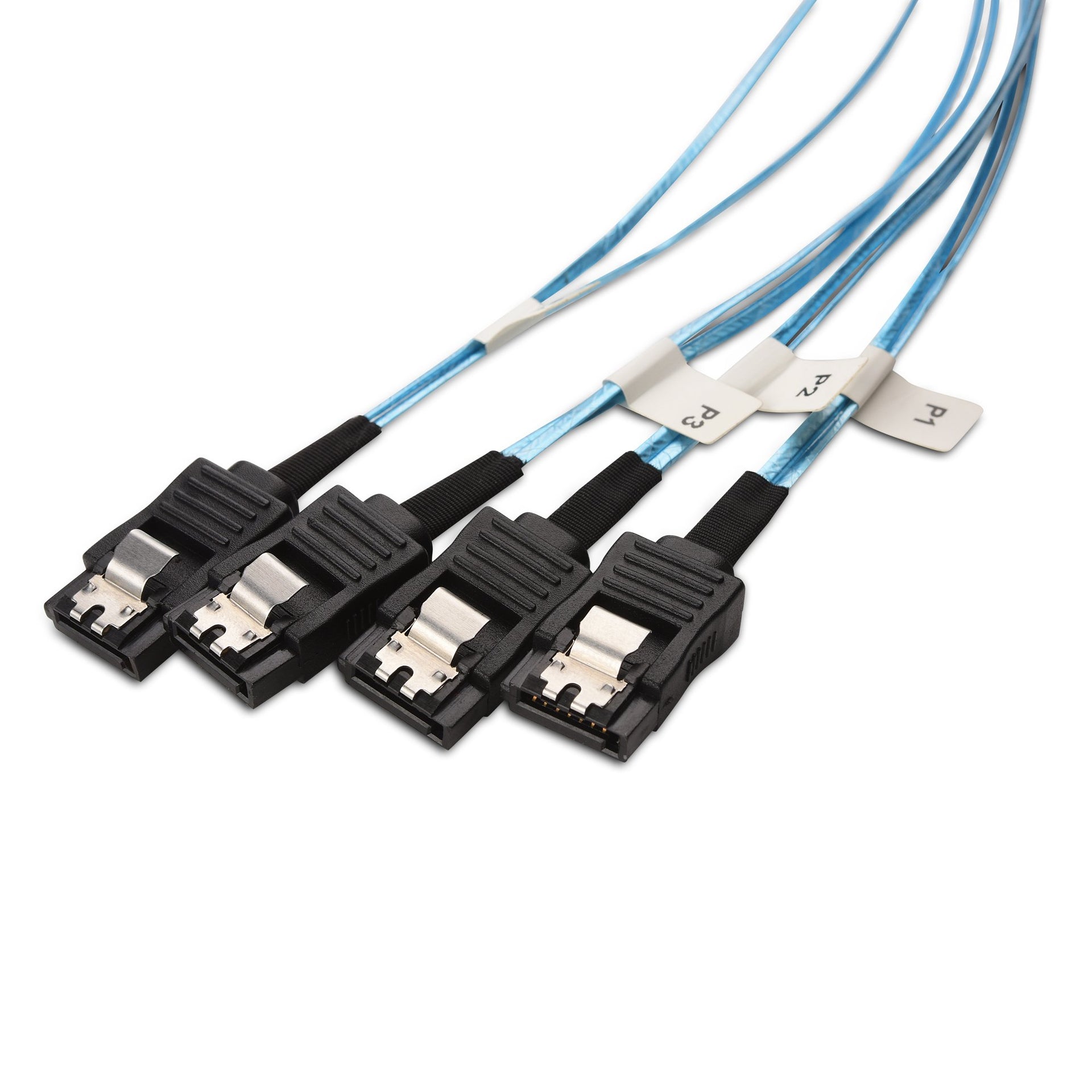

• Low profile SATA connectors have easy-grip treads with stainless steel latches to prevent accidental disconnection and reduce vibration
Color: Black
Connect More with Cable Matters SAS & SATA Cabling Products
High Density Storage Migration Solution
The Cable Matters Internal HD Mini-SAS 8643 to 4 x SATA Cable is an essential component for migrating from a 6 Gbps to 12 Gbps storage area network. It provides multiple lanes of high speed SATA traffic through a single cable in a sturdy but flexible cable that is built to withstand 24/7 use.
Robust Construction with a Lifetime Warranty
The combination of a slim ribbon cable design in a woven mesh sheath with locking connector latches provides a professional installation that minimizes the impact on airflow in a computer case. A lifetime warranty is included with this HD Mini SAS to SATA cable for peace of mind when purchasing.
Important Notes
- Pair with a 4 port SATA to Power Splitter Cable to provide power to the drives
- Data transfer speed is determined by the capabilities of your SAS controller and SATA drives
Cable Specifications
- Host/Controller Connection: 1 x 36 pin HD Mini-SAS SFF-8643 - male with latch
- SATA Drive Connections: 4 x 7 pin SATA receptacle - female with latch
- Wire - 30 AWG Style 207044 flat ribbon cable
- Compatible with 2.5", 3.5" SATA I, II, III hard drives
- RoHS compliant
Warranty
Limited Lifetime Warranty and Lifetime Product Support
• Internal HD Mini SAS cable is specifically designed to connect a 12 Gbps host bus adapter or RAID controller with SFF-8643 to 4 discrete SATA drives
• Mini SAS HD to SATA adapter cable provides reliable internal connectivity between a high density RAID controller card and direct attached storage devices with a SATA plug
• Hybrid high density SAS to SATA with a 36 pin SFF 8643 connector and 4 x 7 pin SATA connectors provides both 3 Gbps and 6 Gbps compatibility while migrating to a to 12 Gbps storage area network system
• Forward fan-out cable has an internal SFF-8643 (HOST) HD Mini-SAS 36 pin connector and 4 x SATA 7 pin (TARGET) drive connectors
• Four discrete SATA fanout drive cables are of equal length with stainless steel latches to provide a secure connection
• Multi-lane 8643 to SATA CABLE with 4 channels can drive 4 SATA drives
• Supports multiple lanes of high speed SATA traffic over a single cable
• SFF 8643 compatible with the Adaptec RAID 71605 / 7895 Storage Controllers
• Flexible design of HD mSAS breakout cable includes acetate cloth tape over slim ribbon cables for strain relief to protect cables without rigidity
• Woven mesh sheath covers half of the cable for easy routing
• P1 to P4 markers provide easy ID after installation
• Low profile SATA connectors have easy-grip treads with stainless steel latches to prevent accidental disconnection and reduce vibration
Color: Black
