Brand: BUELEC

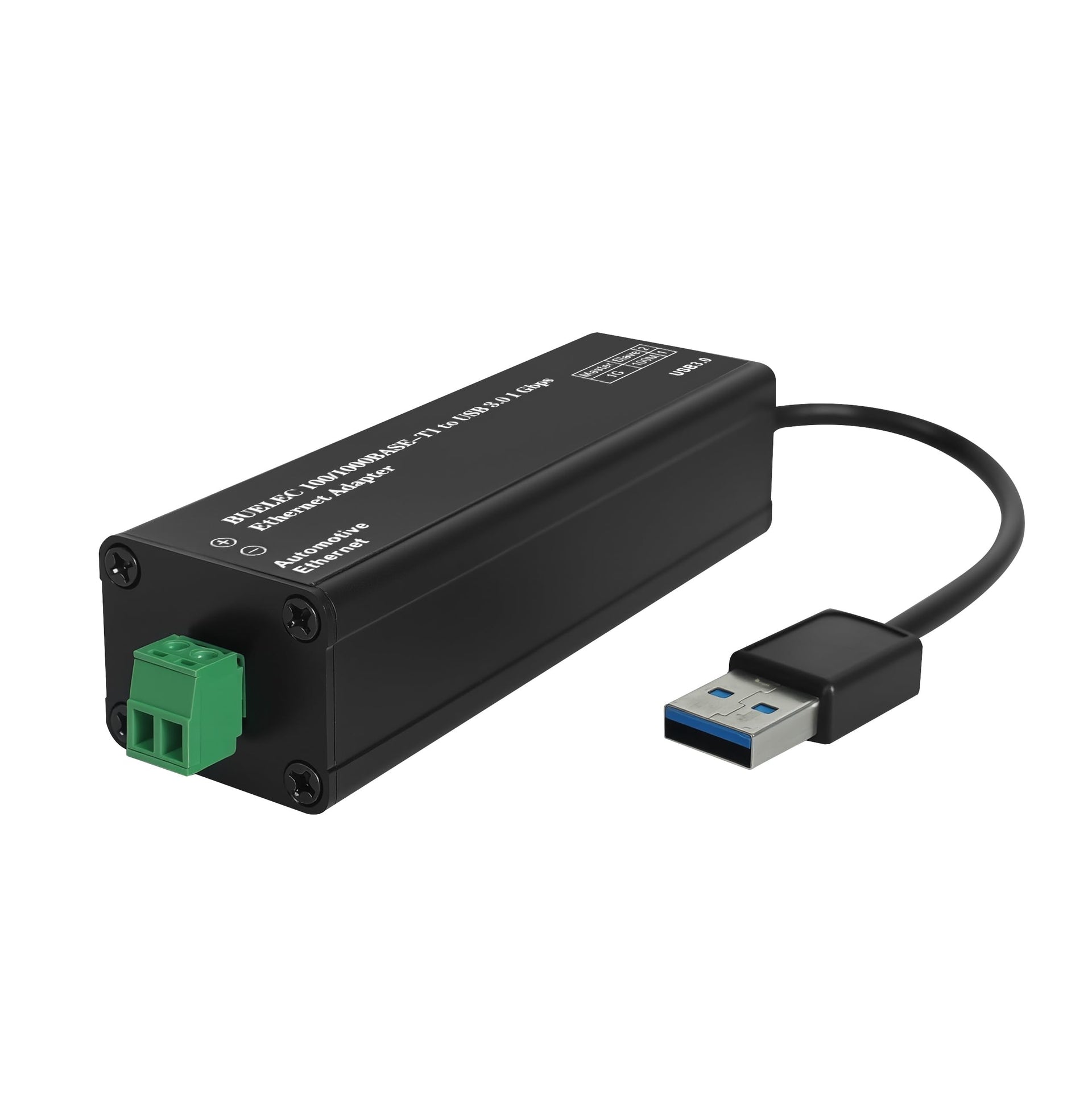

<h2>PRODUCT DESCRIPTION</h2> <p>The BUELEC 100/1000BASE-T1-U30-TX is a high-performance USB 3.0 to automotive Ethernet converter purpose-built for automotive network development, diagnostics, and testing. Unlike traditional RJ45-based media converters that require external power adapters, the U30-TX connects directly to your computer's USB port - delivering both power and data through a single cable.</p> <br> <p>At its core, the converter bridges standard USB-equipped PCs and laptops to 100BASE-T1 and 1000BASE-T1 automotive Ethernet networks at up to 1 Gbps full-duplex. The onboard hardware DIP switches allow real-time selection of communication speed (100Mbps or 1Gbps) and Master/Slave role without any software setup. An automatic polarity correction feature on the T1 differential pair eliminates wiring orientation concerns.</p> <br> <p>The default T1 interface uses a 15EDG 3.81mm-2P screw terminal for maximum wiring flexibility. For direct-connect applications, the package includes both a TE MATEnet pigtail adapter and a Rosenberger HMTD pigtail adapter - enabling plug-and-play compatibility with all major automotive Ethernet connector standards used by OEMs worldwide.</p> <br> <p>Housed in a rugged die-cast alloy enclosure measuring just 25.8 × 31.3 × 98mm and weighing approximately 60g, the U30-TX delivers excellent EMI shielding and thermal dissipation in a truly pocket-sized form factor. Integrated overvoltage, overcurrent, and ESD protection circuitry ensures reliable operation even in demanding environments.</p> <br> <p>The converter supports Windows XP through 11 (auto-install), Linux kernel up to 6.17, and macOS 10.8-10.15. Dual status LEDs provide instant visual feedback on link status and system health for rapid troubleshooting.</p> <h3>What's in the Box</h3> <ul> <li>1× 100/1000BASE-T1-U30-TX Converter Unit</li> <li>2× 15EDG 3.81mm-2P Terminal Connectors</li> <li>1× TE MATEnet 150mm Pigtail Adapter</li> <li>1× Rosenberger HMTD 150mm Pigtail Adapter</li> <li>1× User Manual</li> </ul> <h3>Technical Specifications</h3> <table> <tr><td><b>USB Interface</b></td><td>USB 3.0 Type-A (USB 2.0 backward compatible)</td></tr> <tr><td><b>Ethernet Standard</b></td><td>IEEE 802.3bw (100BASE-T1) / IEEE 802.3bp (1000BASE-T1)</td></tr> <tr><td><b>Data Rate</b></td><td>100Mbps / 1Gbps Full-Duplex</td></tr> <tr><td><b>Power</b></td><td>USB bus powered, 4.7-5.5V input, max 1.65W</td></tr> <tr><td><b>Dimensions</b></td><td>25.8 × 31.3 × 98mm (W × H × L)</td></tr> <tr><td><b>Weight</b></td><td>~60g</td></tr> <tr><td><b>USB Cable Length</b></td><td>15cm</td></tr> <tr><td><b>Operating Temp</b></td><td>0°C to +50°C</td></tr> <tr><td><b>Humidity</b></td><td>5-95% RH (non-condensing)</td></tr> <tr><td><b>OS Support</b></td><td>Windows XP-11, Linux (kernel ?6.17), macOS 10.8-10.15</td></tr> </table> <h3>Backend Search Terms</h3> <p>automotive ethernet converter USB T1 adapter 1000BASE-T1 100BASE-T1 single pair ethernet media converter DoIP diagnostics ECU flashing ADAS debugging vehicle network tester MATEnet HMTD Rosenberger Marvell 88Q2112 OBD ethernet USB3 bus powered gigabit automotive</p>

Features:

• USB 3.0 TO AUTOMOTIVE ETHERNET - No RJ45, no power adapter needed
• plug directly into any PC or laptop USB port for instant access to 100BASE-T1 and 1000BASE-T1 networks. Fully bus-powered at max 1.65W and backward compatible with USB 2.0.

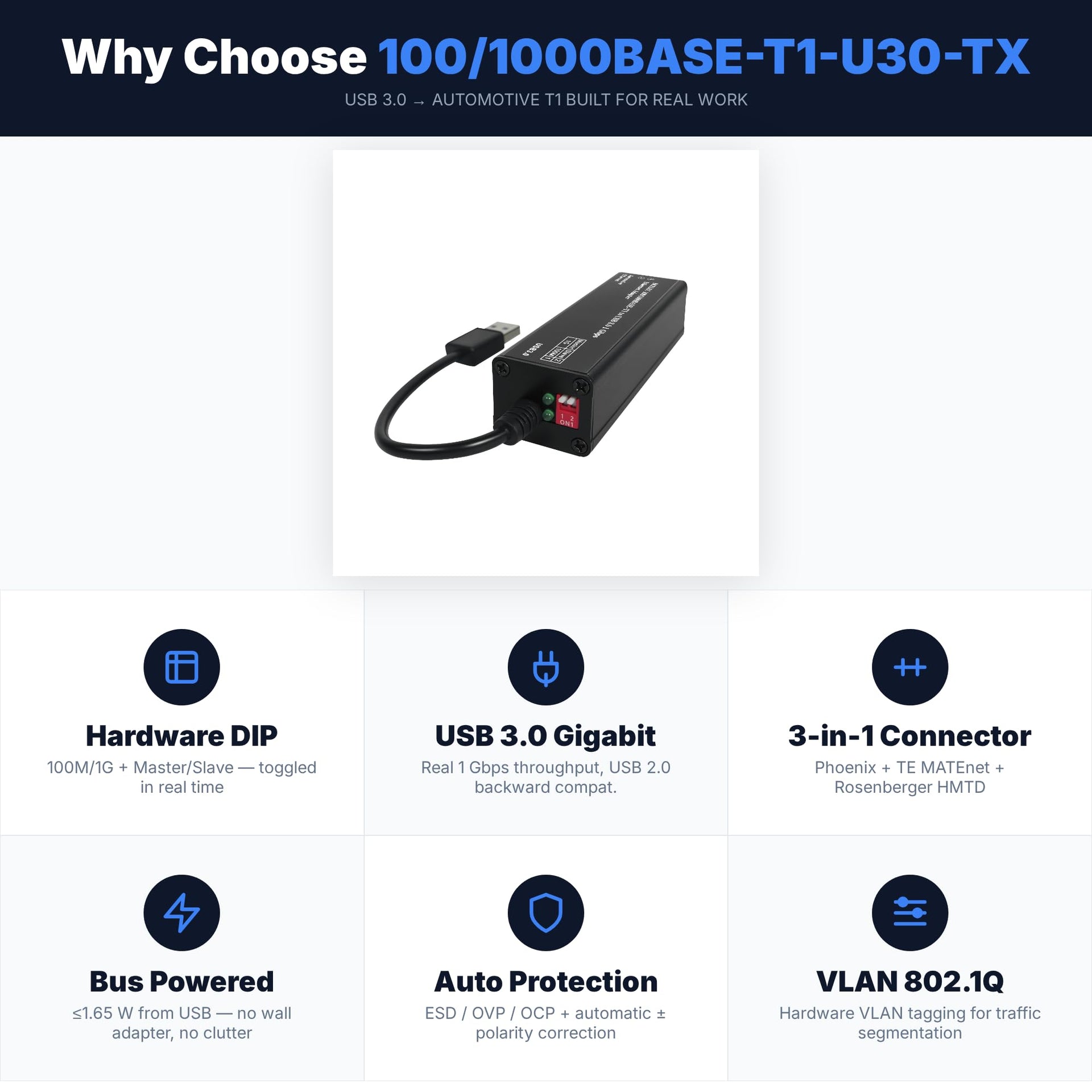

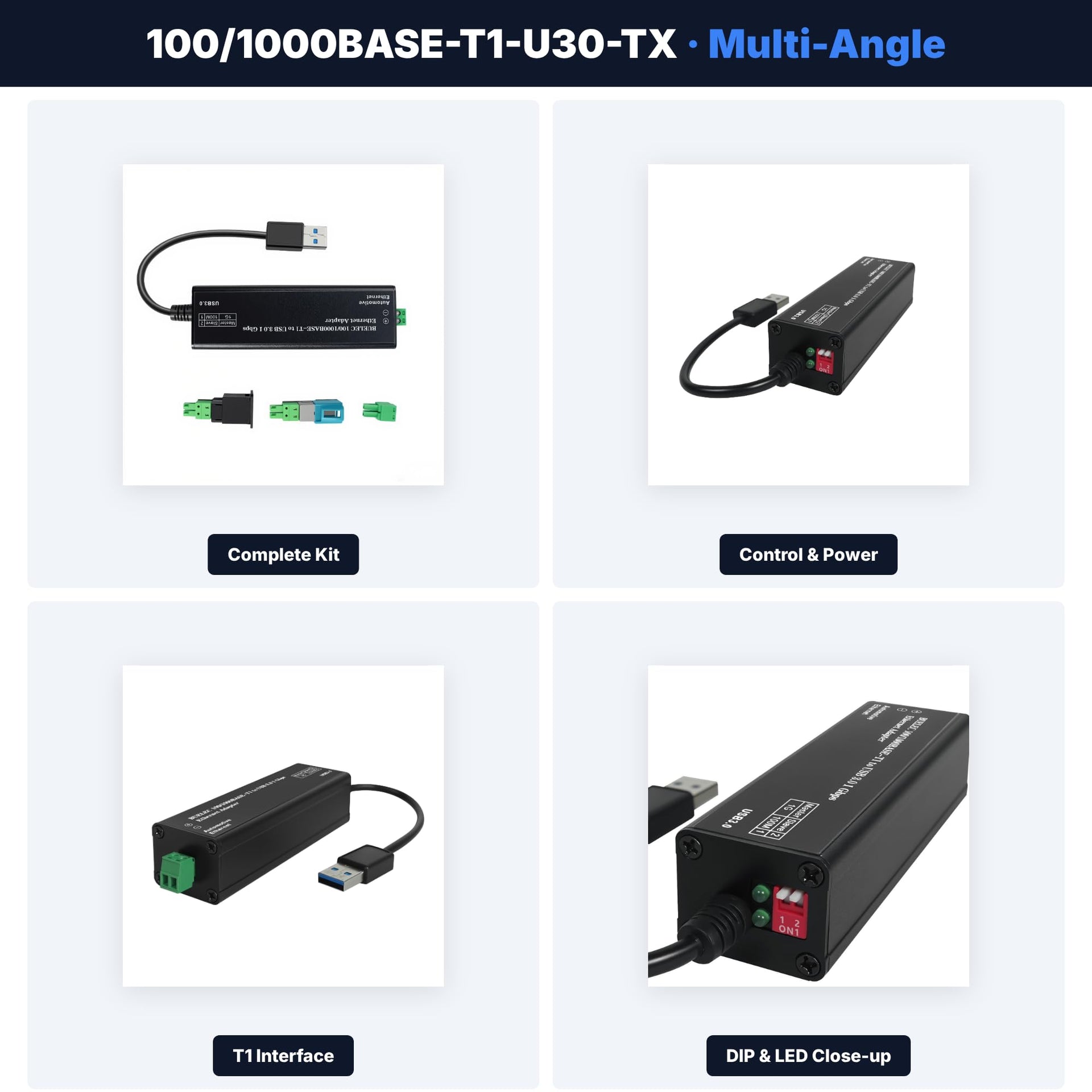

• 1 GBPS FULL-DUPLEX WITH HARDWARE DIP SWITCHES - Supports IEEE 802.3bw (100BASE-T1) and IEEE 802.3bp (1000BASE-T1) standards. Onboard DIP switches let you toggle between 100Mbps/1Gbps speed and Master/Slave mode instantly, with no software configuration required.

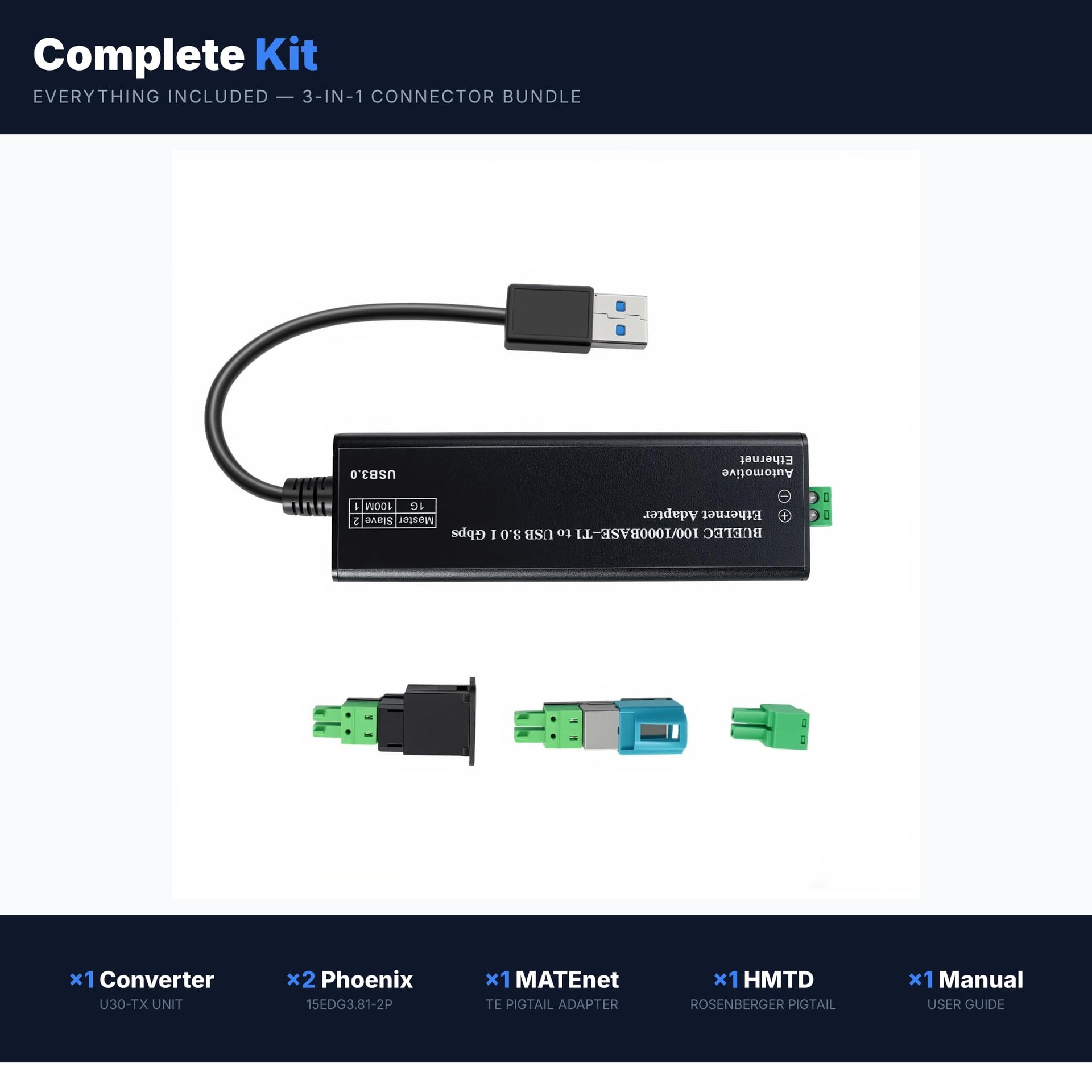

• UNIVERSAL T1 CONNECTOR WITH DUAL ADAPTER BOARDS INCLUDED - Features a 15EDG 3.81mm-2P screw terminal with auto polarity correction. Package includes both a TE MATEnet and a Rosenberger HMTD 150mm pigtail adapter, covering all major automotive Ethernet connector types.
• RUGGED DIE-CAST ALLOY ENCLOSURE - Compact 1.02 x 1.23 x 3.86 in body weighing only 2.1 oz delivers superior EMI shielding and thermal dissipation. Integrated overvoltage, overcurrent, and ESD protection
• rated for 32°F to 122°F and 5-95% RH (non-condensing).
• BROAD OS SUPPORT AND PLUG AND PLAY - Auto-installs on Windows XP through 11, Linux kernel up to 6.17, and macOS 10.8-10.15. Dual status LEDs indicate link activity and system health. Ideal for DoIP diagnostics, ECU flashing, and ADAS development.

Product Details:

• Color: Black
• Model: 100/1000base-t1-u30-tx
• Package Quantity: 1
