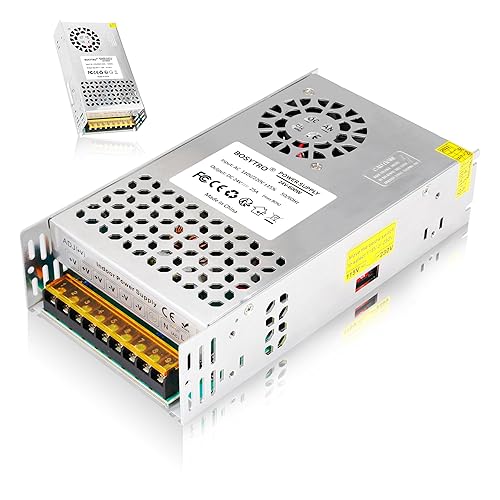

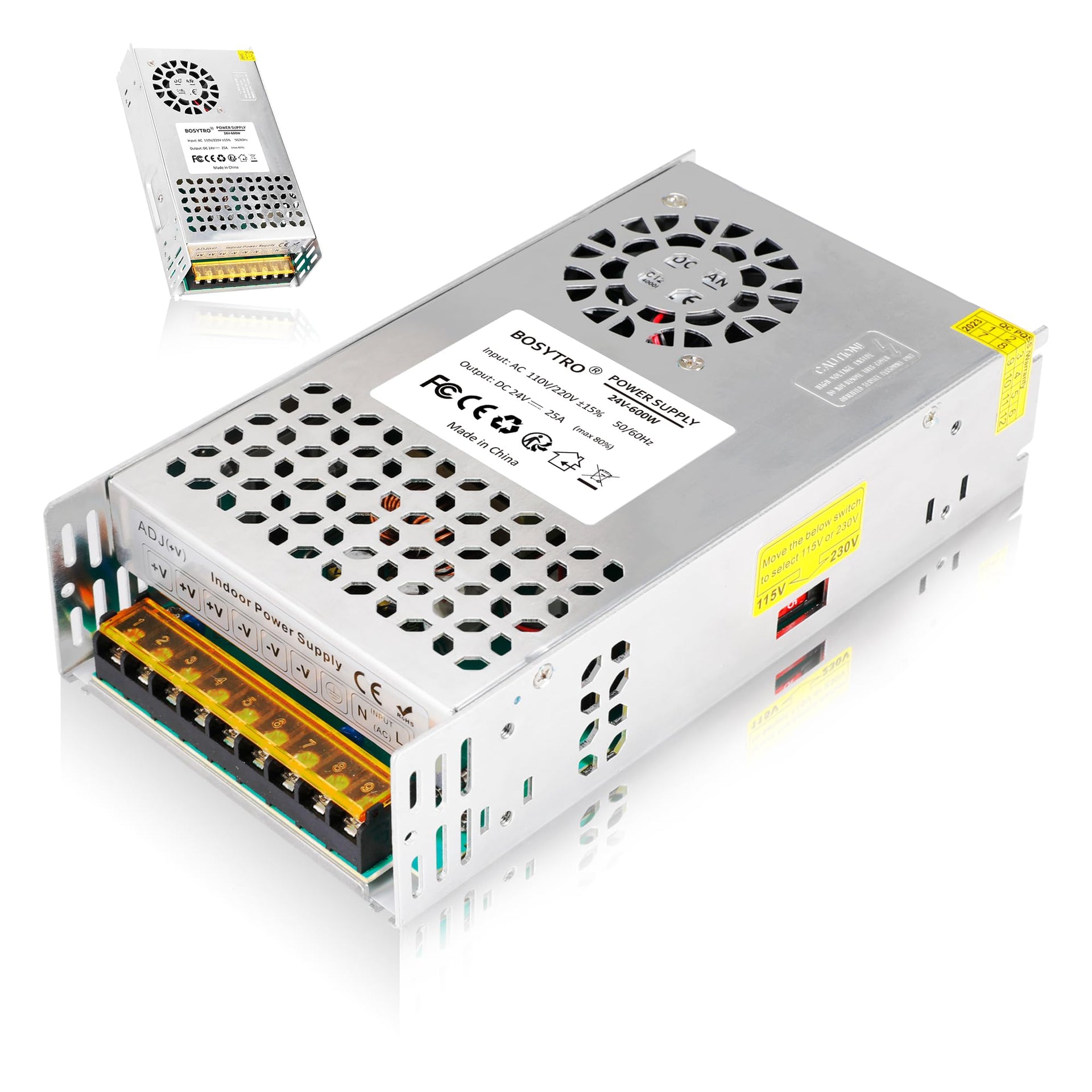

Brand: BOSYTRO
Model: 24V-600W-BSC

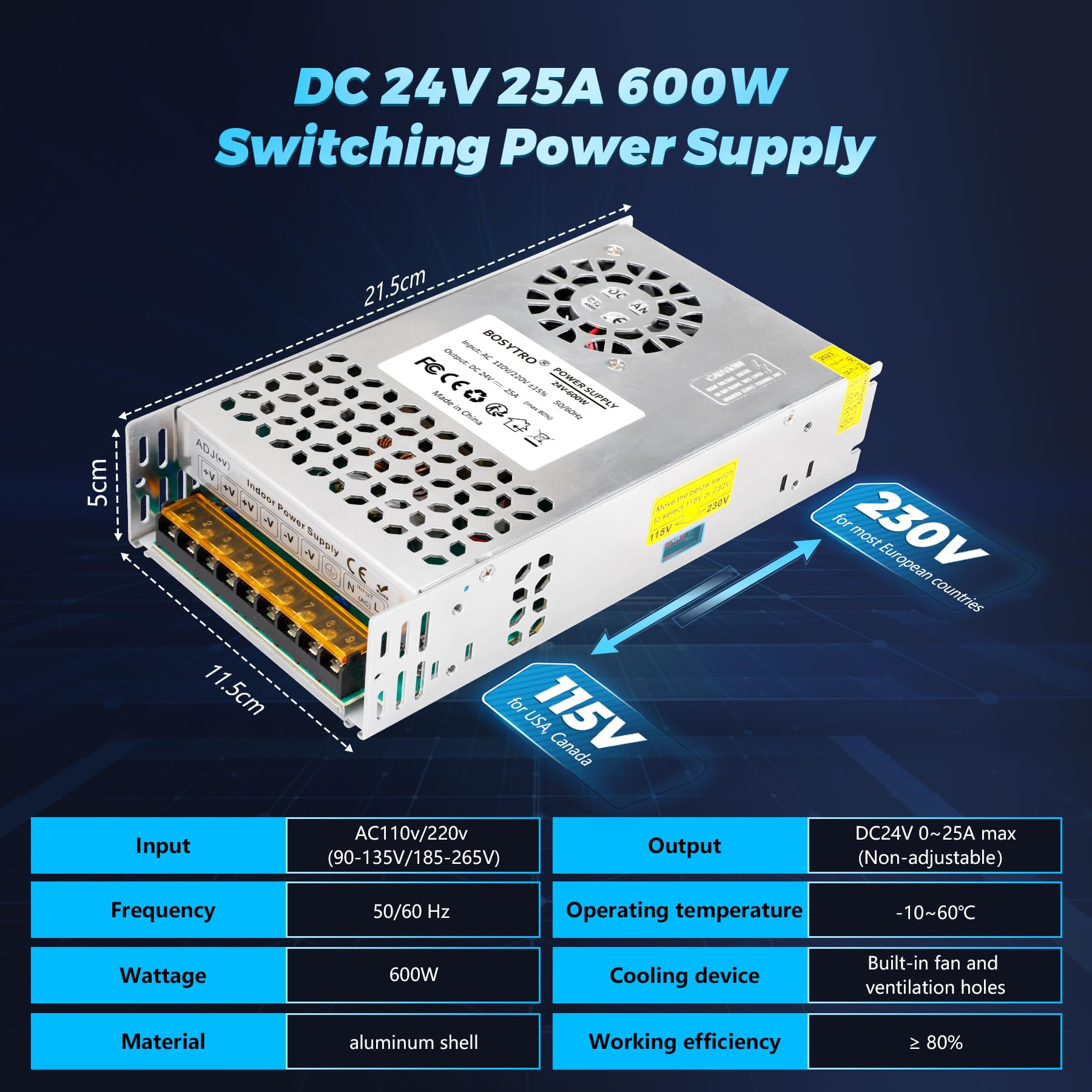

【Description of power supply parameters】
Output voltage: 24V (DC Adjustable voltage range +5%/-10%)
Current range (electric current): 0 to 25A
Rated power: 600W
Input voltage: AC110V/220V (85-145V /185-265V)
Please switch the appropriate voltage before use
Opening difference: +/-1%.< br>
Efficiency: 80%.< br>
Frequency is: 50-60Hz
Temperature coefficient: ±0.03%/°C (0~50°C)
Operating temperature: -10~60℃
Humidity during operation: 20-90%RH
Storage temperature: -20℃~85℃
Humidity during storage: 10%~ 95%RH
Size: 215*115*50mm (L*B*H)
Net weight: 0,8kg
Connection
L: AC input fire line.< br>
N: AC input null conductor
G: Grounding line
-V:Negative (DC output)
+V:Positive (DC output)
Caution
Note: The actual power is 80% of the rated power of the power supply (Example: If the power of your device is 800 watts, you need to buy a power supply with 1000 watts or more). When used indoors, the power supply is not waterproof. It is normal for the power supply to have a built-in fan and make a noise when it is working.
• 【Universal AC】LED power supply 24v
• output power 24V 25A 600W , output current depends on the requirements of power consuming devices, provides different current/wattage for multiple devices (peak power is not equal to maximum load current/power)

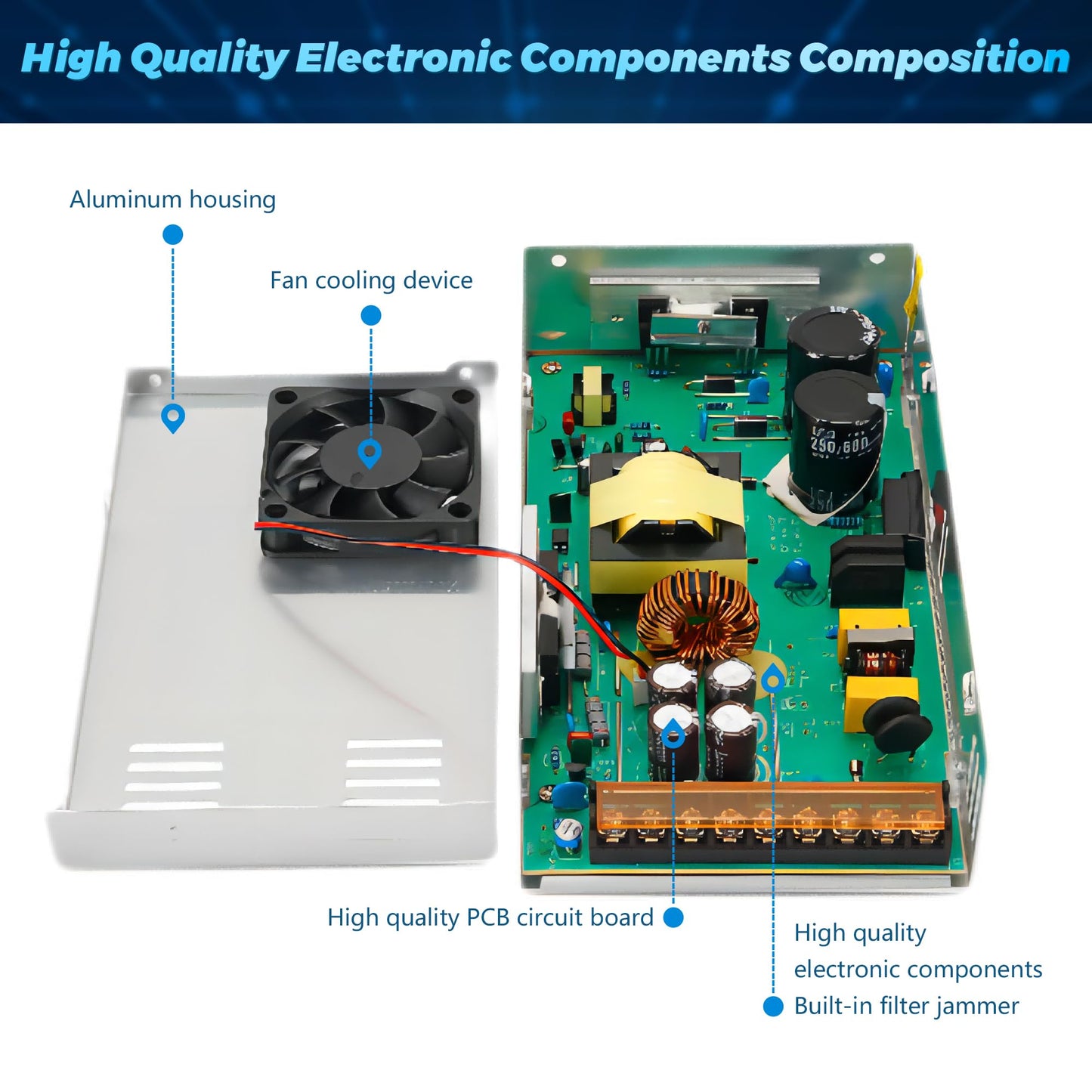

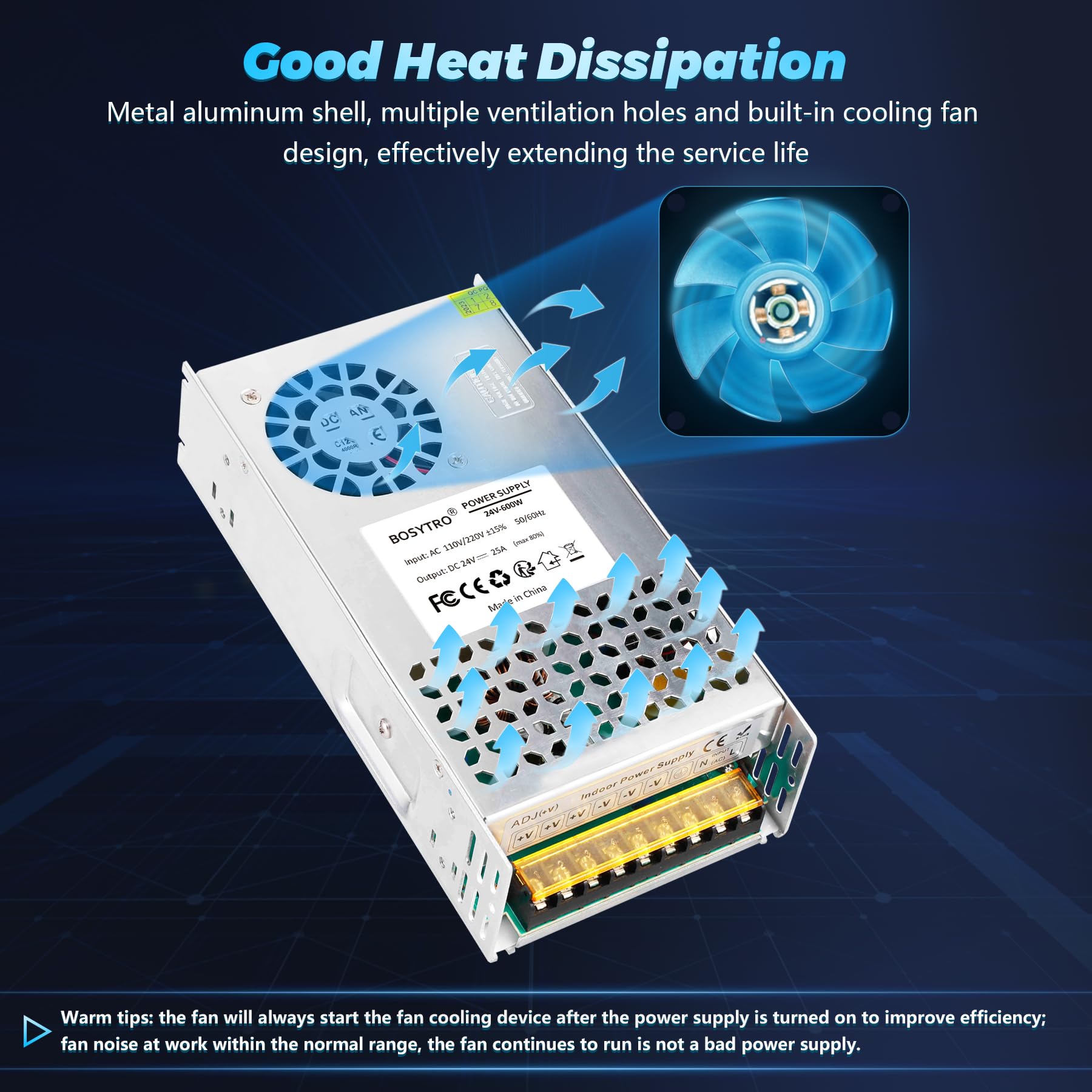

• 【High Quality】24v Power Supply, High quality flux material and multiple ventilation holes, Glossy aluminum enclosure for stain resistance and durability. The fan has been running continuously after the power is turned on to ensure good ventilation for heat dissipation. built-in status indicator.You can clearly see the operating status of the power supply
• 【Safety Certification】110v to 24v Converter Rigorous testing before leaving the factory, stable performance
• ac to dc converter RoHS/CE/LVD/EMC safety certification
• Lead-free process, in accordance with environmental protection RoHS requirements. Provide an effective guarantee for your electrical safety
• 【Wide Application Range】Voltage Regulator Widely used in DC 24V home appliances, electronic devices, LED lighting, progressive motors, CCTV, brushless motors, automation devices, computer projects, etc. One of the power supply in the LED field is also more and more widely used

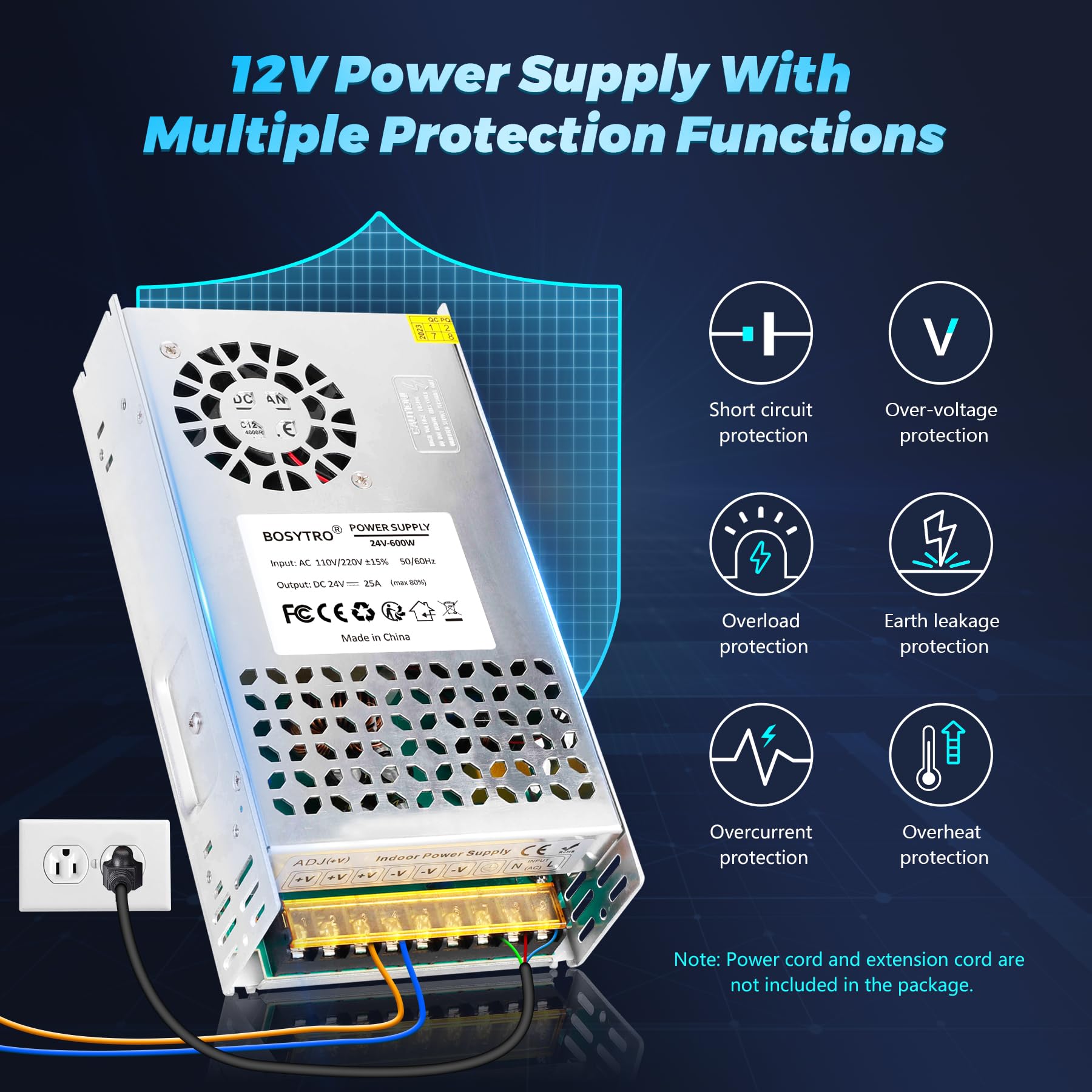

• 【Multi-protection】24V Switching Power Supply intelligent devices have overload, over-voltage and short-circuit protection, low power consumption and high efficiency in standby mode.If you have any questions about our products, please feel free to contact us for answers
Color: 24V-600W-BSC
Model: 24V-600W-BSC
【Description of power supply parameters】
Output voltage: 24V (DC Adjustable voltage range +5%/-10%)
Current range (electric current): 0 to 25A
Rated power: 600W
Input voltage: AC110V/220V (85-145V /185-265V)
Please switch the appropriate voltage before use
Opening difference: +/-1%.< br>
Efficiency: 80%.< br>
Frequency is: 50-60Hz
Temperature coefficient: ±0.03%/°C (0~50°C)
Operating temperature: -10~60℃
Humidity during operation: 20-90%RH
Storage temperature: -20℃~85℃
Humidity during storage: 10%~ 95%RH
Size: 215*115*50mm (L*B*H)
Net weight: 0,8kg
Connection
L: AC input fire line.< br>
N: AC input null conductor
G: Grounding line
-V:Negative (DC output)
+V:Positive (DC output)
Caution
Note: The actual power is 80% of the rated power of the power supply (Example: If the power of your device is 800 watts, you need to buy a power supply with 1000 watts or more). When used indoors, the power supply is not waterproof. It is normal for the power supply to have a built-in fan and make a noise when it is working.
• 【Universal AC】LED power supply 24v
• output power 24V 25A 600W , output current depends on the requirements of power consuming devices, provides different current/wattage for multiple devices (peak power is not equal to maximum load current/power)
• 【High Quality】24v Power Supply, High quality flux material and multiple ventilation holes, Glossy aluminum enclosure for stain resistance and durability. The fan has been running continuously after the power is turned on to ensure good ventilation for heat dissipation. built-in status indicator.You can clearly see the operating status of the power supply
• 【Safety Certification】110v to 24v Converter Rigorous testing before leaving the factory, stable performance
• ac to dc converter RoHS/CE/LVD/EMC safety certification
• Lead-free process, in accordance with environmental protection RoHS requirements. Provide an effective guarantee for your electrical safety
• 【Wide Application Range】Voltage Regulator Widely used in DC 24V home appliances, electronic devices, LED lighting, progressive motors, CCTV, brushless motors, automation devices, computer projects, etc. One of the power supply in the LED field is also more and more widely used
• 【Multi-protection】24V Switching Power Supply intelligent devices have overload, over-voltage and short-circuit protection, low power consumption and high efficiency in standby mode.If you have any questions about our products, please feel free to contact us for answers
Color: 24V-600W-BSC
