Brand: Blue Charm Beacons

Model Number: BC021

A unique beacon that includes a button trigger AND movement sensor

The button and/or movement sensor can optionally be configured so that beacon only broadcasts for X seconds after button is pressed or beacon is moved (for an alarm or alert-type function). Alternatively, it can broadcast a different UUID after button is pressed or beacon is moved. This feature adds a powerful level of active (button press) or passive (adjustable movement sensing) interaction to the beacon.

Transmit distance: 0.2-90 meters

Wide Range of TX settings.

Long Range BLE 5.0

Shows battery level in broadcast.

This unique Multi-Beacon broadcasts your choice of iBeacon, Eddystone TLM, Eddystone URL, and/or Eddystone UID format.

Monitor battery level via app.

Beacon name, UUID, TX broadcast strength, broadcast interval, major/minor, etc. are customizable via our free apps.

Our website has very detailed step by step instructions and screenshots under the Quick Start Guide menu.

Specifications:
Transmission: iBeacon, Eddystone URL, and/or Eddystone UID format. May be configured to broadcast battery strength.
BLE version: 4.0 and 5.0
Battery size: CR2032 (included)
Battery life: 16 months @ 1second interval & 0dBm & unconnectable mode
Includes 3M double-back tape for affixing to a surface

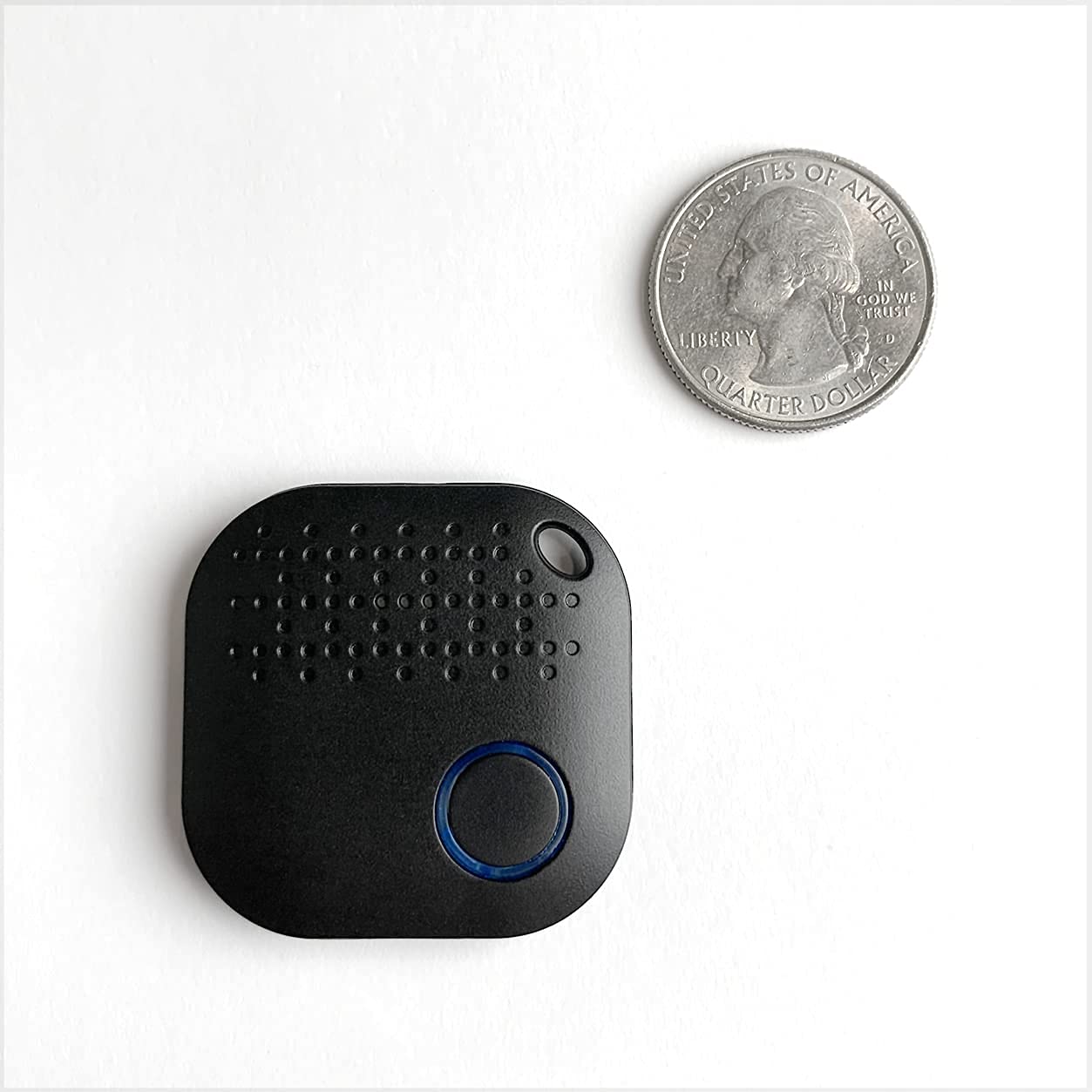

Size: 36mm x 36mm x 5.75mm (approx. 1-7/16" x 1-7/16" x 15/64")
Weight: 0.28 ounces including battery
Waterproofing: no
Password: yes
Wide TX Power range: select from -40, -20, -16, -12, -8, -4, 0, +4dBm
Interval: adjustable from 100-10,000 milliseconds including optimal precise numbers such as 1022.5ms
On/Off switch: yes
Movement Sensor: yes
Chip: nRF52810
Transmit distance: 0.2-90 meters
Android app: yes
iOS app: yes

Feel free to contact us if you have any questions or would like to order in bulk.

This beacon is compatible with all bluetooth-capable smartphones as well as with our BLE beacon scanning gateway (Item BCG04). Works great with Home Assistant too. See our website for some sample projects using beacons with HA. (Under the "Usage Examples" menu at the top)

• Our new generation compact beacon with a unique button trigger option AND movement sensor. Long Range BLE 5.0 but also compatible with BLE 4.0. Shows battery level in broadcast. Button and/or movement sensor can be configured to trigger different broadcasts.
• Broadcasts your choice of iBeacon, Eddystone TLM, Eddystone URL, and/or Eddystone UID format. Eddystone TLM broadcasts battery strength, temperature, and broadcast count data every tenth broadcast. (This is NOT an Eddystone URL beacon for broadcasting your website or ad message to nearby phones. That service has been SHUTDOWN WORLDWIDE by Google as of Dec 6, 2018.)
• Free configuration apps for iPhone & Android allow you to adjust settings according to your needs.
• Transmit distance: 0.2-90 meters. Selectable TX levels: -40, -20, -16, -12, -8, -4, 0, +4dBm
• Our website has very detailed step-by-step instructions with multiple screenshots under the Quick Start Guide menu.
• This beacon is compatible with all bluetooth-capable smartphones as well as with our BLE beacon scanning gateway (Item BCG04). Works great with Home Assistant too. See our website for some sample projects using beacons with HA. (Under the "Usage Examples" menu at the top)
• (This is NOT an Eddystone URL beacon for broadcasting your website or ad message to nearby phones. That service has been SHUTDOWN WORLDWIDE by Google as of Dec 6, 2018.)
