Brand: Baomain
Product Description

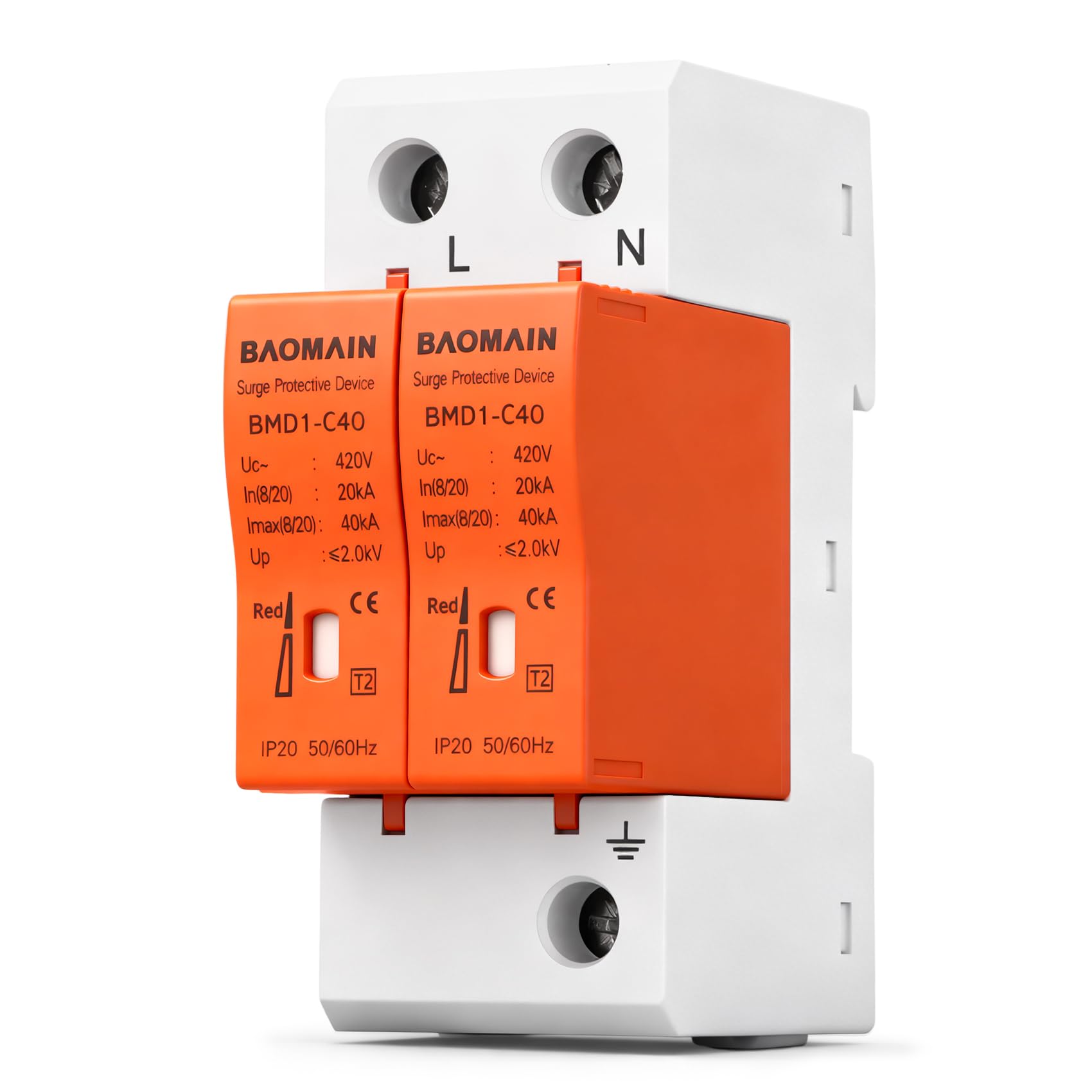

The BMD1-C40 Surge Protection Device (SPD) protects electrical equipment from lightning and power surges. This series features a built-in thermal disconnector for safety, a clear visual status indicator, and standard 35mm DIN rail mounting for easy installation across various applications.
Key FeaturesHigh-Capacity Protection: Maximum discharge current of 40 kA to handle significant surge events. Safety Disconnector: Integrated thermal protection automatically disconnects the SPD from the network in case of failure due to overheating or breakdown. Visual Status Indicator: A clear window shows white during normal operation and turns red when the device is disconnected, providing immediate operational status. Easy Installation: Standard 35mm DIN rail mount design for simple and secure fitting in distribution panels.

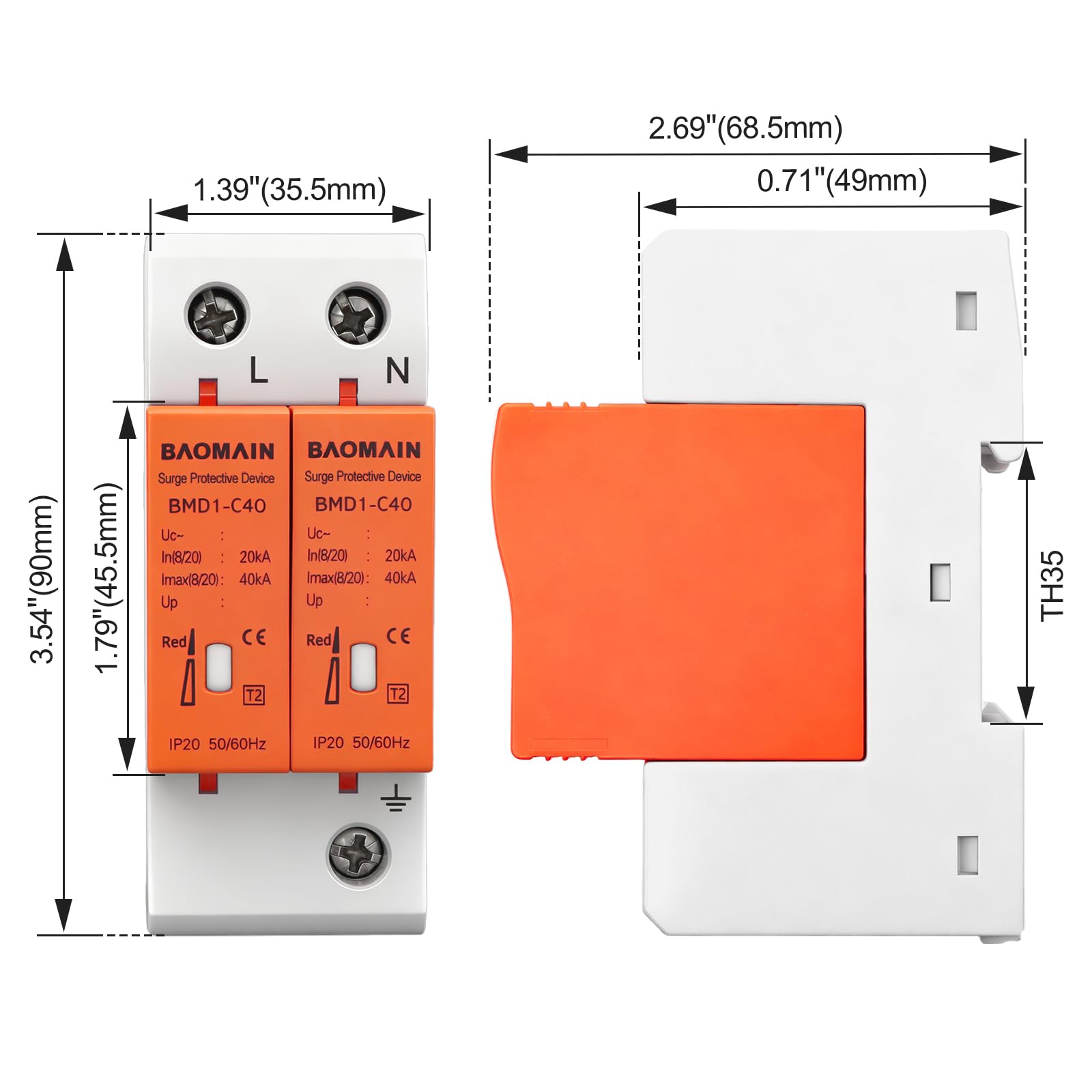

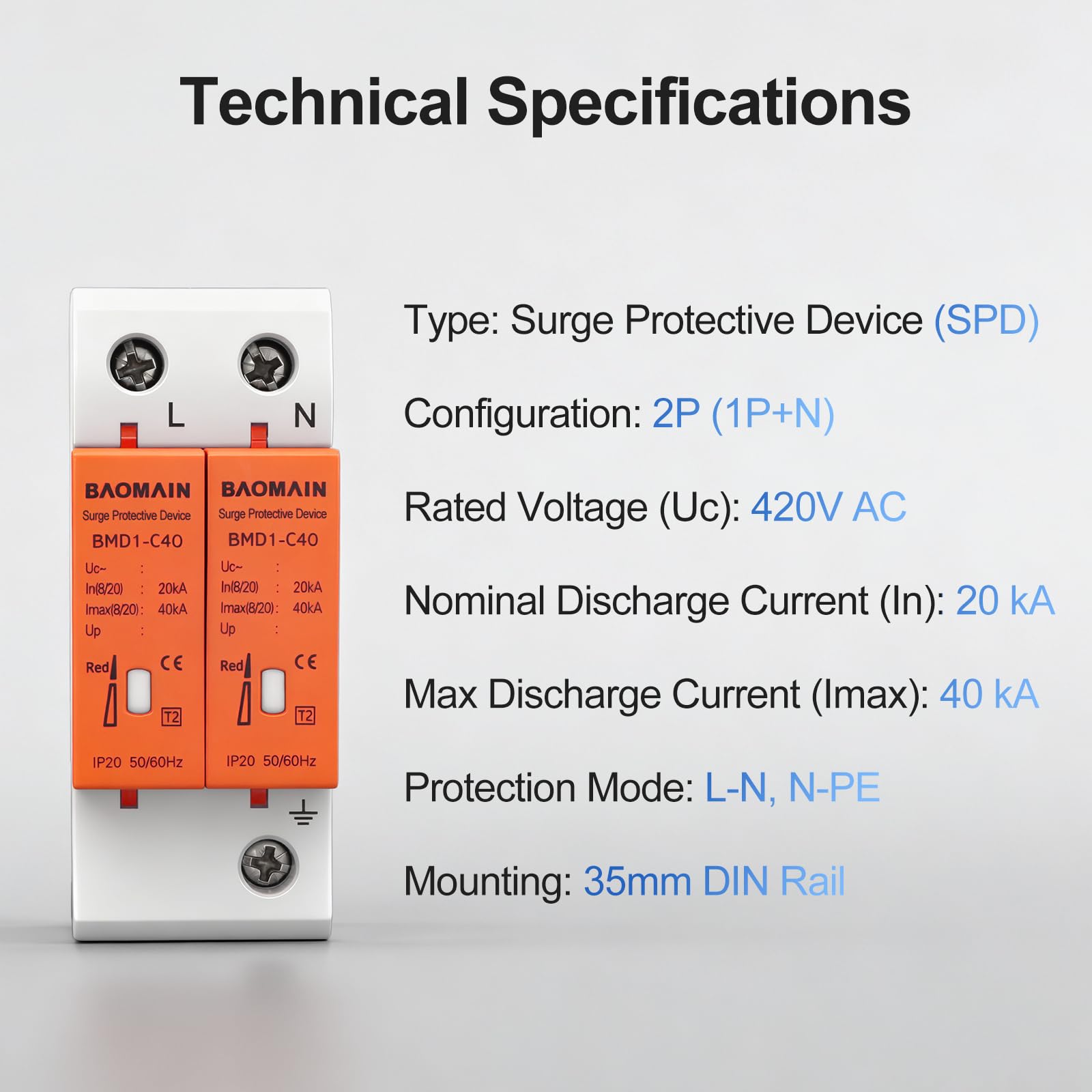

Technical SpecificationsModel: BMD1-C40 Configuration: 2P (1P+N) Rated Operating Voltage (Uc): AC 420V Maximum Discharge Current (Imax): 40 kA Protection Level: IP20 Mounting Style: 35mm DIN Rail Dimensions (L x W x H): 90 x 35.5 x 68.5mm/3.54" x 1.39" x 2.69" Package Includes: 1 x Surge Protective Device
ApplicationsElectrical distribution boxes on various building floors Server rooms, data centers, and telecommunication equipment rooms Elevator control rooms and fire alarm control panels CATV/Security system panels Residential and villa distribution boards Industrial control panels requiring surge protection
NoteMust be installed with proper overcurrent protection (fuse/circuit breaker) by a qualified electrician per local electrical codes. For indoor use only.
• ?420V AC High-Capacity Surge Protection?Provides reliable protection against power surges and lightning-induced over-voltages in standard AC electrical systems. Features a 420V AC operating voltage and a 40 kA discharge capacity to safeguard connected equipment

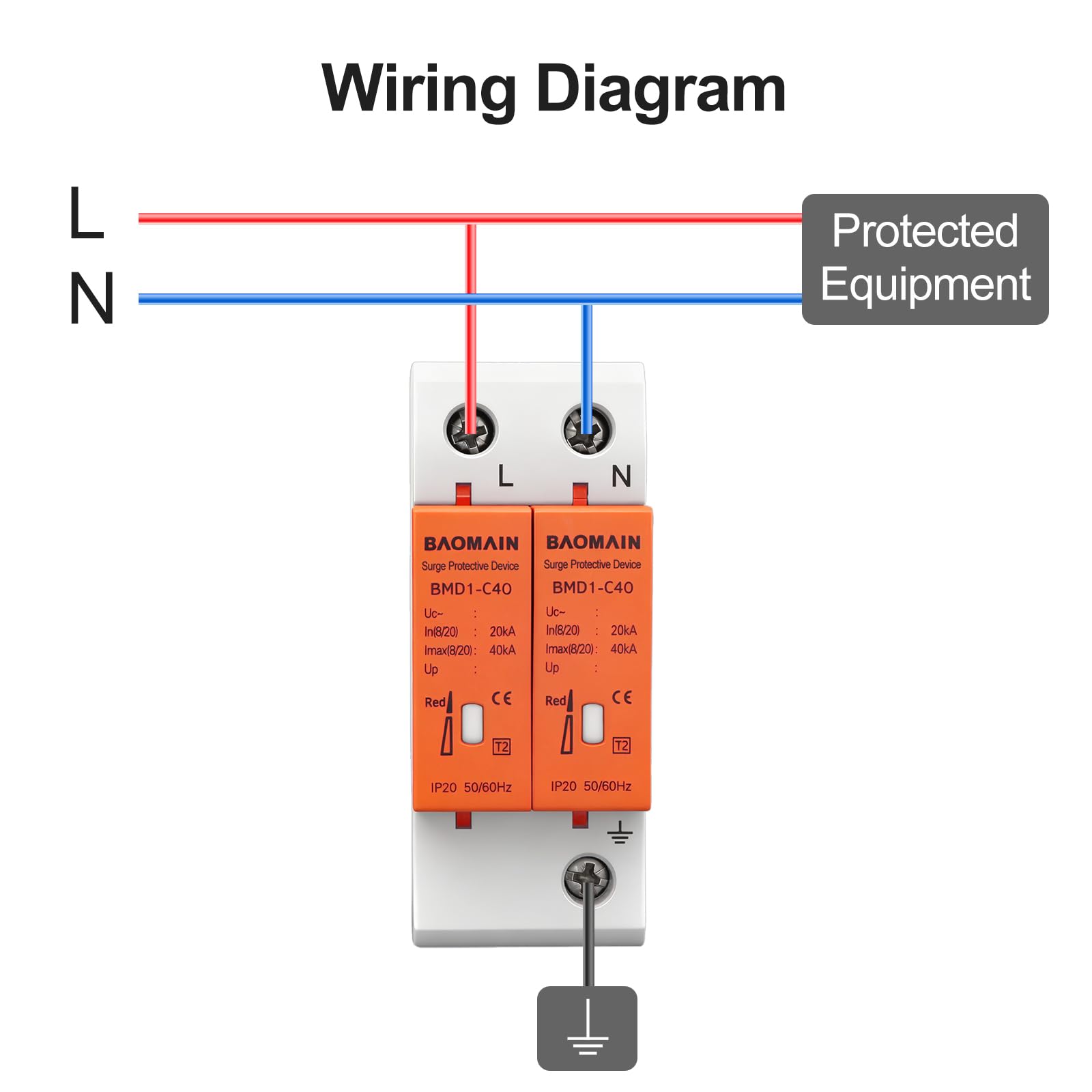

• ?2P (1P+N) Configuration for Complete Single-Phase Safety?The 1P+N design provides independent protection for both the live and neutral conductors in a single-phase system. This comprehensive coverage is essential for safety in common power supply systems like TT and TN-S, offering enhanced protection compared to single-pole devices

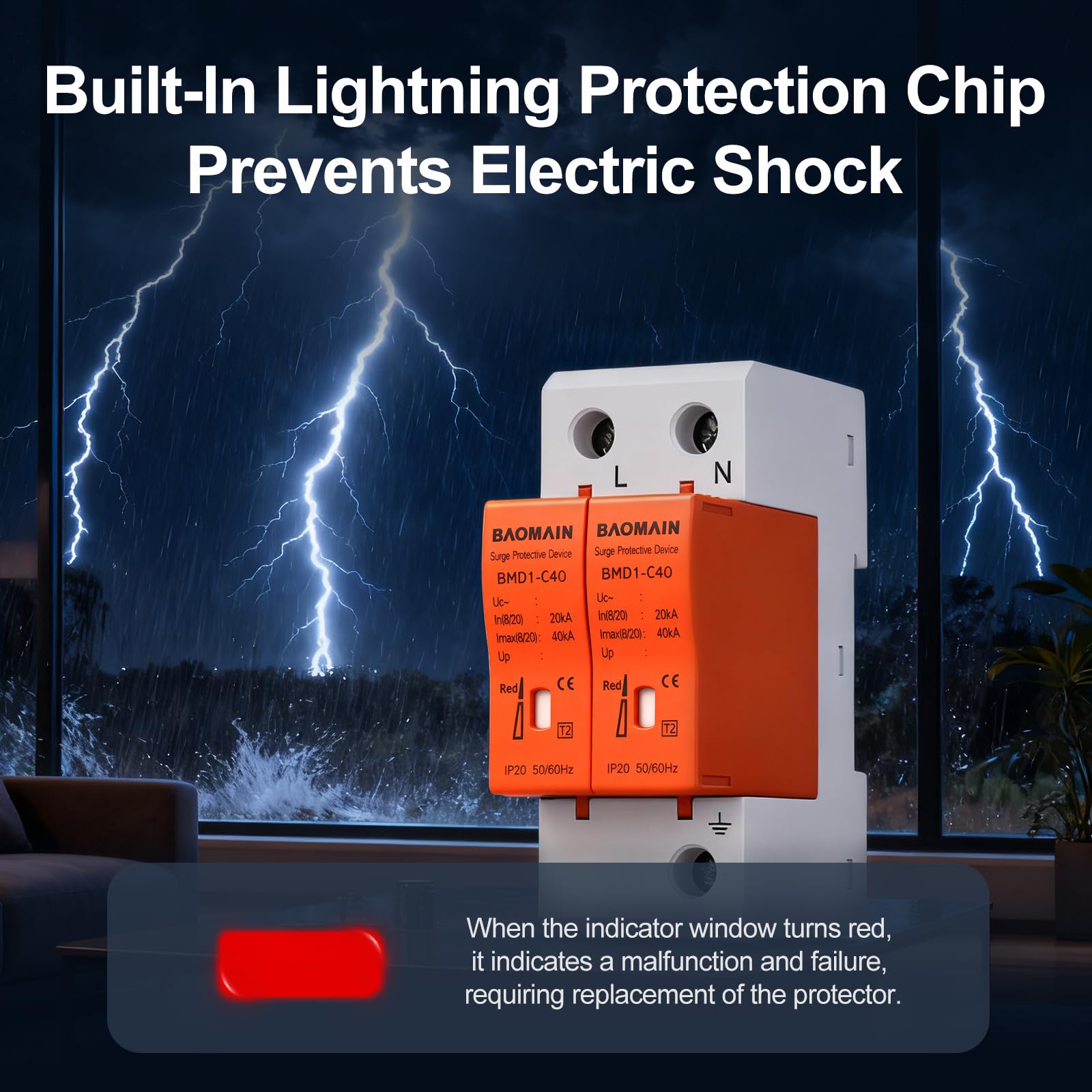

• ?Automatic Safety Disconnect?Built-in disconnector removes the device from the circuit if it fails, with a visual indicator (white=normal, red=fault)
• ?Easy DIN Rail Mounting?Compact design installs quickly on standard 35mm DIN rails in electrical panels
• ?Versatile for AC Power Systems?Ideal for surge protection in a wide range of AC electrical environments. Suitable for installation in building distribution panels, server/telecom rooms, elevator controls, HVAC systems, and residential electrical cabinets to safeguard connected equipment
Color: White,Red
Product Description
The BMD1-C40 Surge Protection Device (SPD) protects electrical equipment from lightning and power surges. This series features a built-in thermal disconnector for safety, a clear visual status indicator, and standard 35mm DIN rail mounting for easy installation across various applications.
Key Features
Technical Specifications
Applications
Note
• ?420V AC High-Capacity Surge Protection?Provides reliable protection against power surges and lightning-induced over-voltages in standard AC electrical systems. Features a 420V AC operating voltage and a 40 kA discharge capacity to safeguard connected equipment
• ?2P (1P+N) Configuration for Complete Single-Phase Safety?The 1P+N design provides independent protection for both the live and neutral conductors in a single-phase system. This comprehensive coverage is essential for safety in common power supply systems like TT and TN-S, offering enhanced protection compared to single-pole devices
• ?Automatic Safety Disconnect?Built-in disconnector removes the device from the circuit if it fails, with a visual indicator (white=normal, red=fault)
• ?Easy DIN Rail Mounting?Compact design installs quickly on standard 35mm DIN rails in electrical panels
• ?Versatile for AC Power Systems?Ideal for surge protection in a wide range of AC electrical environments. Suitable for installation in building distribution panels, server/telecom rooms, elevator controls, HVAC systems, and residential electrical cabinets to safeguard connected equipment
Color: White,Red
