Brand: Dasiter

Model: DA118-Buck Boost Module

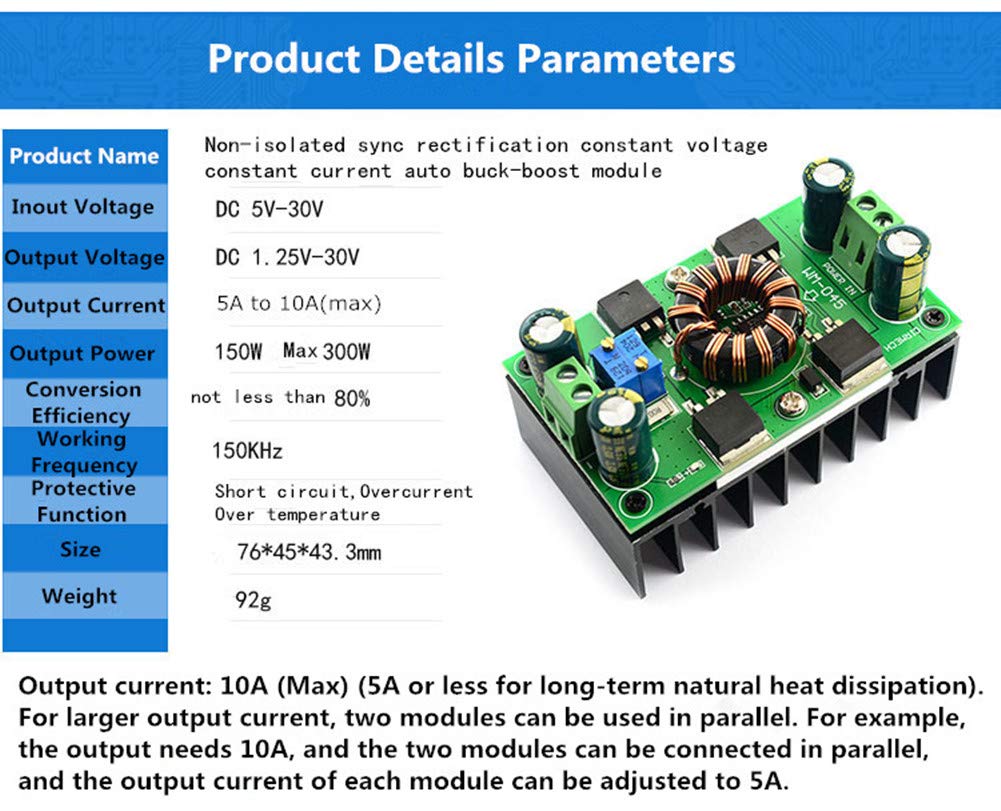

Specification:
Item Type: Constant Voltage Power Supply Module Automatic Step-Up/Down CV CC Power Supply Module
Input Voltage: DC 5V-30V
Output Voltage: DC 1.25V~30V
Output Current: 5A~10A
Output Power: 150W (Max 300W)
Efficiency: 93%
Working Frequency: 150KHz
Protection Function: Short circuit protection, over current protection, over temperature protection
Size:76 x 45 x 43mm / 2.99 x 1.77 x 1.69in
Weight: 92 g / 3.21 oz(approx.)

Packing List:
- 1pcs x Automatic Step-Up/Down CVCC Power Supply Module

Notice:
Output current: 10A (Max) (5A or less for long-term natural heat dissipation). For larger output current, two modules can be used in parallel. For example, the output needs 10A, and the two modules can be connected in parallel, and the output current of each module can be adjusted to 5A.

Description:

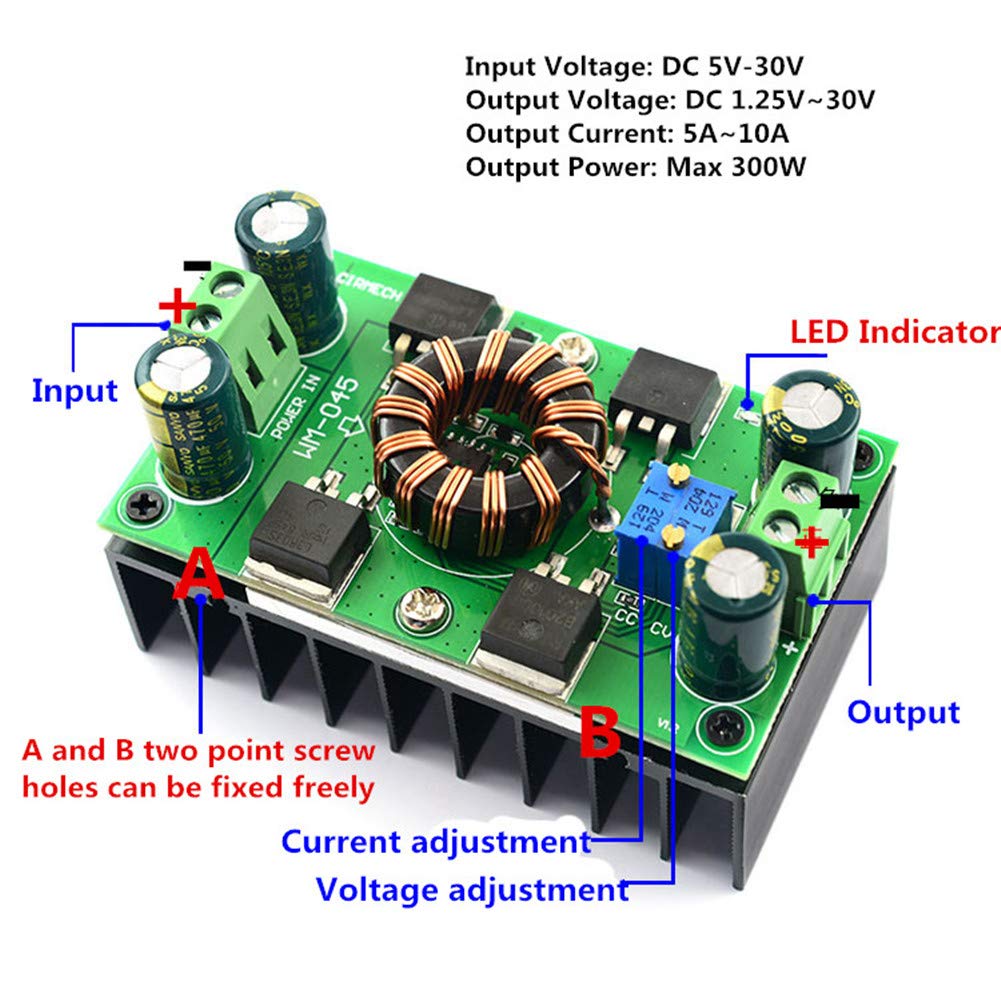

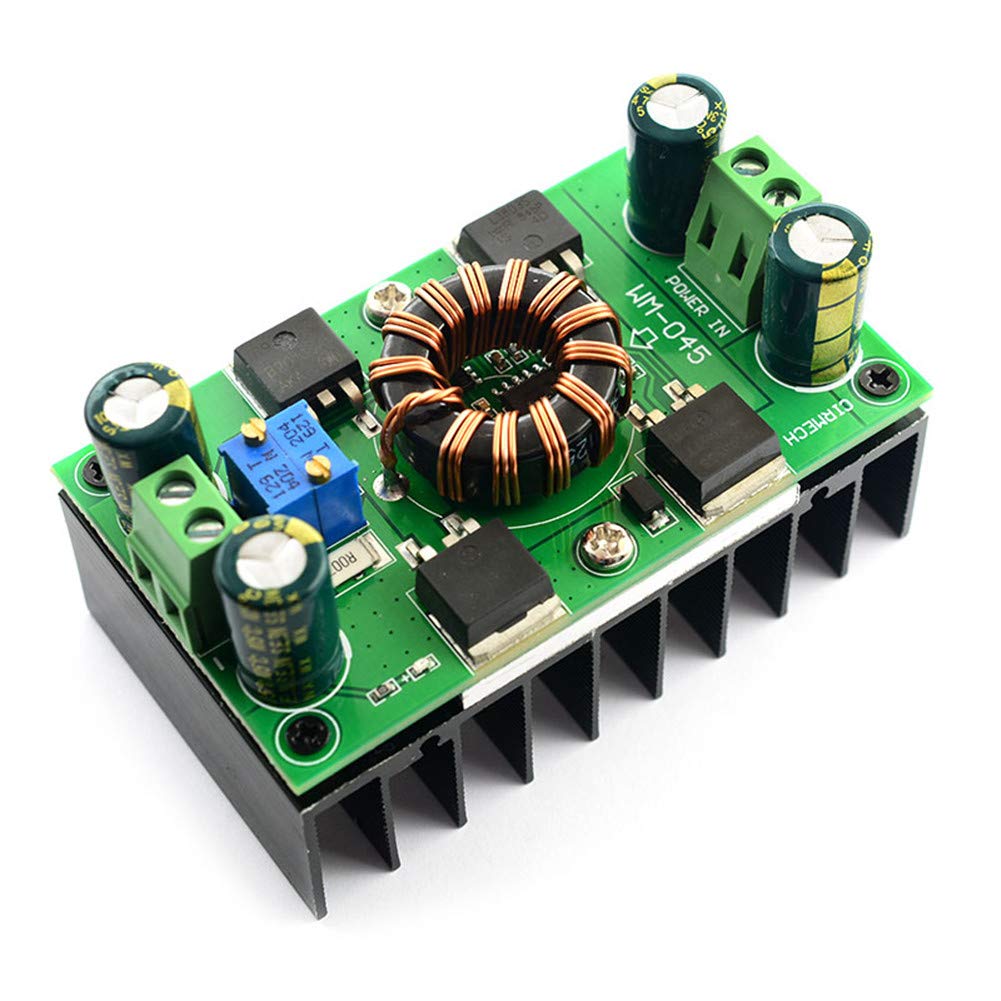

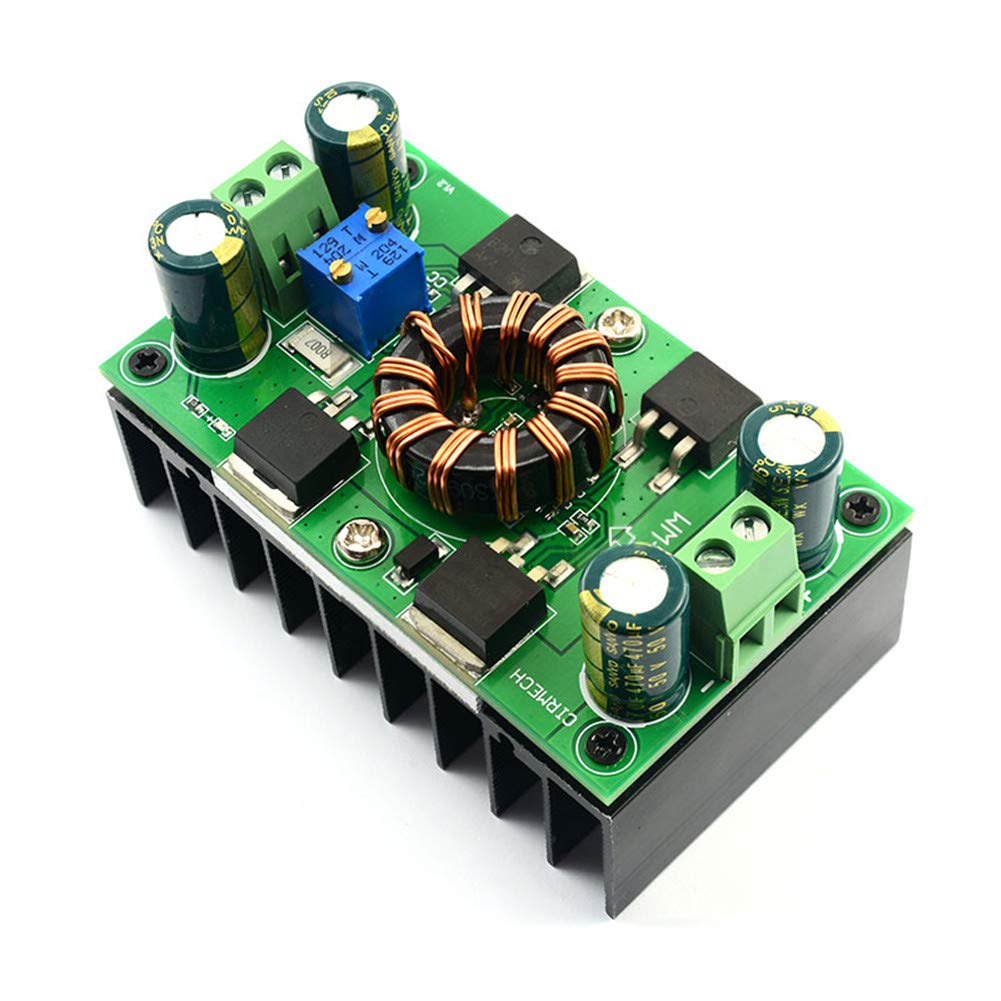

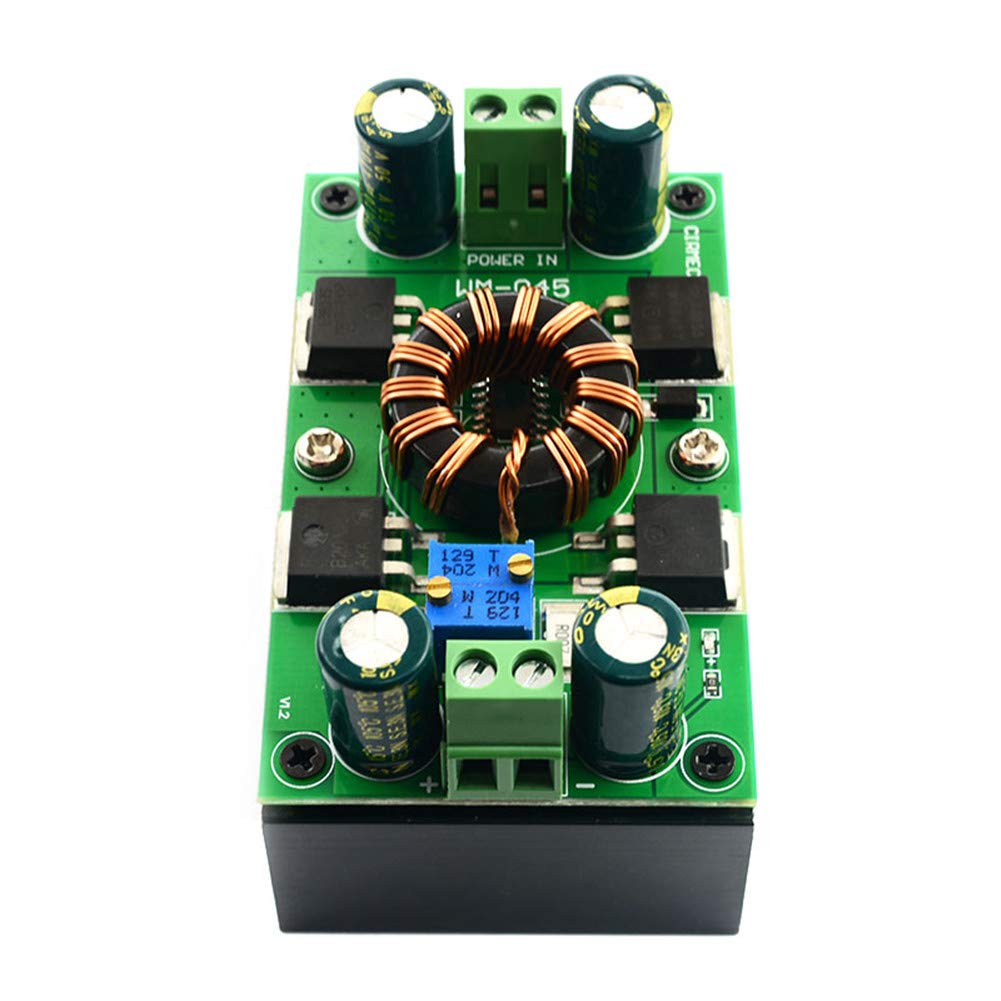

- This buck-boost power supply module uses a large heatsink to enhance heat dissipation, four pieces high-power high-quality voltage regulator tubes, three-wire 0.6 and wire-wound iron-silicon-aluminum magnetic ring inductors, which are not easy to saturate, further reducing heat loss; The 1.6mm circuit PCB board adds stability; the input and output use high-frequency low-resistance capacitors, making the output ripple very small.
- Since the module input voltage allows a relatively large range and the output requirements are relatively stable, it is widely used in various fields, such as solar charging and driving high-power LED lamps etc.


• The power module uses a large heat sink to ensure heat dissipation.
• Input and output use high frequency low resistance capacitors, output ripple is very low.
• The input voltage of the power module is large and the output voltage is stable.
• Including short circuit protection function,more safe and reliable to use.
• The maximum output power is up to 300W with a efficiency of 93%.

Color: Green + Black

Power/Wattage: 76*45*43.3mm
