Description
Brand: ATNSINC
• The input voltage: DC 3 -40 V (Input voltage must be 1.5 V higher than the output voltage, no boost.)
• The output voltage: DC 1.5 - 35 V adjustable.
• The output current: It is recommended to use under 2A, maximum 3A(Additional heatsink is required).

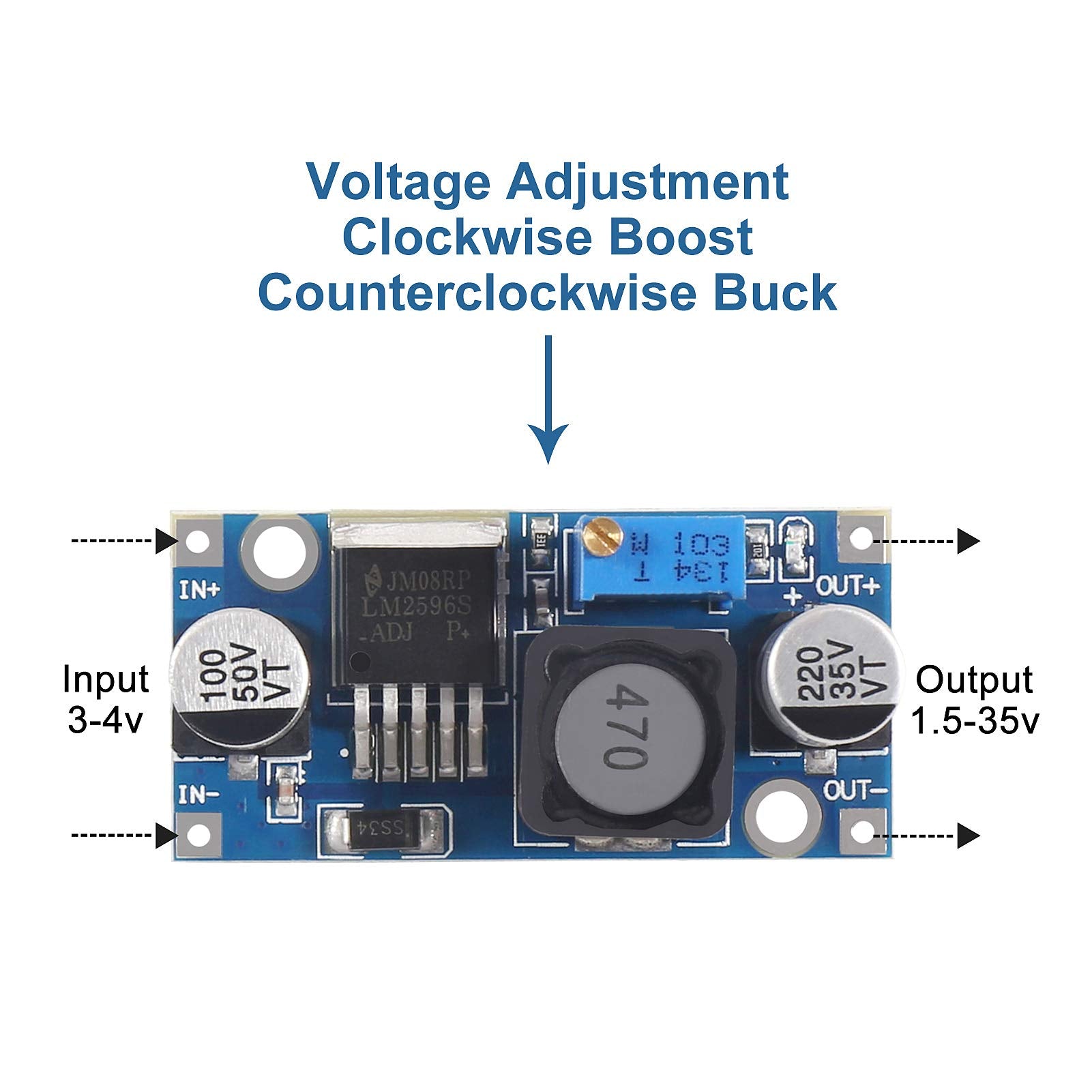

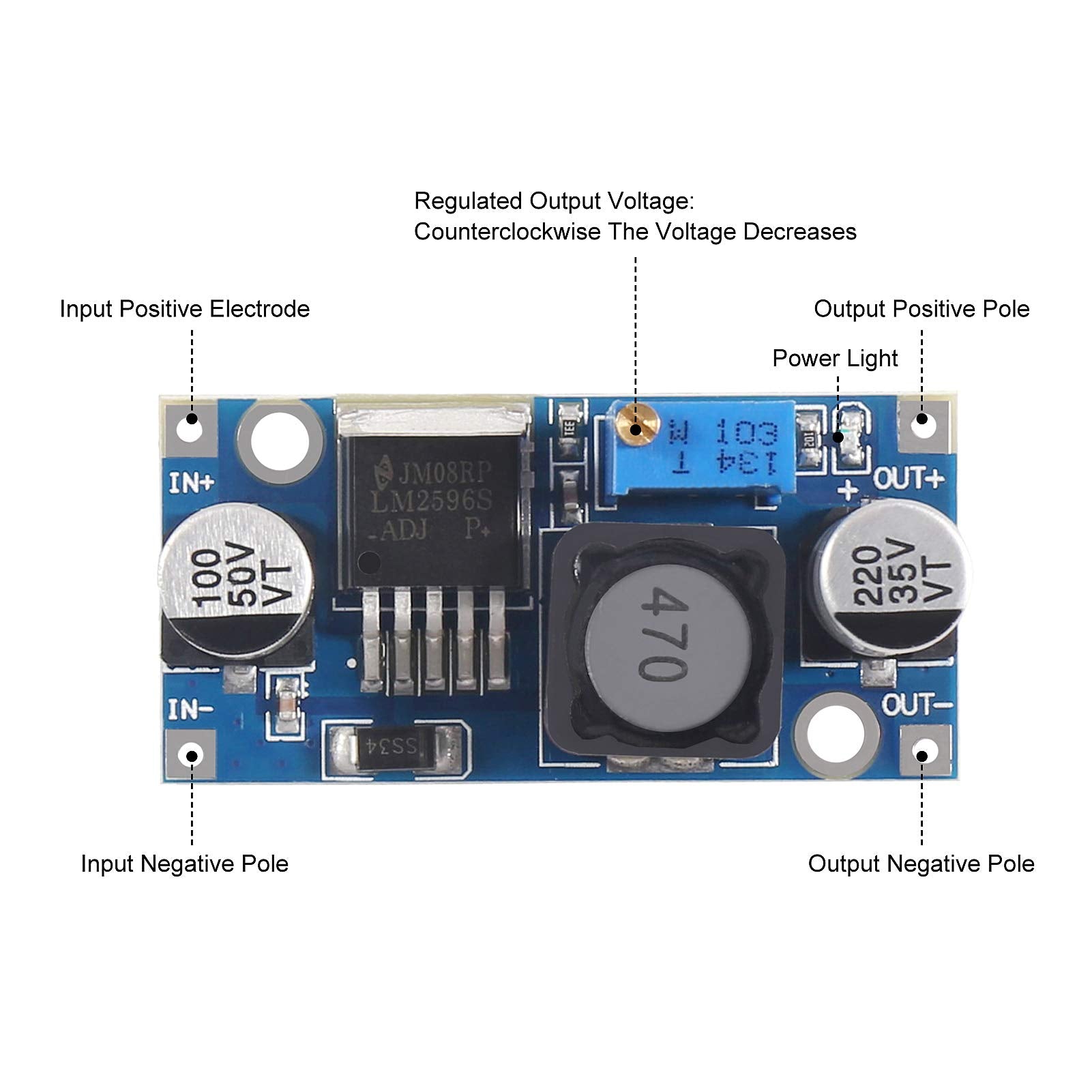

• Steps: 1. Plugged into a power supply (3-40v), the power indicator light is lit, the module to work properly. 2. Adjust the blue potentiometer knob (generally booster clockwise, counterclockwise step-down) with a multimeter monitoring the output voltage to the voltage.

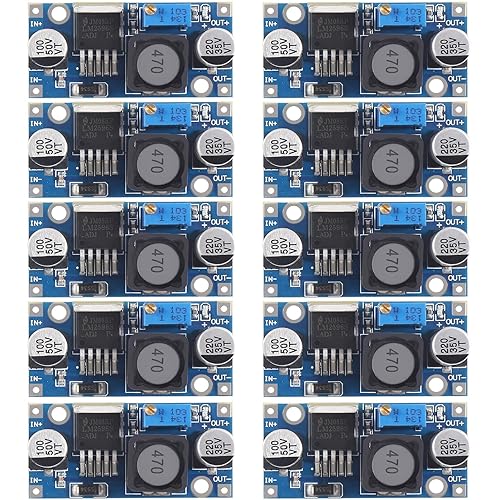

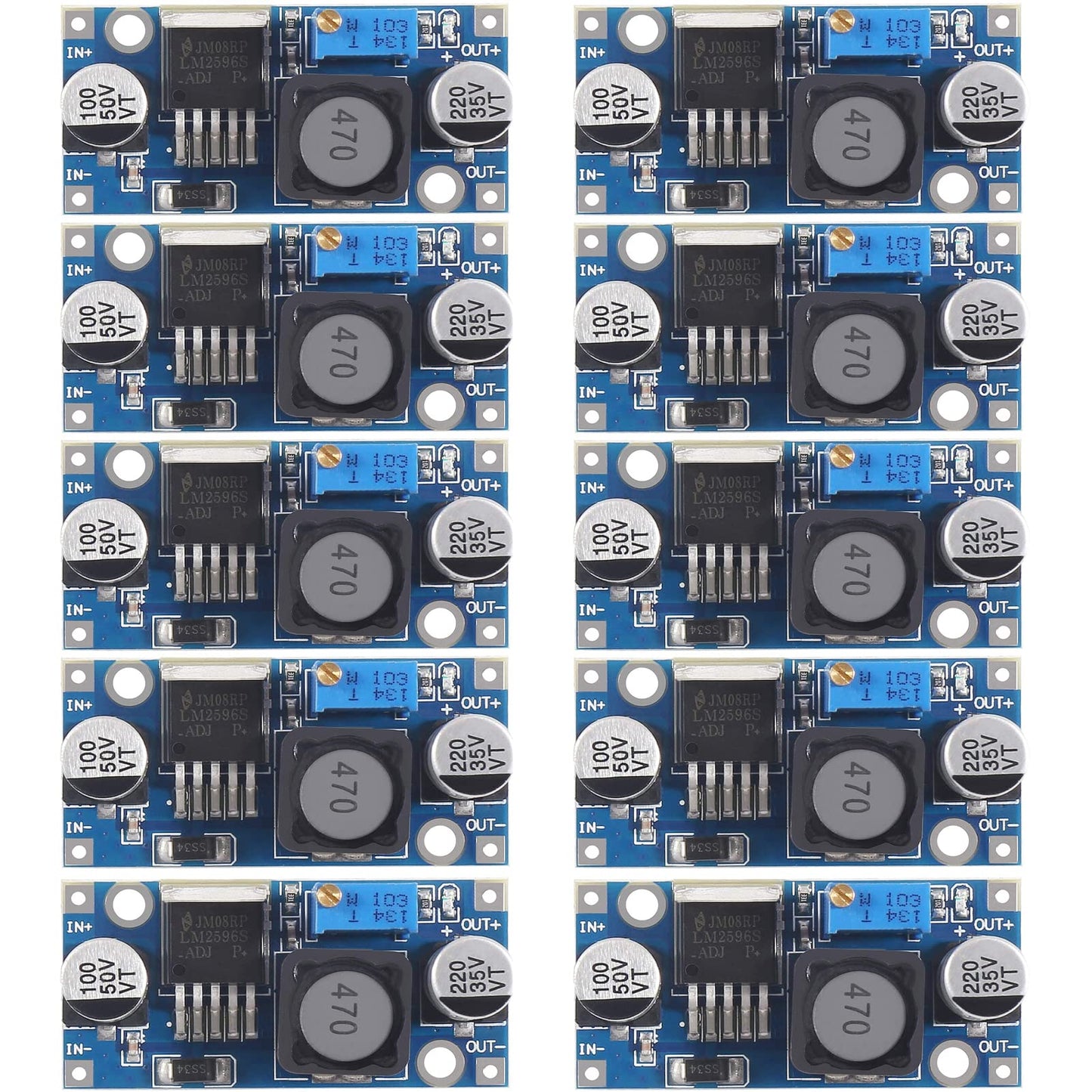

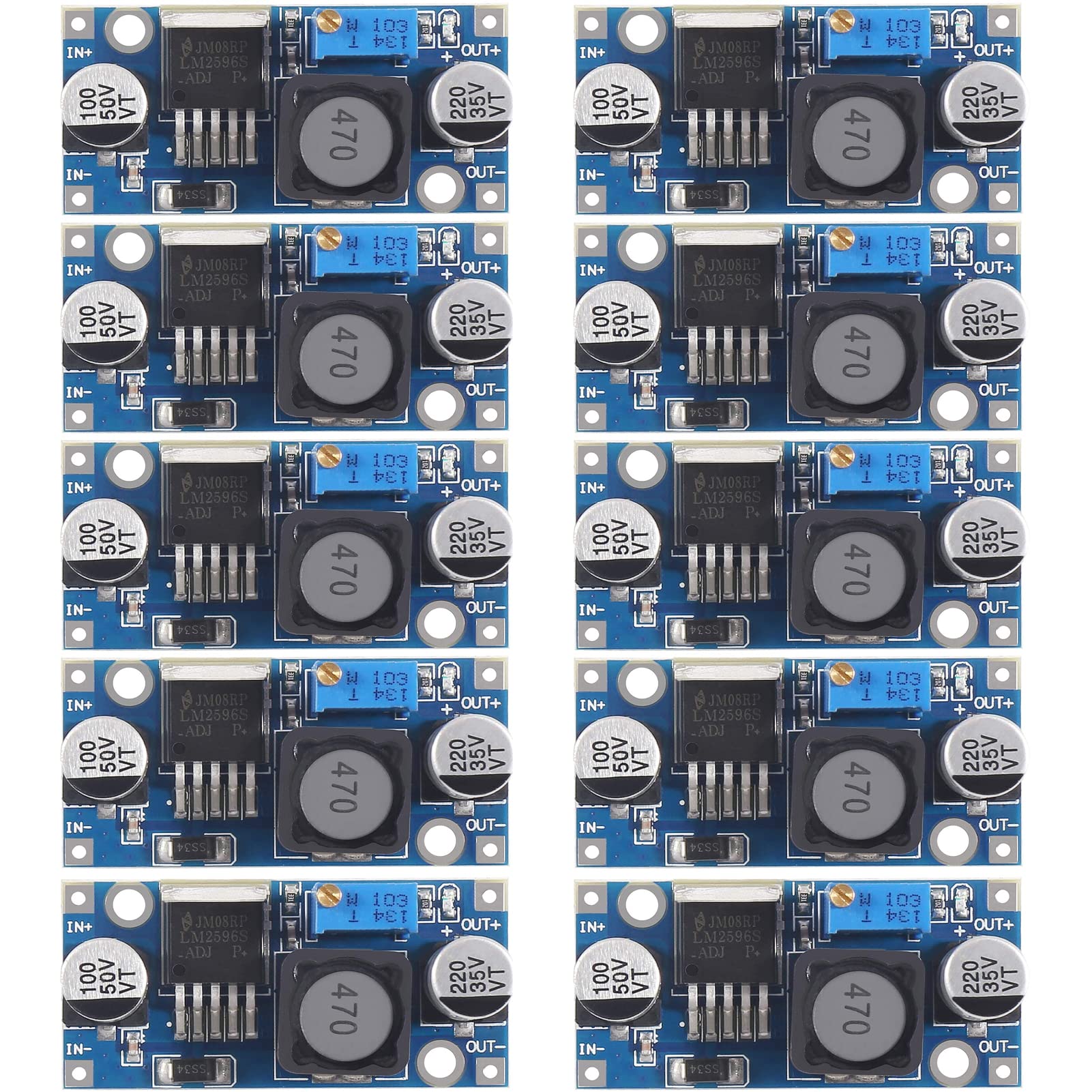

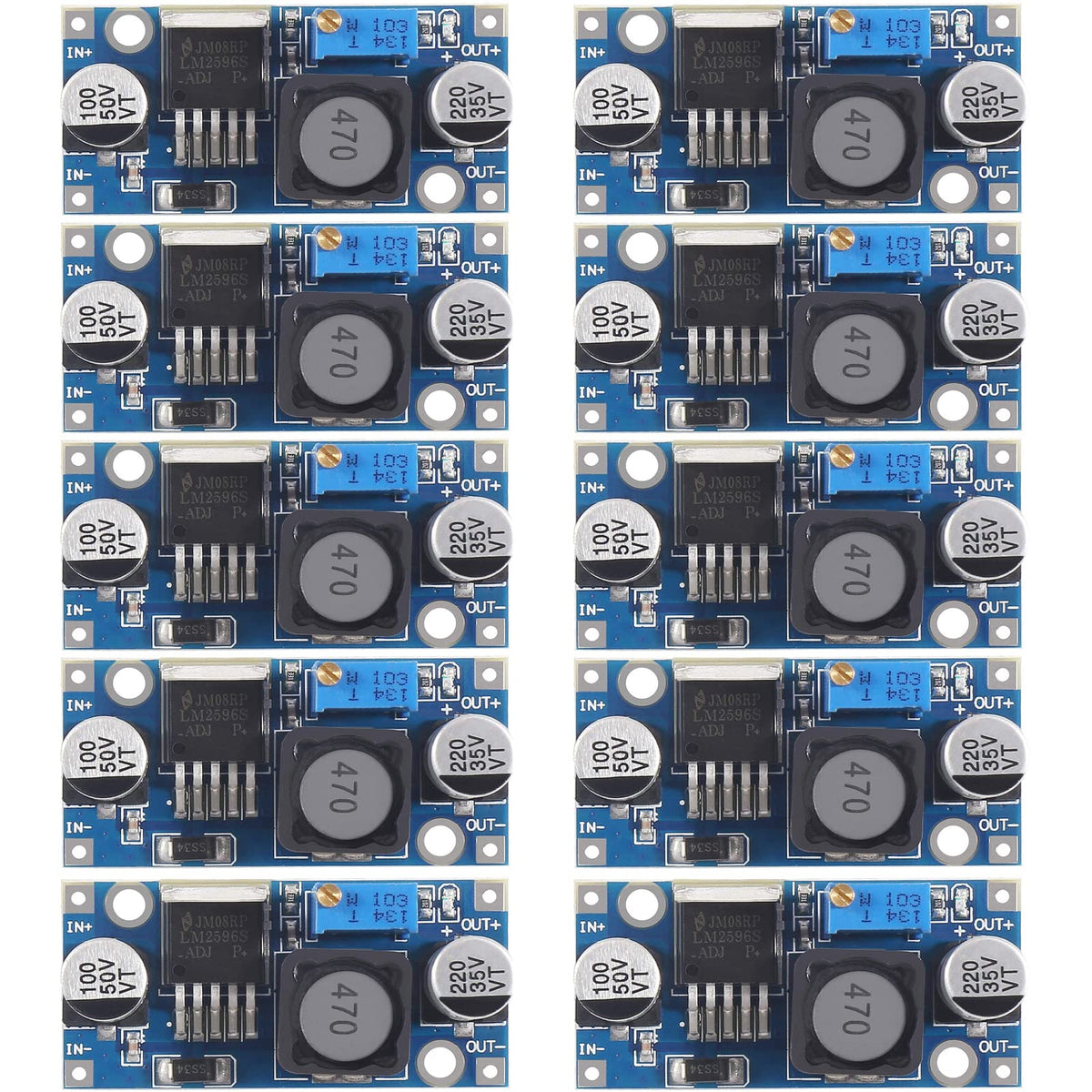

• Package includes:10XLM2596 DC-DC buck converter module（Note：The factory have tested these at max voltage so they are very high by default, takes about 15-20 turns CCW before the voltage starts ramping down)
Color: 10PCS
Features:
The input voltage: 3 -40 V
The output voltage:1.5 - 35 V
The output current: It is recommended to use under 2A, maximum 3A(Additional heatsink is required).
Conversion efficiency:92%Max(the higher output voltage, the higher efficiency)
Load adjust ratio: +/-0.5%
Voltage adjust ratio: +/-2.5%
Switching frequency:1.5MKHz
Work temperature:-Minus 40 degrees - 85 degrees
Module property:Non-isolation buck
Rectification mode:Non-synchronous rectifier
Function:
1.Used to step down load, built in current limit function
2.Built in over-temperature protection function
3.Built in output short-circuit protection function
Package inculded:

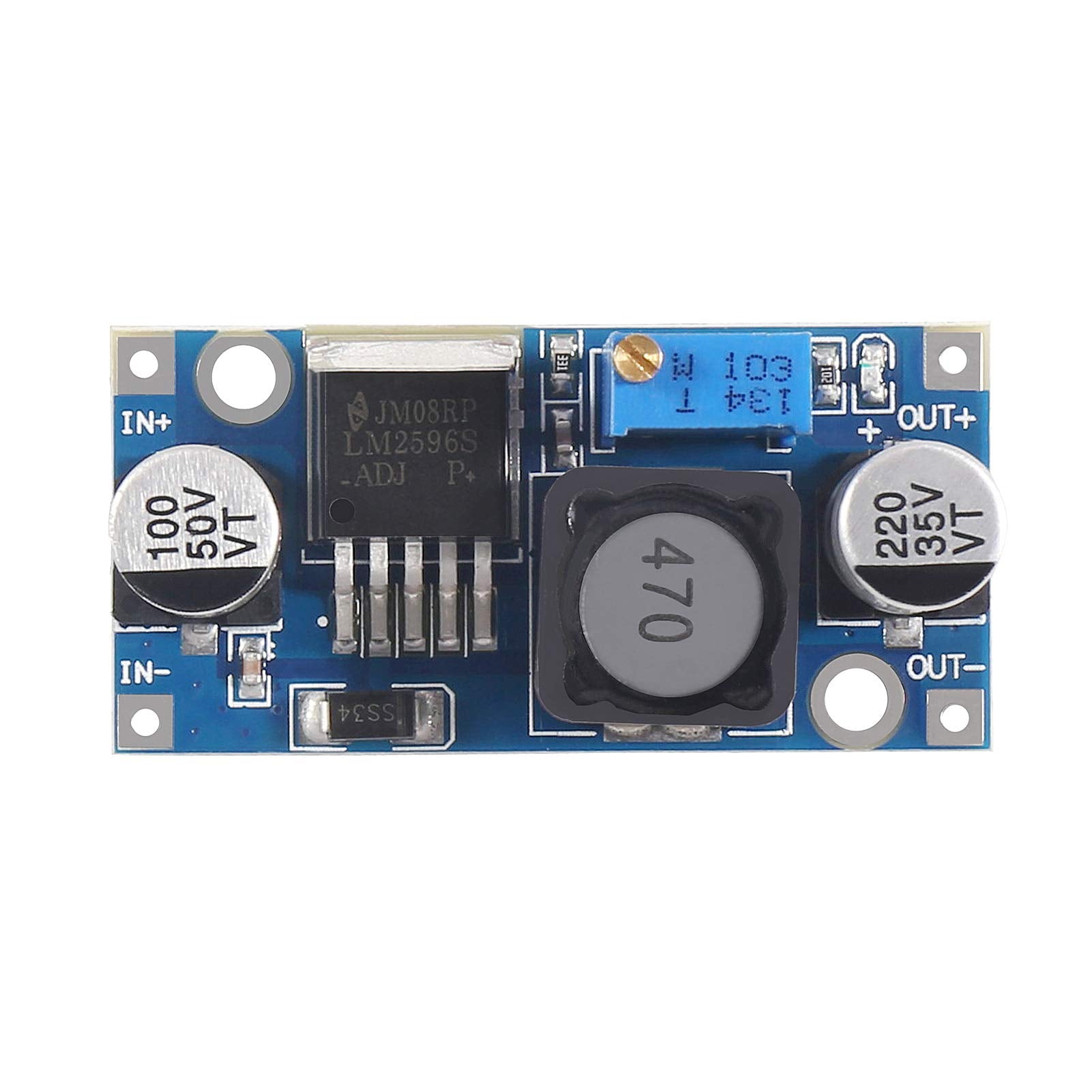

10X LM2596 dc-dc buck converter step down module
Share your project below:Share your problem-solving process or video to help other friends solve problems
• The input voltage: DC 3 -40 V (Input voltage must be 1.5 V higher than the output voltage, no boost.)
• The output voltage: DC 1.5 - 35 V adjustable.
• The output current: It is recommended to use under 2A, maximum 3A(Additional heatsink is required).
• Steps: 1. Plugged into a power supply (3-40v), the power indicator light is lit, the module to work properly. 2. Adjust the blue potentiometer knob (generally booster clockwise, counterclockwise step-down) with a multimeter monitoring the output voltage to the voltage.
• Package includes:10XLM2596 DC-DC buck converter module（Note：The factory have tested these at max voltage so they are very high by default, takes about 15-20 turns CCW before the voltage starts ramping down)
Color: 10PCS
