Description
Brand: Ardest
Model: Buck Converter -01
We work with different voltages every single day. A single project and even Printed Circuit Board can require multiple voltage levels. It is very common for boards to use 1.8v, 3.3v, 5v and 12v. However, it is not always easy to create a system which will be able to supply these voltages.

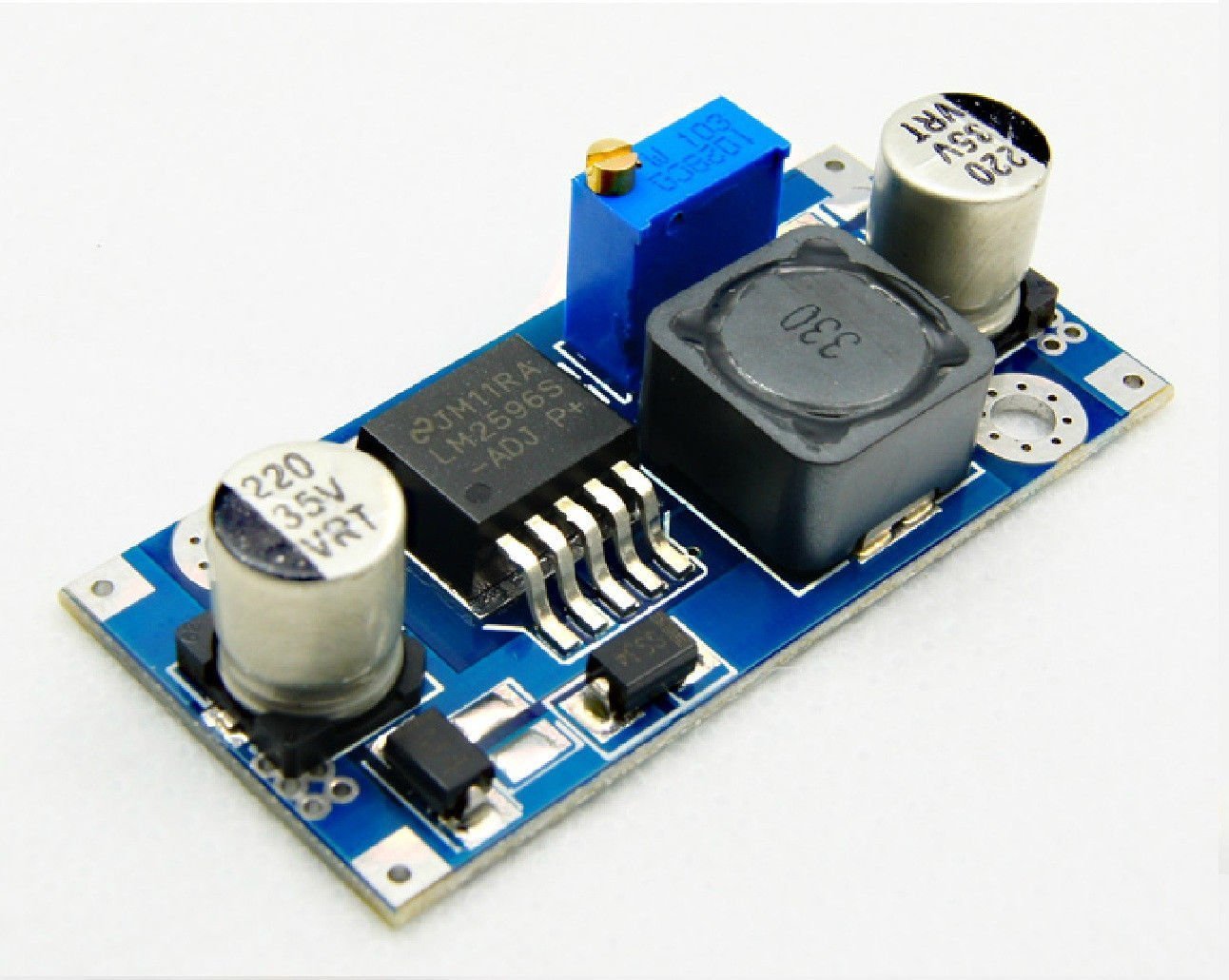

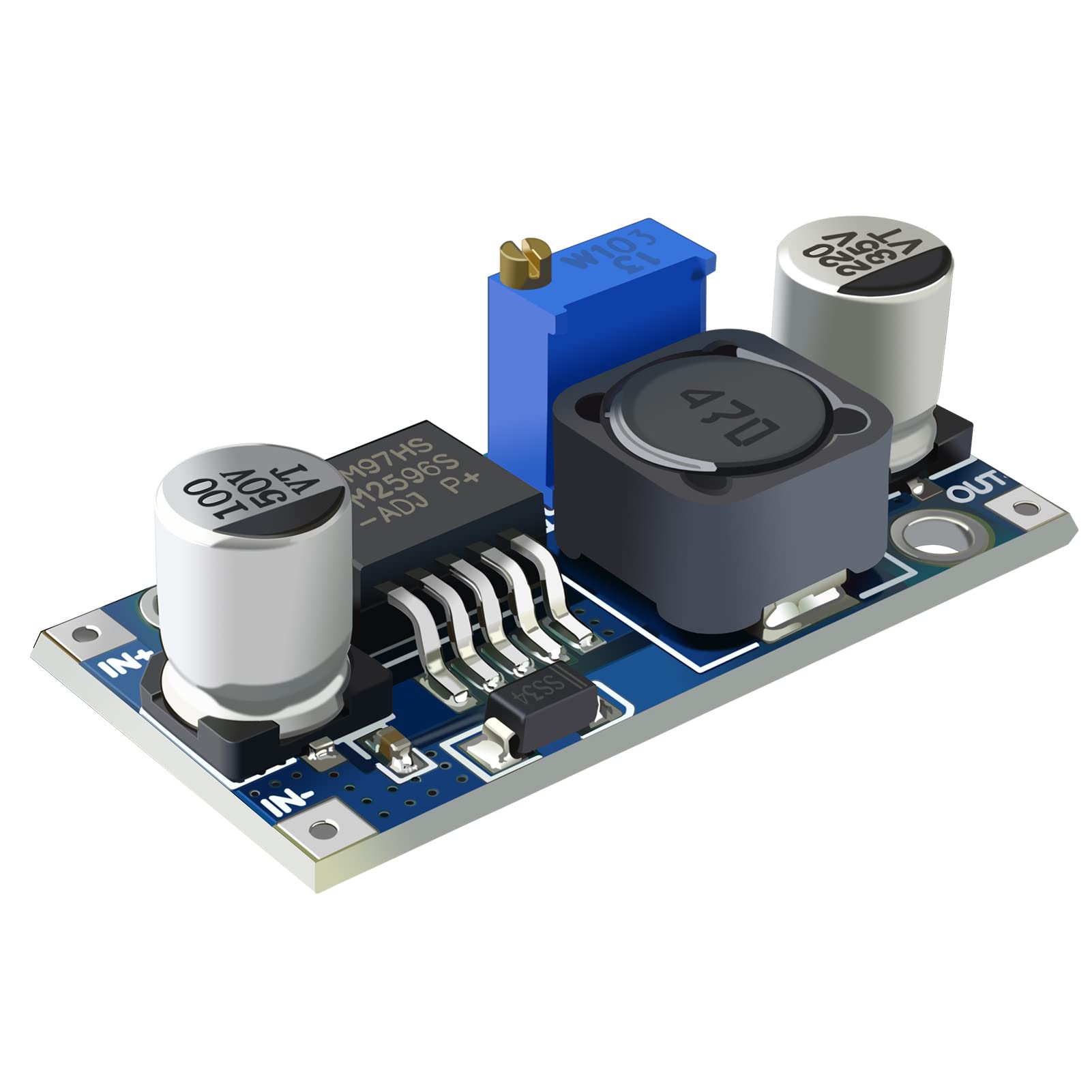

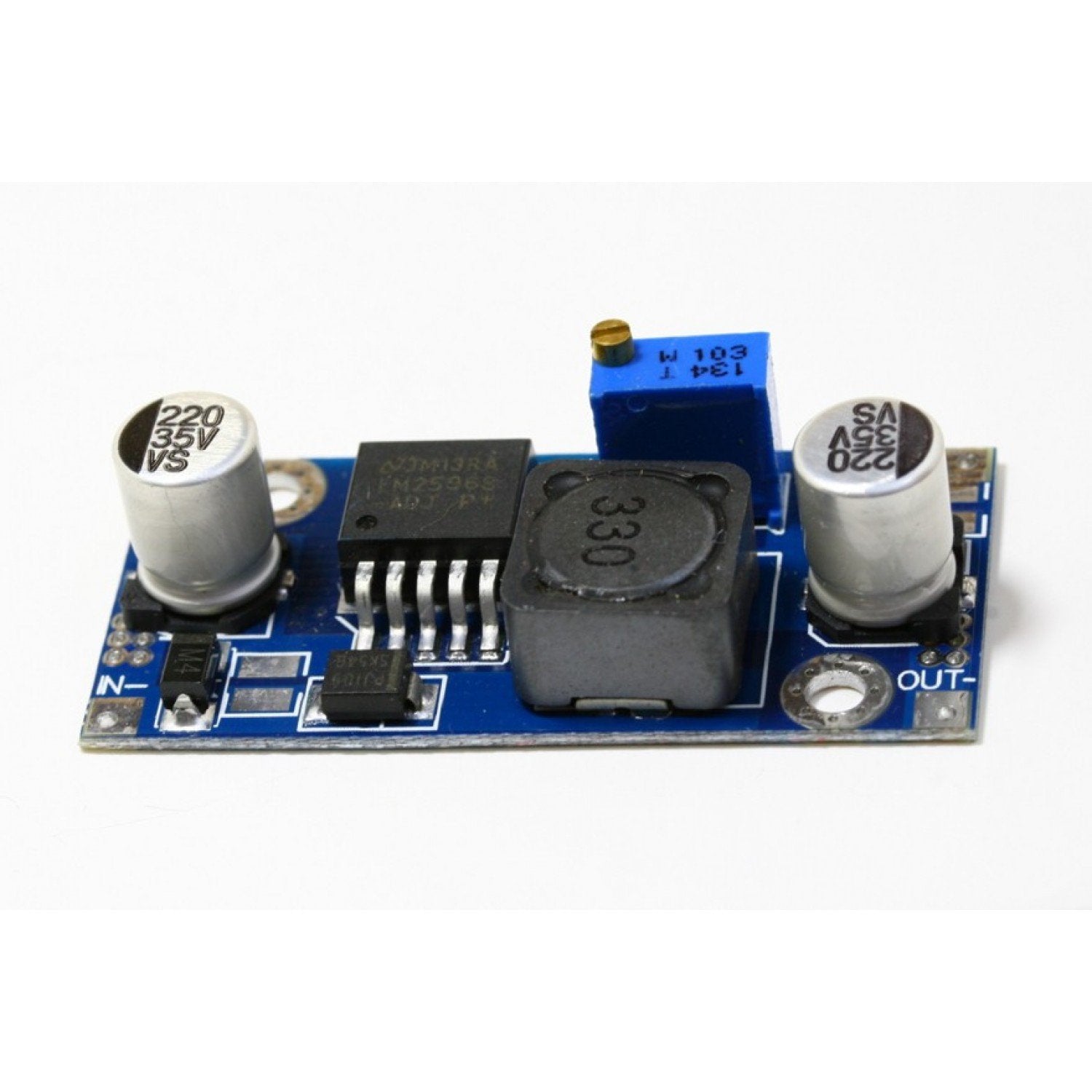

Luckily, you can easily do so with an adjustable step-down power supply. The LM2596 Integrated Circuit module is capable of accepting voltages ranging from 4v to 35v. It will take this voltage and output anything you’ve adjusted it to as long as it is below the input and does not exceed 3A
Dimension:
Regulator Type:Step Down ( Non Isolated input to Output )
Input Voltage: 4V-35V
Output Voltage: 1.23V-30VDC (adjustable)
Output Current: 2A Rated, ( 3A maximum with heat sink )
Switching Frequency:150kHz
Efficiency:Up to 92% ( when output voltage is set high )
Dropout Voltage:2vdc minimum
Load Regulation:+/- 0.5%
Voltage Regulation: +/- 2.5%
PC Board Size: 48 x 23 x 14 mm
Operating Temperature: -40 to +85 deg C ( output power less than 10Watts )
Note:In order to adjust the voltage make sure you put a small load on it otherwise the voltage just floats high. It takes about 15-20 turns CCW before the voltage starts ramping down.
• LM2596 DC to DC step down voltage regulator, adjustable 1.23 to 30vdc output, 2A. Ideal for battery operated projects requiring a regulated power supply
• This is a DC/DC buck converters that converts input voltage between 4V and 35V into a smaller voltage between 1.23V and 30V, capable of driving a 3A load with excellent line and load regulation
• Simple switched mode regulator modules converter, with wide input voltage range, and moderate power

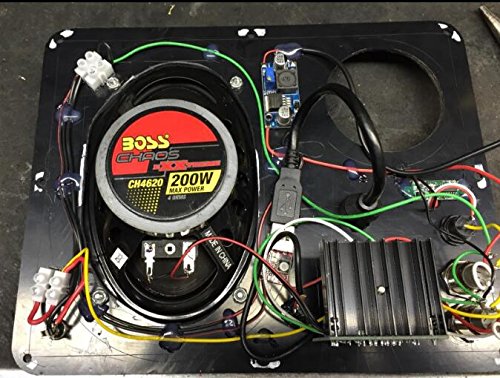

• Using as Power Supply for Raspberry Pi.Powered pi and attached arduino without a problem
• This little power Bucks is designed to steps down DC voltage. Input and Output connections are clearly labeled, output voltage is easily adjustable. Quite a handy little hobby gadget
Model: Buck Converter -01
We work with different voltages every single day. A single project and even Printed Circuit Board can require multiple voltage levels. It is very common for boards to use 1.8v, 3.3v, 5v and 12v. However, it is not always easy to create a system which will be able to supply these voltages.
Luckily, you can easily do so with an adjustable step-down power supply. The LM2596 Integrated Circuit module is capable of accepting voltages ranging from 4v to 35v. It will take this voltage and output anything you’ve adjusted it to as long as it is below the input and does not exceed 3A
Dimension:
Regulator Type:Step Down ( Non Isolated input to Output )
Input Voltage: 4V-35V
Output Voltage: 1.23V-30VDC (adjustable)
Output Current: 2A Rated, ( 3A maximum with heat sink )
Switching Frequency:150kHz
Efficiency:Up to 92% ( when output voltage is set high )
Dropout Voltage:2vdc minimum
Load Regulation:+/- 0.5%
Voltage Regulation: +/- 2.5%
PC Board Size: 48 x 23 x 14 mm
Operating Temperature: -40 to +85 deg C ( output power less than 10Watts )
Note:In order to adjust the voltage make sure you put a small load on it otherwise the voltage just floats high. It takes about 15-20 turns CCW before the voltage starts ramping down.
• LM2596 DC to DC step down voltage regulator, adjustable 1.23 to 30vdc output, 2A. Ideal for battery operated projects requiring a regulated power supply
• This is a DC/DC buck converters that converts input voltage between 4V and 35V into a smaller voltage between 1.23V and 30V, capable of driving a 3A load with excellent line and load regulation
• Simple switched mode regulator modules converter, with wide input voltage range, and moderate power
• Using as Power Supply for Raspberry Pi.Powered pi and attached arduino without a problem
• This little power Bucks is designed to steps down DC voltage. Input and Output connections are clearly labeled, output voltage is easily adjustable. Quite a handy little hobby gadget
