Brand: Ardest

<br>Deacription:<br><b> This is a good 802.3af adapter if you want to run a Raspberry Pi without a USB adapter and just power it via POE. Note that you need a "real" 802.3af POE switch or injector, and not a "passive" POE injector (sometimes used by cheap cameras and some models of Unifi gear)<br> <b>Dimension:<br></b> Compliant with IEEE 802.3af <br> Isolation: 2.5kV <br> Power Input: DC48V <br> Power Output: DC5V 2.4A <br> Data Output Port: RJ45 Male<br> Power Output Port: Micro USB Power Plug <br> Data Transfer Rate: 10/100Mbps<br> Devices will be detected before poe input<br> Power Pin: support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)<br> <b>Features:<br></b> 1.Supply power (and transfer data) to your Micro USB devices via a single Ethernet cable by splitting the PoE (Power over Ethernet)<br> 2.It is a 5v, 2.4A device with a micro USB connector for the power<br> 3.Size is perfect and cable length is on point<br> 4.Plugged them in and no issues. Saved you the hassle of running a power supply<br> 5.The purpose of this device is to transfer an Ethernet powerline to micro USB power <br> <b>Application:<br></b> 1.An ingenious way to bring PoE to devices that don't natively support it<br> 2.Used the PoE adapter to setup PoE to a Raspberry Pi instead of resorting to the much more expensive PoE Hat for the Pi. It worked out very well, without any modification to the Pi or software.<br> 3.Works like a charm for converting a USB IP camera to PoE, assuming that you have a PoE Switch<br> 4.Provide power to a raspberry pi from a PoE switch<br> 5.Make a non-POE security camera POE<br> <b>NOTE: <br></b> --This is a 10/100 Mb Ethernet device. The new Raspberry Pi 3B+ (Plus) has a Gigabit wired port. This splitter will not auto-connect to the Pi 3 B+. New Raspberry Pi 3 B+ needs to be set to 100 Mb half duplex for this device to work.Works great with earlier version Pi 3B. <br> <b>Package including: <br></b> 1pcs 48V to 5V Active PoE Splitters

Features:

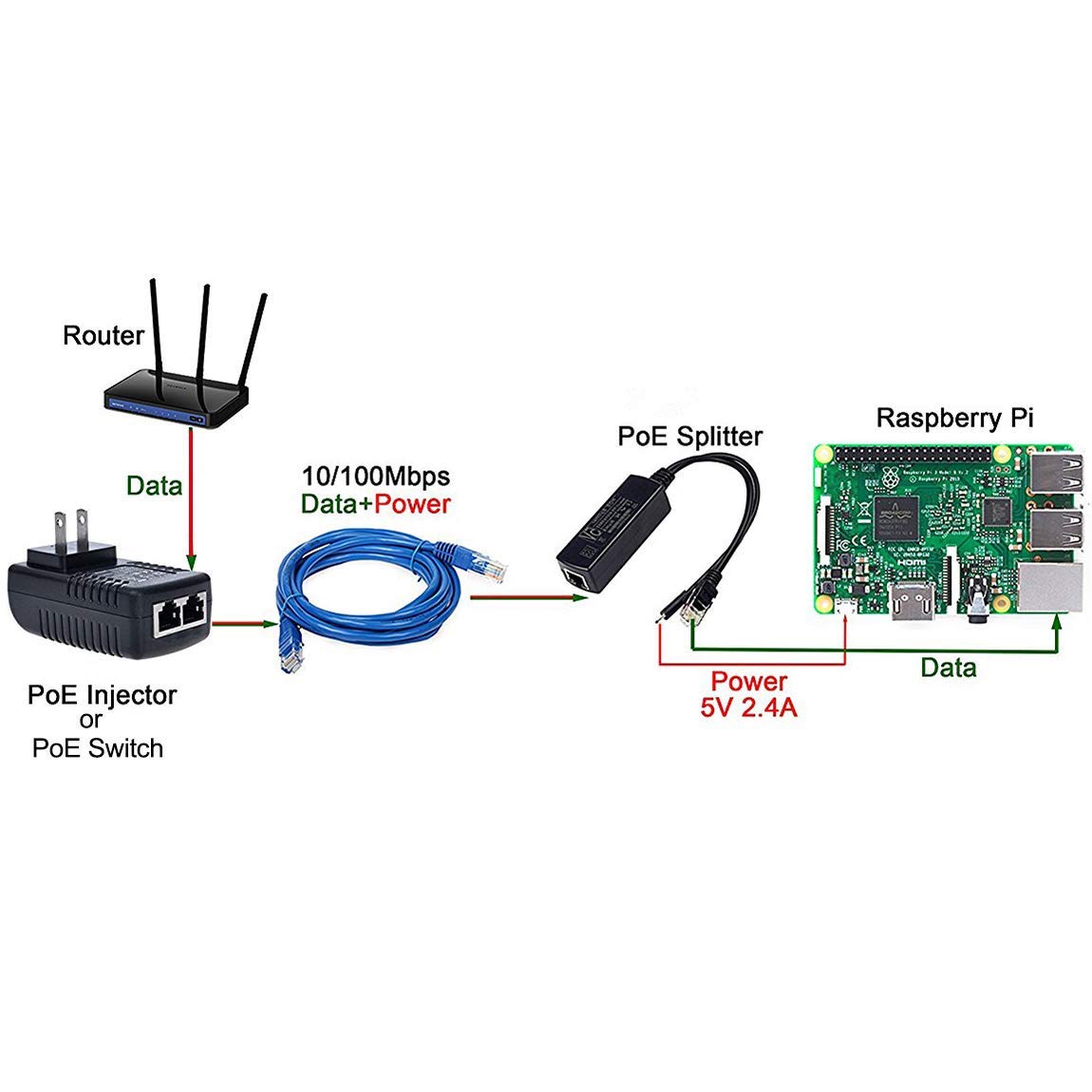

• This is a great solution to provide POE to non POE device.The splitter allows you to run ethernet cables from a POE Switch over long distance, and then split the PoE signal into a separate data signal and 5Vdc power sources in order to run an non-PoE devices
• Nice to run Pi off PoE.This is a great addition to a Raspberry Pi,you can run your Raspberry Pi from a Power over Ethernet (PoE) switch and eliminate the need for multiple power adapters.This device allows you to only have 1 device plugged into the wall (the PoE switch) and the rest of the devices get the power from this device. You have to use a PoE Compliant switch in order for these devices to get power, a regular switch doesn't provide Power over Ethernet
• Great for providing power to a Raspberry Pi or any mini-USB device that doesn't originally accept power from a PoE switch. You can position your devices remotely without running separate power lines

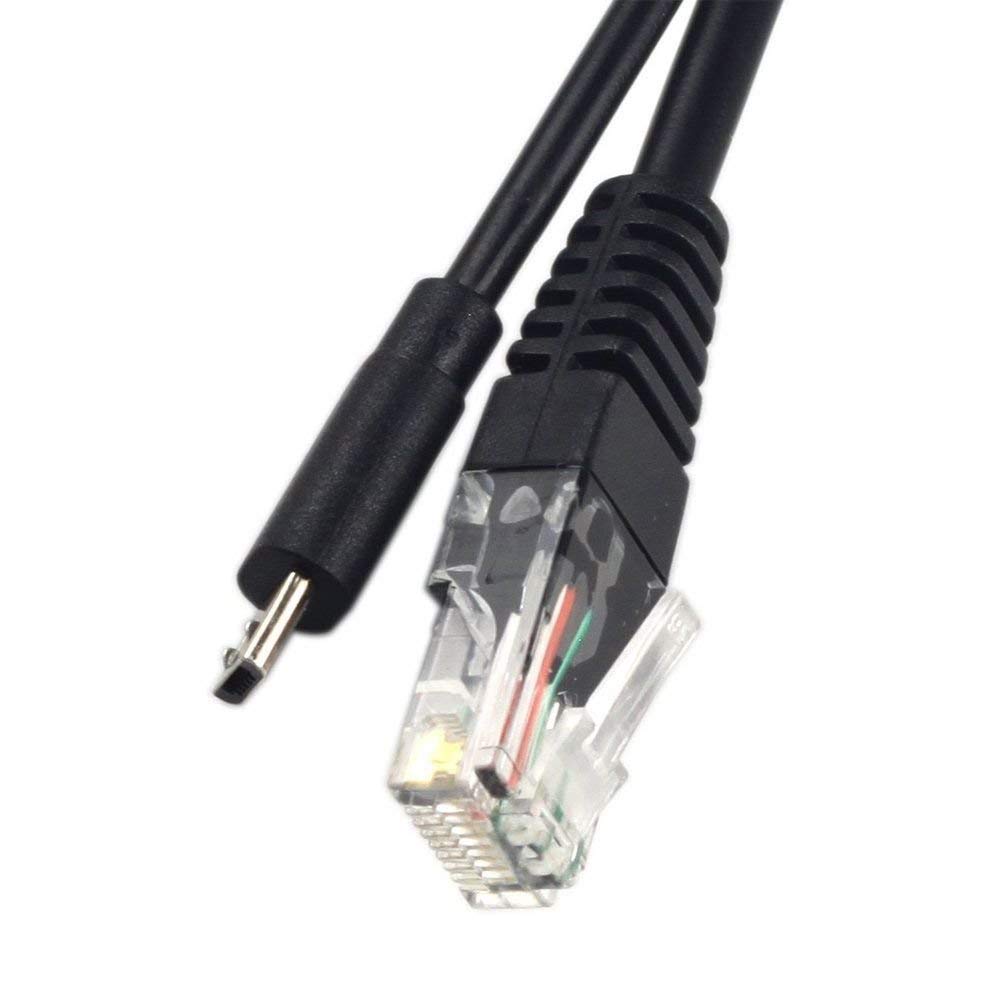

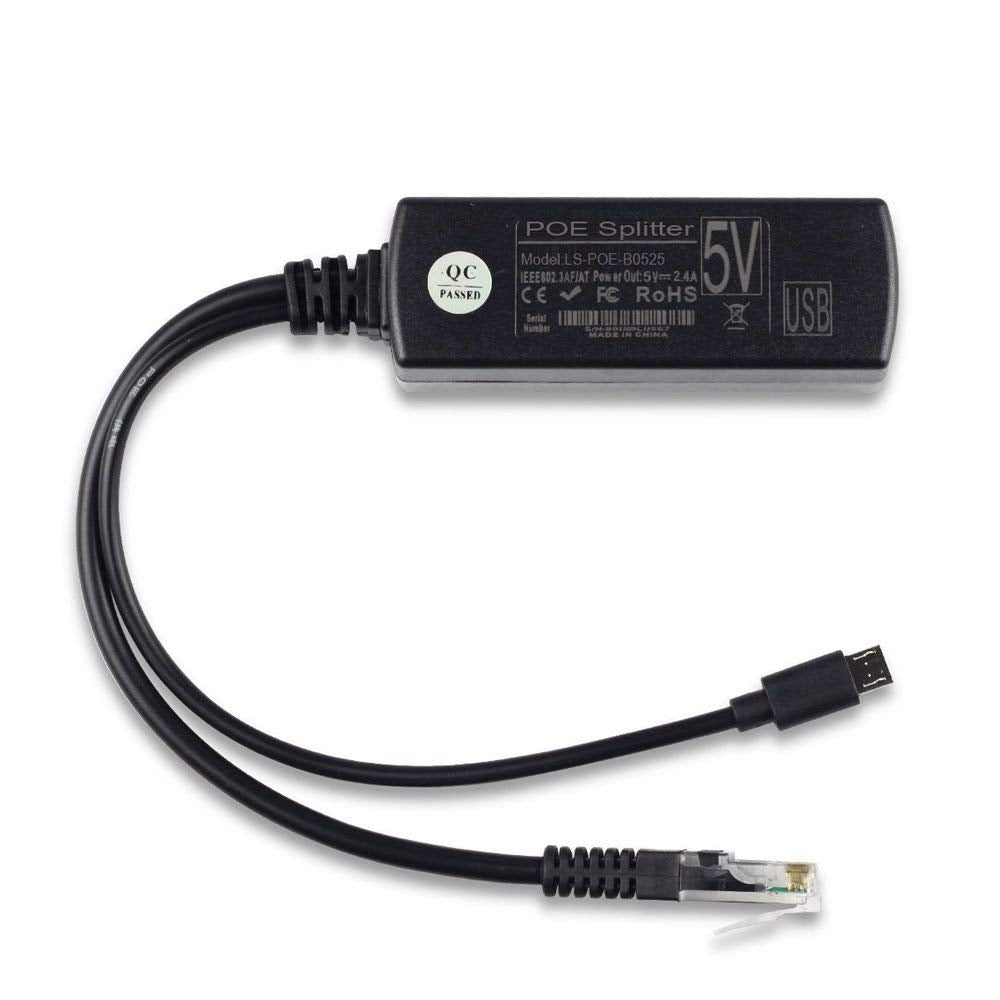

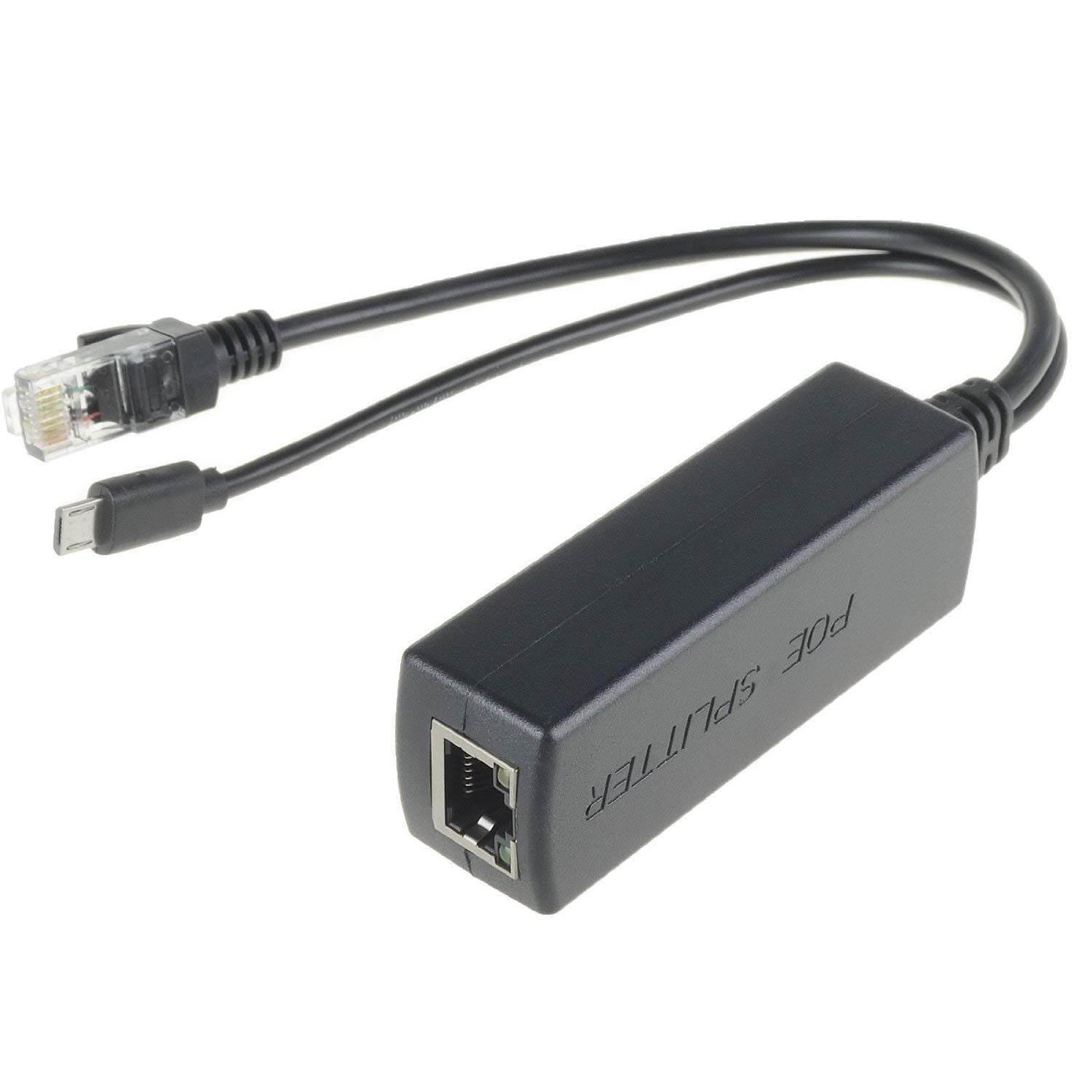

• The Active PoE Splitter splits a PoE signal into an 5VDC power and 10/100Mbps ethernet data source.The output of the POE module is standard Micro USB connector which is only 5V. The input to the POE module is 48V from the POE switch port
• These PoE adapters have an micro USB as well as Ethernet pass through so they can power many standard devices.Suitable for Android Tablets, Dropcam, Raspberry Pi - Micro USB devices. You could even charge your phone off one if you wanted

Product Details:

• Color: Black
• Size: PoE Splitter
• Model: Splitter POE Adapter Micro USB Connector
• Package Quantity: 1
