Brand: Apevia

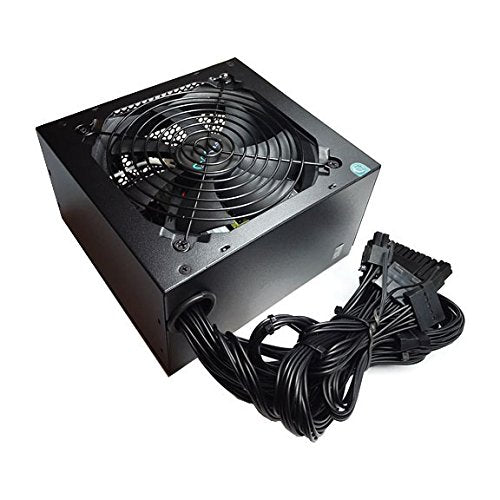

Apevia CAPTAIN550 Captain Series 550W Power Supply with 1 x 120mm Auto-Thermally Controlled Black Case Fan. 1 x 20 /24pin Main Power /1 x 12V(P8) / 1 x 6+2 PCI-express/ 3 x SATA/ 3 x Molex. 115/230V Switch, 5% Tolerance of 5V, 3.3V & 12V Output. Max. Output Current +3.3V(16A), +5V(17A), +12V(39A), -12V(0.3A), +5Vsb(2.5A), Circuit/Over-Current/Over-Voltage/Over-Power/Under-Voltage/Over-Temperature Protections. For safety, do not overload, abuse or modify the power supply unit. Use of this unit for Bitcoin Mining is not suggested since it will shorten the life and cause failures of power supply. Use for mining purposes is not covered by warranty. NOTE: The power supply will not power on simply by connecting the power cord to both the power supply and wall outlet. Ensure that all the power supply cables are properly connected to the PC for it to power on. The 8pin CPU connector can be split apart to become a 4+4 connector by pushing one end of the 4pin down and the other end of the 4pin up for motherboards that require a 4pin power connector. The 8pin PCI-E GPU connector can be split apart to become a 6+2 connector by pushing one end of the 6pin down and the other end of the 2pin up for graphics cards that require a 6pin power connector. The 24pin motherboard connector can be split apart to become a 20+4 connector by pushing one end of the 20pin down and the other end of the 4pin up for motherboards that require a 20pin power connector.

Features:

• Power Supply Specifications: Apevia CAPTAIN550 Captain 550W ATX Power Supply delivers reliable performance for your PC build

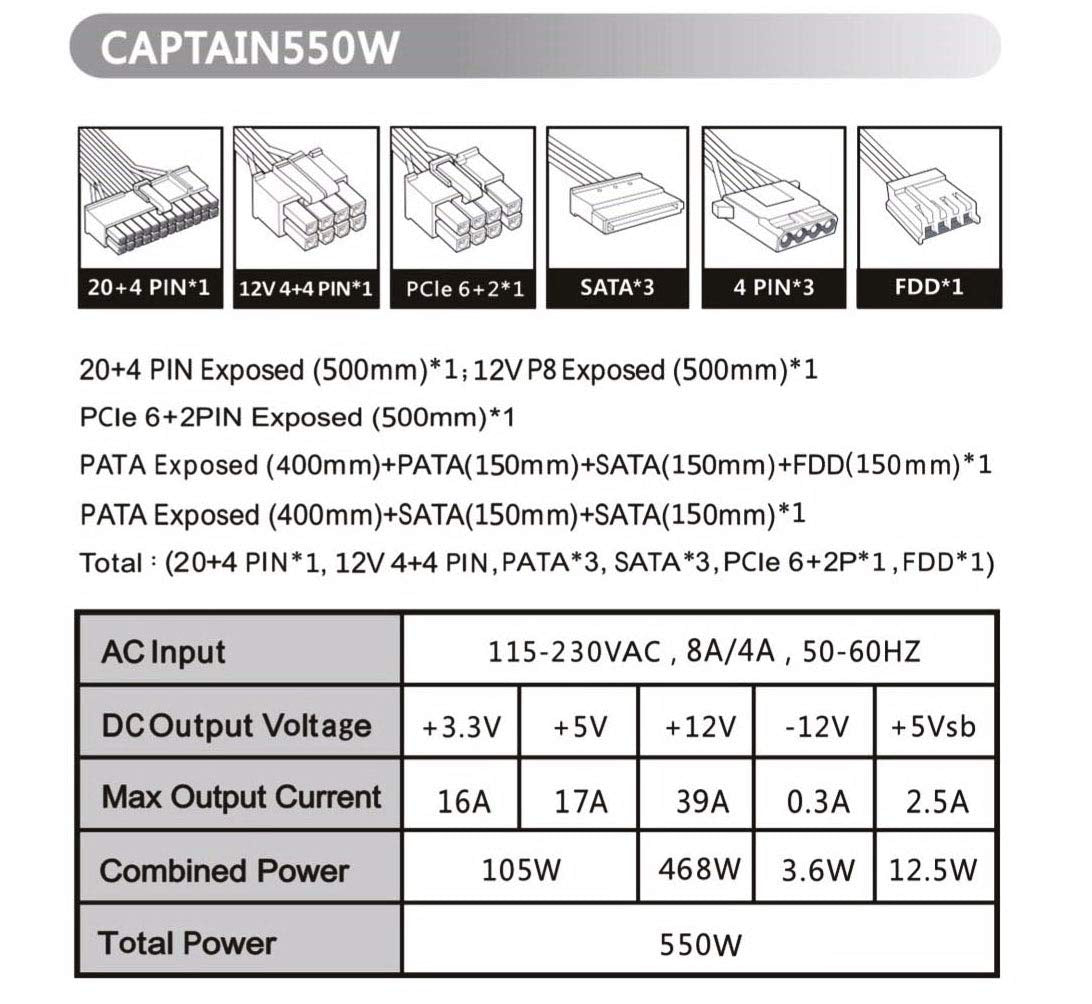

• Comprehensive Connector Options: 1 x 20/24pin Main Power, 1 x P8pin(P4+4pin), 1 x 6/8pin PCI-express, 12V, 3 x SATA, 3 x Peripheral connectors for versatile compatibility

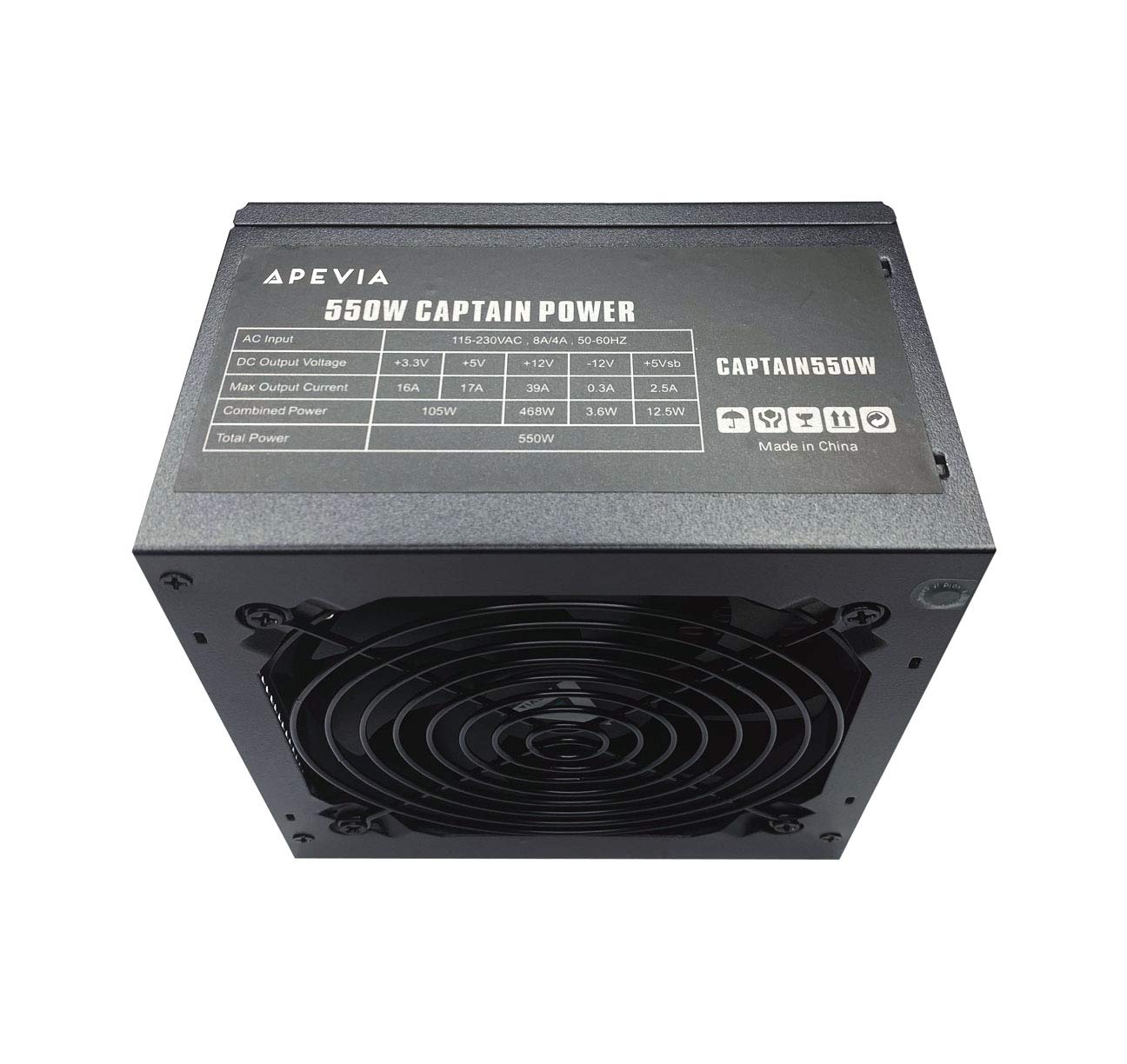

• Cooling and Power Output: 1 x Auto-Thermally Controlled Black 120mm Fan with 115/230V Switch. Max. Output Current +3.3V(16A), +5V(17A), +12V(39A), -12V(0.3A), +5Vsb(2.5A)
• Safety and Design Features: Multiple safety protections included. Standard ATX Size: 5.9" x 5.5" x 3.4" (L x W x H) with all black cables for neatness
• Power On Requirements: The power supply will not power on simply by connecting the power cord to both the power supply and wall outlet. Ensure that all the power supply cables are properly connected to the PC for it to power on
• Flexible CPU Connector: The 8pin CPU connector can be split apart to become a 4+4 connector by pushing one end of the 4pin down and the other end of the 4pin up for motherboards that require a 4pin power connector
• Adaptable PCI-E Connector: The 8pin PCI-E GPU connector can be split apart to become a 6+2 connector by pushing one end of the 6pin down and the other end of the 2pin up for graphics cards that require a 6pin power connector
• Versatile Motherboard Connector: The 24pin motherboard connector can be split apart to become a 20+4 connector by pushing one end of the 20pin down and the other end of the 4pin up for motherboards that require a 20pin power connector

Product Details:

• Model: CAPTAIN550
• Package Quantity: 1
