Description
Brand: AOICRIE
Model: Aoicrie
Product description

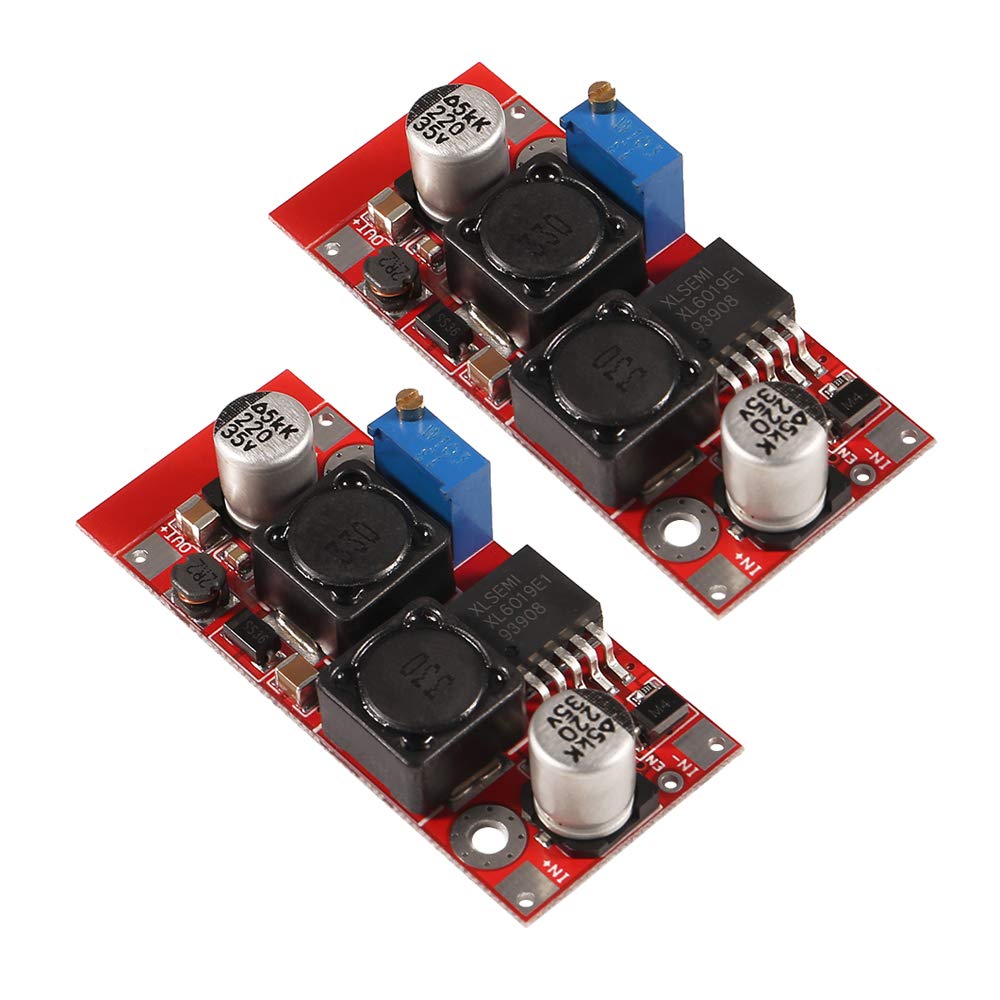

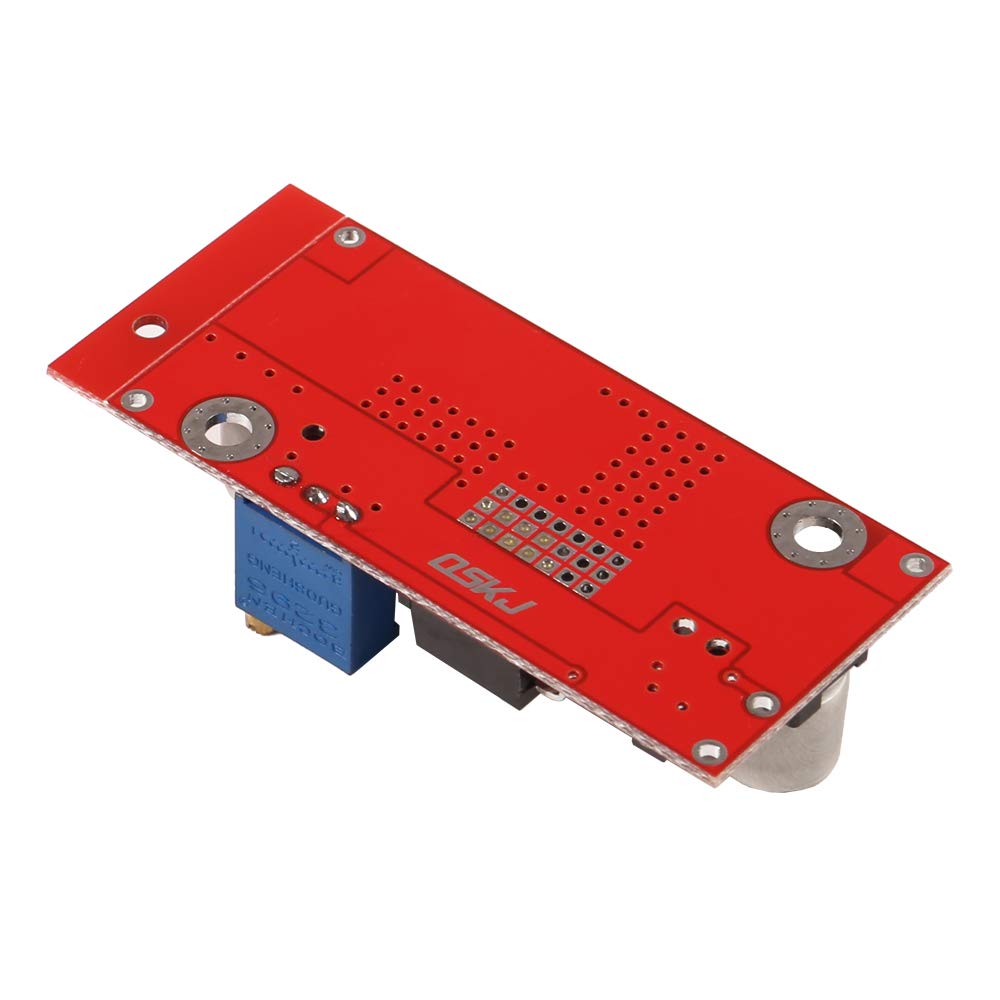

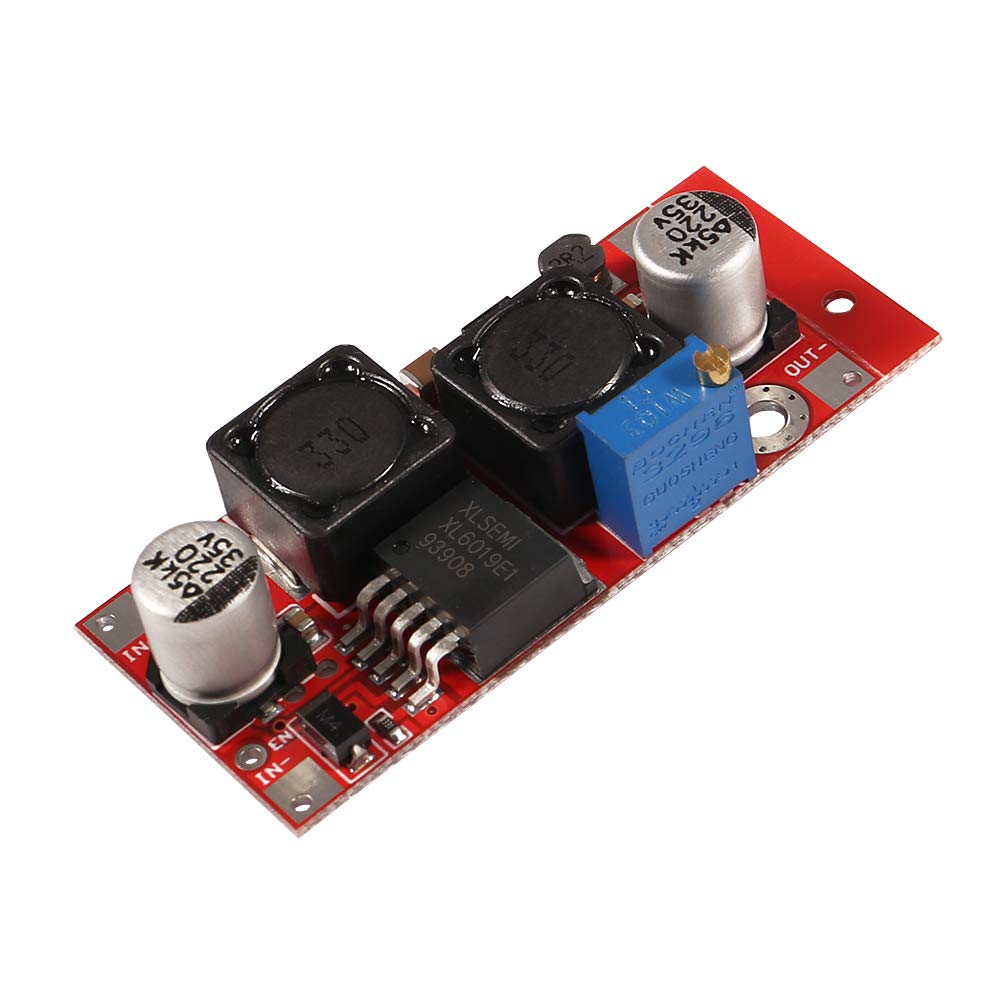

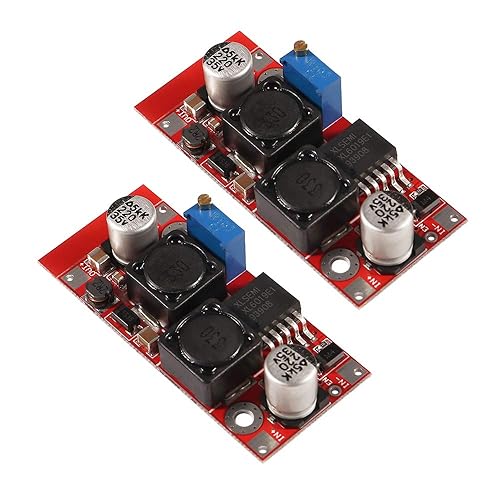

XL6009 XL6009 Boost Buck DC-DC Adjustable Step-UP Down Power Converter Module
Model: Aoicrie
Product description
XL6009 XL6009 Boost Buck DC-DC Adjustable Step-UP Down Power Converter Module
Features:
Model Specification: DSN6009 boost module
Module Properties: Non-isolated boost (BOOST)
Rectification: Non-Synchronous Rectification
Input Range: 3V ~ 32V
Output Range: 5V ~ 35V
Input Current: 4A (max), no-load 18mA (5V input, 8V output, no-load is less than 18mA. Higher the voltage, the greater the load current.)
Conversion Efficiency: <94% (greater the pressure, the lower the efficiency)
Switching Frequency: 400KHz
Output Ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)
Load Regulation: ± 0.5%
Voltage Regulation: ± 0.5%
Operating Temperature: -40° C ~ +85° C
Specification:

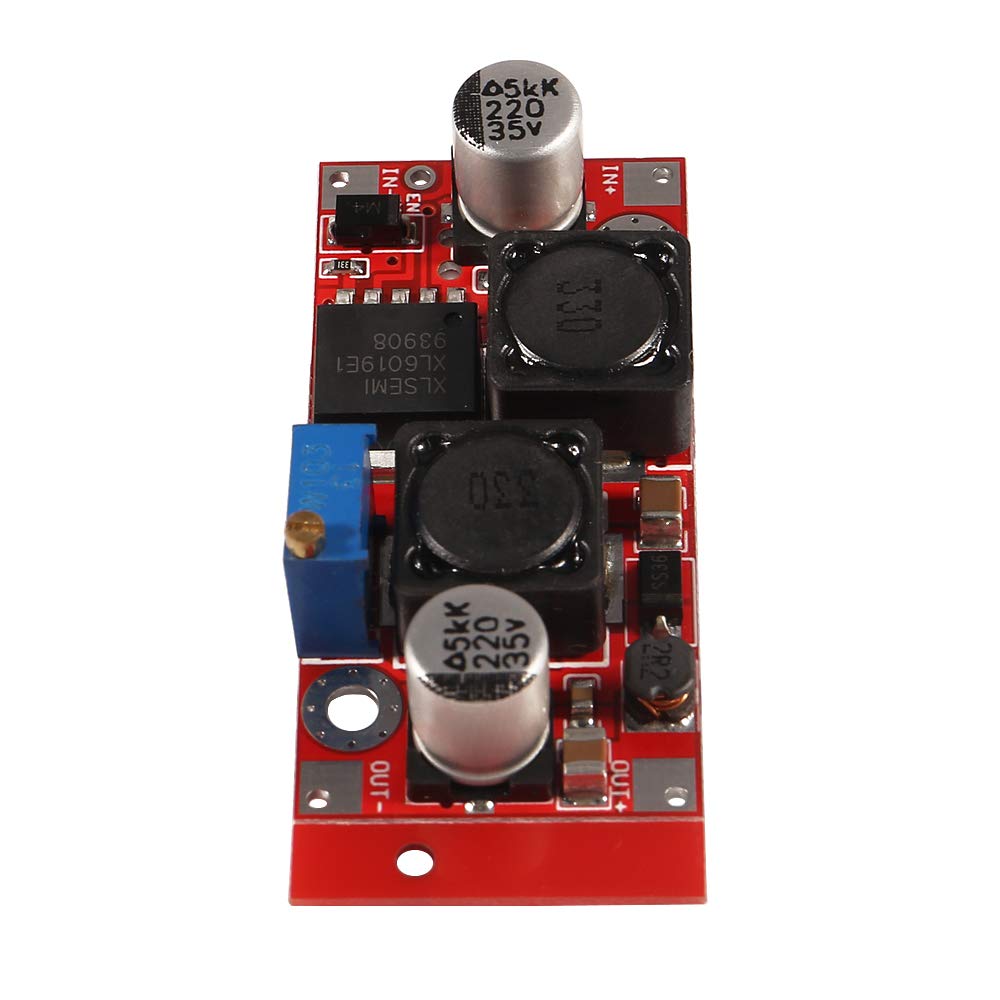

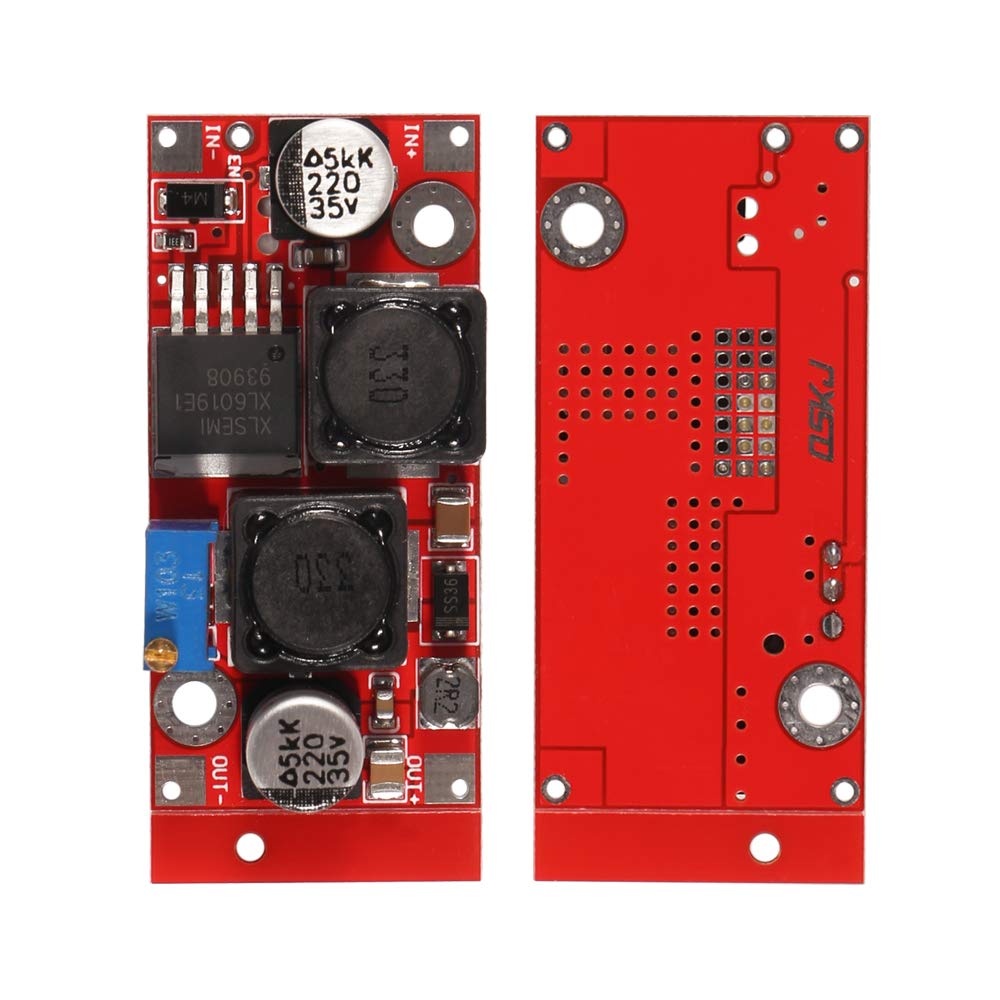

IN-IN + input Positive Input Negative!
Positive output OUT + OUT-output negative
Test comparison sample reference:
Input 3V Output 12V 0.4A 4.8W
Input 5V Output 12V 0.8A 9.6W
Input 7.4V Output 12V 1.5A 18W
Input 12V Output 15V 2A 30W
Input 12V Output 16V 2A 32W
Input 12V Output 18V 1.6A 28.8W
Input 12V Output 19V 1.5A 28.5W
Input 12V Output 24V 1 A 24W
Vin * Iin * Efficiency = Vout * Iout
Vin: Input Voltage
Iin: input current
Vout: Output Voltage
Iout: output current
Package Included:
2 x XL6009 Module
• XL6009 Boost Buck DC-DC Adjustable Step-UP Down Power Converter Module
• DC-DC Boost Buck adjustable step up down Converter XL6009 Module, Solar Voltage Replaces LM2577 Compatible for Arduino, for Raspberry Pi,SMT32
• Module with input and output interfaces, support for cascading multiple modules
• Regardless of the input voltage is 5V or 12V or 32V, the output can be stabilized at 12V
• Built- 4A efficient MOSFET switches enable efficiency up to 94%(LM2577 current is 3A)
