Description
Brand: ANMBEST

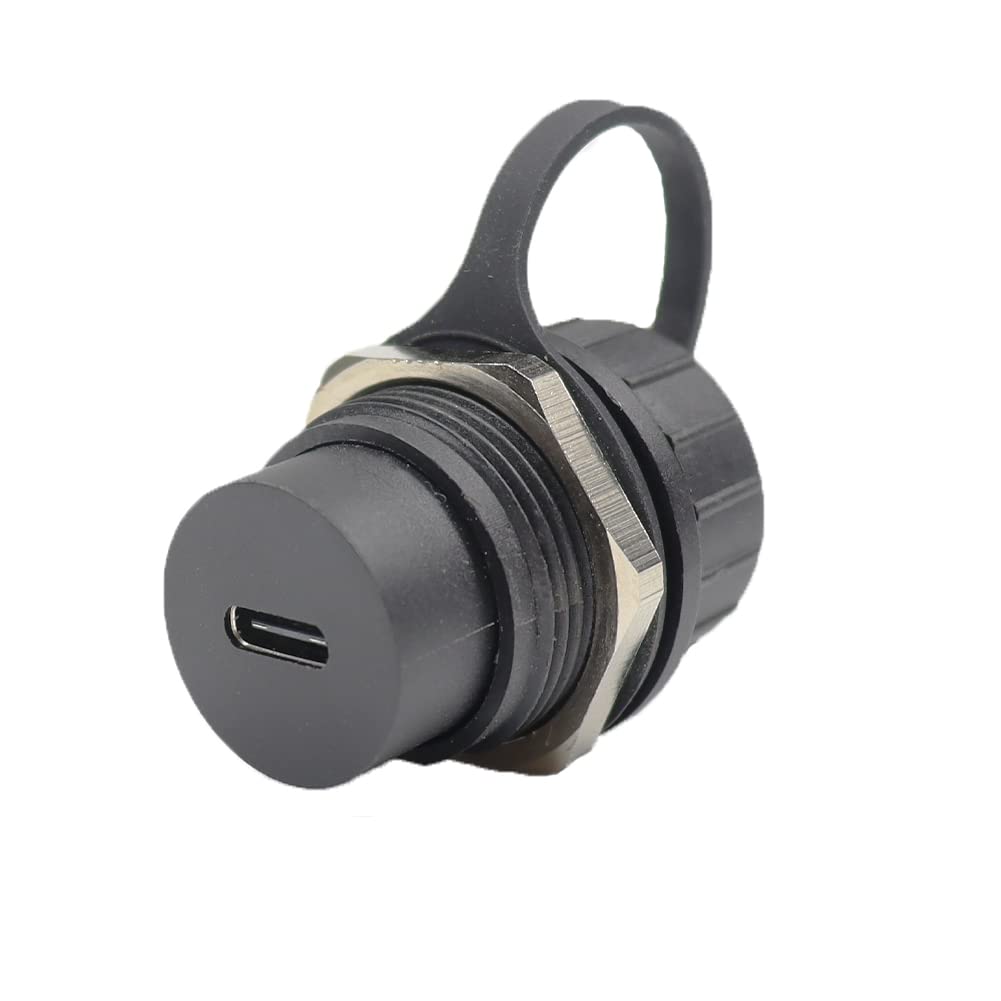

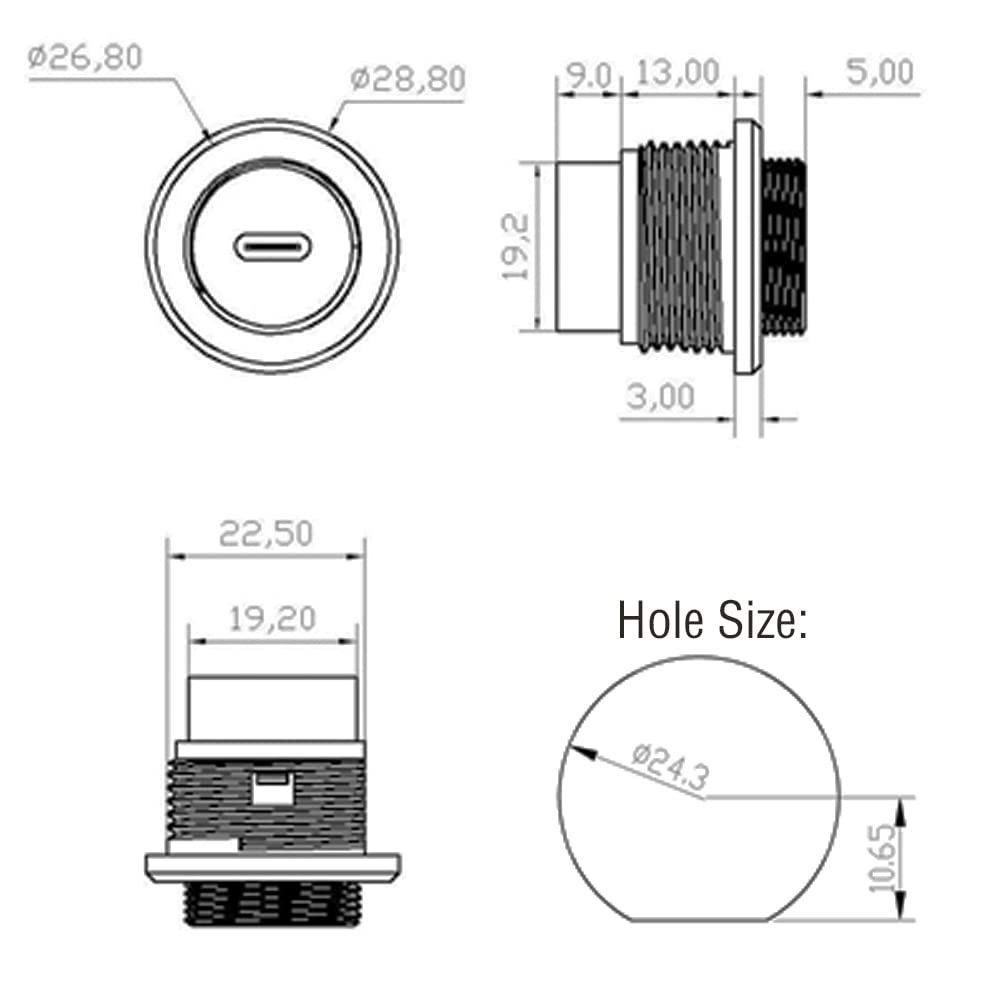

The TYPE C signal panel connector is a Female/Female Couple. Using the standards based TYPE C connection system insures compatibility with existing hardware. The coupler maintains the continuity offering protection from EMI/RFI interference. <br><br> <b>Specifications: </b><br> Number of cores: 24 PIN<br> Waterproof rating: IP67?with Waterproof/Dust Cap?<br> Connection type: TYPE-C <br> Flame retardant rating: UL94V-0<br> Connection method: plug type<br> Case wall thickness: Threaded type: >2mm, through-hole type: 0.3~7mm<br> Mounting Hole Size: 24mm<br> Thread size: 24*1.5<br> Connector transmission classification: USB3.1<br> Transmission speed range: 5Gbps<br> <b>Electrical parameters: </b><br> Rated current: 5A<br> Rated voltage: 12V<br> Insulation resistance: ?500M?<br> Compressive strength: AC1000V 50HZ or 60HZ for 1 minute<br> Contact resistance: ?10M?<br> <b>Material: </b><br> Shell: PA6BG33<br> Socket contact pin: phosphor copper <br> Contact pin gold plating thickness: 6u inch<br> Waterproof rubber ring: silicone<br> <b>Environmental conditions: </b><br> Working temperature: -40?120Celsius<br> Storage temperature: -25?85Celsius<br> Atmospheric pressure: 86?106kPa<br> Relative humidity: ?90% RH<br> <b>Tips: </b><br> <b>When the transmission speed is only 30Mbps, please insert the data cable in reverse, and the transmission speed will reach the expected 5Gbps. </b><br> <b>Package Included: </b><br> 5x Waterproof TYPE C Connector<br> 5x Waterproof/Dust Cap Cover

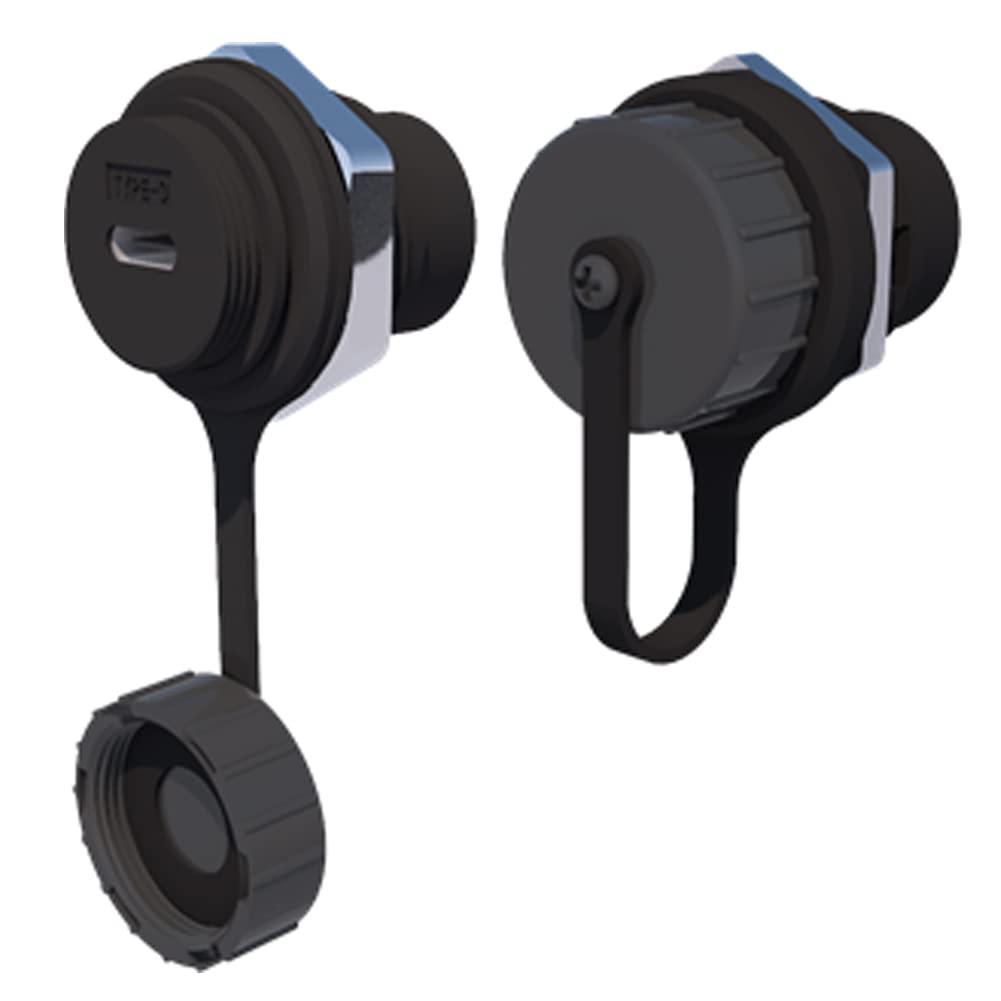

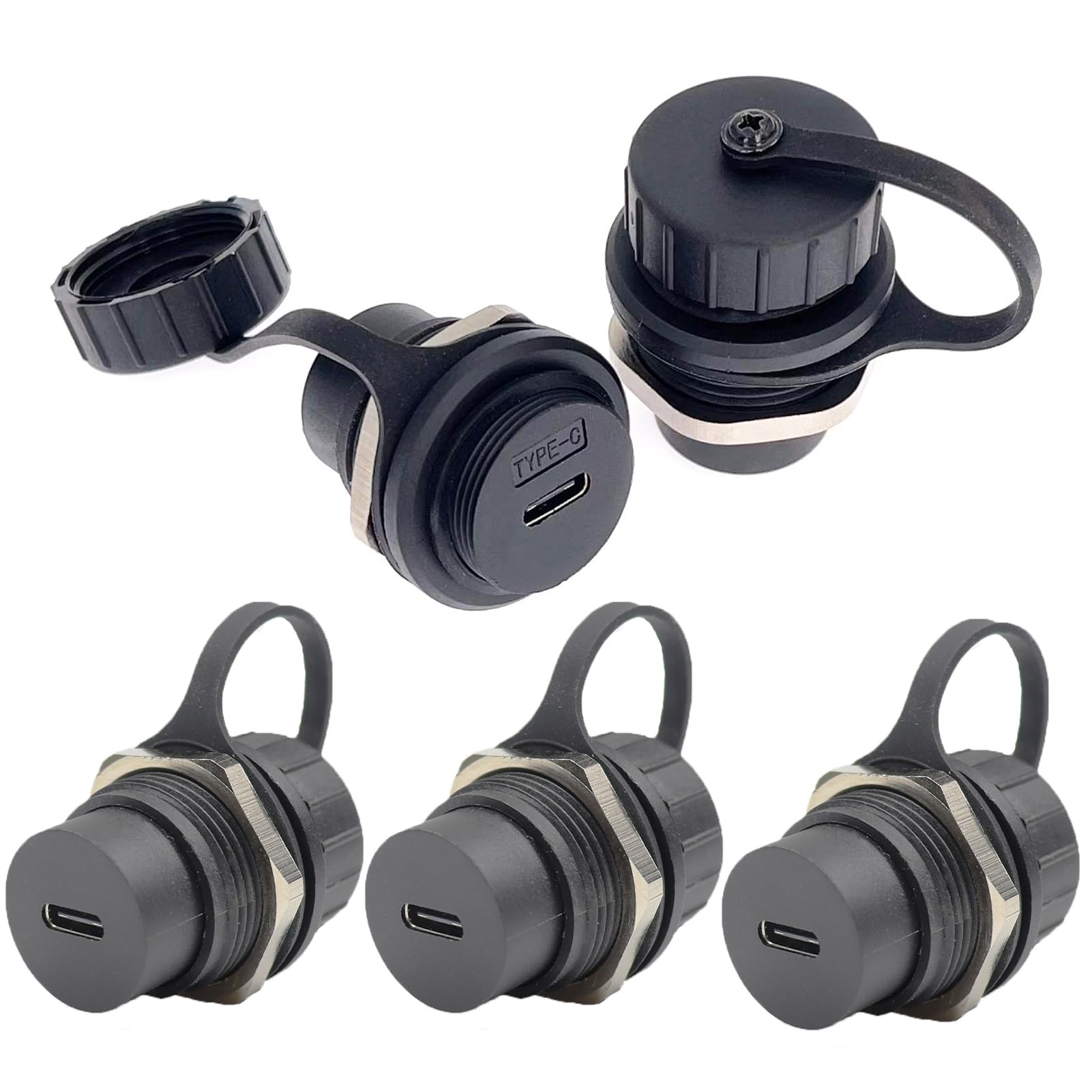

• Usage: USB Type C 3.1 Female to Female panel mount connector with waterproof kit. Provides feed-through USB connectivity for data and charging in industrial environments.

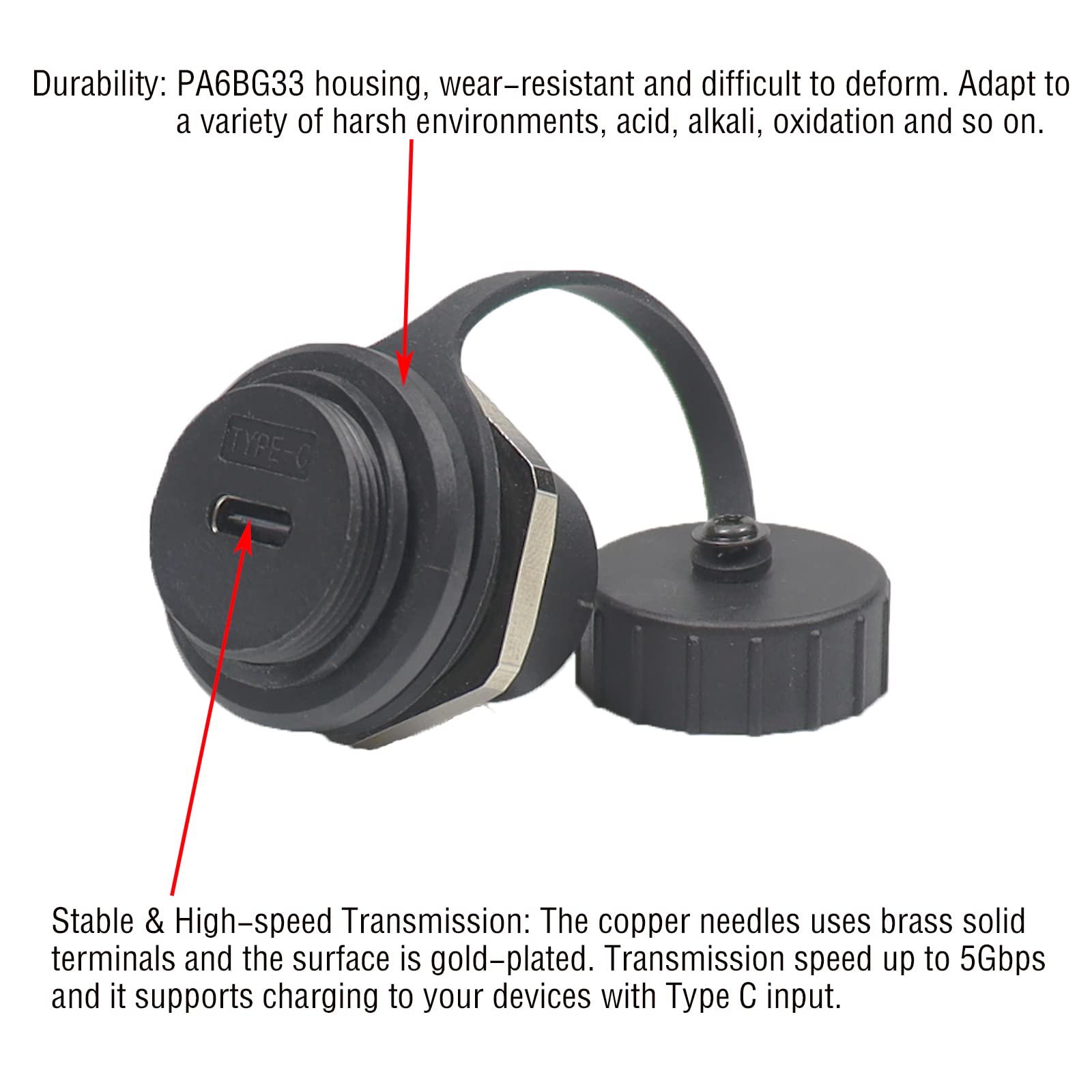

• Durability: PA6BG33 housing, wear-resistant and difficult to deform. Adapt to a variety of harsh environments, acid, alkali, oxidation and so on.
• Stable & High-speed Transmission: The copper needles uses brass solid terminals and the surface is gold-plated. Guarantee the stability of the current. Transmission speed up to 5Gbps and it supports charging to your devices with Type C input.
• EASY INSTALLATION: No soldering, no installation tools, just plug the standard type-c head directly for quick installation.
• Quality Assurance: Professional waterproof connector manufacturer. The product undergoes rigorous inspection before leaving the factory. If you are not satisfied with the product, please feel free to contact us.
Model: ANMBEST_MD411N,412N
Color: black
The TYPE C signal panel connector is a Female/Female Couple. Using the standards based TYPE C connection system insures compatibility with existing hardware. The coupler maintains the continuity offering protection from EMI/RFI interference. <br><br> <b>Specifications: </b><br> Number of cores: 24 PIN<br> Waterproof rating: IP67?with Waterproof/Dust Cap?<br> Connection type: TYPE-C <br> Flame retardant rating: UL94V-0<br> Connection method: plug type<br> Case wall thickness: Threaded type: >2mm, through-hole type: 0.3~7mm<br> Mounting Hole Size: 24mm<br> Thread size: 24*1.5<br> Connector transmission classification: USB3.1<br> Transmission speed range: 5Gbps<br> <b>Electrical parameters: </b><br> Rated current: 5A<br> Rated voltage: 12V<br> Insulation resistance: ?500M?<br> Compressive strength: AC1000V 50HZ or 60HZ for 1 minute<br> Contact resistance: ?10M?<br> <b>Material: </b><br> Shell: PA6BG33<br> Socket contact pin: phosphor copper <br> Contact pin gold plating thickness: 6u inch<br> Waterproof rubber ring: silicone<br> <b>Environmental conditions: </b><br> Working temperature: -40?120Celsius<br> Storage temperature: -25?85Celsius<br> Atmospheric pressure: 86?106kPa<br> Relative humidity: ?90% RH<br> <b>Tips: </b><br> <b>When the transmission speed is only 30Mbps, please insert the data cable in reverse, and the transmission speed will reach the expected 5Gbps. </b><br> <b>Package Included: </b><br> 5x Waterproof TYPE C Connector<br> 5x Waterproof/Dust Cap Cover
• Usage: USB Type C 3.1 Female to Female panel mount connector with waterproof kit. Provides feed-through USB connectivity for data and charging in industrial environments.
• Durability: PA6BG33 housing, wear-resistant and difficult to deform. Adapt to a variety of harsh environments, acid, alkali, oxidation and so on.
• Stable & High-speed Transmission: The copper needles uses brass solid terminals and the surface is gold-plated. Guarantee the stability of the current. Transmission speed up to 5Gbps and it supports charging to your devices with Type C input.
• EASY INSTALLATION: No soldering, no installation tools, just plug the standard type-c head directly for quick installation.
• Quality Assurance: Professional waterproof connector manufacturer. The product undergoes rigorous inspection before leaving the factory. If you are not satisfied with the product, please feel free to contact us.
Model: ANMBEST_MD411N,412N
Color: black
