Brand: AMOCAM

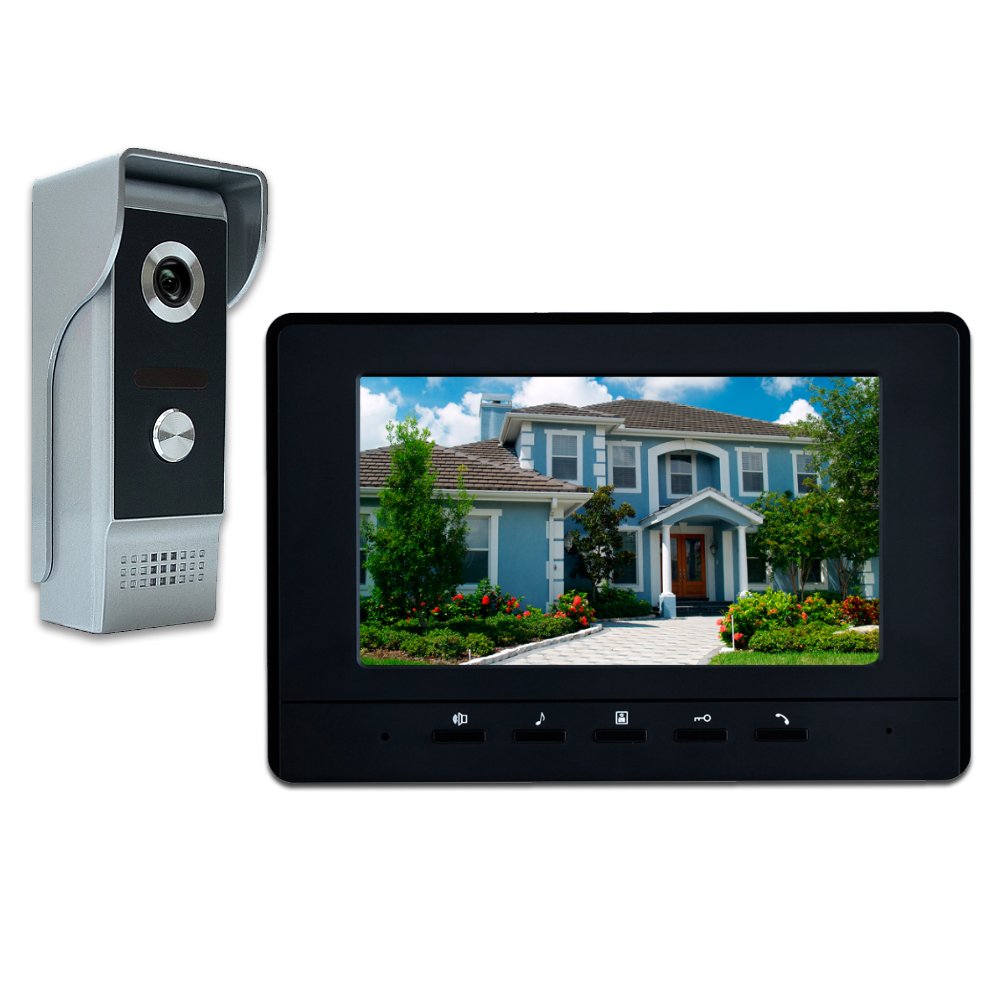

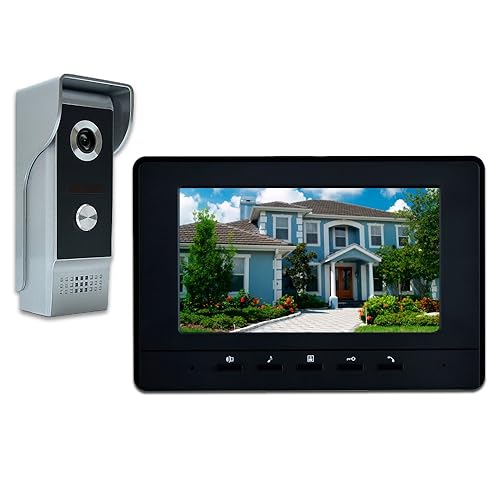

This video intercom door phone system includes 1-outdoor color camera, 1-color LCD 7 inch screen.

With an ultra-flat design,great sound quality, dimmable display, and 16 selectable doorbell tones for additional personalization,integrated video doorphone and access control, it brings more convenience in daily use.

The outdoor camera provides a 92-degree viewing angle, durable aluminum and Acrylic front panel to protect against potential vandalism. What's more, waterproofing and IR LED projection provides both durability and clear images no matter the weather or time of day/night.

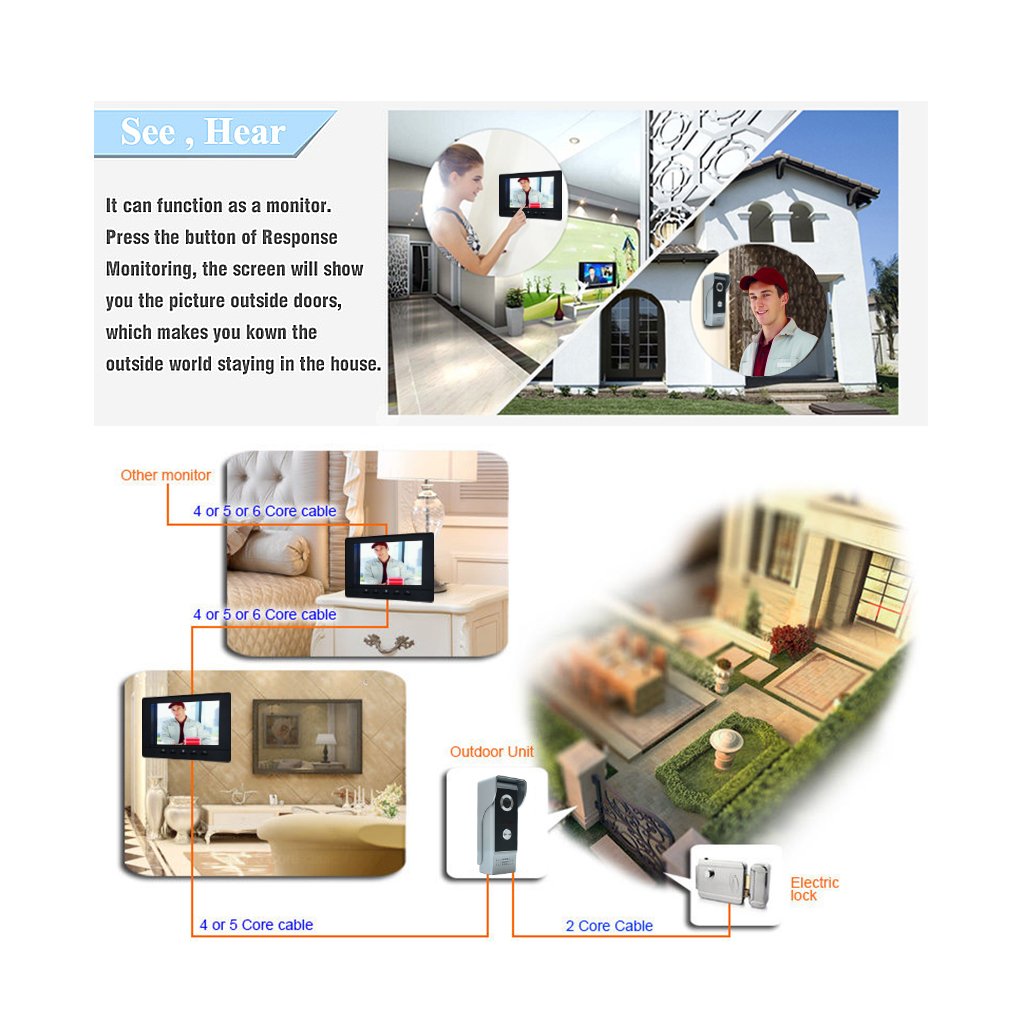

The indoor Monitor provides brightness of screen, color of screen, volume and music setting,Easy Surface mounting.cable suggestion, please refer to these information: : RVV4* 0. 30mm cable or CAT network cable for 30m(95feet) between camera and monitor, RVV4 * 0. 50mm cable for 50m(150feet), RVV4 * 1.0 mm cable for 100m(320feet).longer cable are not inlcuded in the system.

Specifications

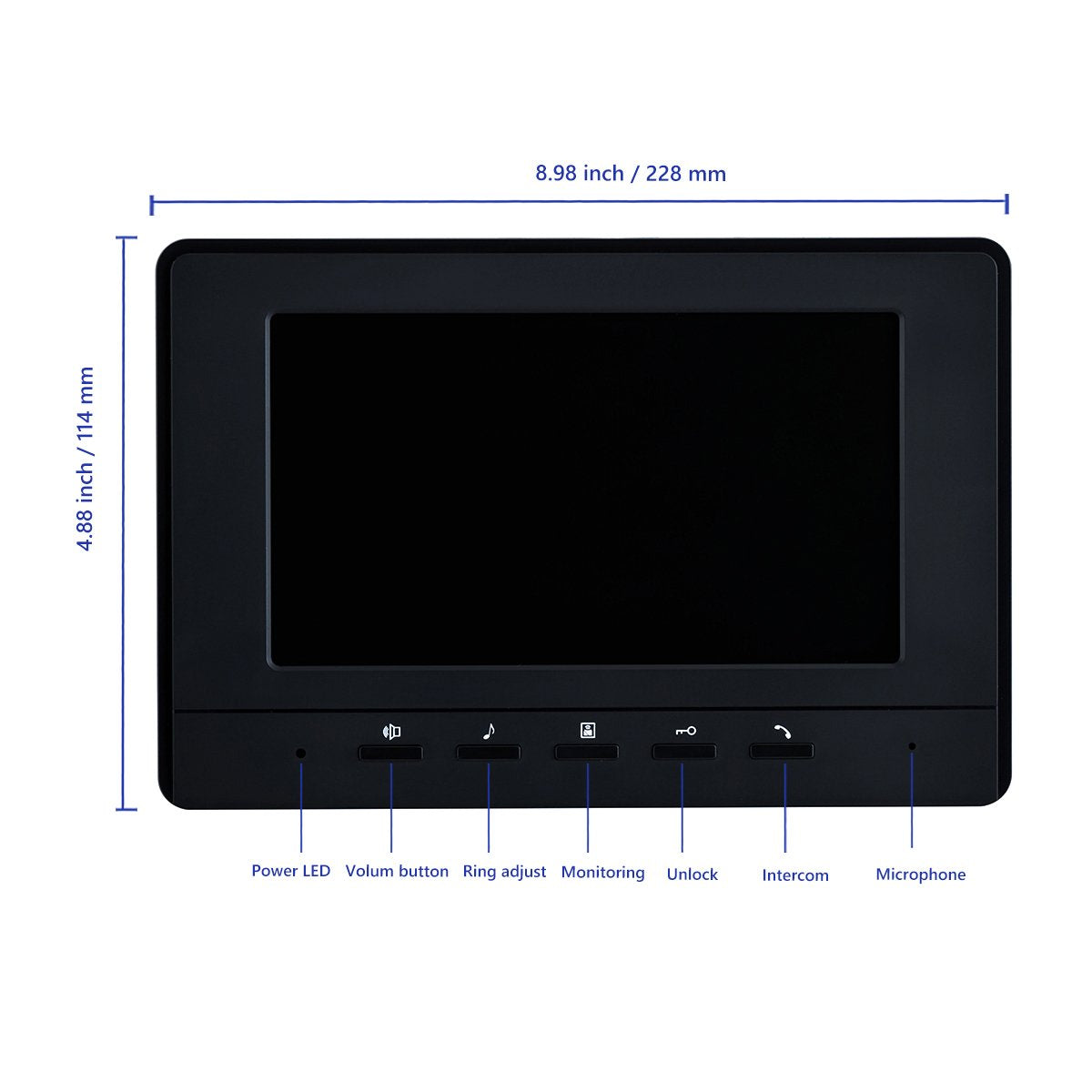

Indoor Monitor:
Screen: 7 inch 16:9 LCD display Touch key
Resolution: 800 x 480
Ring: 16-chord melody rings
Panel Material: Acrylic / ABS
Installation: Surface mounting
input voltage:AC 100-240V 50/60Hz
Working voltage:DC 15V, 1.5A
Size:240 x 150 x 20mm/9.4 x 5.9 x 0.7 inch

Door Camera:
Horizontal resolution:700 TV-Lines
Image sensor:Colorful CMOS sensor
Sensor Size:1/3,Visual angle:92
IR Led: 4pcs, auto on/off
Panel Material: Aluminum alloy / Acrylic
Installation: Surface mounting
Simple 4- wire connection
Size:125 x 50 x 27 mm / 4.9 x 1.9 x 1 inch

Packing includes:
1 x Indoor 7-Inch color monitor (With a mounting bracket).
1 x Outdoor camera with rain cover.
1 x Power adapter.
1 x 2-3 meter Test cable(longer cable not included).
1 x short 4-Core connection cable.
1 x short 2-Core connection cable.
1 x Bag screws.
1 x Manual

• OUTDOOR IR CAMERA --- 92 degree viewing angle,durable aluminum and acrylic front panel to protect against potential vandalism. waterproofing, IR night version clear images no matter the weather or time of day/night.
• INDOOR INTERCOM MONITOR --- When someone press the call button on outdoor unit,you can able to see and speak to whoever comes to your door. Gate locks so you can open them securely and conveniently from inside your home.

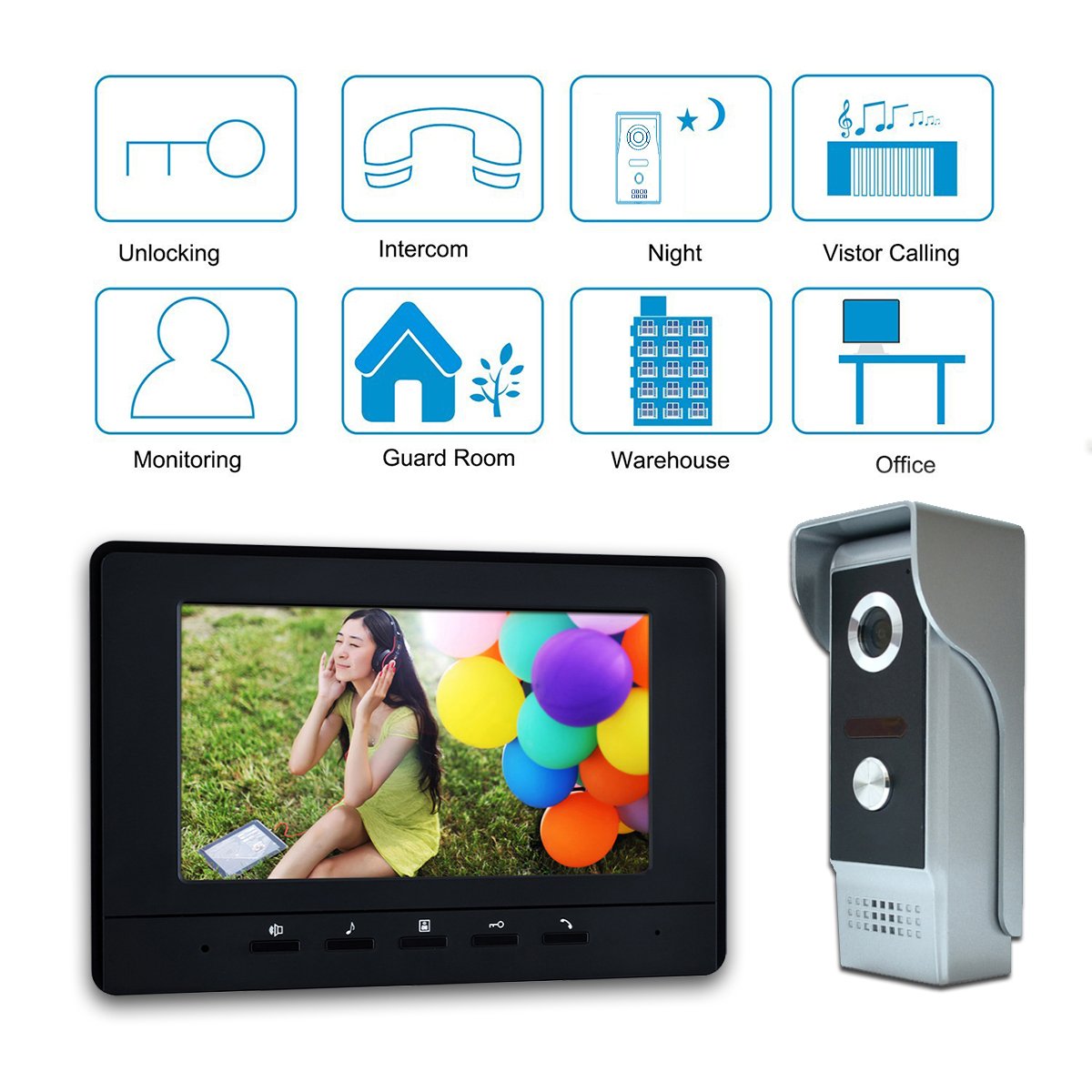

• 7 MAIN FEATURES --- 7 Inch LCD screen;16 different kinds of door bells chimes; Volume, brightness and contrast are adjustable; IR camera with night vision;Electric lock-control function;Handfree intercom;Auto turn off.
• EASY INSTALLATION --- Surface mounting,easy 4-wire setup system includes rain cover,connection terminal,screws materials.(Note: *1* We suggest testing the doorbell kits with our original cable before installation,and the distance between the units should not be too close while testing,or it will cause noise sound.*2* Please don't connect the power adapter directly with the outdoor unit or it will be burned. The power adapter should connect with the indoor unit)
• FURTHER SECURITY AND CONVENIENCE --- Wired connection stability clear vision for home security,which makes you kown the outside world staying in the house. can be used in apartments, villas, hotels, offices, public buildings. wonderful appearance is unique in the market, it can decorate your house, office, company etc.(only use electronic lock can open the directly from indoor monitor; If customer use strike lock, Bolt lock and magnetic lock, need use power supply control to work with it)
