Description
Brand: ALITOVE
Model: 4328726768
Parameter
Input: AC110V/220V 50/60Hz
Output : DC 5V 20A 100W max
Fix Screw Hole Diameter: 2.5mm (0.1inch)
Working temperature: -10 to 50 degree Celsius
Storage temperature: -20 to 60 degree Celsius
Environmental humidity: 10-95%
Material: Metal, Electronic Parts
Safety Compliance: CCC/ FCC / CE

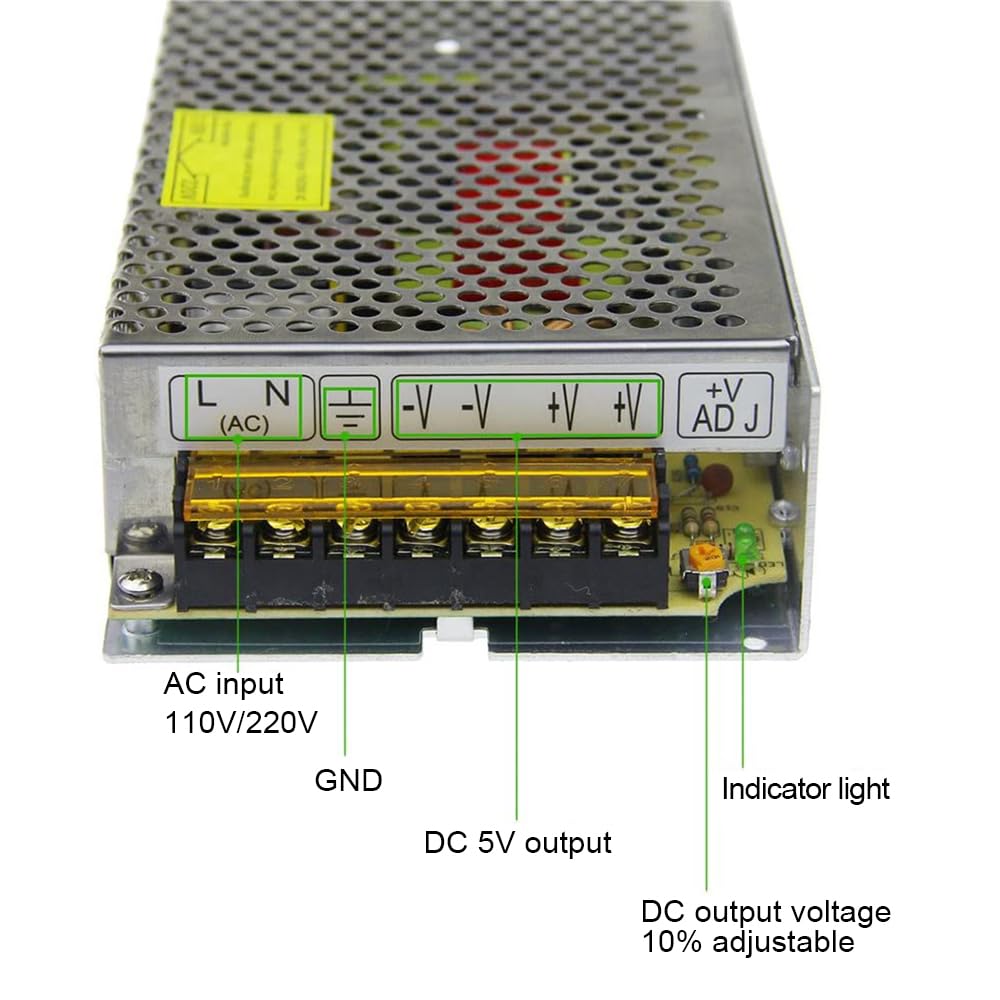

Connection instruction
L/N: AC power input
+V: DC power output +
-V: DC power output -
+V ADJ: Adjust the output voltage (15%)
Kindly note
1) High Voltage inside, do not remove the cover.
2) 110V/220V must be selected by switch before using to avoid damaging. The power select (110v/220v) switch is located inside the case. Please use a small screw driver to reach in and change the switch to 110V for USA.
3) It comes without installation instruction, wiring cable, on/off switch and screws. Professional Installation of qualified electrician is highly recommended.
Package included
1 x LED Switching Power Supply
• Input: 110V/220V AC
• Output: DC 5V 20A max. Output voltage can be adjusted 10%. Two sets of output Channel.
• Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.
• It is perfect for all 5V projects, such as WS2811 2801 WS2812B LED Strip Pixel Light, CCTV Camera, Security System, etc.
• There is no fan inside the case, silent running. Metal case with many holes makes heat dissipation more efficient.
• Compact small size, high efficiency, high reliability, stable performance. Indoor use only!
Color: 20A Silvery
Wattage/Output: 5V 20A 100W
Model: 4328726768
Parameter
Input: AC110V/220V 50/60Hz
Output : DC 5V 20A 100W max
Fix Screw Hole Diameter: 2.5mm (0.1inch)
Working temperature: -10 to 50 degree Celsius
Storage temperature: -20 to 60 degree Celsius
Environmental humidity: 10-95%
Material: Metal, Electronic Parts
Safety Compliance: CCC/ FCC / CE
Connection instruction
L/N: AC power input
+V: DC power output +
-V: DC power output -
+V ADJ: Adjust the output voltage (15%)
Kindly note
1) High Voltage inside, do not remove the cover.
2) 110V/220V must be selected by switch before using to avoid damaging. The power select (110v/220v) switch is located inside the case. Please use a small screw driver to reach in and change the switch to 110V for USA.
3) It comes without installation instruction, wiring cable, on/off switch and screws. Professional Installation of qualified electrician is highly recommended.
Package included
1 x LED Switching Power Supply
• Input: 110V/220V AC
• Output: DC 5V 20A max. Output voltage can be adjusted 10%. Two sets of output Channel.
• Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.
• It is perfect for all 5V projects, such as WS2811 2801 WS2812B LED Strip Pixel Light, CCTV Camera, Security System, etc.
• There is no fan inside the case, silent running. Metal case with many holes makes heat dissipation more efficient.
• Compact small size, high efficiency, high reliability, stable performance. Indoor use only!
Color: 20A Silvery
Wattage/Output: 5V 20A 100W
