Description
Brand: Alinan
Model: Alinan
Product Parameters

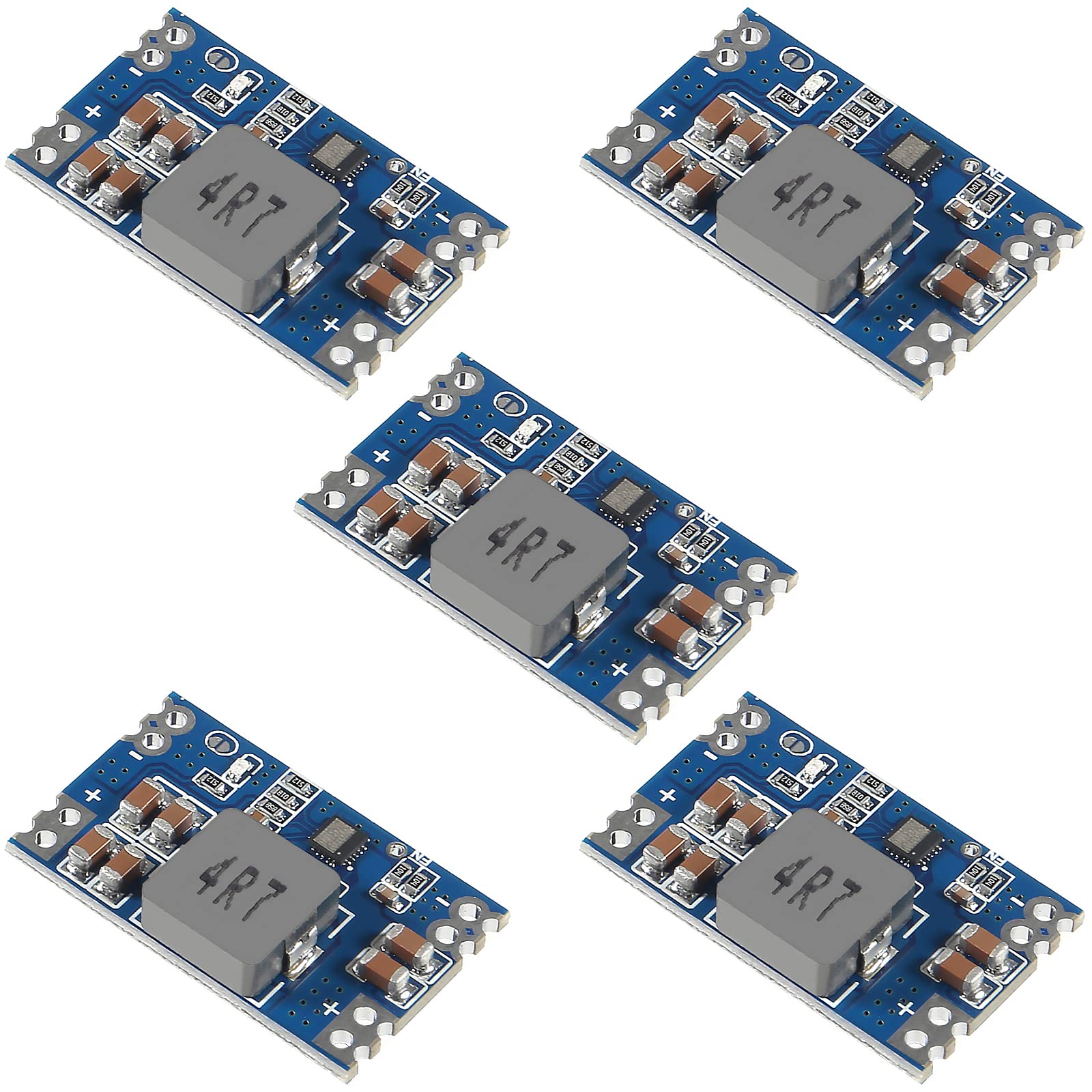

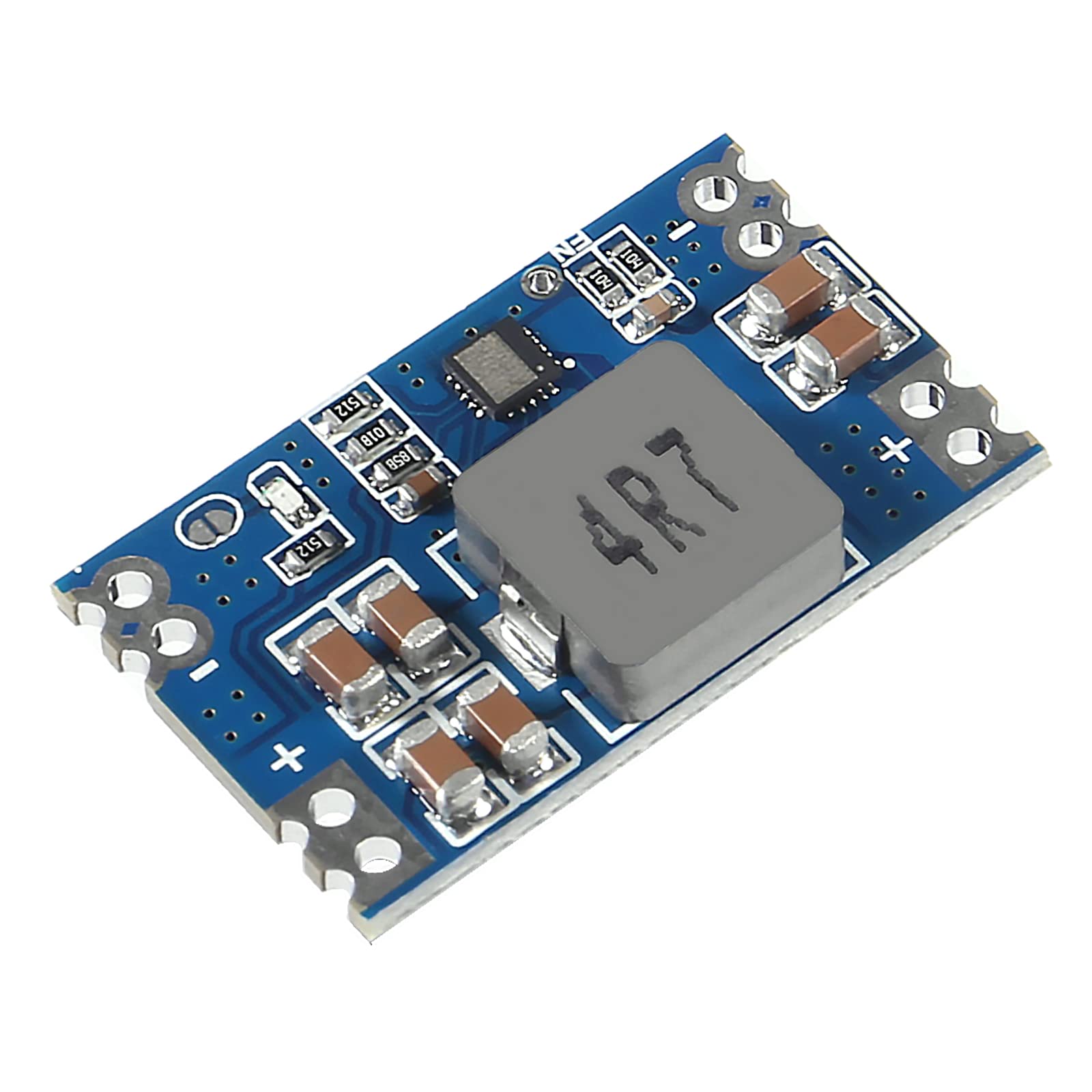

Model Name: Mini560 (MINI DC-DC step-down module)
Version: 5V
Output Voltage: 5V

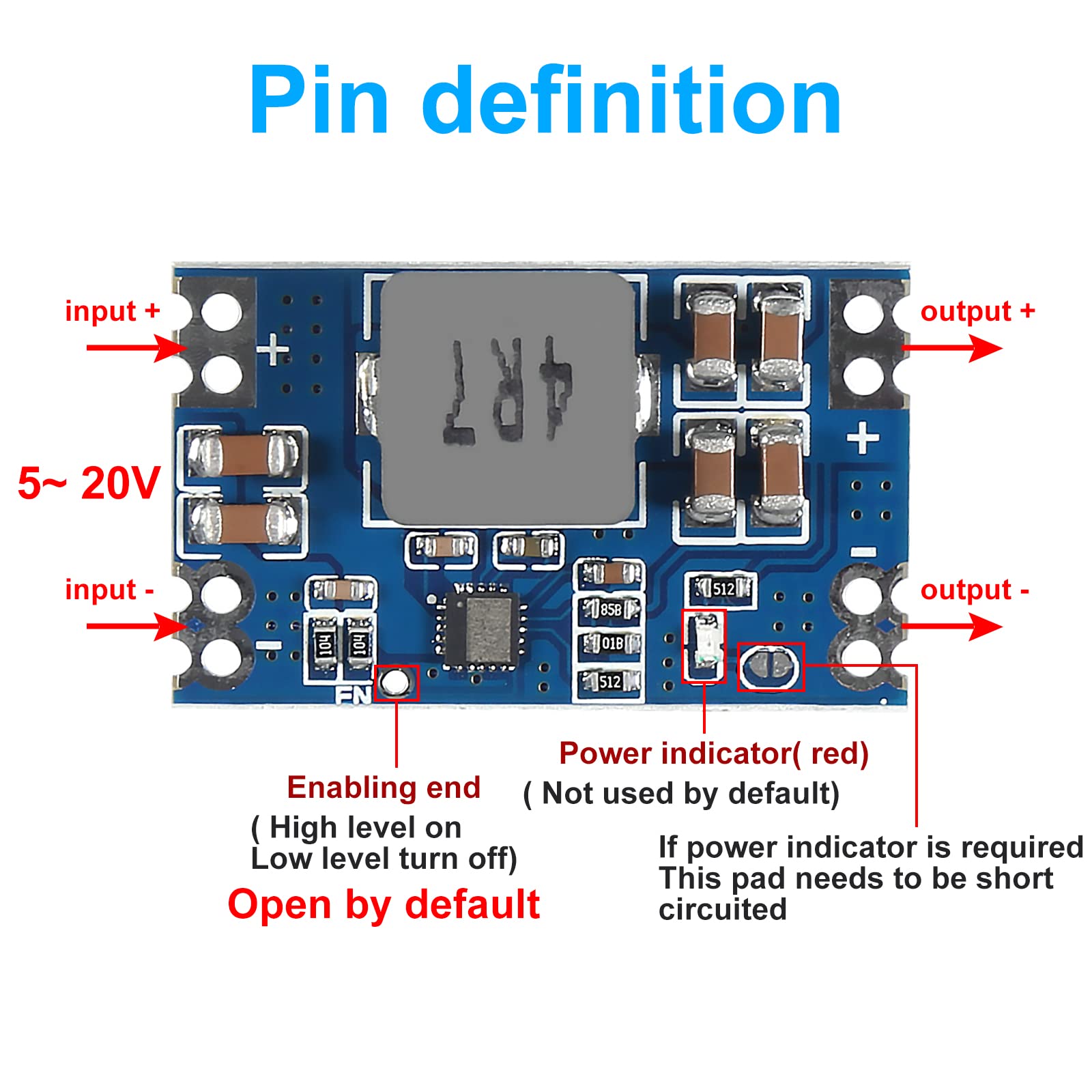

Input Voltage: 7V-20V
Output Current: <5A(Long-distance> 4A; requires heat dissipation)
Differential Pressure: >2V
Operating Frequency: 500KHz
Conversion Efficiency: 99%(MAX)
Operating Temperature: -40°C to +85*C

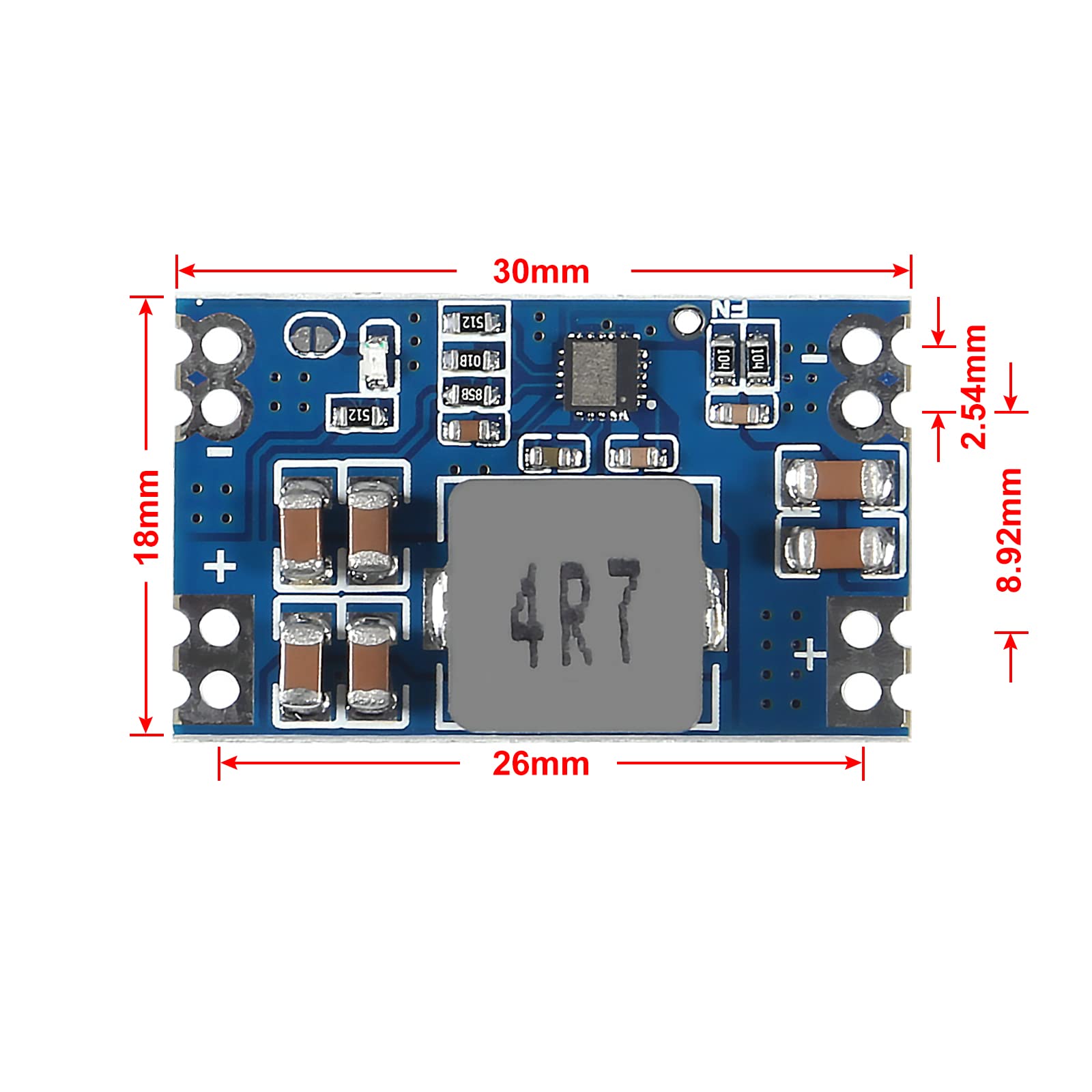

External Dimensions: 29*18*5.4 (L*W*H) (mm)
Module Nature: Non-isolated buck
Rectification Method: Synchronous rectification
• 【Ultra Small Volume】: Module size only: 29*18*5 .4mm
• It is very easy to embed into various systems.

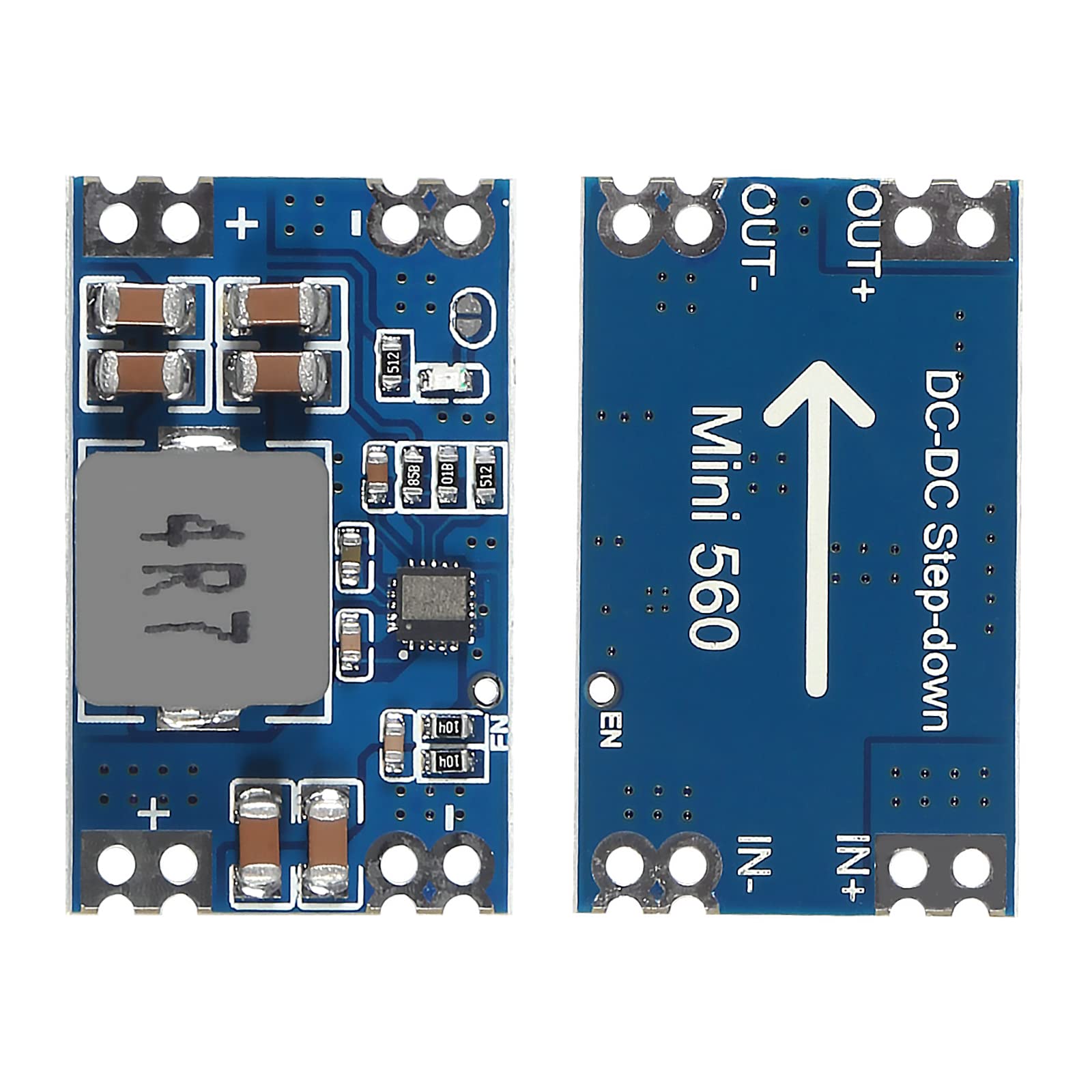

• 【Stamp Hole Design】: Convenient for users to connect. It is also convenient for industrial use.
• ★High conversion efficiency and low heating.
• ★High efficiency/high stability/high cost performance.
• ★MINI 560 buck step-down module
Power/Wattage: 5V
Model: Alinan
Product Parameters
Model Name: Mini560 (MINI DC-DC step-down module)
Version: 5V
Output Voltage: 5V
Input Voltage: 7V-20V
Output Current: <5A(Long-distance> 4A; requires heat dissipation)
Differential Pressure: >2V
Operating Frequency: 500KHz
Conversion Efficiency: 99%(MAX)
Operating Temperature: -40°C to +85*C
External Dimensions: 29*18*5.4 (L*W*H) (mm)
Module Nature: Non-isolated buck
Rectification Method: Synchronous rectification
• 【Ultra Small Volume】: Module size only: 29*18*5 .4mm
• It is very easy to embed into various systems.
• 【Stamp Hole Design】: Convenient for users to connect. It is also convenient for industrial use.
• ★High conversion efficiency and low heating.
• ★High efficiency/high stability/high cost performance.
• ★MINI 560 buck step-down module
Power/Wattage: 5V
