Description
Brand: AITRIP
Model: LM2596
• Input: DC 3 V to 40 V (input voltage must be 1.5 V higher than the output voltage, no boost)
• Output: DC 1.5 V to 35 V voltage is continuously adjustable, maximum output current is 3 A

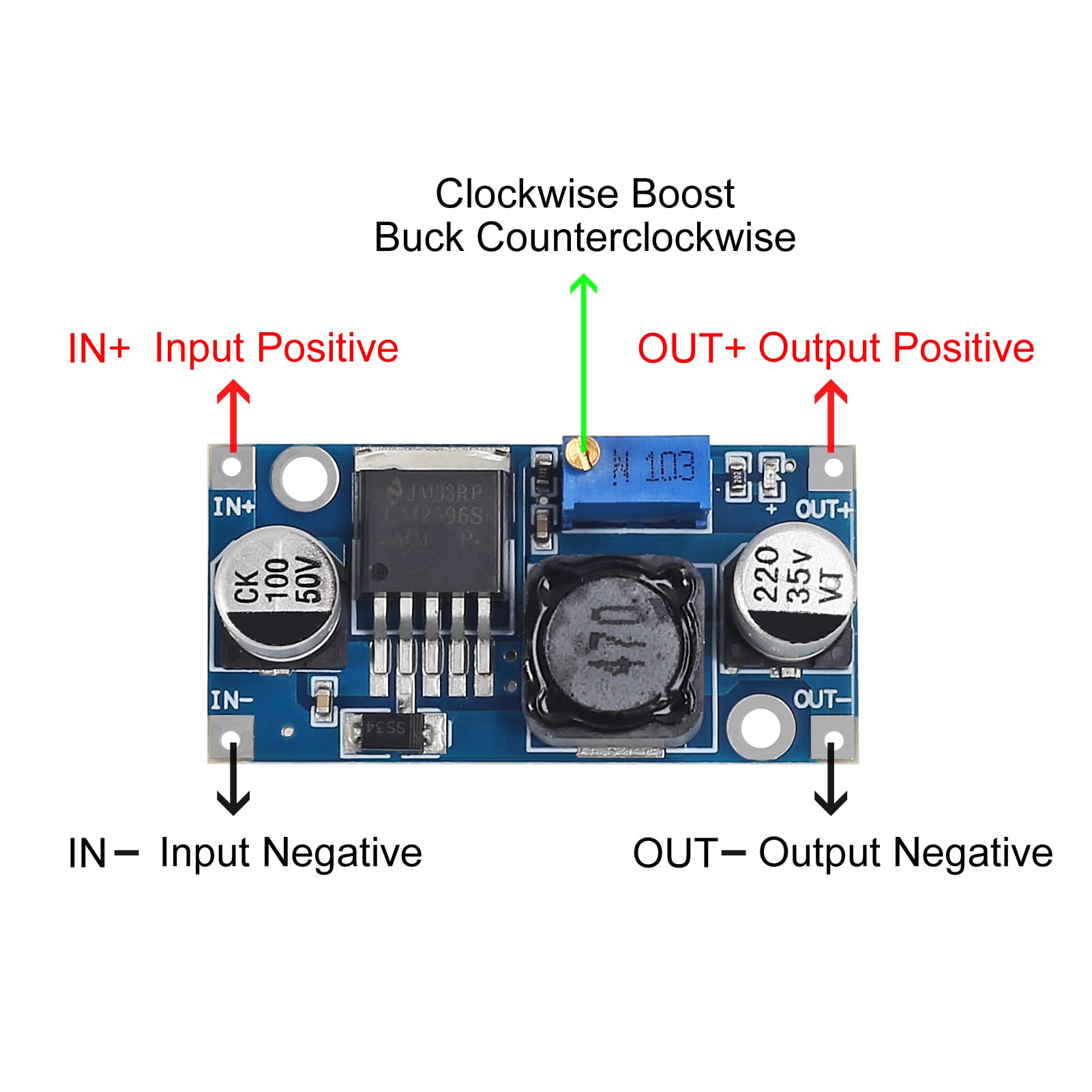

• Steps: connect to power source, adjust the swirl button on the blue potentiometer and monitor voltage with multimeter to get the needed voltage (The factory have tested these at max voltage so they are very high by default, takes about 15-20 turns CCW before the voltage starts ramping down)

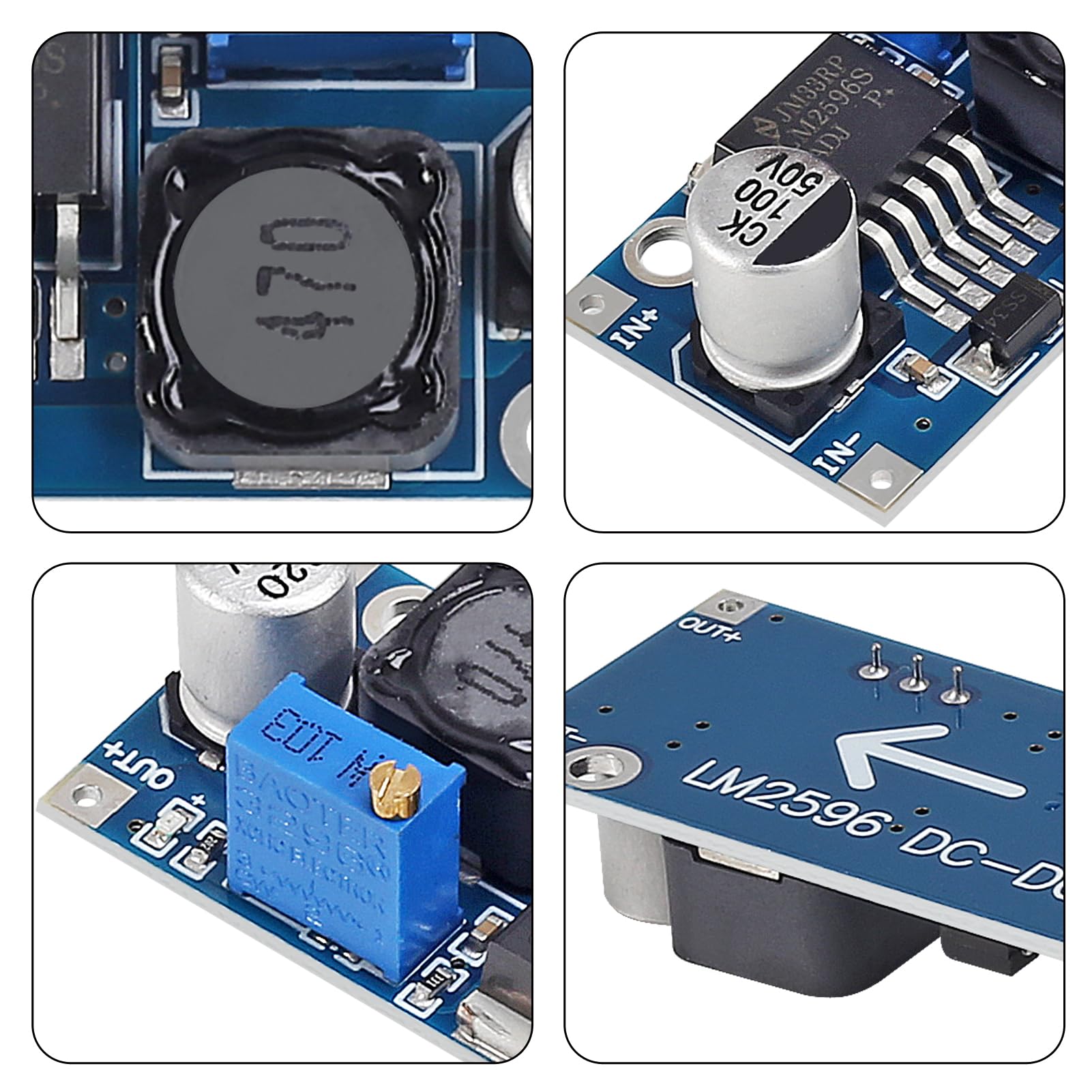

• Features: all use SANYO solid-state capacitors, 36 u thickening circuit boards, high-Q inductance with LED indicator output

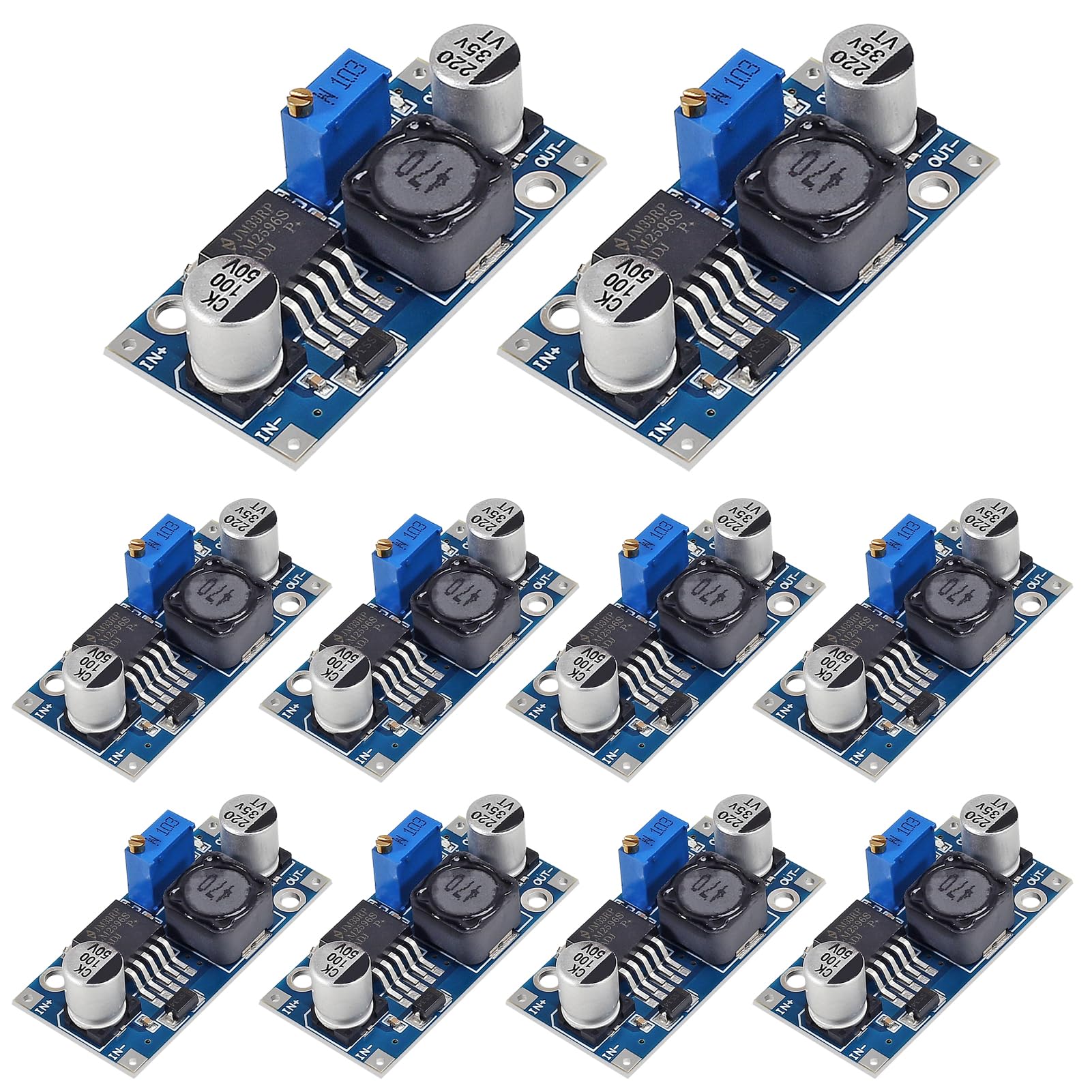

• Quantity: 10 pieces

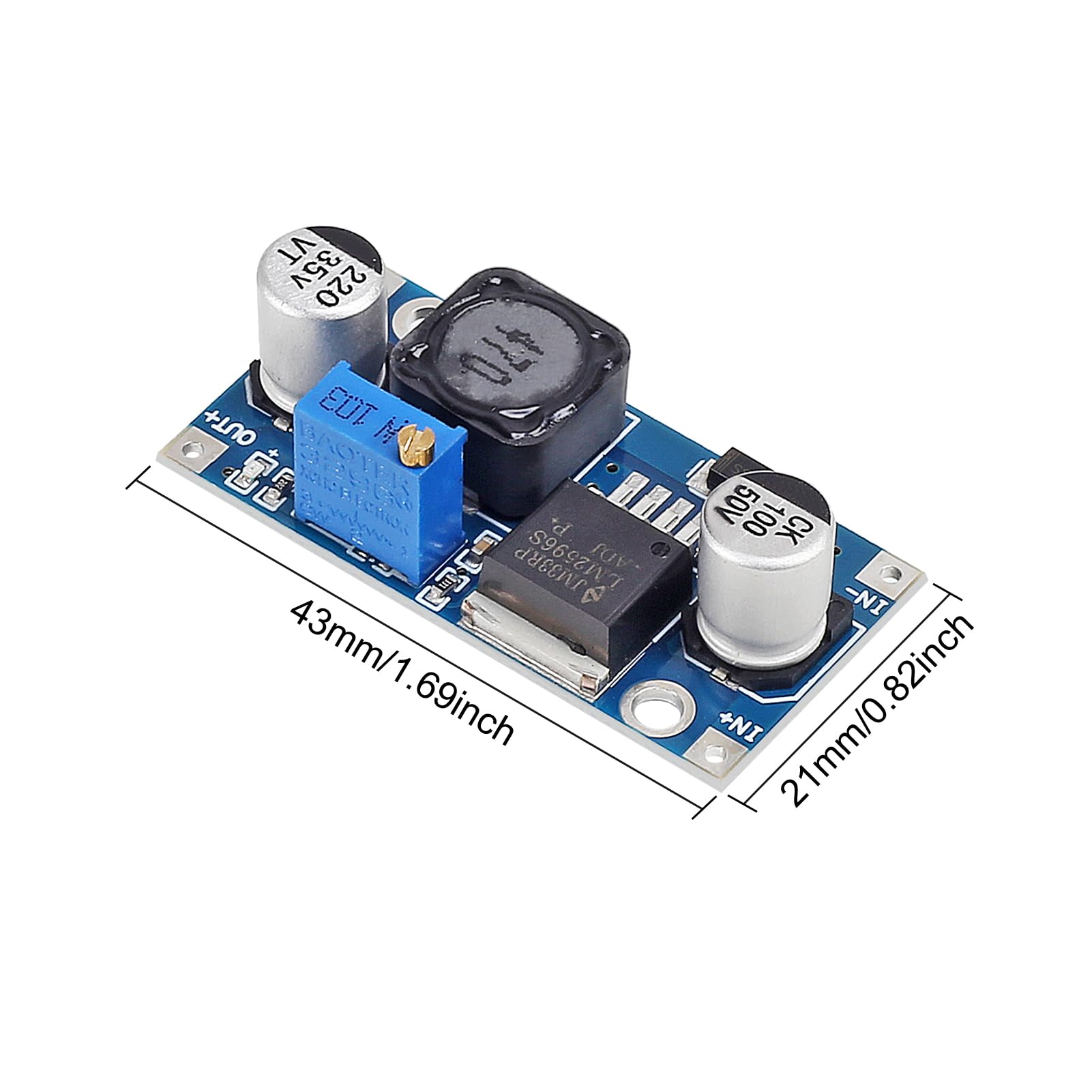

• Size: 45 * 20 * 14 mm
Color: 10PCS
Model: LM2596

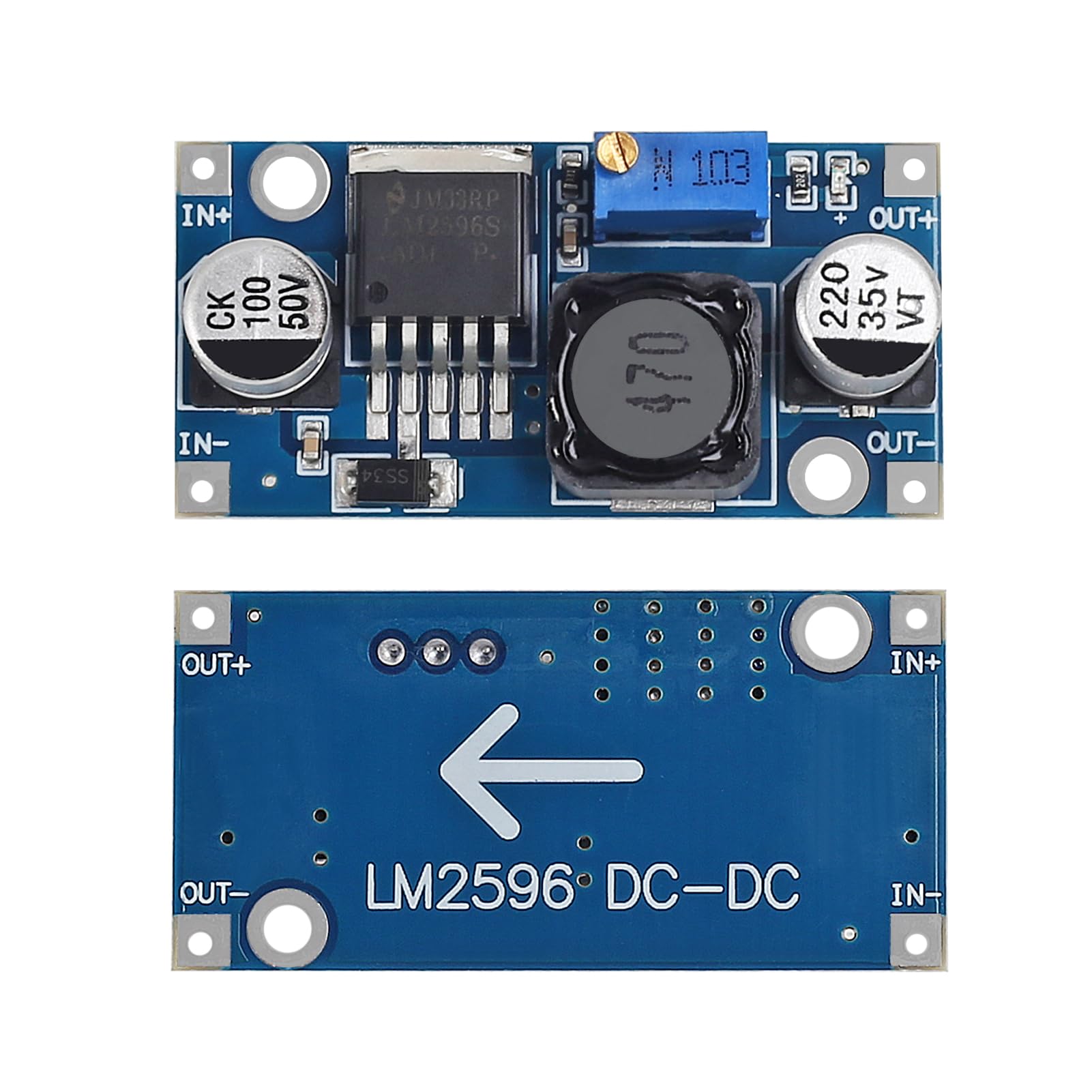

LM2596 LM2596S DC-DC Step Down Variable Volt Regulator Input 3.0-40V Output 1.5-35V Adjustable Buck Converter Electronic Voltage Stabilizer Power Supply Module
Kindly Note:
1. Input voltage must be 1.5 V higher than the output voltage, no boost
2. could you please dont reverse the input and output interface
3. Keep output under 2.5A and use a heat sink when for a long time working
Specifications:
Model: LM2596
Input voltage: DC 3V - 40V
Output Voltage: DC 1.5V - 35V (adjustable)
Output Current: 3A (max)
Conversion Efficiency: 92% (max)
Switching Frequency : 65KHz
Rectification: non-synchronous rectification
Module property: non-isolated buck module
Operating Temperature: -45℃ to +85℃
Load Regulation: ± 0.5%
Voltage Regulation: ± 2.5%
Package List:
10 x LM2596 DC-DC Buck Converter Module.
• Input: DC 3 V to 40 V (input voltage must be 1.5 V higher than the output voltage, no boost)
• Output: DC 1.5 V to 35 V voltage is continuously adjustable, maximum output current is 3 A
• Steps: connect to power source, adjust the swirl button on the blue potentiometer and monitor voltage with multimeter to get the needed voltage (The factory have tested these at max voltage so they are very high by default, takes about 15-20 turns CCW before the voltage starts ramping down)
• Features: all use SANYO solid-state capacitors, 36 u thickening circuit boards, high-Q inductance with LED indicator output
• Quantity: 10 pieces
• Size: 45 * 20 * 14 mm
Color: 10PCS
