Brand: Aiphone

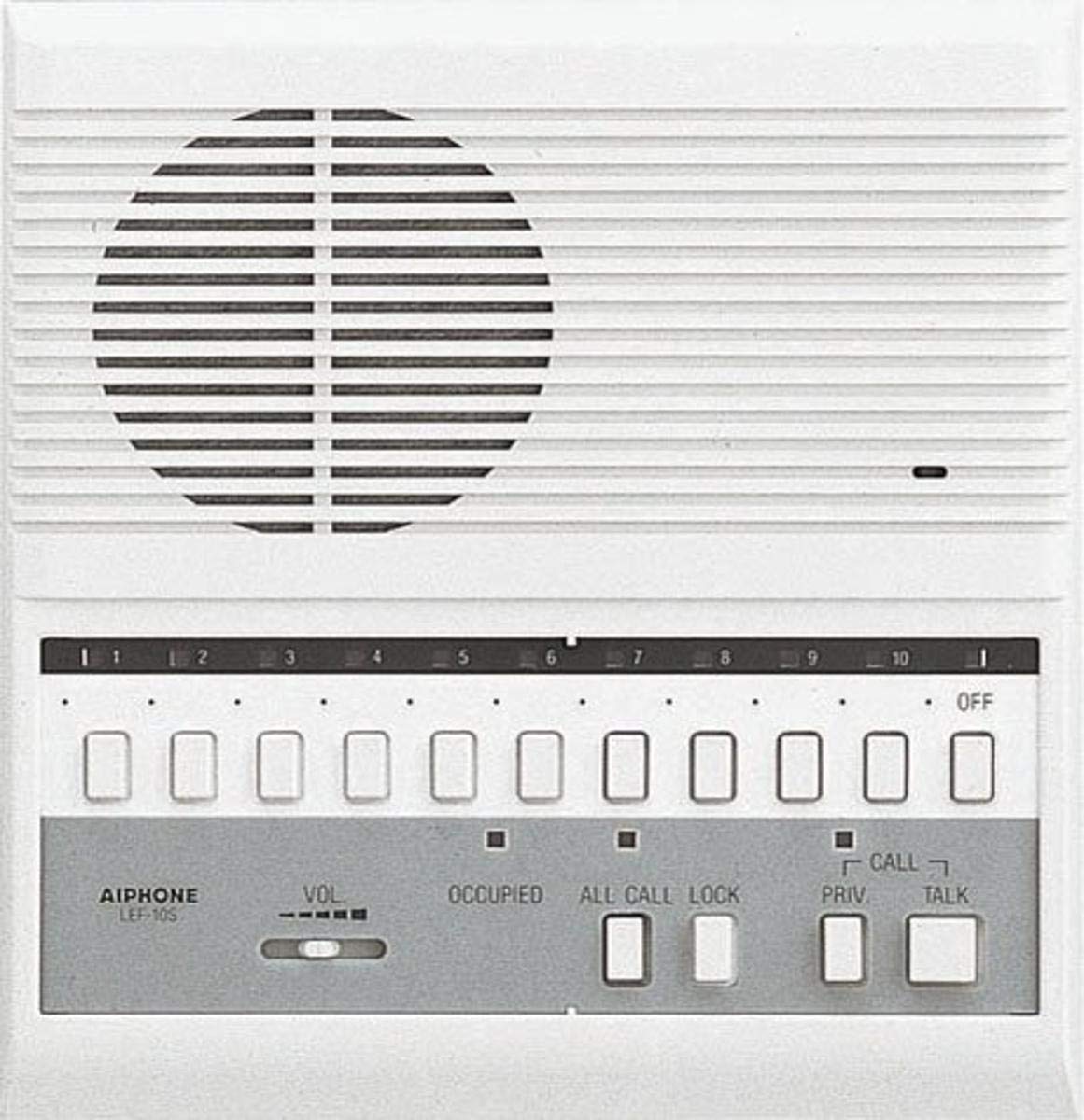

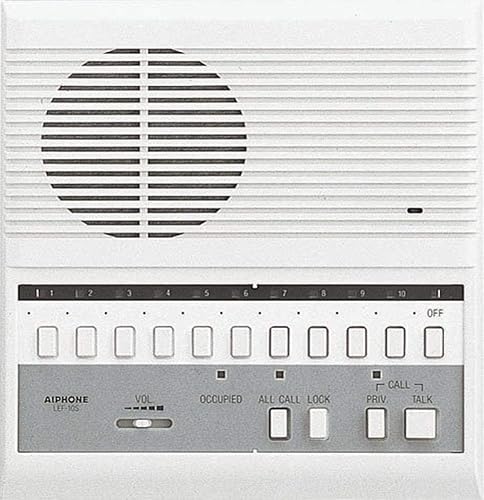

The Aiphone LEF-10S Open Voice selective-call surface-mount master intercom with all-call and door-release buttons works with any combination of up to 10 Aiphone LAF and LEF Series master intercoms and LA, LE, or LS Series door and sub-master intercoms (sold separately) to enable audio communication with a visitor at a door and with other rooms within the building. The all-call button works with an Aiphone BG-10C adapter (sold separately) to broadcast a message or music to every intercom connected to the system. Each intercom in the system must be connected to an Aiphone RY-PA relay (sold separately), which can connect an electric strike (sold separately) for door access control as well as connect devices such as CCTV cameras and lights (sold separately). Ten buttons with LED indicators allow the master intercom to direct a call and communicate with the desired door or sub-master intercom.Calls received from a sub-master intercom are indicated by a momentary chime and the corresponding LED indicator above the selectable buttons illuminating for 20 seconds. Depressing the push-to-talk button on the master intercom allows the user to talk to the specified door or sub-master intercom user, and releasing the button immediately transmits sound from the door or sub-master intercom to the master intercom. The privacy button prevents other intercom users in the system from overhearing a conversation with another intercom. At any time, the master user can listen to audio transmissions from a specified door or sub-master intercom. The chime and audio volume is adjustable, and switching the power button to off silences the master intercom's chime alerts. The housing is white plastic and surface mounts to a desktop or wall using the included mounting hardware. The system is hardwired to be powered by a 12V power supply (sold separately). SpecificationsOverall dimensions8-1/8 x 7-1/2 x 2-3/16 inches (H x W x D)*Communication output800mW at 20 ohms for reception, 500mW at 20 ohms for transmissionMaximum distance from door/sub to master650 ft. using a 22 AWG wire, 1,600 ft. using an 18 AWG wireDoor strike connectionAiphone RY-PA relay (sold separately)Power requirementsAiphone PS-1225UL 12V power supply (sold separately)*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.Door intercom systems allow an occupant of a building to communicate remotely with a visitor through at least one door intercom and master intercom. Master intercoms with a door-access button remotely unlock the door for the visitor.Aiphone manufactures intercom systems for residential, business, and healthcare structures. The company, founded in Japan in 1948, has its North American headquarters in Bellevue, WA. Aiphone meets International Organization for Standardization (ISO) standards 9001 and 14001. What's in the Box? Aiphone LEF-10S master intercom Mounting hardware Instructions

• Surface-mount master intercom with all-call and door-release buttons works with any combination of up to 10 door, sub-master, or master intercoms (sold separately) to enable audio communication with visitors and other rooms within the building
• All-call button works with Aiphone BG-10C adapter (sold separately) to broadcast a message to every intercom connected in the system
• Door-release button controls an electric strike (sold separately) to remotely unlock the entrance for a visitor
• 10 buttons with LED indicators allow the master intercom operator to direct a call and communicate with the desired door or sub-master intercom
• Privacy button prevents other intercom users in the system from overhearing a conversation with another intercom
