Brand: POMIACAM

AHD TVI CVI CCTV Tester Security Camera Tester The other testing of CCTV monitor tester
1. It is support Video signal testing , Test RS485 PTZ controller
2. Image generator:Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section
3.This monitor also Support Audio testing:Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.
4.it have enhanced network cable testing: By UTP CABLE TEST port on the meter, you can test the connection of network cable.
5.VGA/HDMI input test : Support VGA/HDMI 1.0 video input, once connect VGA/HDMI video, please switch selector to select HDMI or VGA mode. The maximum resolution is 1920 x 1440

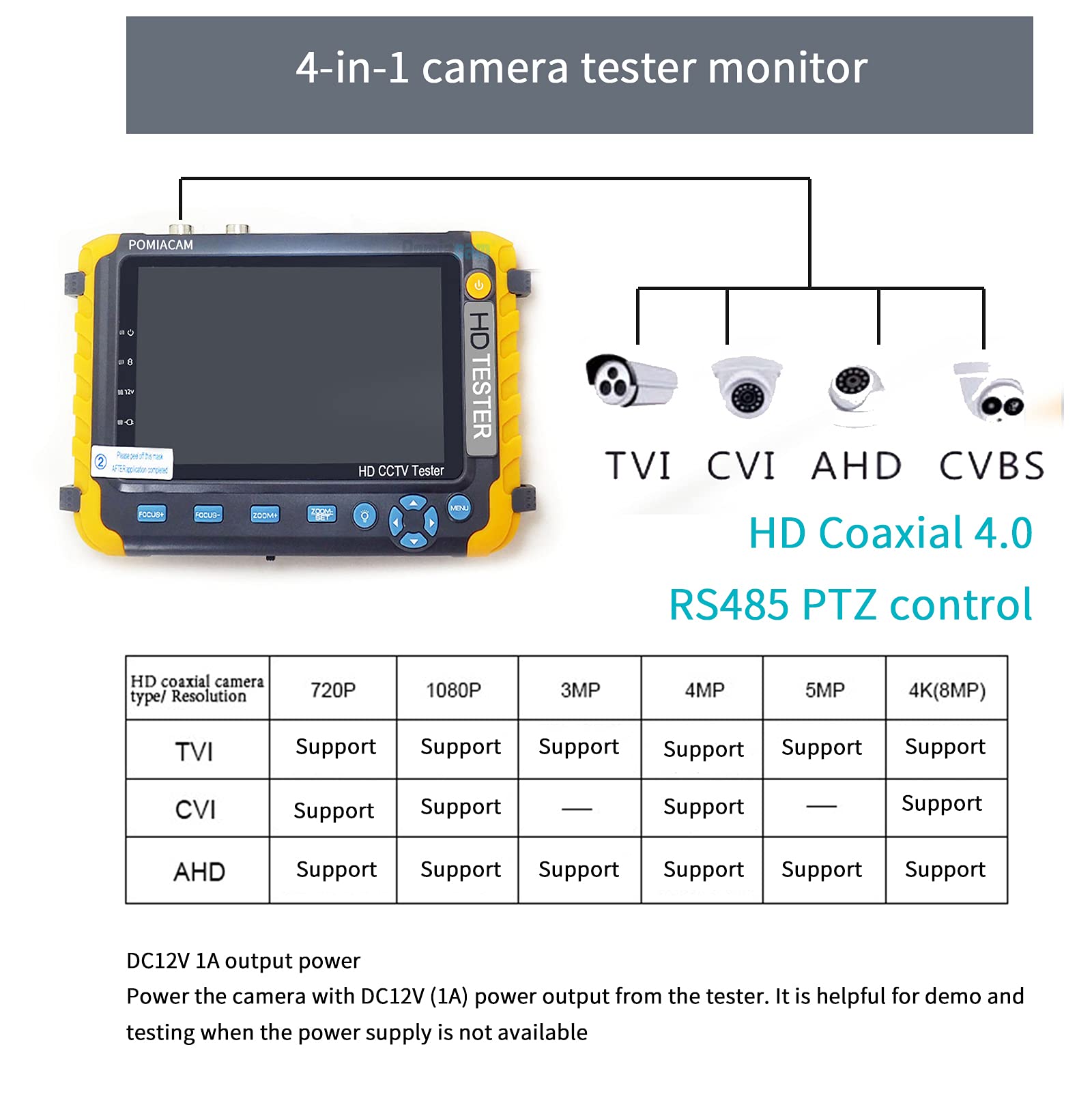

6.Camera testing for CCTV Monitor : TVI / AHD / CVI camera test:HD AHD /TVI /CVI video surveillance testing, support 1MP to 8MP camera testing .

FAQ : 1. Can i test IP camera ?
NO , This tester monitor not supports any IP cameras testing, it only Support analog cameras and AHD TVI CVI camera .
2. Why my tester can not produce pictures ?
please use the Right mode for the item . If the camera is other TVI / AHD signal camera, the mode should be switched to TVI / AHD signal mode, so that the connected camera can produce pictures but not flicker.
3. Why My CCTV monitor has only been used twice in three months but it can’t be turned on?
This tester is built-in battery, as long as the battery power is sufficient, you can turn it on normally, if not, that means that the battery power has been consumed, Prolonged non-use will automatically enter the low battery protection , you need charge it for 8h.
4. why my item HDMI isn’t recognized.
If HDMI is used as the display input, it can only be connected to the NVR or DVR which with an input signal of HDMI. If HDMI is a signal output, it needs to be connected to the display or TV.

• 1. It is a nice CCTV tester monitor , portable and easy to carry, it can perfectly test AHD camera ,TVI camera and CVI camera up to 8MP, this monitor very suitable for upgrading the old CCTV analog signal system. This CCTV tester also supports UTP cable test, You can also use RS-485 to control the PTZ camera ect

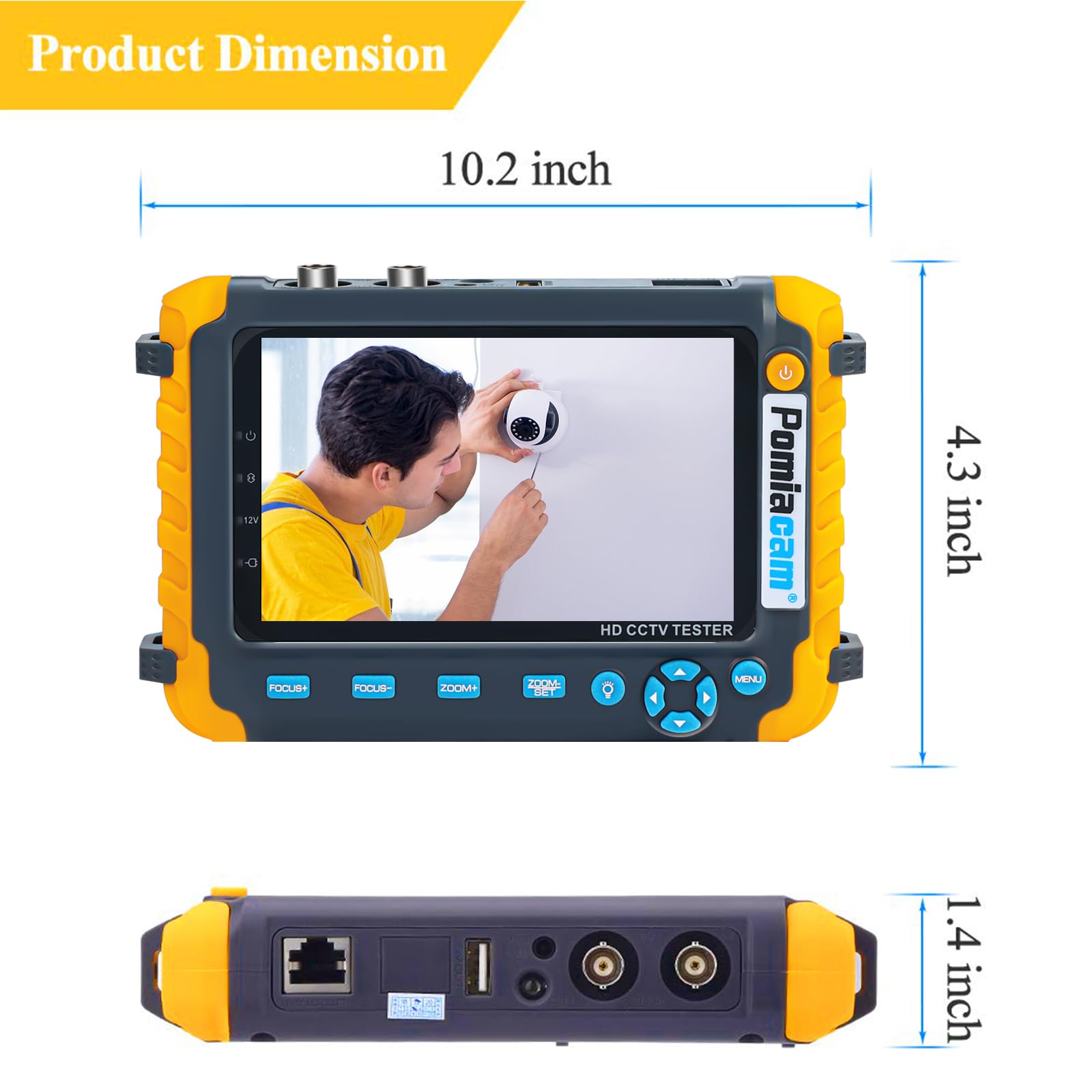

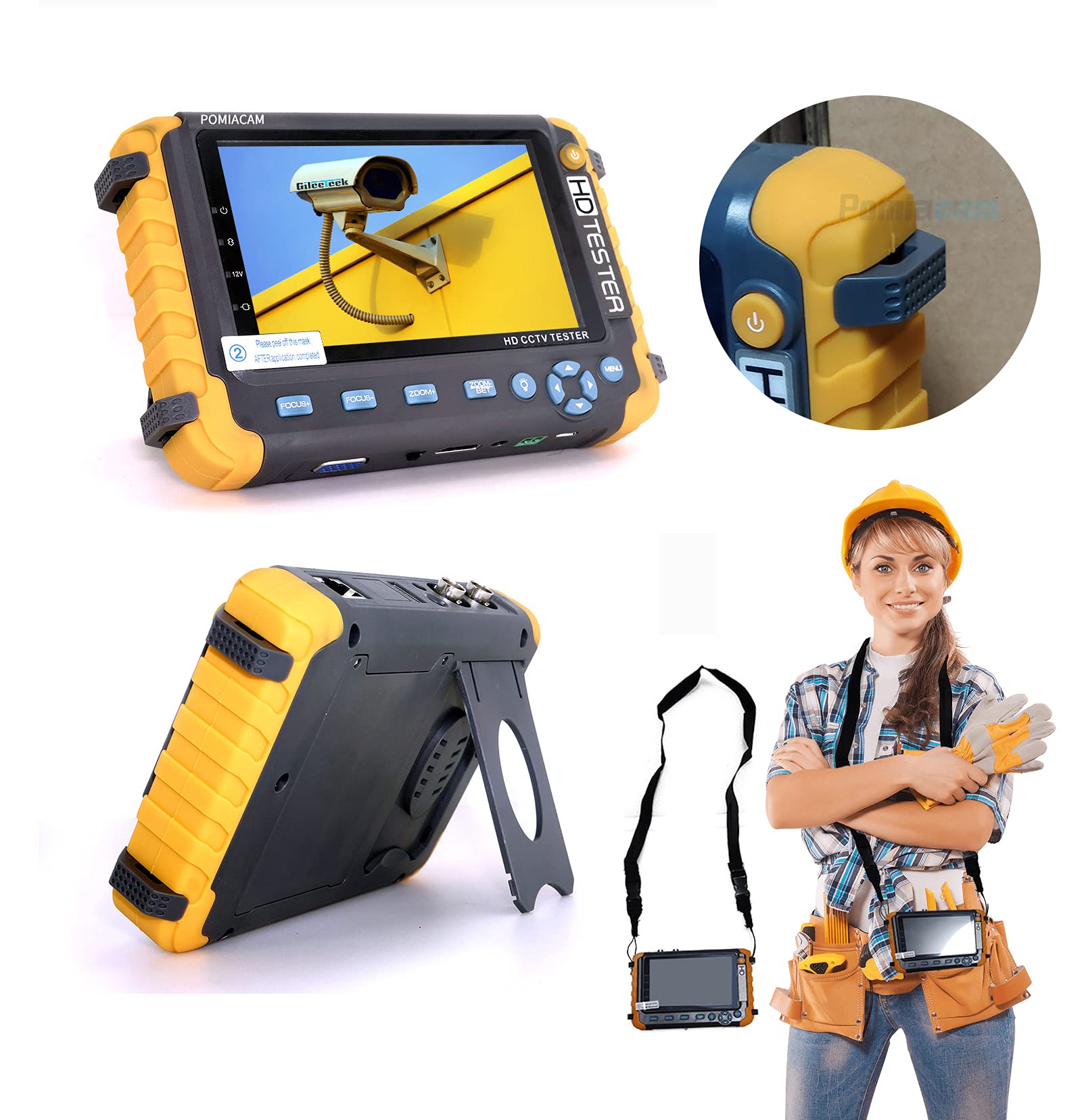

• 2. The monitor of this multi-function CCTV tester also supports VGA input and HDMI input. You can use the monitor and DVR to work together conveniently and quickly. The CCTV tester monitor has a mini mini size: 5inc display screen, the screen is protected by a film, There are rubber protections on both sides , you can use it in different environments. free tool kits and cables are provided Make sure you use it more conveniently
• 3.The mini CCTV monitor suitable for the CCTV system can ensure that you complete the work faster and better. The large-capacity batteries can keep the CCTV monitor working for a long time and it is easier to replace. This monitor has a DC 12V power output, you can provide power for the camera alone where it is difficult to provide an independent power supply.
• 4. Our cctv monitor does not support IP camera test, it only applies to AHD TVI CVI and analog cameras testing , supports up to 8MP . When you use a different camera, please press the MENU button to switch between different modes, so that the monitor can work better.
• 5. We are provide 45 days free return service and 1 year warranty, And provide high-quality after-sales service. Anytime your CCTV monitor has any questions, we will help you solve the problem online. Our investigation found that the screens of individual customers’ monitors have a high rate of damage due to various reasons. If you find such problems, please contact us in time. We will provide you with free screen replacements.
