Brand: AGPTEK

Description
An electromagnetic lock, magnetic lock, is a locking device that consists of an electromagnet and an armature plate used for access control door locks.
By attaching this to the door frame and the armature plate to the door, a current passing through the electromagnet attracts the armature plate, holding the access control door lock shut.
Unlike an electric strike access control door lock a magnetic lock has no interconnecting parts.it is possible to bypass the lock by disrupting the power supply. According to the different doors, sometimes will need U brackets or L&Z brackets to support mounting. Can work with networking access control system.
The whole system includes electric lock, power supply, access controller,exit button,door bell or RFID cards.

Note:
The power supply, access controller, exit button, door bell or RFID cards NOT included.

Application:
These products are widely applied in access control system and related applications.

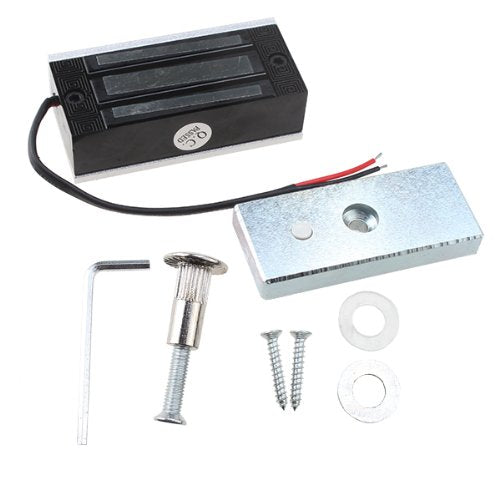

Package Include:
1x Magnetic Door Lock main body 60kg Strong Force(NC mode)
1x Armature faceplate
1x package Mounting hardware kit
1x Manual

• ? GET SECURED - AGPtEK magnetic door lock provides a strong sense of security with its outstanding holding force and significant features. The maglock is installed beneath the top of the door frame to make sure that the door remains closed and locked. With this electric magnetic lock, you have up to 130lbs of force protecting the door.

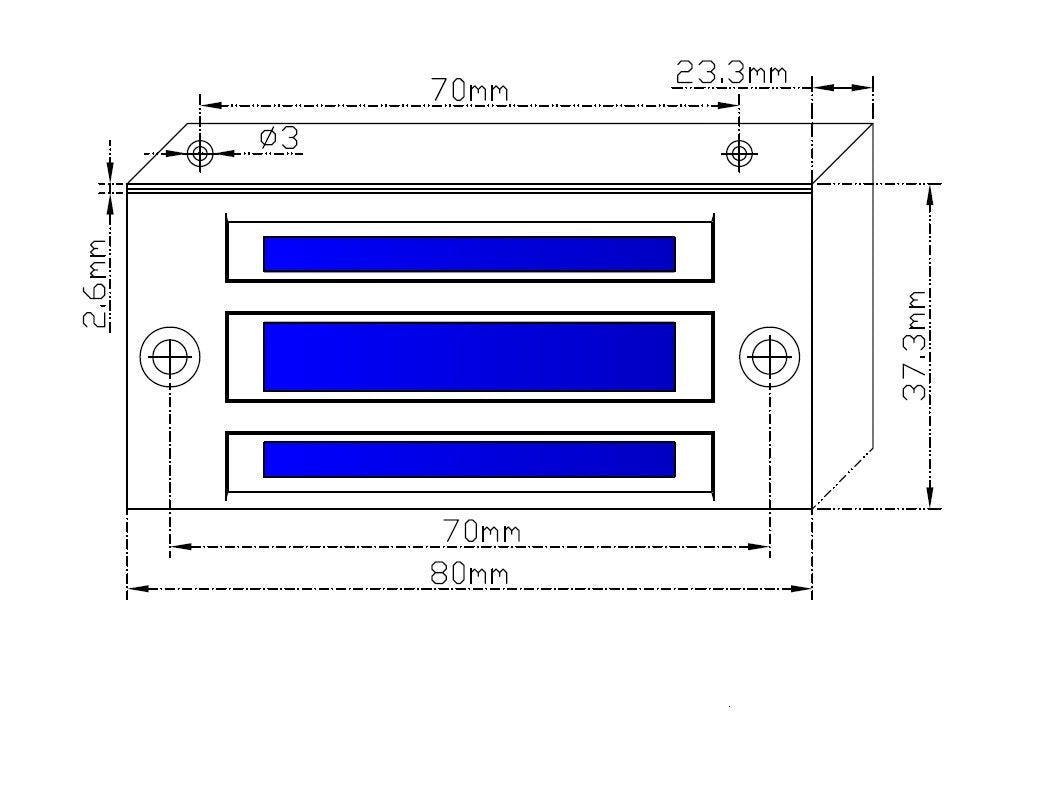

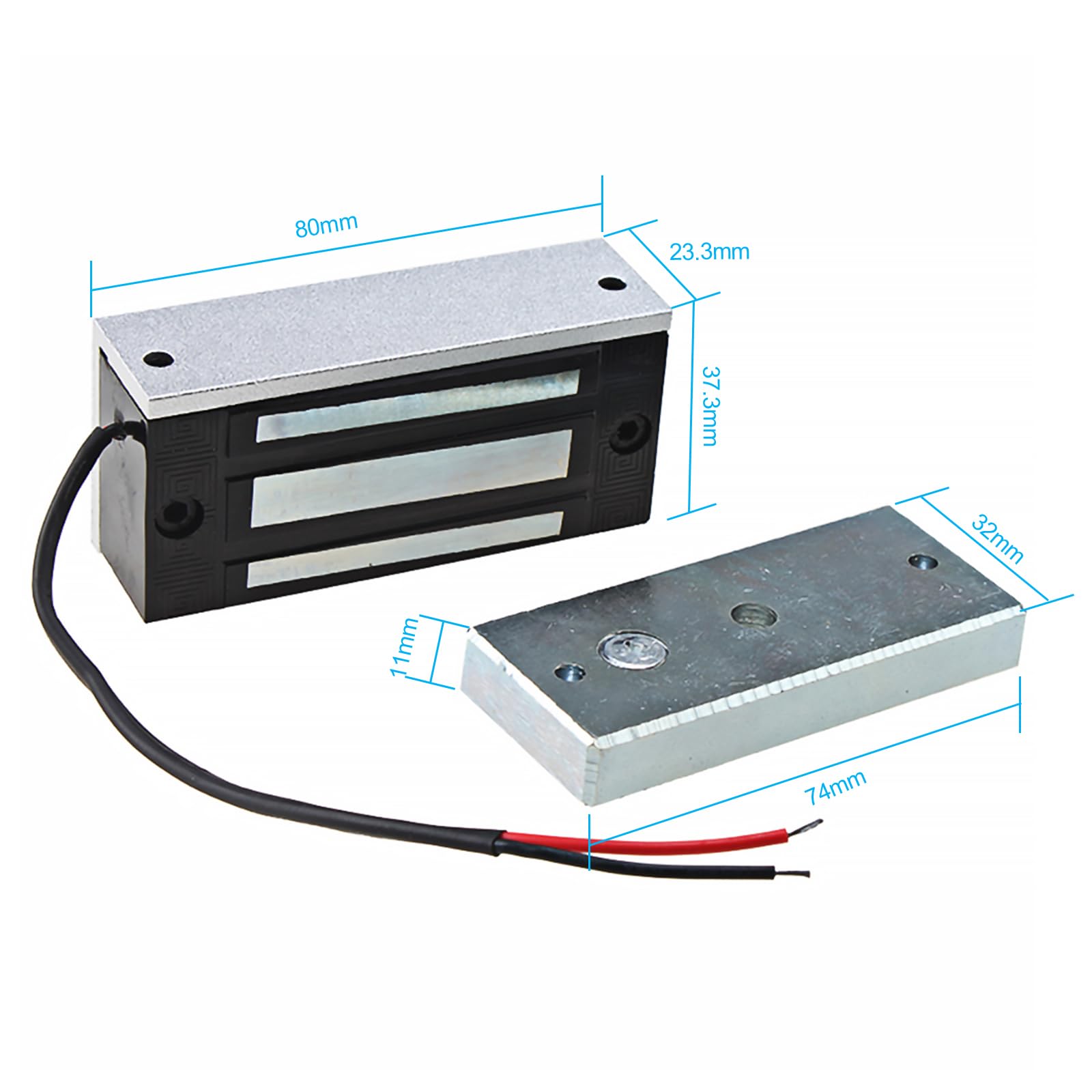

• ? KNOWING DETAILS - The lock size is 80Lx37.3Wx23.3H(mm); Armature plate: 74Lx32Wx11H(mm). Holding Force: 60kg(130lbs); Mode: NC (locked whilst power supply is operating); Voltage: DC12V; Current Draw: 0.11A ~0.15A.
• ? SECURITY BUILT FOR YOU - AGPtEK electric magnetic lock has safety function. It is built in voltage spike suppressor, Opening Mode: 90 degree swinging door. This door lock and its user-friendly design will have you secured and protected very soon!
• ? WIDE APPLICATIONS - AGPtEK magnetic door lock is suitable for Wooden Door, Glass Door, Metal Door, Fire Proof Door, etc.
• ? NOTE - Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. And if you are not sure about any part of the instructions, please consult a qualified elecirician.
