Brand: ACEIRMC

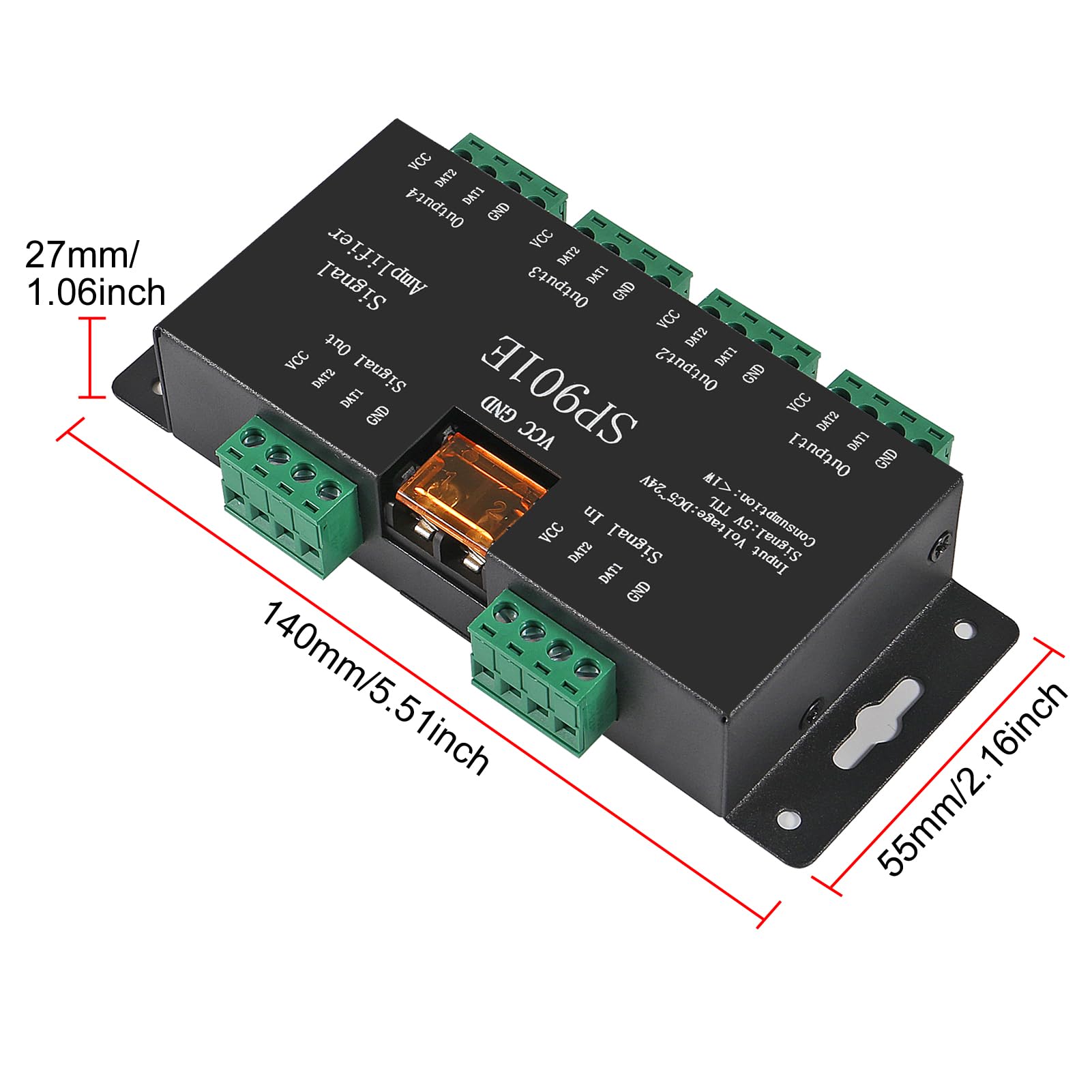

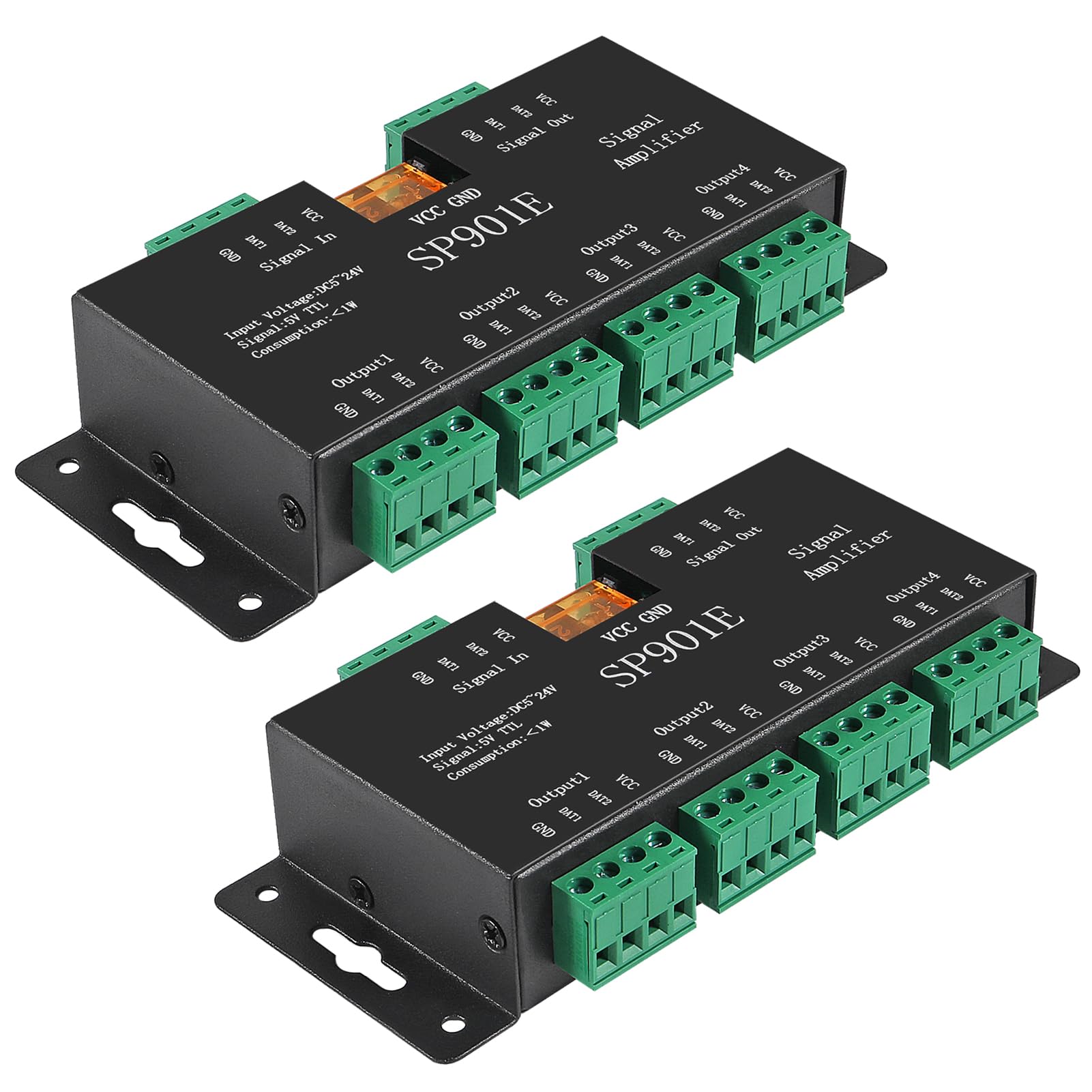

<p>Parameter:</p> <p>Working voltage: DC5V~24V</p> <p>Working temperature: -20-60?</p> <p>Output:8 channels / 4 channels</p> <p>Compatibale IC type: WS2812B,WS2811,SK6812, SK6812-RGBW,SM16703,</p> <p>WS2813, WS2815, CS8812, AL2815, WS2801, APA102,</p> <p>SK9822,UCS1903, LPD6803, LPD8806, APA102</p> <p>Static power consumption: &lt;1W</p> <p>Size: 140mm×56mm×28mm</p> <p>Weight:240g/pcs</p> <p>Precautions:The controller cannot regulate the output voltage at the VCC. That means the output voltage of your power supply must be the same as the work voltage of your LED lights.&nbsp;If your lights need 5V input, please use a 5V power supply, don't use higher than 5V power supply</p> <p>The current through the amplifier is limited, when the consumption current is higher, you need to add power supply of the corresponding voltage additionally.</p> <p>Package:</p> <p>2 x SP901E Signal Amplifier</p>

Features:

• Suit for addressable LED strips with single data wire, such as WS2812B, WS2811,WS2813, WS2815, SK6812, SK6812-RGBW, SM16703 and more.
• This data repeater signal amplifier is compatible with all kinds of 5V-TTL signals. You can use only one controller to control 4~8 channels of signals simultaneously.
• DC5V~24V wide range of working voltage, but it cannot regulate the output voltage. That means the output voltage of power supply must be the same as the work voltage of your LED lights. The current through the amplifier is limited, when the current consumed is high, you need to add the power supply of the corresponding voltage.
• Use one controller to control DC5V WS2812B and DC5V WS2813 LED strip at the same time, control DC12V WS2811 / FCOB RGB WS2811 IC ,DC12V WS2815, DC12V 1903, DC12V 6803 Or DC24V FCOB RGB WS2811 IC at the same time via this singal amplifier since they have the same singal.

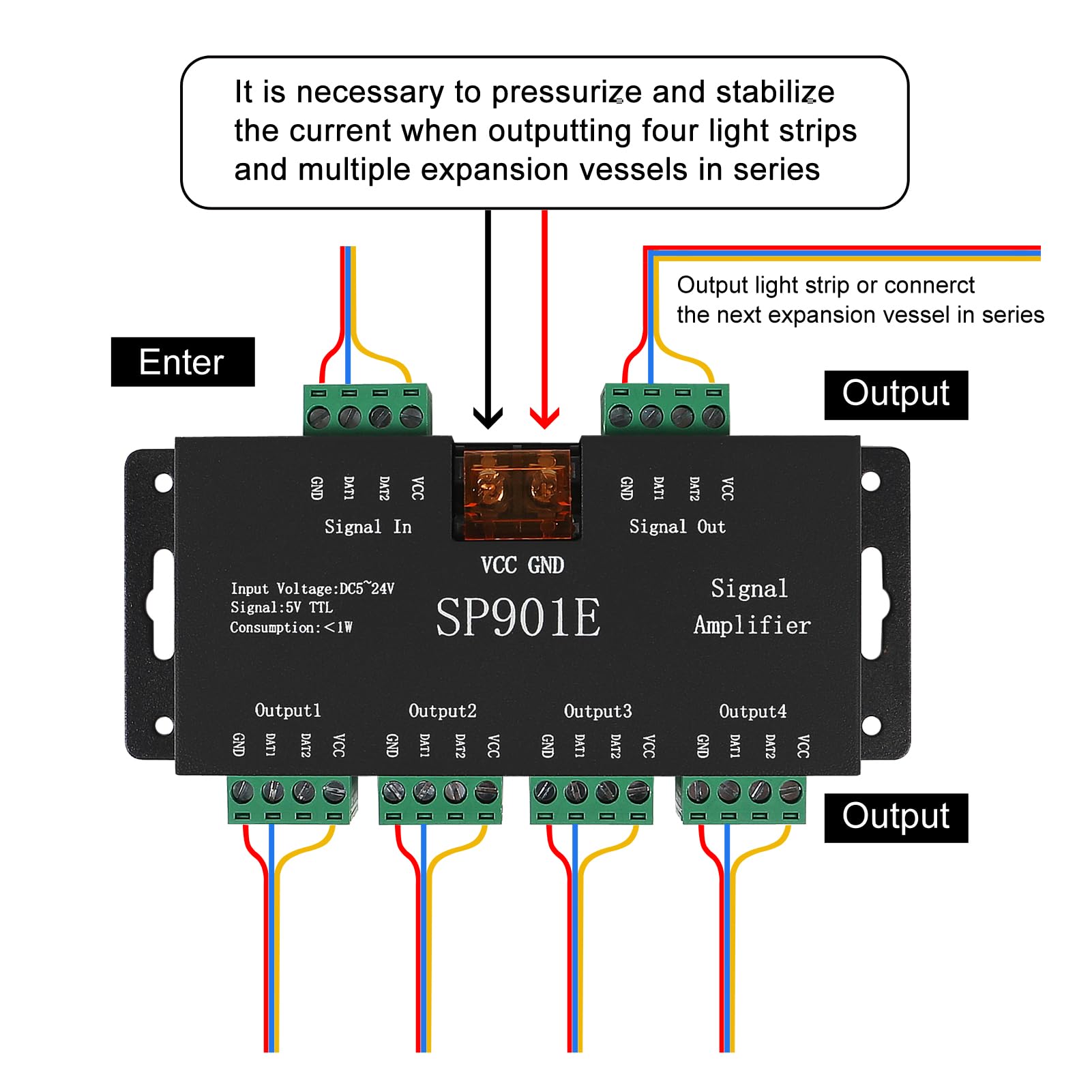

• Multiple signal amplifiers can be cascaded together synchronously. Particularly suitable for small and medium dream color lighting projects. It can work with K-1000C, SP105E, SP108E, SP107E, CSY08, CSY07, Raspberry pi, Arduino X2 music controller.

Product Details:

• Color: black
• Model: SP901E
• Package Quantity: -1
