Description
Brand: Henxlco
Model: 15

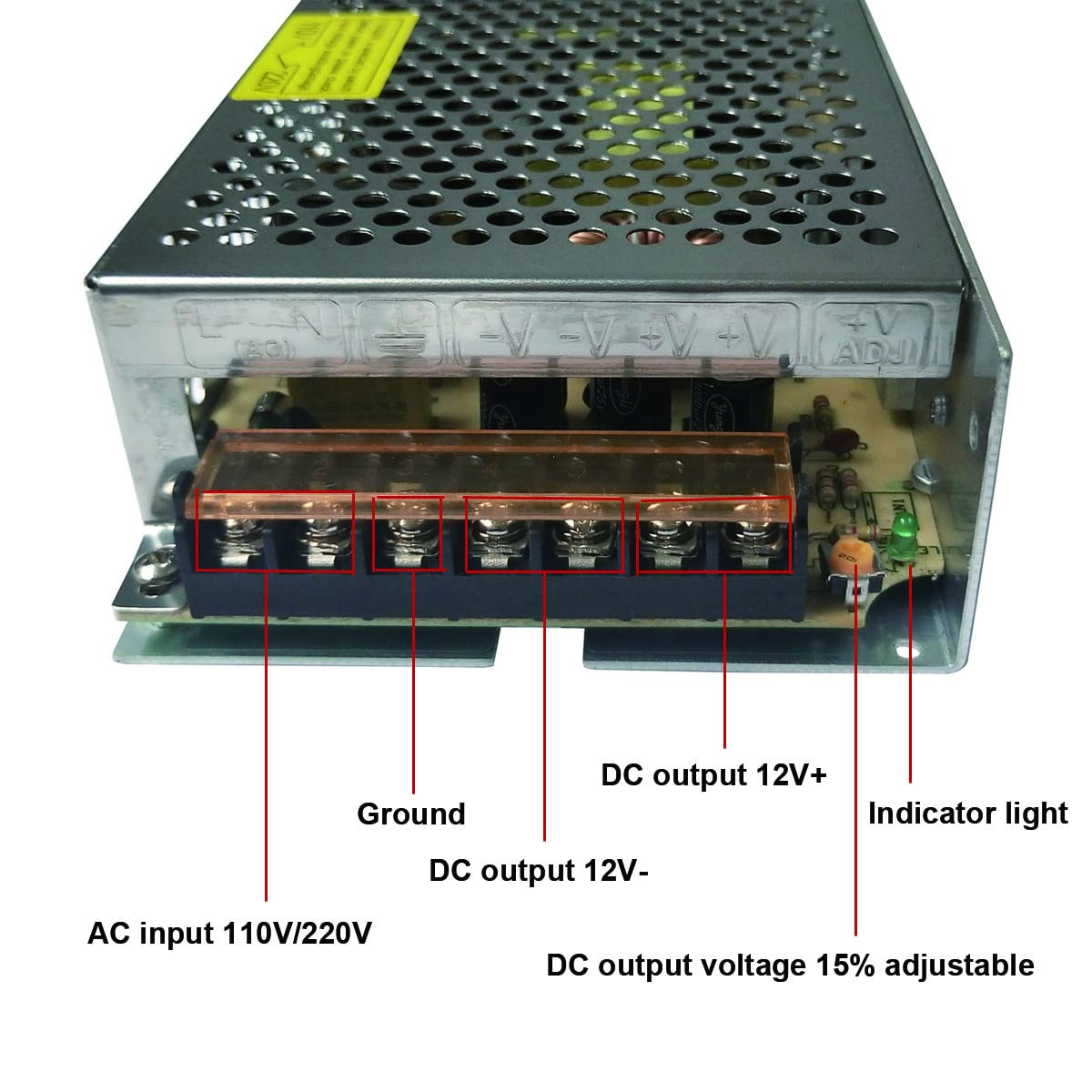

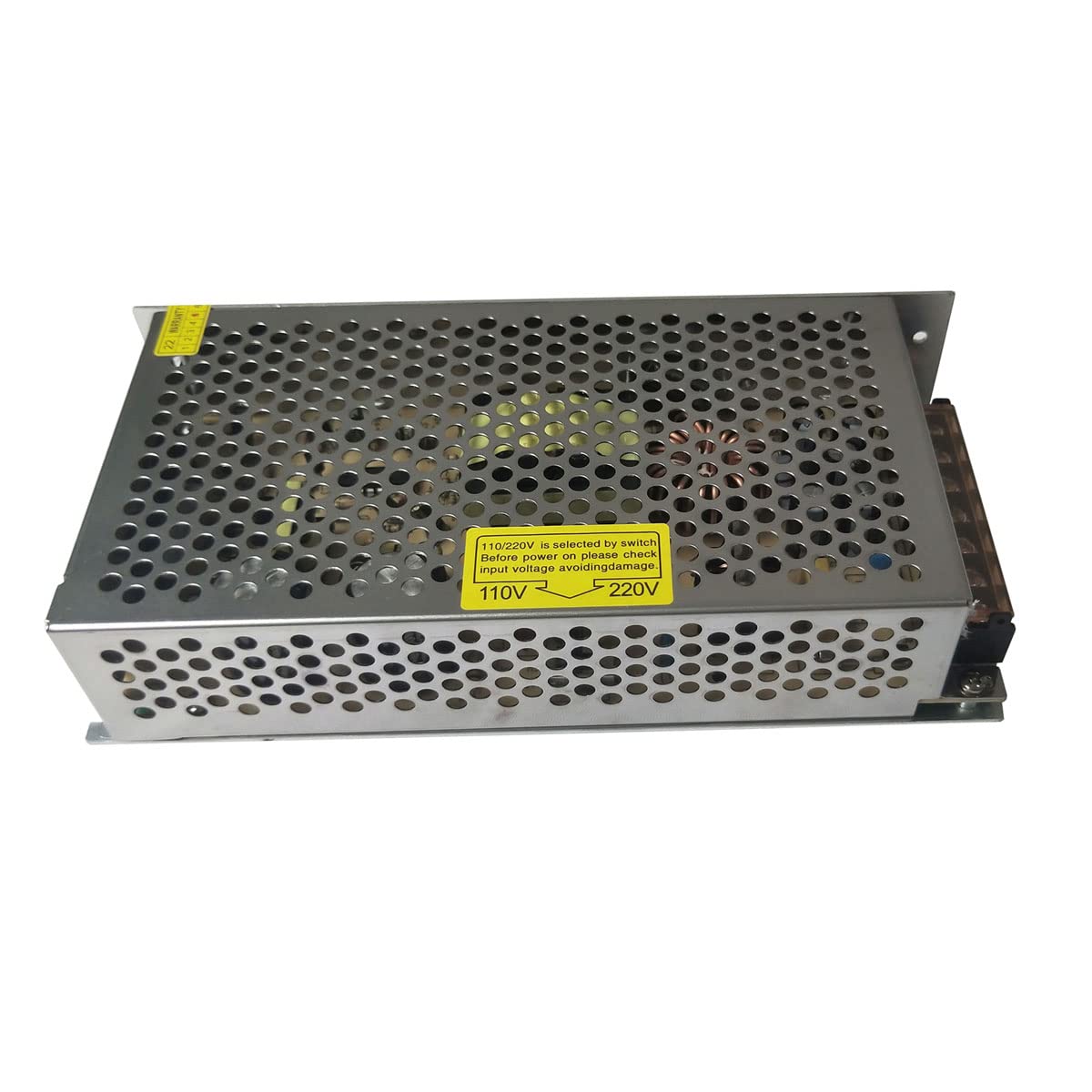

Package included：1 x 12V 15A 180W Regulated Switching Power Supply (power cord is not included) Be sure to confirm the input and output voltage first: 1. You can choose the proper input voltage (110V/220V) by a black switch to avoid damaging. Left is: AC 110V, Right is AC 220V. Please set the switch to 110V for USA/CA. 2. The 12V 15A output voltage can be regulated by ±15%, which greatly expand its application range. There is a yellow botton on the right corner. Turn the yellow button clockwise, the output voltage could be fine tuning. 3. The max use of power should be no more than 80% of the full loads, otherwise,the power supply's spanlife will be shortened. We recommend you to use this 12V 15A 180W power supply to power devices less than 12A 144W. 4. This Unit "DOES NOT" comes with installation instruction, wiring cable, on/off switch, or screws. Professional installation of qualified electrician is highly recommended. 5. High Voltage inside, do not remove the cover. Dust the switcher out every 2 or 3 months if necessary. Why does the LED power supply stop working？ Maybe the overcurrent protective switch (in the power supply) disconnect. Please unplug your AC cable, it's important! Then wait about 10 minutes. It will be auto recovered. Then reconnected it, it will work well.
• Dual input voltage: AC 110V/220V. Output: DC 12V 15A max, Output voltage is adjustable ±15%. IN-DOOR USE ONLY!
• Two sets of output Channel. With two independent output channels, it can power more devices. The maximum output of each channel can reach 15A 180W. Total output power of the two channels is 15A 120W.
• Works with device that draws less than 15A, such as DC 12V 1A~12A. The max use of power should be no more than 80% of the full loads 15A 180W.
• Over Voltage Protection, Overload Protection，Over Current Protection, Over Temperature Protection， Short Circuit Protection
• High quality Widely used in Industrial automation, electronic equipment, LED display, LED Lighting, LED Strip, CCTV cameras Security System, Computer Project, home appliance etc.
• Why does the LED power supply stop working？ Maybe the overcurrent protective switch (in the power supply) disconnect. Please unplug your AC cable, it's important! Then wait about 10 minutes. It will be auto recovered. Then reconnected it, it will work well.
Color: Black
Power/Wattage: 12V 15A
Model: 15
Package included：1 x 12V 15A 180W Regulated Switching Power Supply (power cord is not included) Be sure to confirm the input and output voltage first: 1. You can choose the proper input voltage (110V/220V) by a black switch to avoid damaging. Left is: AC 110V, Right is AC 220V. Please set the switch to 110V for USA/CA. 2. The 12V 15A output voltage can be regulated by ±15%, which greatly expand its application range. There is a yellow botton on the right corner. Turn the yellow button clockwise, the output voltage could be fine tuning. 3. The max use of power should be no more than 80% of the full loads, otherwise,the power supply's spanlife will be shortened. We recommend you to use this 12V 15A 180W power supply to power devices less than 12A 144W. 4. This Unit "DOES NOT" comes with installation instruction, wiring cable, on/off switch, or screws. Professional installation of qualified electrician is highly recommended. 5. High Voltage inside, do not remove the cover. Dust the switcher out every 2 or 3 months if necessary. Why does the LED power supply stop working？ Maybe the overcurrent protective switch (in the power supply) disconnect. Please unplug your AC cable, it's important! Then wait about 10 minutes. It will be auto recovered. Then reconnected it, it will work well.
• Dual input voltage: AC 110V/220V. Output: DC 12V 15A max, Output voltage is adjustable ±15%. IN-DOOR USE ONLY!
• Two sets of output Channel. With two independent output channels, it can power more devices. The maximum output of each channel can reach 15A 180W. Total output power of the two channels is 15A 120W.
• Works with device that draws less than 15A, such as DC 12V 1A~12A. The max use of power should be no more than 80% of the full loads 15A 180W.
• Over Voltage Protection, Overload Protection，Over Current Protection, Over Temperature Protection， Short Circuit Protection
• High quality Widely used in Industrial automation, electronic equipment, LED display, LED Lighting, LED Strip, CCTV cameras Security System, Computer Project, home appliance etc.
• Why does the LED power supply stop working？ Maybe the overcurrent protective switch (in the power supply) disconnect. Please unplug your AC cable, it's important! Then wait about 10 minutes. It will be auto recovered. Then reconnected it, it will work well.
Color: Black
Power/Wattage: 12V 15A
