Brand: AAOTOKK

"Quantity:(4-Pairs)Size:Length?7inch/18cm)Material:(plastic).Color: BlackConnectors 1: RJ45 to BNC male/DC male jack ,Connectors 2: RJ45 to BNC male/DC female jack.Features: Simultaneously transmit the video signal, power signal (DC 12V)Compatible format:HD-CVI,HD-TVI,HD-AHD,CVBS.Resolution:720P 960P 1080P 3MP 4MP 5MP 8MP.(CVI/AHD/TVI)Maximum distance length: (720P 960P :250 m/820ft )(1080P 3MP 4MP 5MP 8MP:200 m/656ft )(CVBS/Analog)Maximum distance length:(960H:300m/984ft )ESD:1a contact discharge electricity lever 3, 1b air discharge electricity lever 3,Per:IEC61000-4-2.Coaxial Cable Connector:2KV (common-code)Per:IEC1000-4-5.UTP Cable Connector:2KV (different-code),4KV (common-code)Per:IEC1000-4-5.Cablecategory type:CAT5/CAT6.If these baluns are used in completely outdoor without any shelter, please wrap them with waterproof tape after having connected to your cameras.This is video power transmitter and receiver that allows the transmission of real time CCTV HD video power signal via cost effcetive.Unshielded twisted paired(UPT) cable. Baseband (composite) signals of any type are support is. its compatible with all HD TVI, HD CVI,AHD and CVBS analog camera. used in pairs, eliminates costly and bulky coaxial cable. the superior interference rejection and low emissions of allow video sigmals to coexist in the same wire bundle ad telephone , datacom, or low voltage power circuits . This allows the use of a shared or existing cable plant. built in surge suppressor to protect video equipment against,damaging voltage spikes. its crosstalk and noise immunity ensure quality video signals."

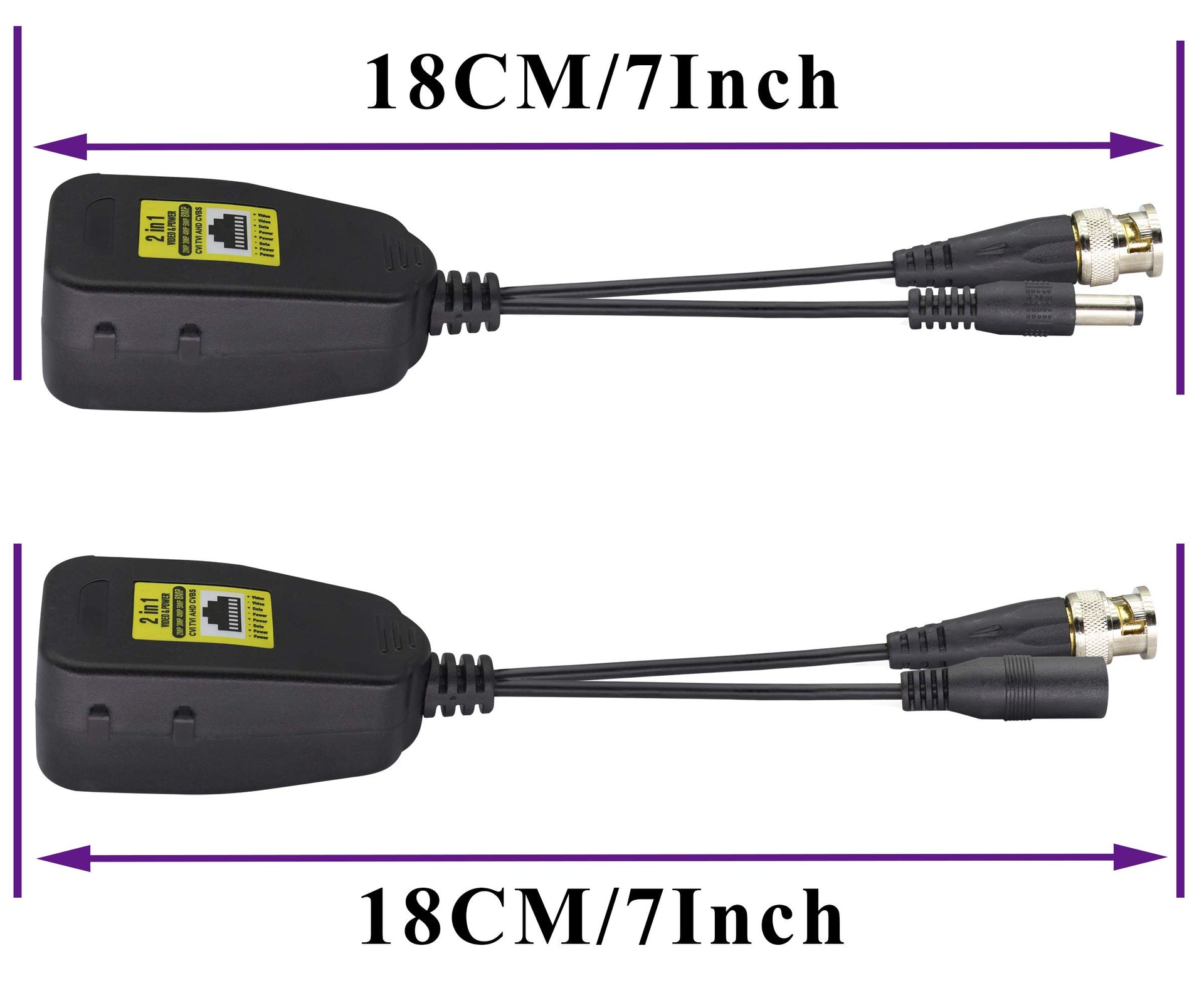

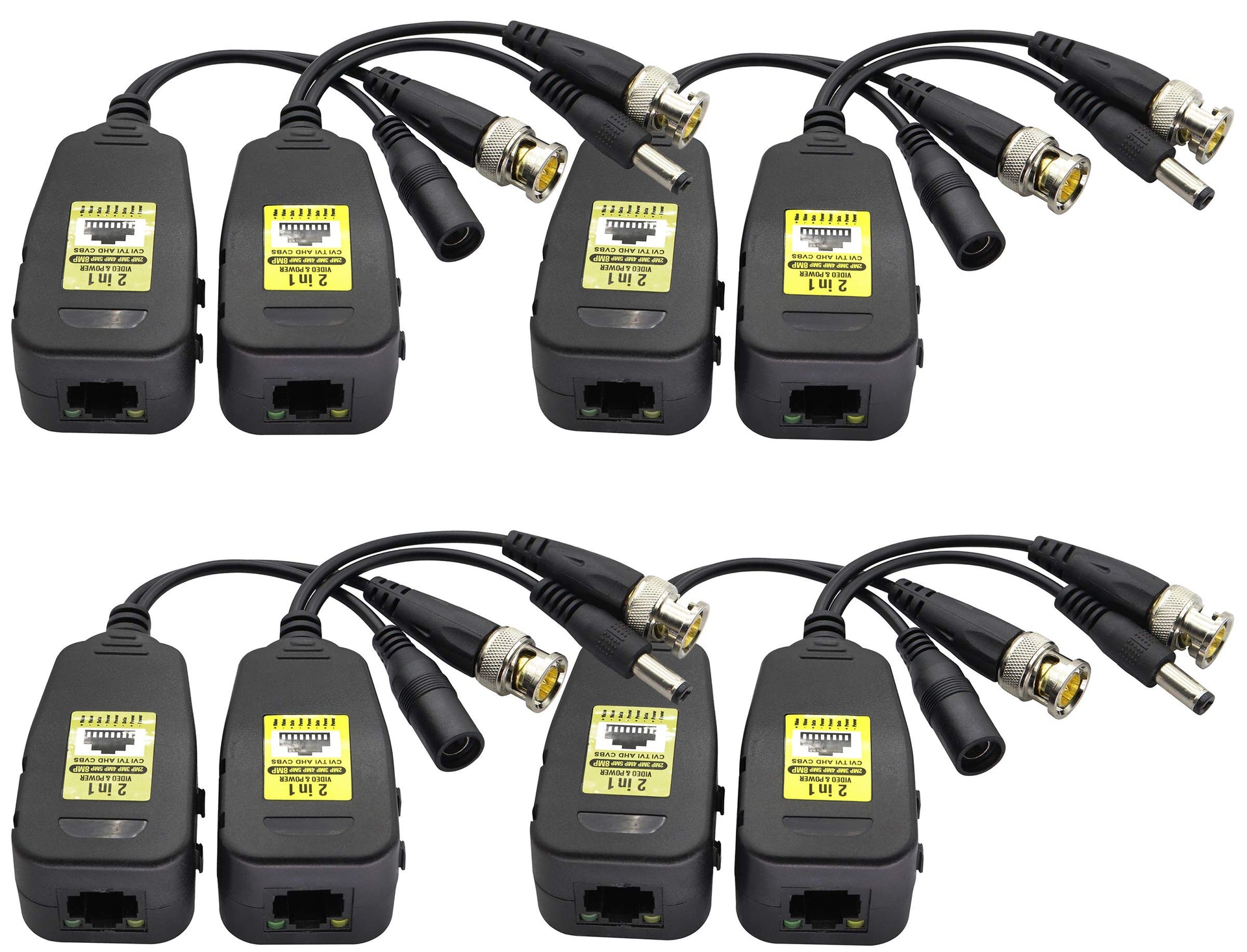

• Quantity:(4-Pairs) Size:Length?7inch/18cm) Material:(plastic). Color: Black

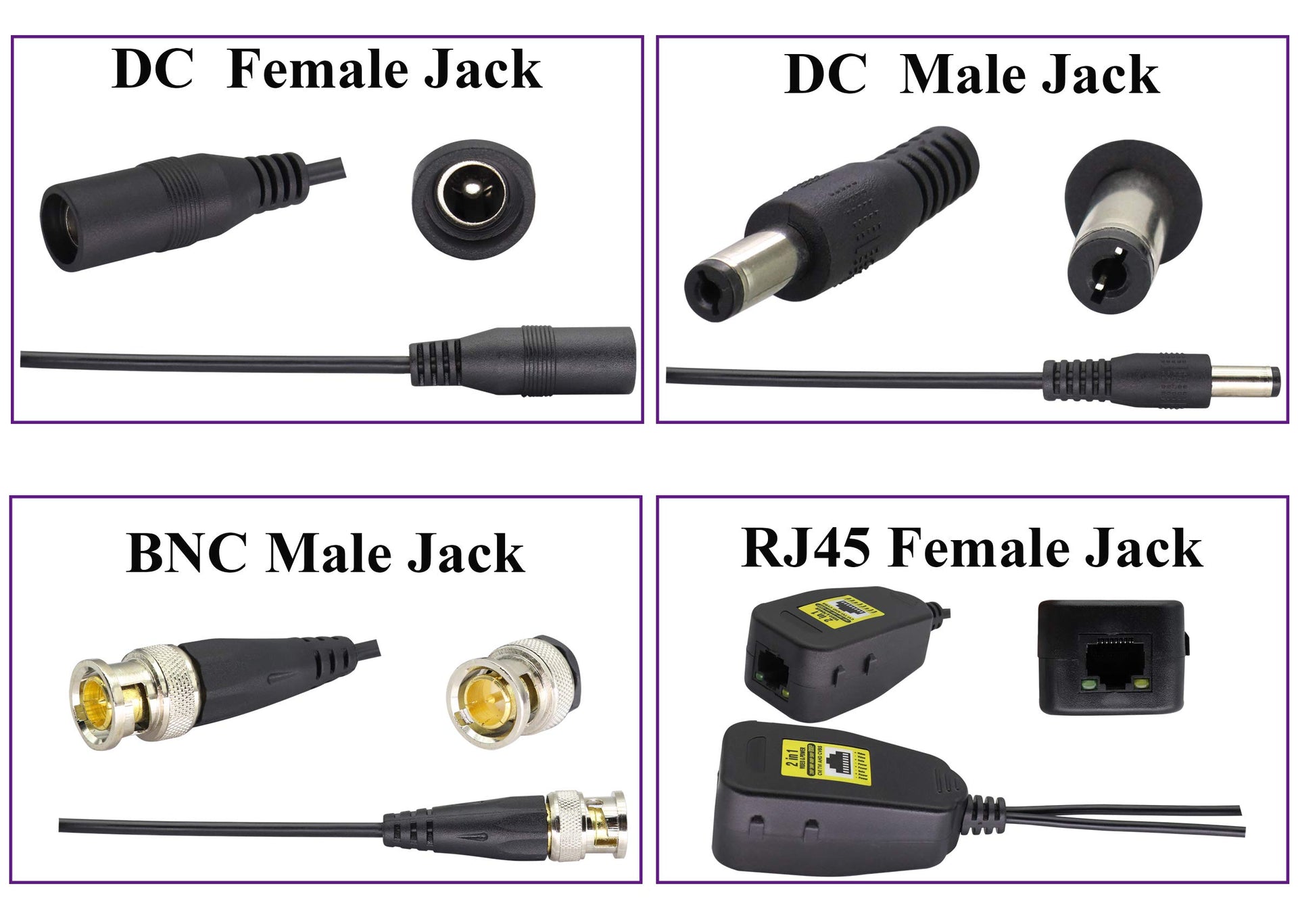

• Connectors 1: RJ45 to BNC male/DC male jack , Connectors 2: RJ45 to BNC male/DC female jack.
• Compatible with CVI, TVI, CVBS and AHD video devices, Fit for720P 960P 1080P 3MP 4MP 5MP 8MP CCTV Cameras, monitor, DVR card and recorder etc. Easy installation, using the standard UTP CAT5e /CAT6 cable system and low voltage power supply.

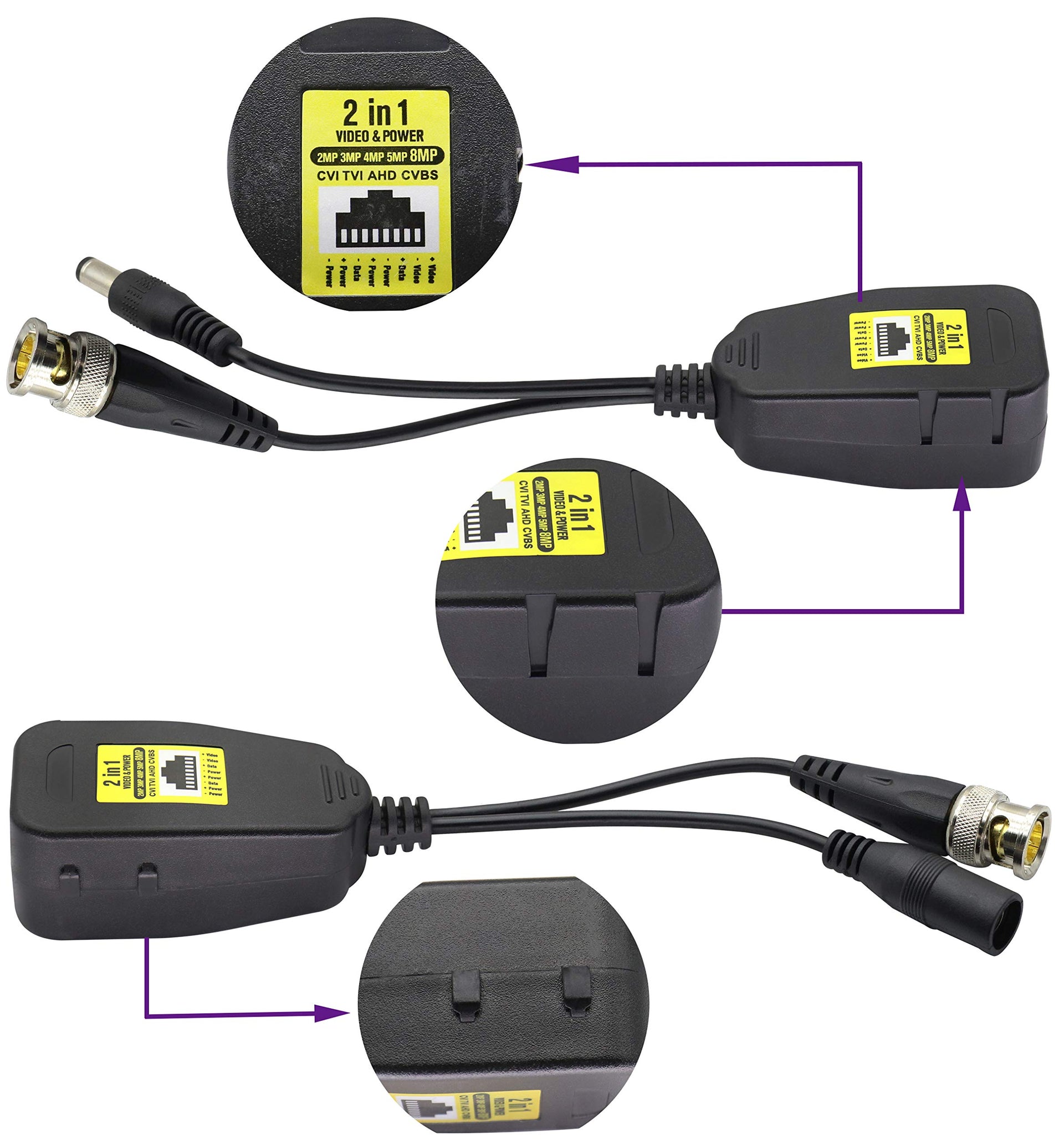

• LED indicate (green light) is working model , (yellow light) not working. Video transmission Via UTP CAT5/CAT6.

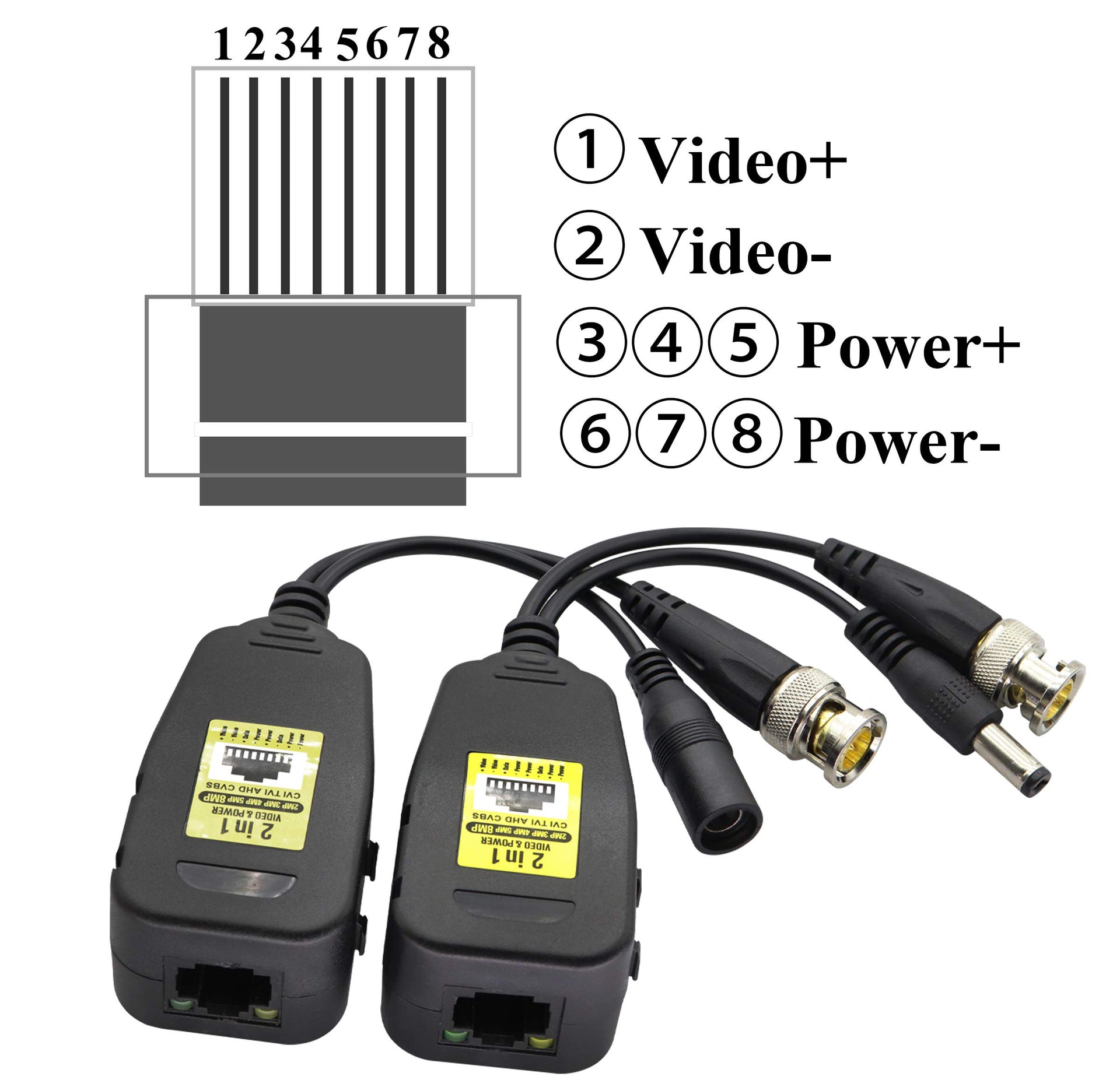

• Note: Power voltage drop calculations: For 12V DC 1Amp, Cable distance should not exceed 90 feet/27 meters.For longer distances, please use 14V DC, 16V DC,18V DC,20-48V DC .Note:RJ45 video balun is not waterproof. For indoor use only.Make sure the rj45 for camera side and DVR side are the same standardsWrongfully mixing the colors may result in burning the camera and devices.
