Description
Brand: Azuocn
Model: 600W

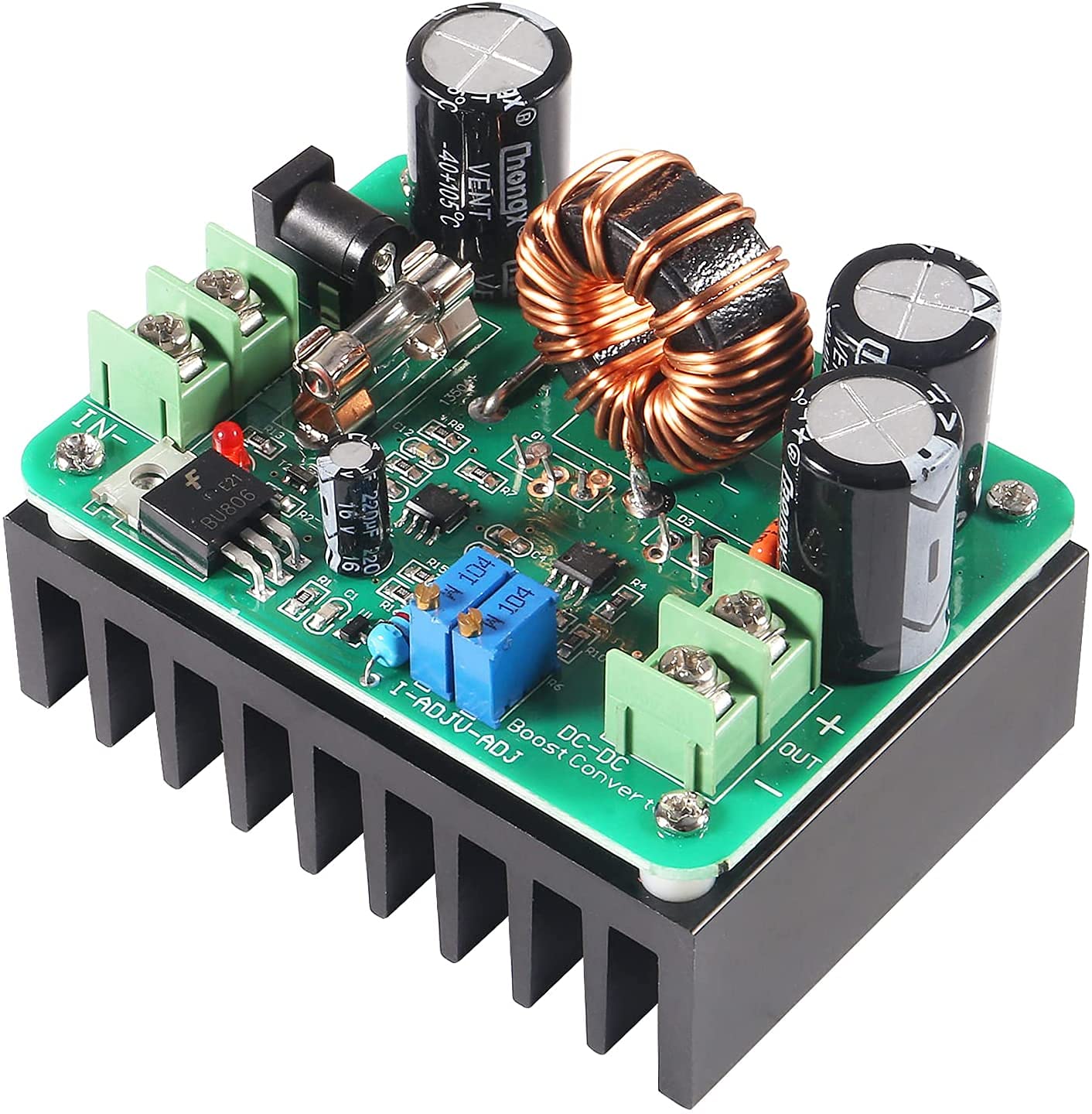

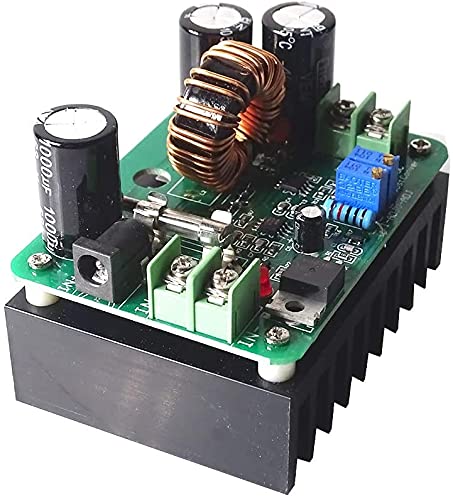

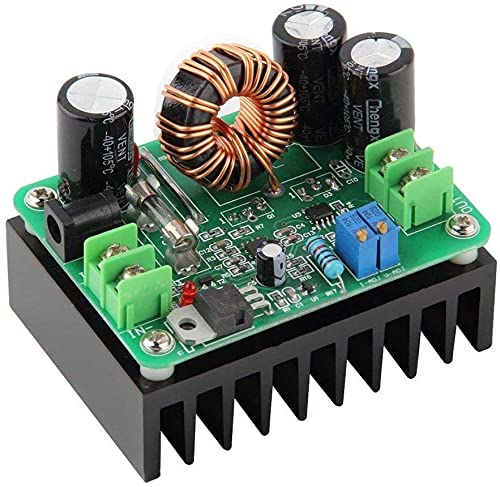

• 600W high power booster module, wide voltage input: 10V ~ 60V, 12V ~ 80V adjustable wide voltage output
• output current can be adjusted
• ultra-low input and output pressure difference.

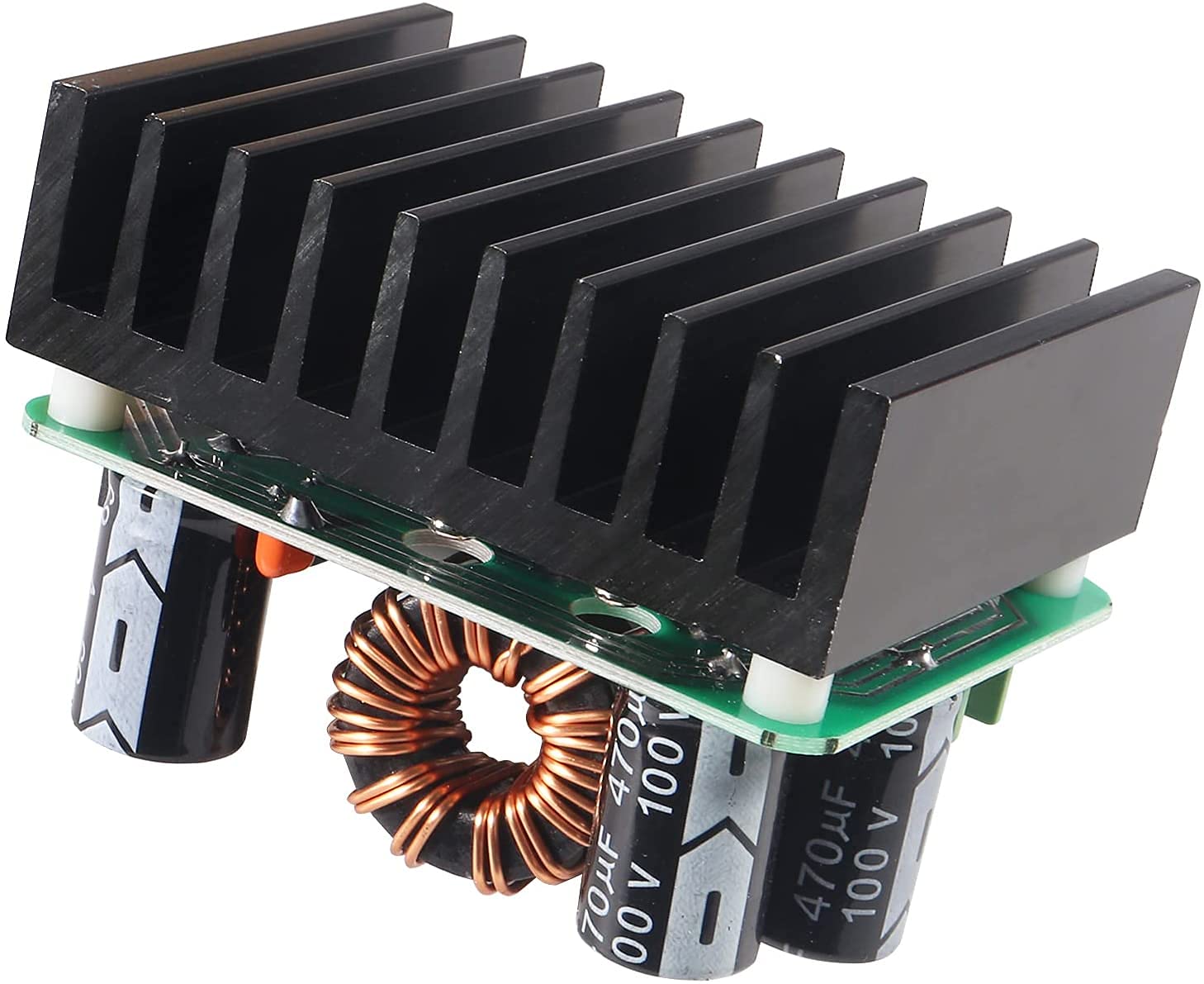

• Specifications: Radiator bottom plate thickness 5mm, tooth height 21mm, length 85mm, width 63mm, booster plate fixed above the radiator, rational design, integrated design of radiator and booster plate, convenient for users to use directly, use long screws fixed directly.
• The module has a constant voltage and constant current function, but it is a non-isolated boost mode, due to its characteristics, the constant current range depends on the input and output voltage and load.
• Please Power on the module first, then connect the load, which is especially important in high-power loads
• the input voltage should be stable, especially when some low-voltage (12V) input power supply is connected to the load voltage, it will fall below 10V, and it is easy to break down the power tube at this time.
• Two or more modules can not be used in parallel input and output, otherwise the current limit function will be invalid
Color: Multicolor
Model: 600W
Specification:
Input voltage: 12V-60V
Input current: input current 15A
Output voltage: 12V-80V continuously adjustable
Output current: Maximum output current 10A (adjustable)
Output power: effective power P = input voltage V * 10A
Conversion efficiency: up to 95% (input voltage and current; output voltage and current affect conversion efficiency)
Short circuit protection: fuse
Module size: 73*51mm
Weight: 265g
Working frequency: 150KHz
Working temperature: -40~+85° (please strengthen heat dissipation when the ambient temperature is too high)
Static working current: 15mA (measured when 12V rises to 20V, the higher the output voltage, the higher the static current will increase)
Over-current protection: Yes (input exceeds 17A, the output voltage is automatically reduced, and there is a certain range of error.)
Input reverse connection protection: none
If you need more power, you can use two modules in parallel. For example, if the output is 15A, you can use two modules in parallel to adjust the current of each module to 8A.

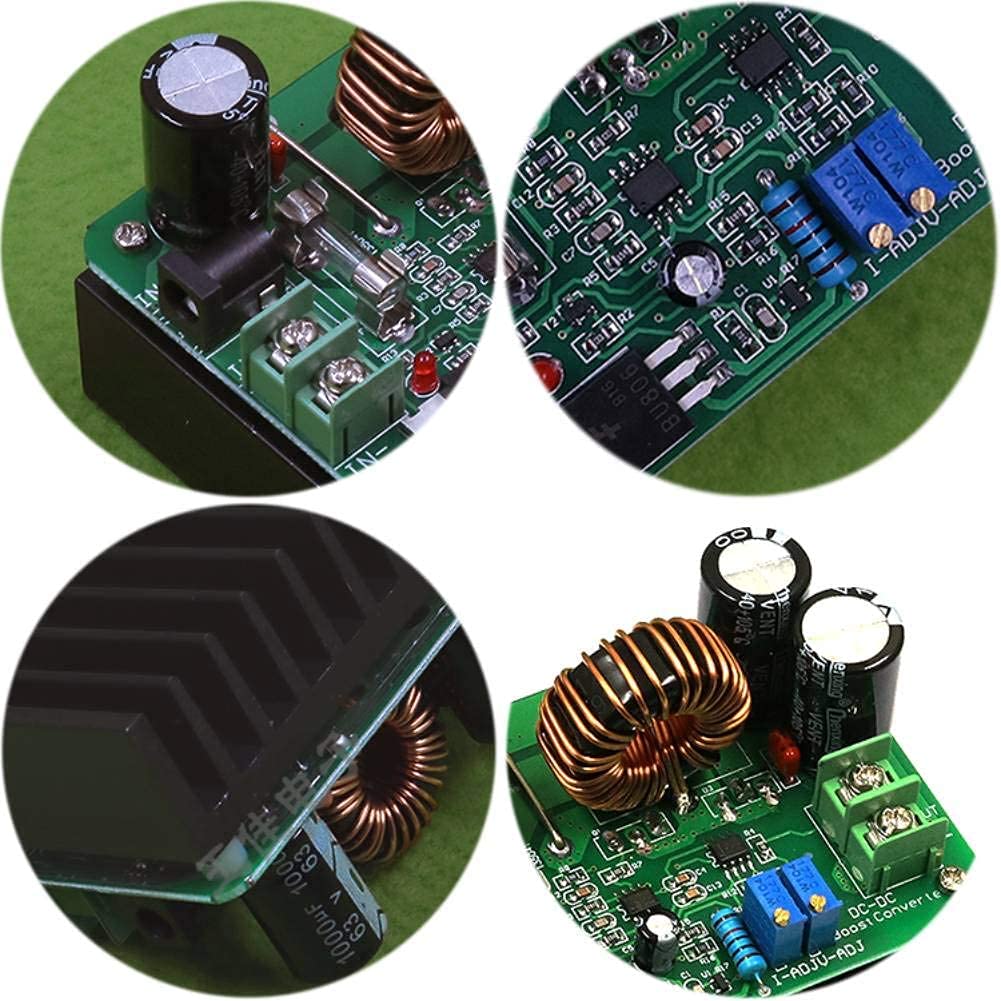

Inductance magnetic ring adopts 27mm iron silicon aluminum magnetic ring, 1mm double wire wound inductor, high quality filter capacitor, input one 1000uF63V electrolytic capacitor, output two 470uF100V electrolytic capacitors, boost output power quality is better, onboard power supply The switch, power supply indicator light, and voltage adjustment and current adjustment potentiometers make the output more convenient. The output voltage and current can be adjusted at any time. The input and output adopt 8500 terminal blocks. The strong current capability ensures reliable operation for a long time.
Package Included:
1 x 600W DC to DC Boost Converter
