Description
Brand: Wal front
Specification:
Input Voltage: DC 10-60V
Input Current: 10A Maximum
Static Working Current: 10mA
Output Voltage: DC 12-60V continuously adjustable
Output Current: 10A Maximum (decreases as the voltage difference between input and output increases, please enhance heat dissipation when over 10A)
Constant Voltage Range: DC 12-60V
Constant Current Range: 0.2-10A
Output Power: Input voltage x 10A
Working Frequency: 150kHz
Conversion Efficiency: 92%-96%
Input Reverse Connection : No
Operating Temperature: -40~85

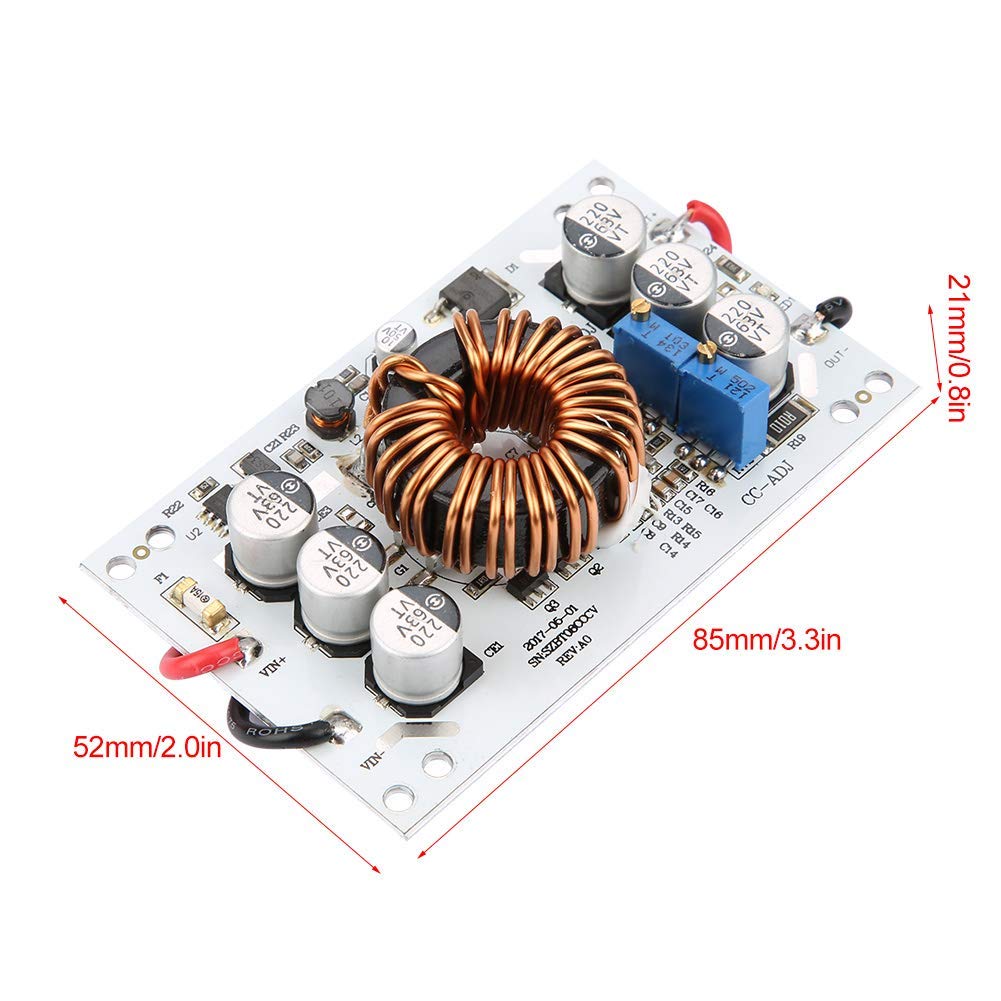

Module Size: 85*52*21mm / 3.3*2.0*0.8in
Weight: Approx. 78g/2.7oz
Output Voltage Regulation:

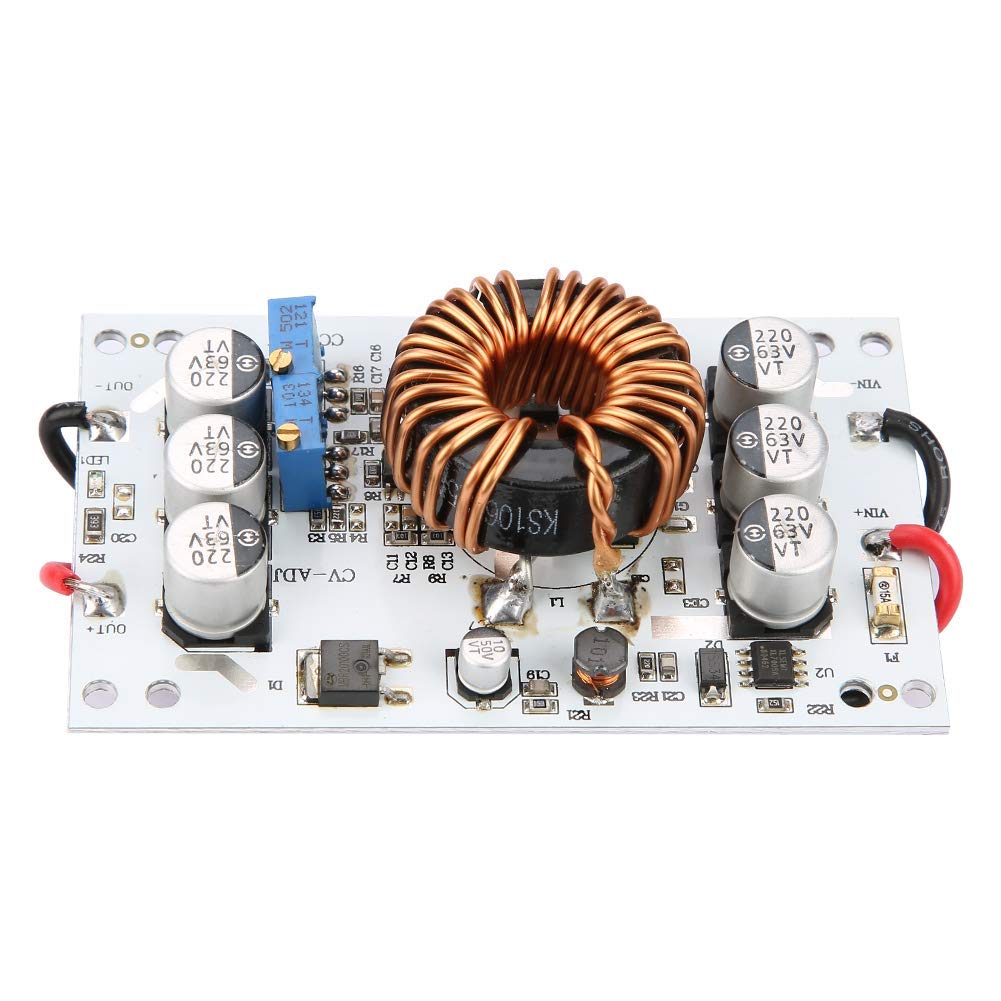

Adjust the CV-ADJ potentiometer and set the output voltage to your desired voltage according to your battery or LED. Clockwise decrease, counterclockwise increase.
Output Current Regulation:

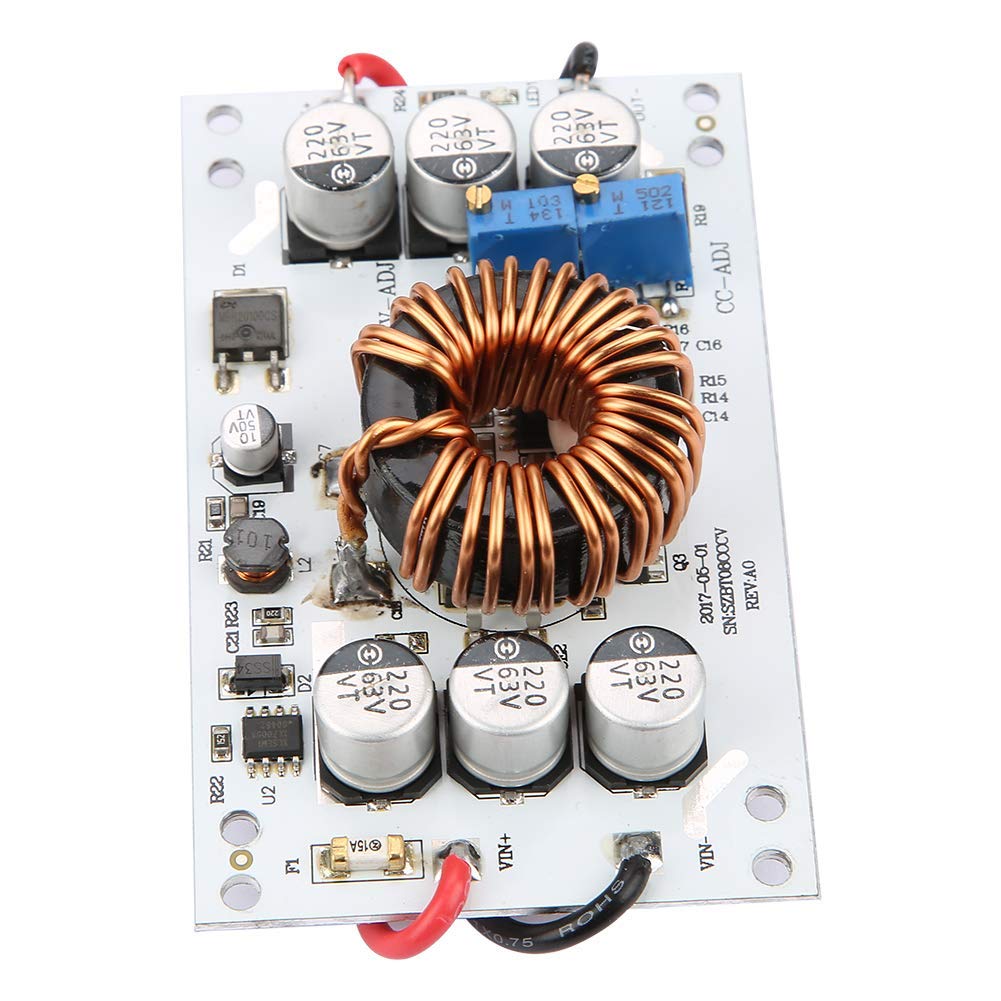

Turn the CC-ADJ potentiometer clockwise for about 20 turns to set the output current to the minimum value and connect it to the LED, adjust CC-ADJ potentiometer to the required current. For charging the battery, connect the output after discharging the battery, then adjust the CC-ADJ to the current you need.
Package List:
1 * Step-Up Power Supply
Note:
1. The input voltage should not be lower than 10V. If the input voltage is too low, the power supply will be damaged.
2. The input/output voltage and current must not exceed the maximum value during to avoid damage to the power supply.
3. Pay attention to ventilation and heat dissipation when working for a long time to extend the service life of the power supply.
Color: popular
Power/Wattage: normal
Specification:
Input Voltage: DC 10-60V
Input Current: 10A Maximum
Static Working Current: 10mA
Output Voltage: DC 12-60V continuously adjustable
Output Current: 10A Maximum (decreases as the voltage difference between input and output increases, please enhance heat dissipation when over 10A)
Constant Voltage Range: DC 12-60V
Constant Current Range: 0.2-10A
Output Power: Input voltage x 10A
Working Frequency: 150kHz
Conversion Efficiency: 92%-96%
Input Reverse Connection : No
Operating Temperature: -40~85
Module Size: 85*52*21mm / 3.3*2.0*0.8in
Weight: Approx. 78g/2.7oz
Output Voltage Regulation:
Adjust the CV-ADJ potentiometer and set the output voltage to your desired voltage according to your battery or LED. Clockwise decrease, counterclockwise increase.
Output Current Regulation:
Turn the CC-ADJ potentiometer clockwise for about 20 turns to set the output current to the minimum value and connect it to the LED, adjust CC-ADJ potentiometer to the required current. For charging the battery, connect the output after discharging the battery, then adjust the CC-ADJ to the current you need.
Package List:
1 * Step-Up Power Supply
Note:
1. The input voltage should not be lower than 10V. If the input voltage is too low, the power supply will be damaged.
2. The input/output voltage and current must not exceed the maximum value during to avoid damage to the power supply.
3. Pay attention to ventilation and heat dissipation when working for a long time to extend the service life of the power supply.
Color: popular
Power/Wattage: normal
