Brand: ACEIRMC

Model: XL4015

Description:
Input voltage: 4 -38 V
Output voltage:1.25 -36 V continuously adjustable
Output current:Adjustable maximum 5A
Output power:Max 75 W
Working temperature:-40 ~ ++ 85 degrees
Working frequency:180 KHz
Turnover efficiency:Maximum 96%
Short circuit protection:(Limited flow 8A)
About temperature protection:Yes (about temperature, automatic turn off output).
Input Reverse Connection Protection:No, if necessary, input a high flow diode into the input.
Installation:4 3mm wires.
Connection mode:Terminal or welding terminal, V -IN as input and V -OUT as output.
Module size:Long 61.7mm width 26.2mm high 15mm

Package includes:

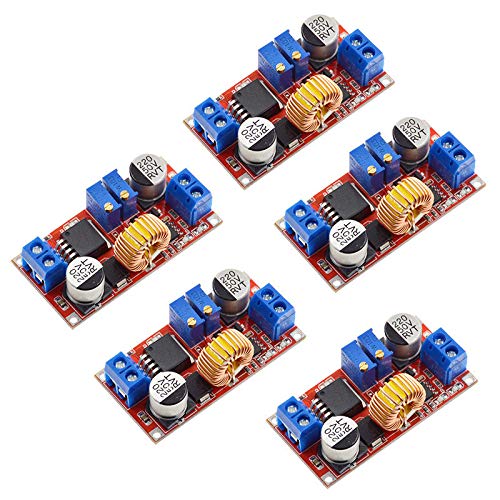

5 pcs 5A DC to DC CC CV Lithium Battery Step down Charge Board


• 1. High power, high efficiency, 5A, low ripple
• 2. Triple:(1) Use as a normal blood pressure modules with overcurrent protection capability
• (2) As the various voltage lithium batteries, batteries, nickel-cadmium nickel-metal hydride batteries (battery) charger for solar panels, wind turbines and other occasions
• (3) Used as a high-power LED constant current drive module

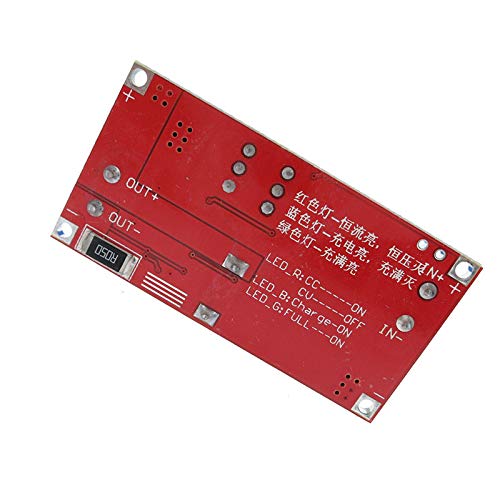

• 2.With constant pressure and constant current modes, there are light indicates which mode is currently in module
• 4. When used as a lithium battery charger, you can set the float voltage and the charge current size, there is light indicates is being charged or has been filled
• 3.Has the current limit protection, output short circuit even if it will not burn module.
• 4.This module uses machine placement, reflow soldering, and each module shipments have been two hours before the aging tests to ensure high reliability.
• 5.Overtemperature protection: (automatically shut off the output after overtemperature)，Input reverse polarity protection: None, (if necessary, please enter the string into the high current diode)

Color: 5pcs
