Brand: DORHEA

Features:<br> Allows your device to both send or receive the TTL data via Bluetooth technology without connecting a serial cable to your computer.<br> Works with any USB Bluetooth adapters.<br> Built in antenna.<br> Bluetooth version: V2.0+EDR<br> Operating voltage: 3.3V<br> Default Baud Rate: 9600,8,1,n<br> With LED indicator light, use 150mA and 3.3V regulation chip<br> With """"Re-seach"""" button(ON/OFF/WAKE foot for it , external MCU outinput """"High level"""" can control module to re-seach)<br> Compatible with bluetooth master module"""".slave module""""or master-slave(whole) module Input voltage: 3.3~6V<br><p> Note:<br> input power supply 3.3~6V, Prohibit more than 7V<br> No """"Automatically prevent power supply peversing func"""", so please correctly connect power supply<br> We advise to install """"Bluetooth master module""""<br> The """"State"""" is output foot for LED status, when bluetooth """"Unconnected"""", output """"Pulse"""" ; <br>when bluetooth """"connected"""", output """"High level"""", we can determine the states from """"MCU""""<br> If only the board , No any """"Bluetooth Function """"<br><p> Pairing when full duplex serial port to use, do not need to know any bluetooth protocol, <br> but supports only one in the eight data bits, stop bits and parity checking the communication format, <br> which is the most commonly used communication format, does not support other formats.<br><p> Package included:<br> 5 X HC-06 wireless serial 4 pin bluetooth RF transceiver module<br><p>

Features:

• Works with any USB Bluetooth adapters, running in slave role: Pair with BT dongle. Led indicate Bluetooth connection status, flashing Bluetooth connectivity, lit the Bluetooth connection and open a port Backplane, when the bluetooth connection has not been established by pairing the AT command set baud rate, name, password, and set the parameters of the power save. After the bluetooth connection automatically switch to passthrough mode.

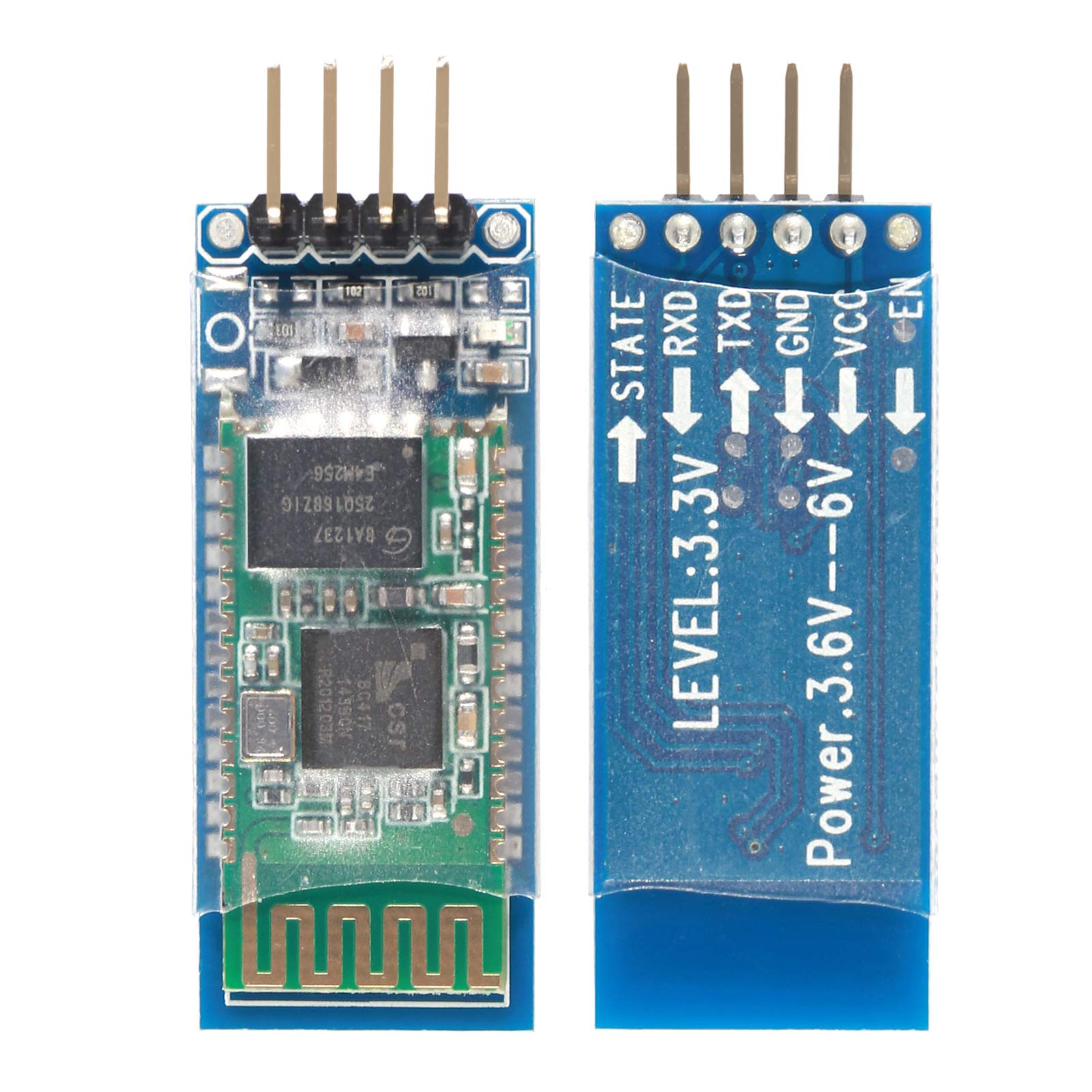

• Using HC - 06 from module , which leads to the interface includes VCC, GND, TXD, RXD, reserved LED state output pin, MCU can state whether the bluetooth is connected through the foot, from machine KEY pin is invalid.
• Interface level 3.3 V, the input voltage 3.6 ~ 6 V, current when the unpaired about 30 ma, matching after about 10 ma, no more than 7 V input voltage, can be connected directly to all kinds of single chip microcomputer, 5 V single chip can be connected directly, without MAX232 couldn't through MAX232.
• The module is mainly used for short-range data wireless transmission,such as Bluetooth wireless data transmission,Industrial remote control, telemetry,Traffic, underground positioning, alarm,Smart home ect.
• Industrial serial port bluetooth, Drop-in replacement for wired serial connections, transparent usage. You can use it simply for a serial port replacement to establish connection between MCU and GPS, PC to your embedded project and etc.

Product Details:

• Size: HC-06
• Model: 13625-1
• Package Quantity: 0
