Description
Brand: Coliao
Model: Coliao-Buck Converter-02

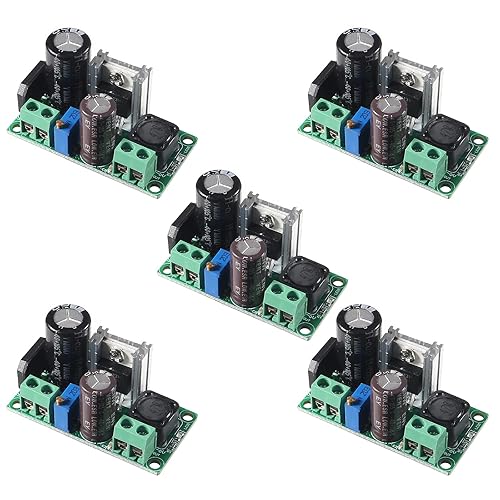

LM2596HV AC/DC to DC Buck Step Down Converter Module 3V 3.3V 5V 6V 9V 12V 15V 24V DC 5V-50V Adjustable Step-Down 2A Power Supply Module

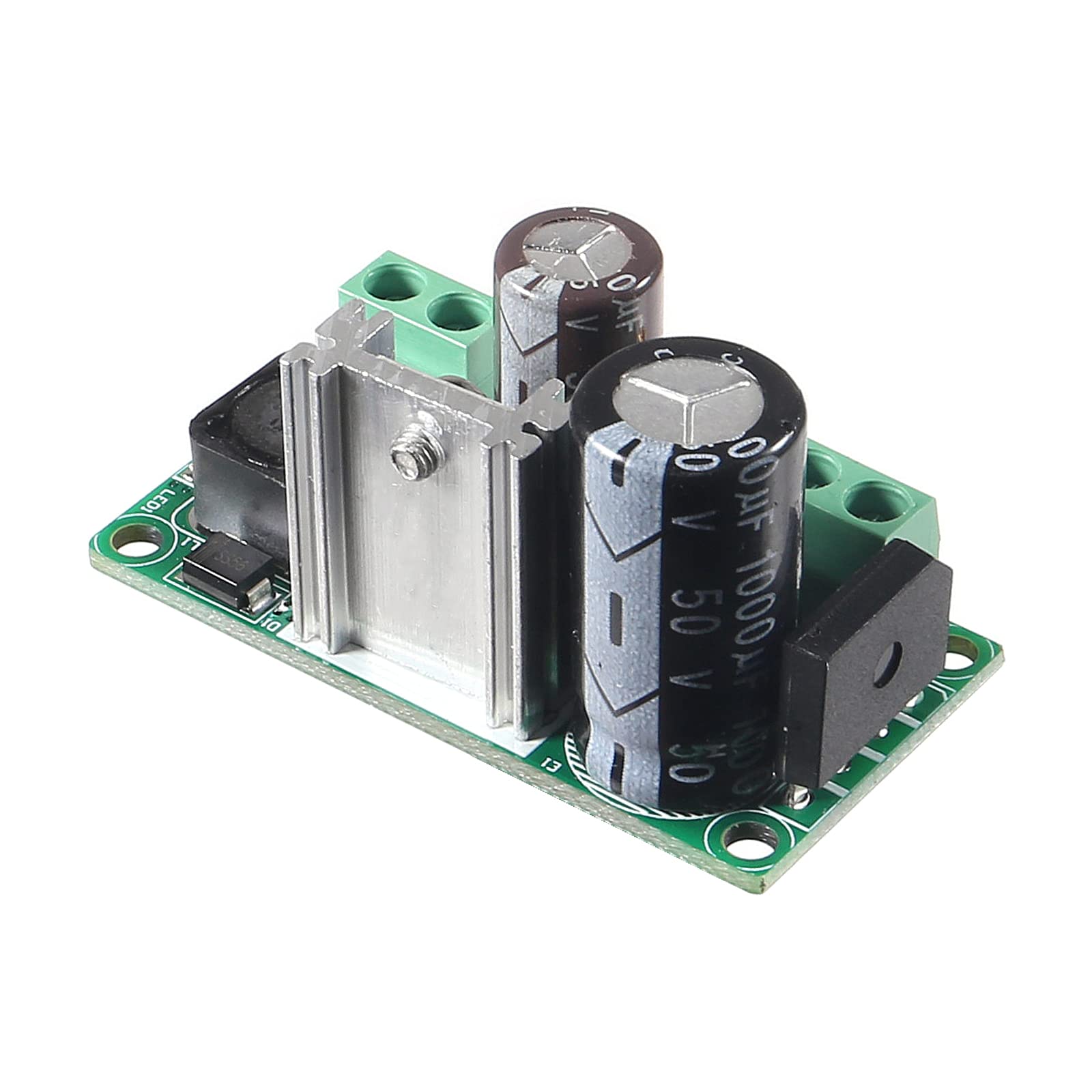

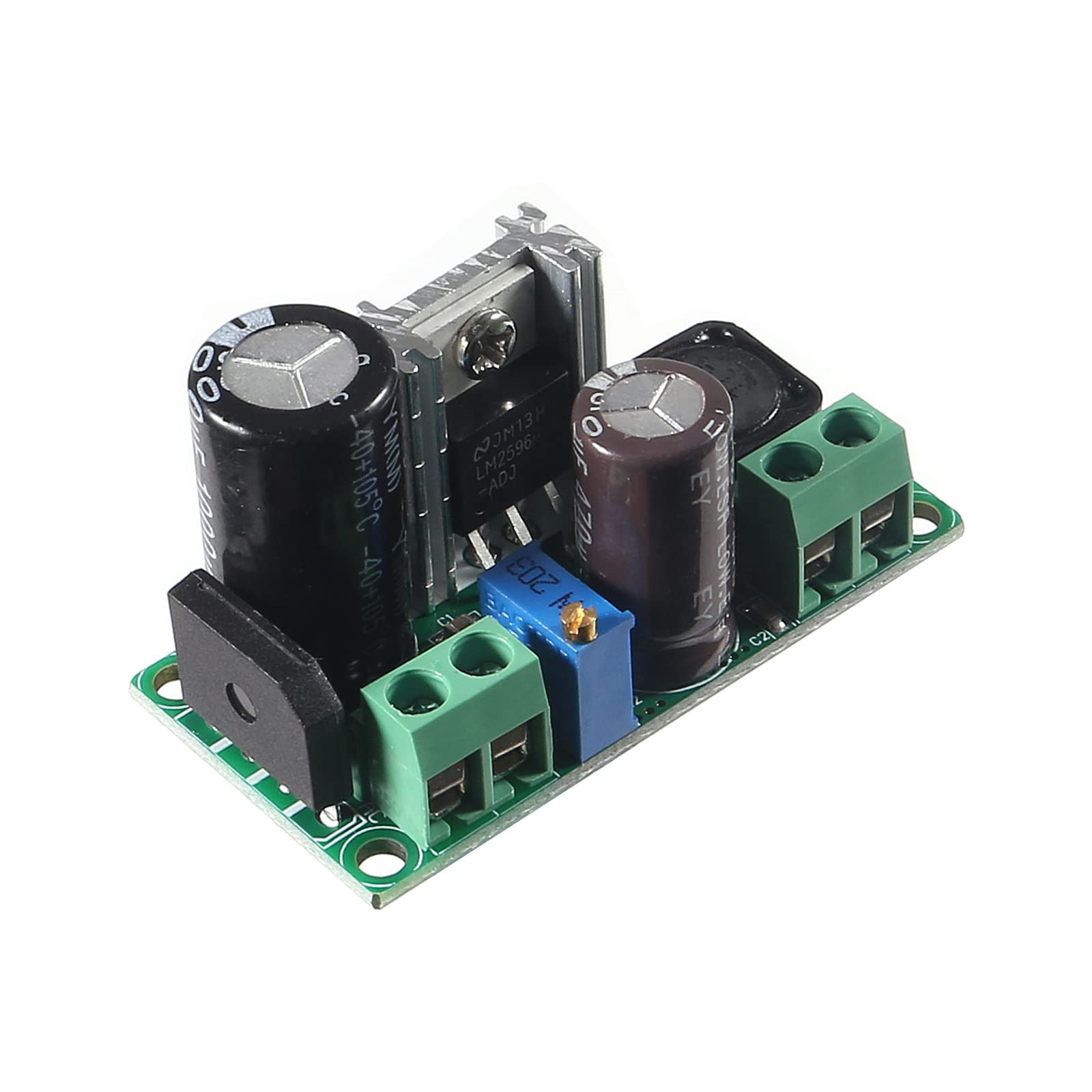

The power module adopts the plug-in LM2596HV, the high voltage version of the LM2596. The maximum input voltage is 50V (limited by the filter capacitor withstand voltage). The external heat sink can withstand high current operation. The input terminal uses a 4A rectifier bridge stack to input AC power, and has a dedicated DC input port, which is commonly used for AC and DC input. The output voltage can be adjusted from 3.3V to 33V, and the output voltage will vary with different input voltage ranges.

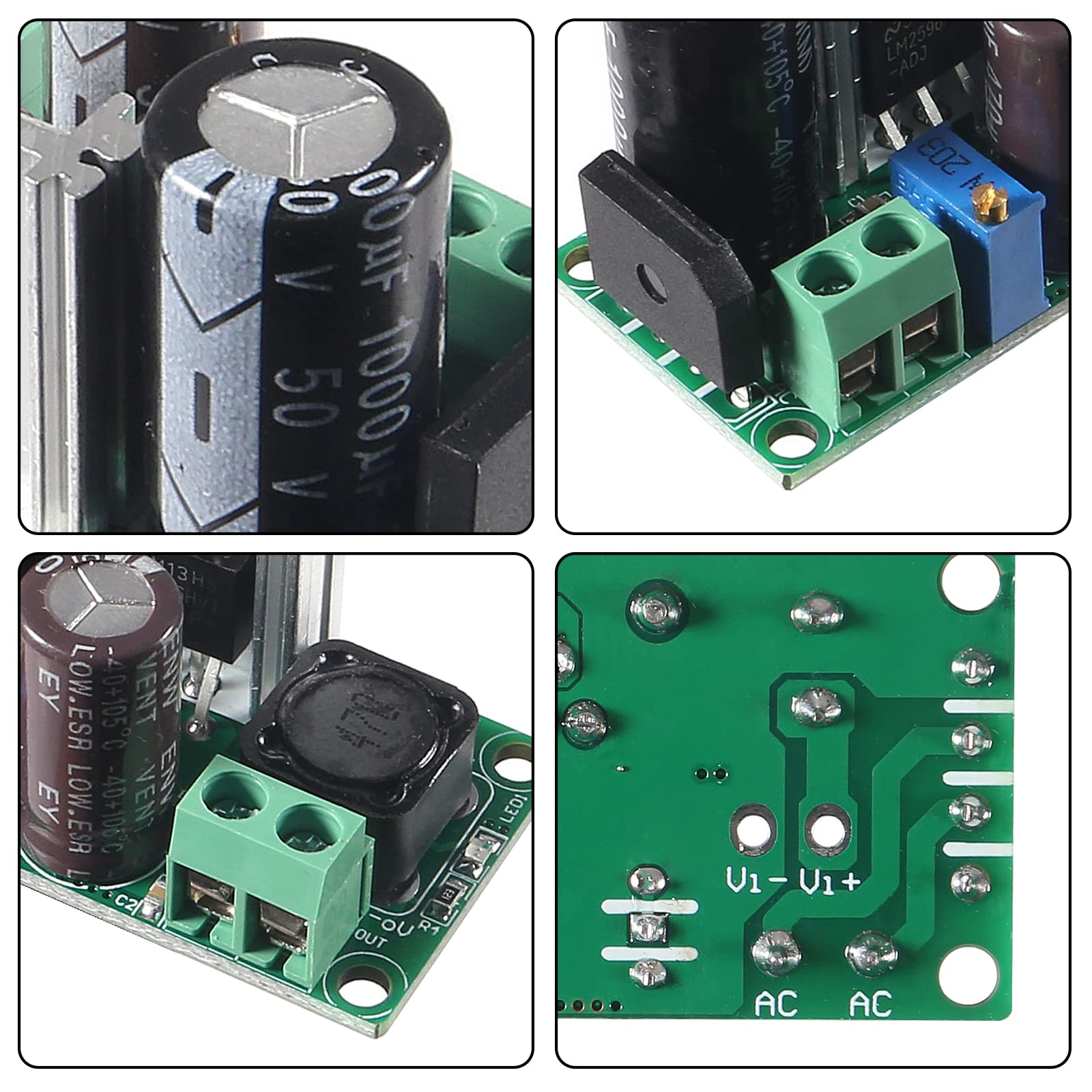

Input AC voltage AC5V-AC30V or DC5V-50V, due to the large fluctuation of AC voltage, the recommended AC voltage range has reserved margin. The power module has a maximum input voltage of 50V (limited by the filter capacitor withstand voltage) and a heat sink. The output current can work stably at 2.2A output current for a long time, and can work at 3A output current for a short time. The front of the PCB has the name of the silk screen terminal, and the back side also has the name of the silk screen terminal. Please recognize it to prevent damage.
Parameters:
Input voltage range: AC 5V-30V, DC 5V-50V
Output output range: DC 3.3V-33V
Output current range: up to 2.2A (the regulator chip can withstand a maximum current of 3A, can work at 3A output current for a short time

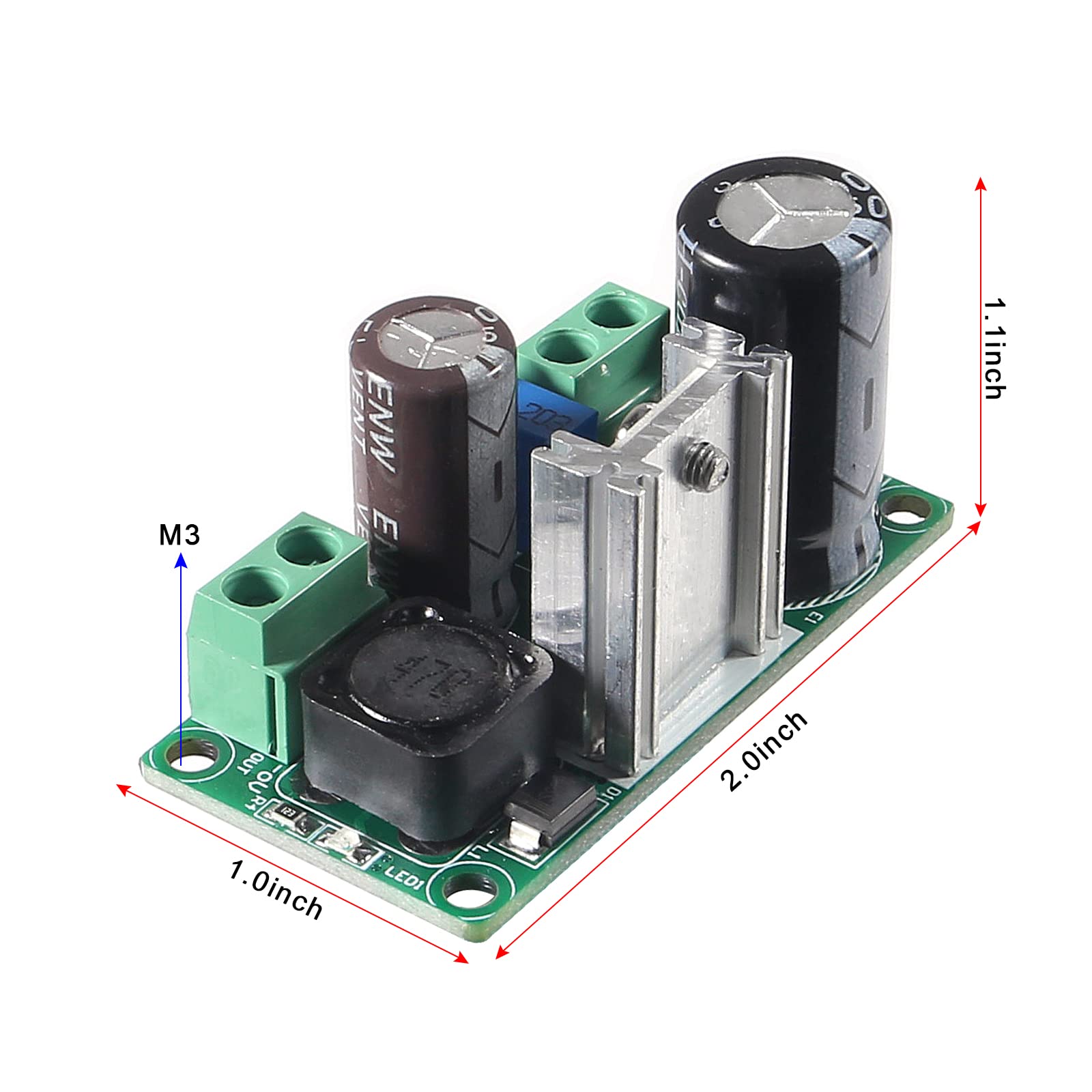

Module size: 51*26*28 mm
Package Included:

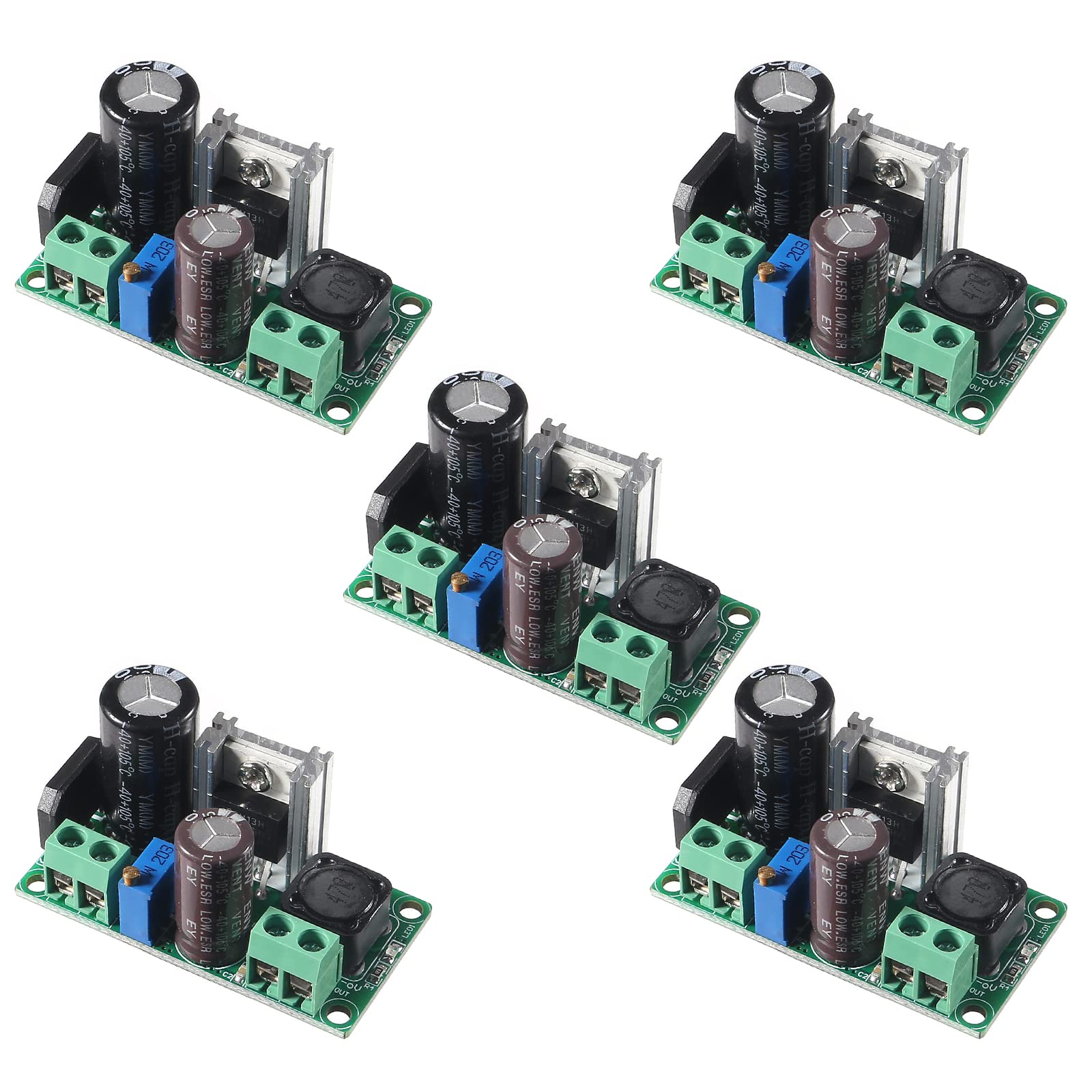

5* AC/DC to DC Step Down Power Supply Module
• LM2596HV AC/DC to DC Buck Step Down Converter Module 3v 3.3V 5V 6V 9V 12V 15V 24V DC 5V-50V Adjustable Step-Down Power Supply Module
• Adjustable AC/DC to DC buck converter power supply module Voltage Regulator
• Module size: 51x26x28mm/2.0x1.0x1.1''
• Voltage Converter Parameters: Input AC voltage AC5V-30V or DC voltage DC5V-50V. Due to the large fluctuation of AC voltage, the recommended AC voltage range has been reserved
• The power module adopts the plug-in LM2596HV, the high voltage version of the LM2596. The maximum input voltage is 50V (limited by the filter capacitor withstand voltage)
• Package includes: 5 pcs 3.3v 5v 6v 9v 12v 24v ac dc to dc buck step down adjustable volt converter
Color: Multicolor
Model: Coliao-Buck Converter-02
LM2596HV AC/DC to DC Buck Step Down Converter Module 3V 3.3V 5V 6V 9V 12V 15V 24V DC 5V-50V Adjustable Step-Down 2A Power Supply Module
The power module adopts the plug-in LM2596HV, the high voltage version of the LM2596. The maximum input voltage is 50V (limited by the filter capacitor withstand voltage). The external heat sink can withstand high current operation. The input terminal uses a 4A rectifier bridge stack to input AC power, and has a dedicated DC input port, which is commonly used for AC and DC input. The output voltage can be adjusted from 3.3V to 33V, and the output voltage will vary with different input voltage ranges.
Input AC voltage AC5V-AC30V or DC5V-50V, due to the large fluctuation of AC voltage, the recommended AC voltage range has reserved margin. The power module has a maximum input voltage of 50V (limited by the filter capacitor withstand voltage) and a heat sink. The output current can work stably at 2.2A output current for a long time, and can work at 3A output current for a short time. The front of the PCB has the name of the silk screen terminal, and the back side also has the name of the silk screen terminal. Please recognize it to prevent damage.
Parameters:
Input voltage range: AC 5V-30V, DC 5V-50V
Output output range: DC 3.3V-33V
Output current range: up to 2.2A (the regulator chip can withstand a maximum current of 3A, can work at 3A output current for a short time
Module size: 51*26*28 mm
Package Included:
5* AC/DC to DC Step Down Power Supply Module
• LM2596HV AC/DC to DC Buck Step Down Converter Module 3v 3.3V 5V 6V 9V 12V 15V 24V DC 5V-50V Adjustable Step-Down Power Supply Module
• Adjustable AC/DC to DC buck converter power supply module Voltage Regulator
• Module size: 51x26x28mm/2.0x1.0x1.1''
• Voltage Converter Parameters: Input AC voltage AC5V-30V or DC voltage DC5V-50V. Due to the large fluctuation of AC voltage, the recommended AC voltage range has been reserved
• The power module adopts the plug-in LM2596HV, the high voltage version of the LM2596. The maximum input voltage is 50V (limited by the filter capacitor withstand voltage)
• Package includes: 5 pcs 3.3v 5v 6v 9v 12v 24v ac dc to dc buck step down adjustable volt converter
Color: Multicolor
