Brand: Pinelicorn

Model: DT-5000VA

Description

If you are troubled by the poor safety of electrical appliances, frequent tripping due to unstable voltage, and other specifications of electrical appliances not working properly, then you should choose this transformer from us.        It can effectively provide a stable output voltage.        It is made of high-quality iron to ensure durable use and stable performance.        It is widely applicable to various electrical appliances to meet your daily needs.

Application

This voltage stabilizer can be used in countries where the voltage is 100V~120V or 200V~240V.       The product is suitable for LED power supplies, display screen power supplies, industrial control mechanisms, power equipment, instruments, solar photovoltaic power supplies, stepper motors, PLC control mechanisms, surveillance cameras, LED light boxes, LED lamps, luminous characters, communication equipment, home appliances, industrial equipment, building lighting, traffic signal control, etc.       You can apply it to most household appliances, such as fans, refrigerators, coffee machines, kettles, TVs, rice cookers, etc.

Specifications

Model: DT-5000VA

Style: Modern

Shape: Rectangular

Color: Blue

Material: Iron

Surface Treatment: Spray Painting

Plug Type: US Standard

Power Source: Corded

Mount Type: Tabletop

Assembly Required: No

Power Cord Length: 1m/3.28ft (Exposed)

Rated Current: 22.5A

Frequency: 50/60Hz

Input Voltage: 110V, 220V

Output Voltage: 110V, 220V, 110-120V, 220-240V

Max.       Power: 5000W

Boost Voltage Range: 200V-240V

Voltage Reduction Range: 100V-120V

Operating Noise: ＜20dB

Operating Temperature: Ambient Temperature Below 50℃/ 122 ℉

Gross Weight:13.5kg/ 29.76 lbs

Net Weight: 13.25kg/ 29.21 lbs

Product Size: 34*25*20cm/ 13.39*9.84*7.87 in

Package Size: 39.5*29.5*25.5cm/ 15.55*11.61*10.04 in

Package Included

1* Voltage Converter Transformer



Notes

1.      The transformer only converts the voltage, not the frequency and the output voltage frequency is the same as the input voltage frequency.       If your appliance is not compatible with 50/60hz, it will affect the usage effect.

2.      Please pay attention to the reminder on the machine.       Please refer to the corresponding model "output voltage, current, and power".

3.      Please note that you need to open the terminal protection cover on the back of the machine by yourself when using it, and you'd better close the cover again after connecting the wires for safety reasons.

4.      Because this item is not waterproof, it is for indoor use only.       It is not suggested for use in wet environments.

5.      The equipment will generate heat during use.       Please pay attention to heat dissipation and ventilation during use without foreign objects blocking the cooling holes, and keep away from high temperature, humidity, inflammable, and explosives.       It should be placed in a dry and well-ventilated area at all times.

6.      Please note that the total number of volts used in all sockets at the same time is not higher than 80 percent of the machine itself.

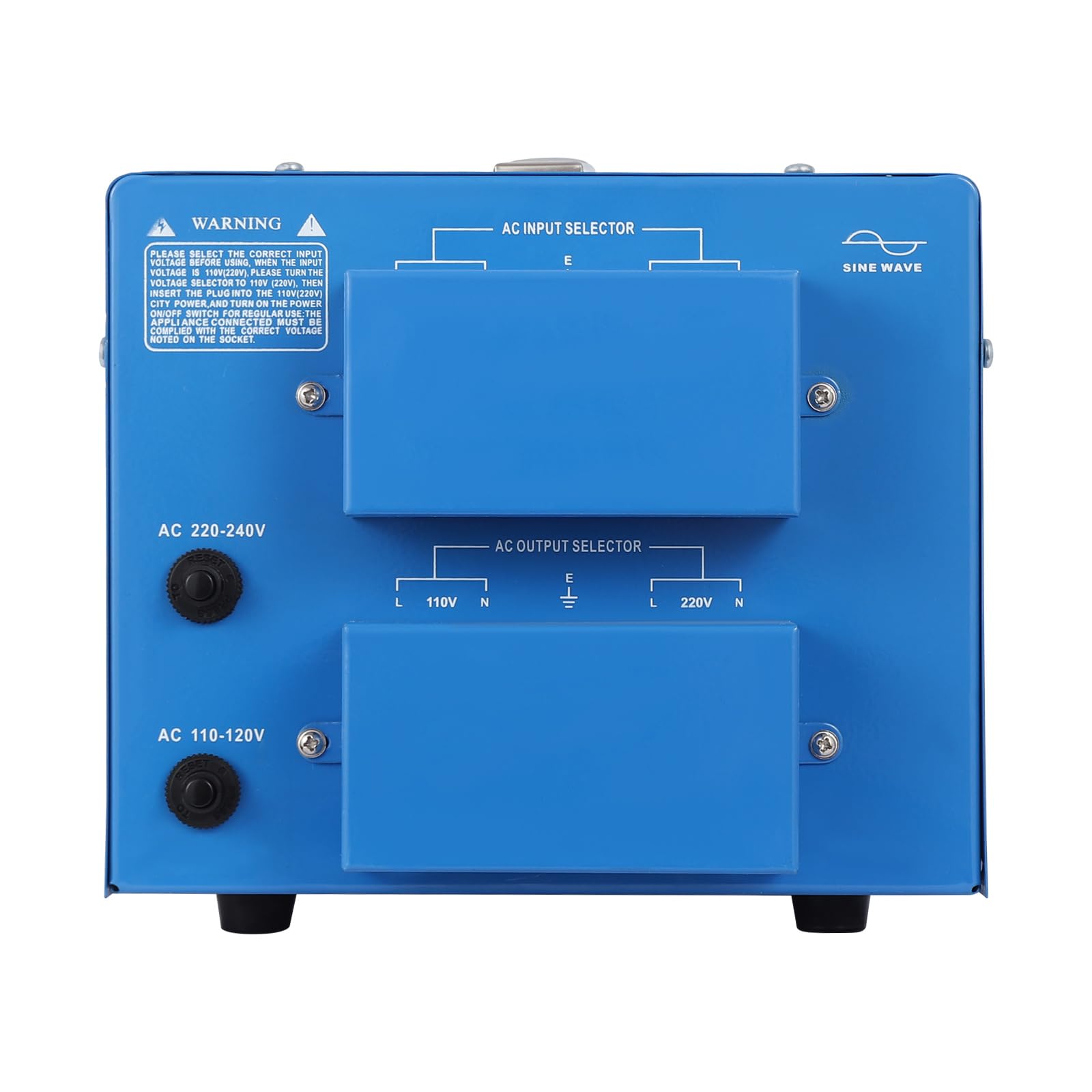

7.      Please note that electrical equipment with a current of less than 13A is connected directly to the socket, while those with more than 13A should be connected to the terminals on the back of the transformer.

8.      Please note that for safety reasons it is recommended that you use equipment with a maximum of 50% of the total transformer power.       For example, this 5000W transformer should only be used with appliances that do not exceed 3000W.

9.      Please note that we recommend selecting an AC converter based on 2-3 times the total power of the appliance.       When using 2 output sockets at the same time, the total output capacity must not exceed the rated capacity!

10.      Please note that to ensure safety, please energize the transformer for 10 seconds before connecting it to an appliance for use.

11.      Please note that if overload protection occurs, you should immediately unplug the appliance, reduce the load used for the output when using it again, reset the disconnected overload protector manually (just gently press in the part where the overload protector pops out), and then restart the machine to work normally.

12.      Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

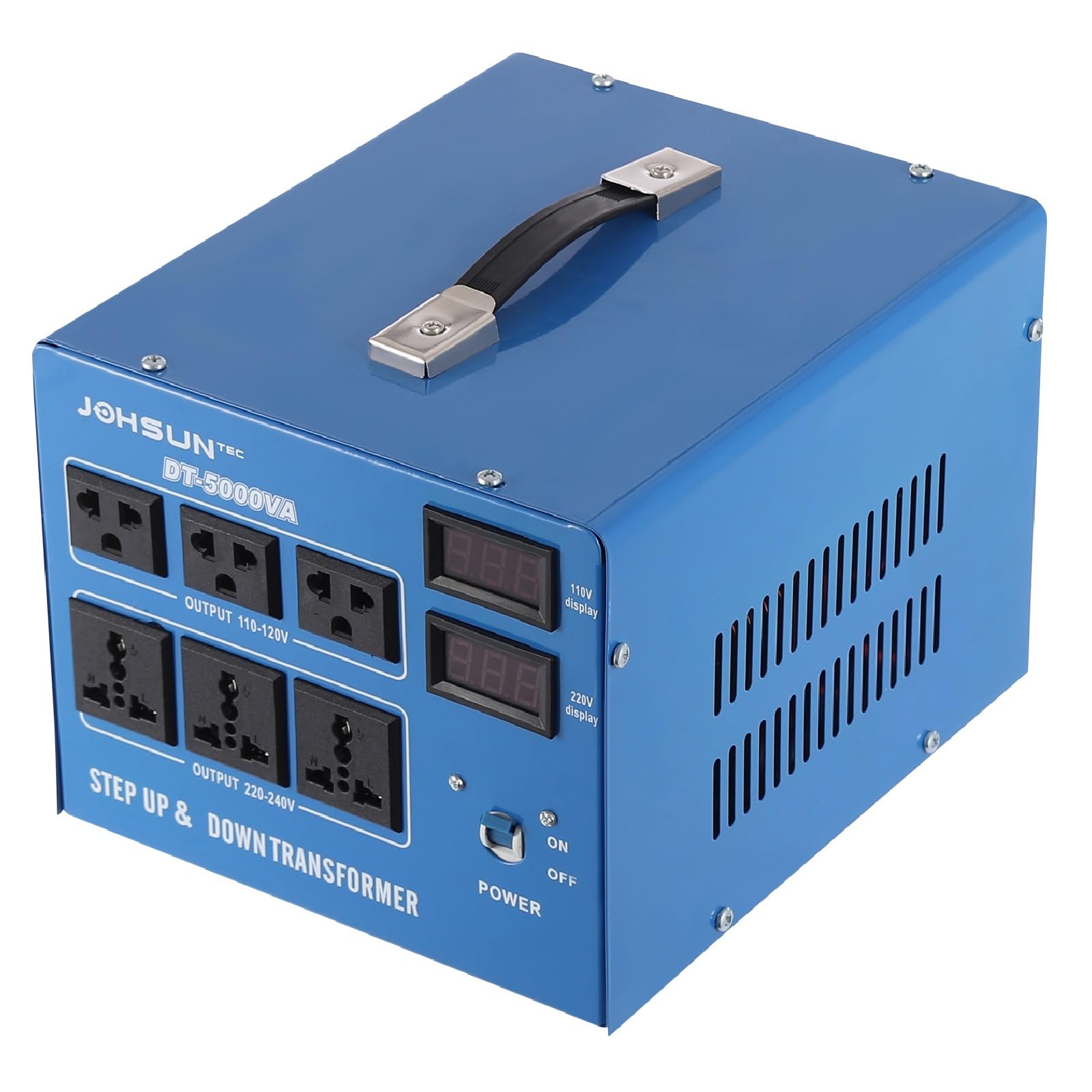

• ✅Sturdy: The step up voltage converter is made of high-quality iron using spray painting technology. The voltage transformer has high strength, excellent insulation properties, and long service life.

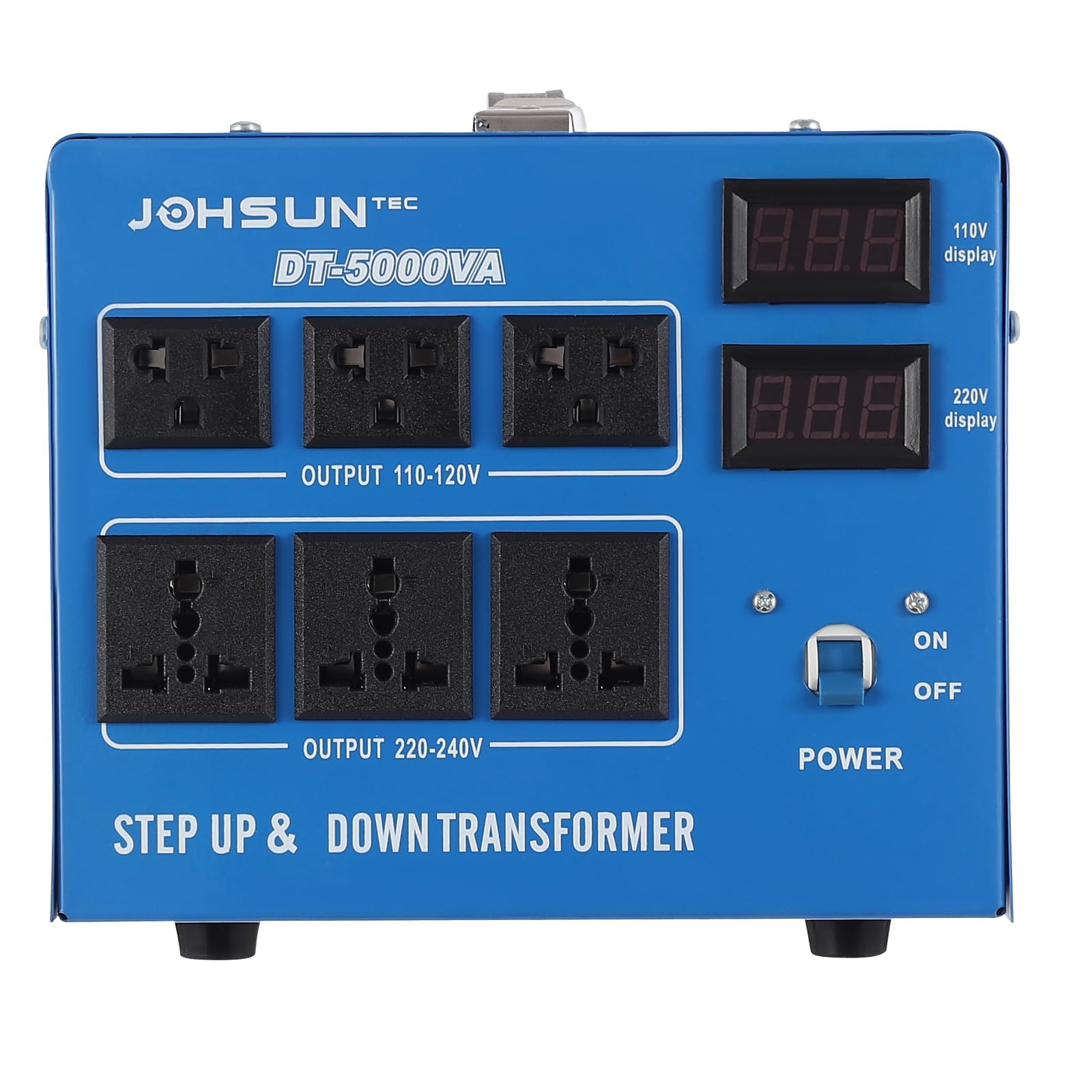

• ✅Helpful Assistant: Featuring three 110-120V U.S. output sockets, three 220-240V universal output sockets, AC110V/220V input voltage terminals, AC110V/220V output voltage terminals, this voltage stabilizer can step up the voltage from 100-120 volts to 200-240 volts or step down the voltage from 200-240 volts to 100-120 volts.
• ✅Excellent Performance: Featuring a powerful power of up to 5000W, a high-performance toroidal core and multilayer winding coils with stable output and low power consumption, and true 100% full load capability, this machine is capable of 7*24 hours continuous operation, and even all outputs can be used continuously at the same time, giving you peace of mind.
• ✅Safe and Reliable: With over-current protection, over-temperature (185℉) protection, overload protection, and equipped with 110V/220V dual line overload protector and high-quality circuit breaker, it effectively ensures the safety of the equipment in the process of use, avoiding unstable output or burnout, so that you can use it with confidence.

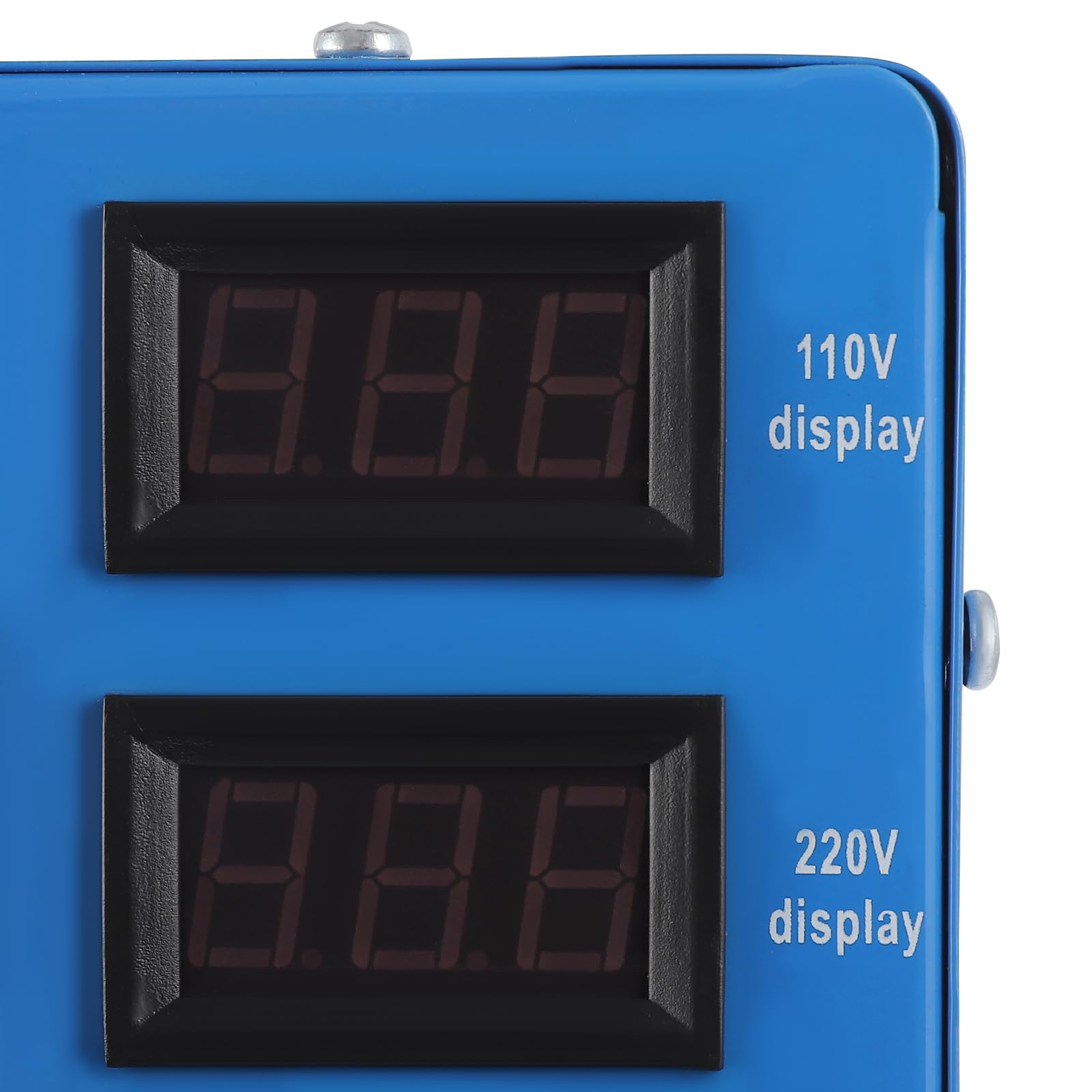

• ✅Easy to Use: The standard sockets, one-click power switch, overload/over-temperature protector, and 2 LCD displays for real-time display of input and output voltages make it easy and convenient for you to use the step up transformer easily.
• ✅Low Noise: The step down transformer works at a noise of less than 20 dB, equivalent to the volume of whispering, bringing you a peaceful and quiet work experience.
