Description
Brand: QCCAN
Model: XL6019
• XL6019 5A Current DC to DC Adjustable Boost Power Supply Board Module, which is a monolithic integrated circuit specially designed for boost and buck. It can work in the range of DC 5V to 40V input voltage, low ripple and built-in power MOS.
• XL6019 has built-in fixed frequency oscillator and frequency compensation circuit, which simplifies the circuit design. The PWM control loop can adjust the linear change of duty cycle from 0% to 90%. built-in over-current protection function and EN foot logic level turn-off function.
• Adjust the blue knob of the potentiometer (counterclockwise general impulse, buck clockwise rotation) and with a multimeter to monitor the output voltage reaches the required voltage.
• Built-in over temperature protection, full set overcurrent protection circuit reliability, high reliability.
• Application:EPC/Laptop vehicle adapter
• Boost and buck conversion Power supply for handheld equipment.
Color: Blue
Model: XL6019
XL6019 is a monolithic integrated circuit specially designed for boost and buck. It can work in the range of DC 5V to 40V input voltage, low ripple and built-in power MOS.
- The conventional fully integrated constant voltage output scheme has fewer peripheral devices and lower system cost.
- Wide voltage range input, high input voltage up to 35V
- The output voltage can be adjusted to support 40V.
- Built-in over-temperature protection and over-current protection complete set of reliability protection circuit, high reliability.
- Conversion efficiency of the system can reach more than 90%, which is convenient for thermal design.
- Wide input voltage range from 5V to 40V
- 1.25v output voltage sampling voltage
- SW built-in over voltage protection function
- Fixed 22KHZ switching frequency
- Large 5A switching current
- Over 94% conversion efficiency
- EN foot TTL turn-off function
- Excellent linearity and load adjustment rate
- Built-in power MOS
Instructions:
1. Power (3-35V), power indicator light, the module is working properly.

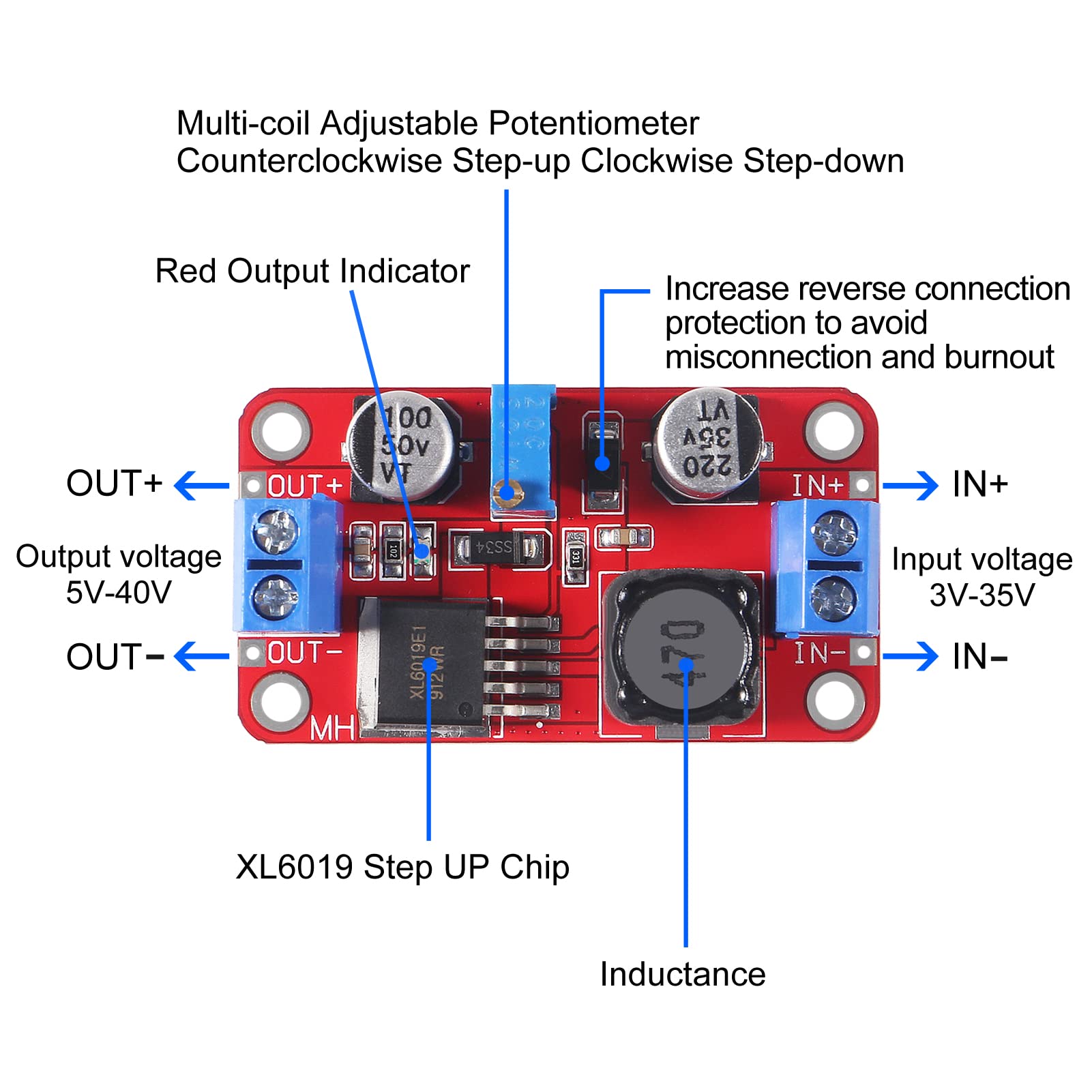

2. Adjust the blue potentiometer knob (counter-clockwise general boost, buck clockwise rotation) and with a multimeter to monitor the output voltage reaches the required voltage.
NOTE:
1.Input and Output must be connected correctly.
2.Current work long hours is recommended for use in less than 2.5M, while adding bulk Heat sink (10W output above); because it is boosting module, in order to ensure stable output Set, please keep the minimum 1.5V differential.
Package Included:

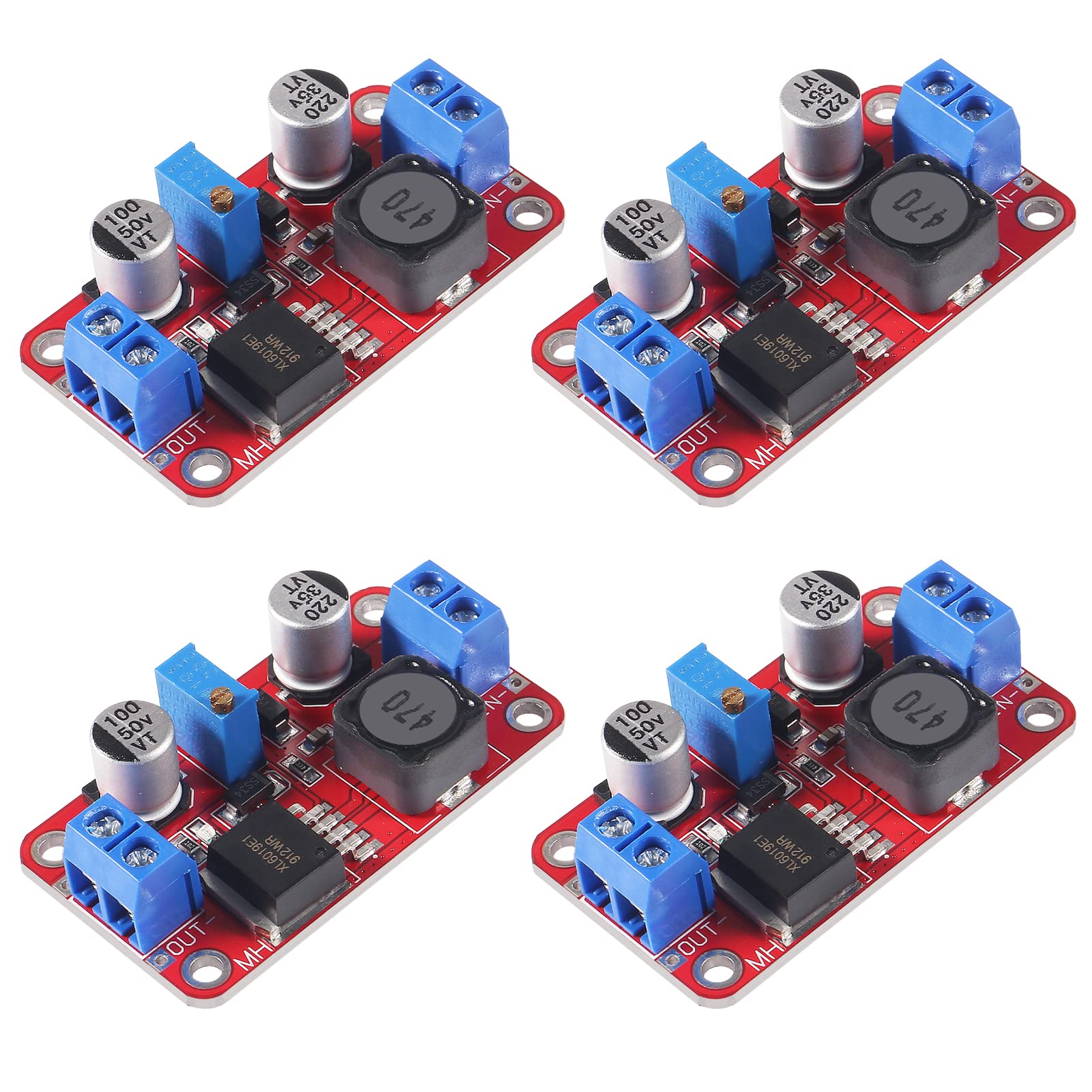

4pcs XL6019 5A Current DC to DC Adjustable Boost Power Supply Board Module
• XL6019 5A Current DC to DC Adjustable Boost Power Supply Board Module, which is a monolithic integrated circuit specially designed for boost and buck. It can work in the range of DC 5V to 40V input voltage, low ripple and built-in power MOS.
• XL6019 has built-in fixed frequency oscillator and frequency compensation circuit, which simplifies the circuit design. The PWM control loop can adjust the linear change of duty cycle from 0% to 90%. built-in over-current protection function and EN foot logic level turn-off function.
• Adjust the blue knob of the potentiometer (counterclockwise general impulse, buck clockwise rotation) and with a multimeter to monitor the output voltage reaches the required voltage.
• Built-in over temperature protection, full set overcurrent protection circuit reliability, high reliability.
• Application:EPC/Laptop vehicle adapter
• Boost and buck conversion Power supply for handheld equipment.
Color: Blue
