Description
Brand: ALAMSCN
Model: ALAMSCN-DC12-36V
• Feature:Made of good material,the voltage protection module is of high quality and can use a long time
• Application:It's a protection switch module and can effectively protect the circuit. Suitable for all kinds of batteries.Compatible Battery: lithium ion battery, solar panel battery
• Protection:Over Charger Protection,Over Discharge Protection Function, Short Circuit Protection Function,Over Current Protection Function
• Note:This is a voltage controller, which turns on and off the output through a relay but cannot change the voltage
• LED Screen Display:On-board instantaneous button to set low-voltage disconnect parameters, 3-bit red LED display parameters. When the battery voltage reaches the set value, the module automatically disconnects the load
Color: 4pcs
Model: ALAMSCN-DC12-36V
Parameter
Input Voltage Range:DC12-36V;
Power Consumption<1.5W;

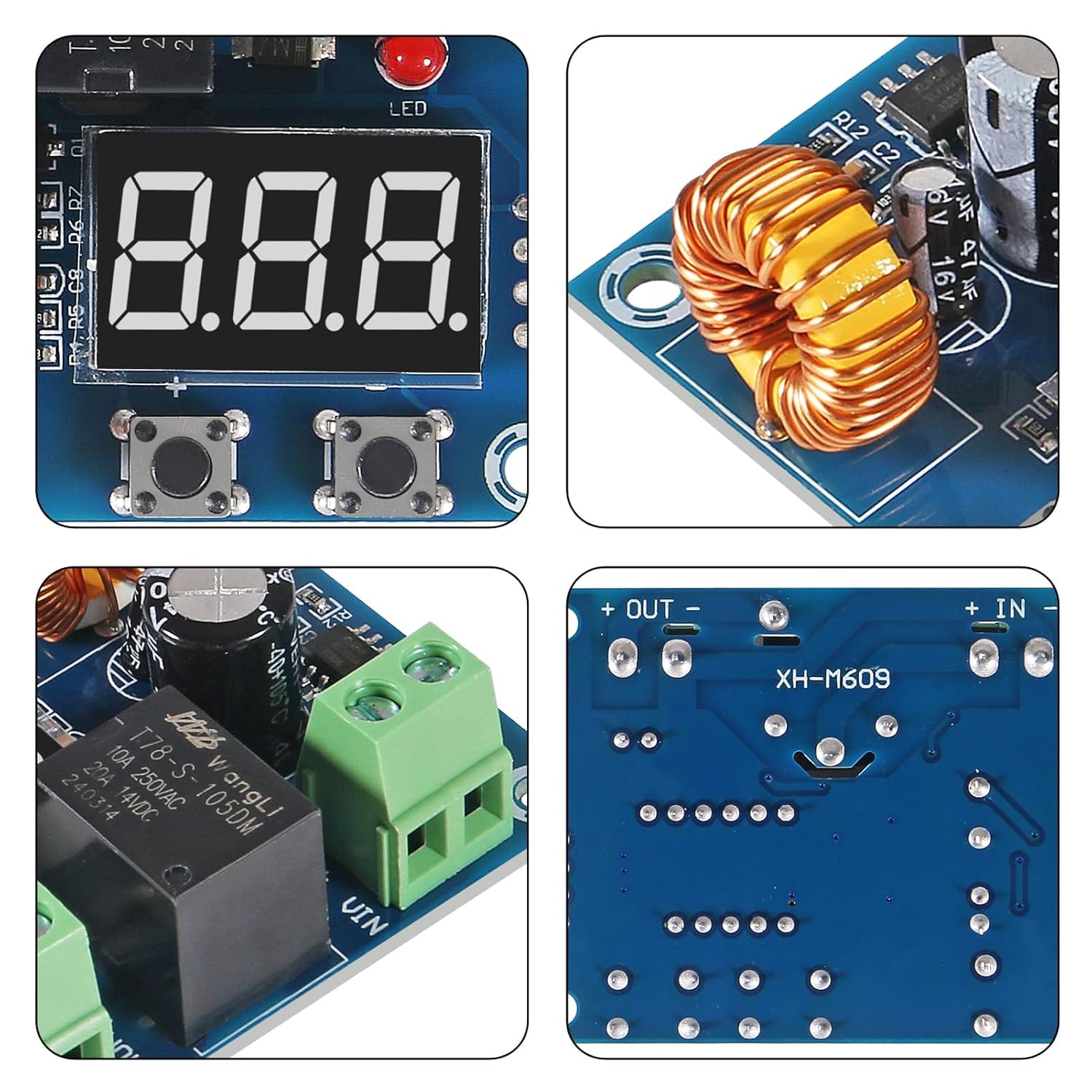

LED screen display:3 red LED digital tube display,2 adjustment button settings,1 LED indicator;

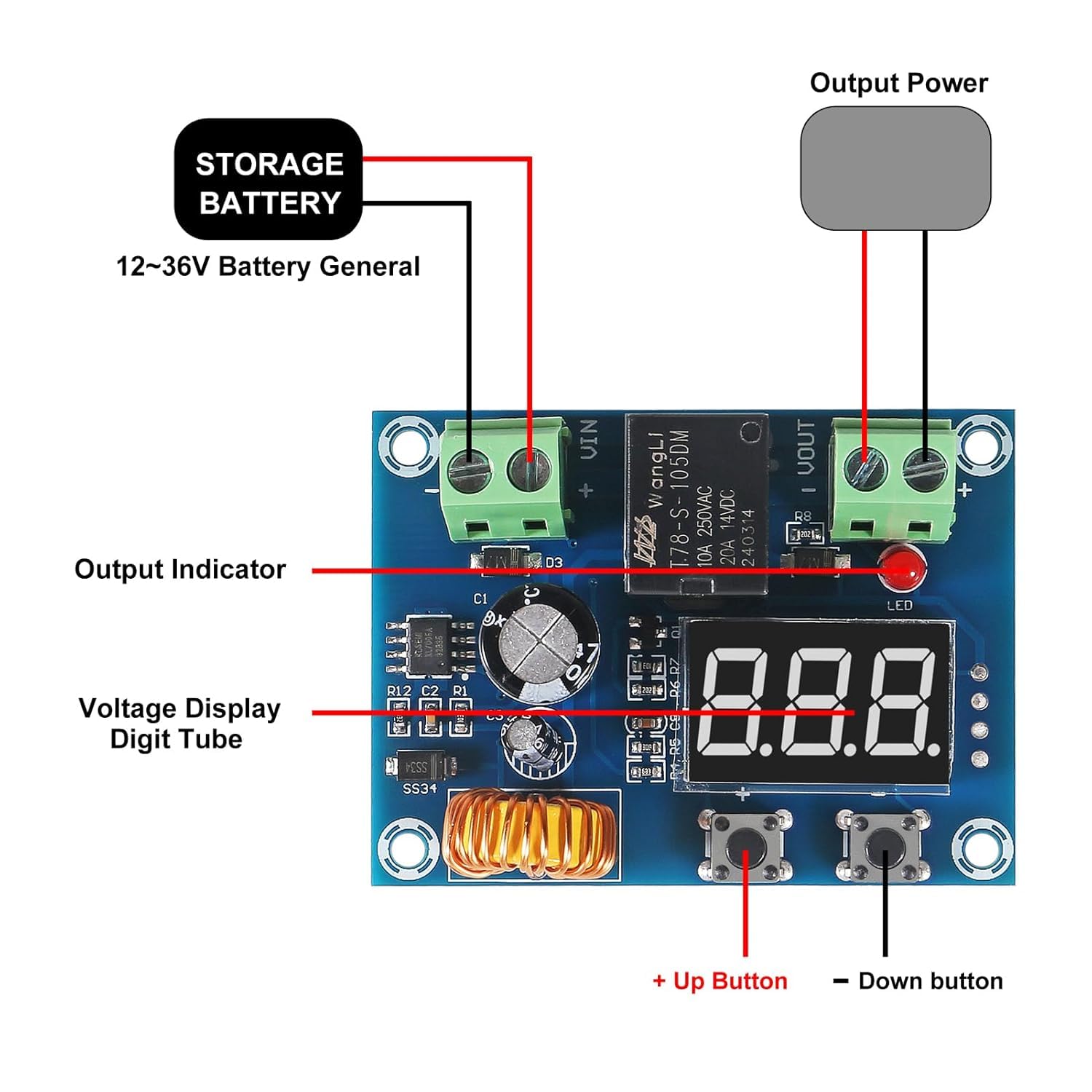

When the voltage protection module is connected to the battery,the light is on;
when the battery is disconnected,the light is off.
Package:

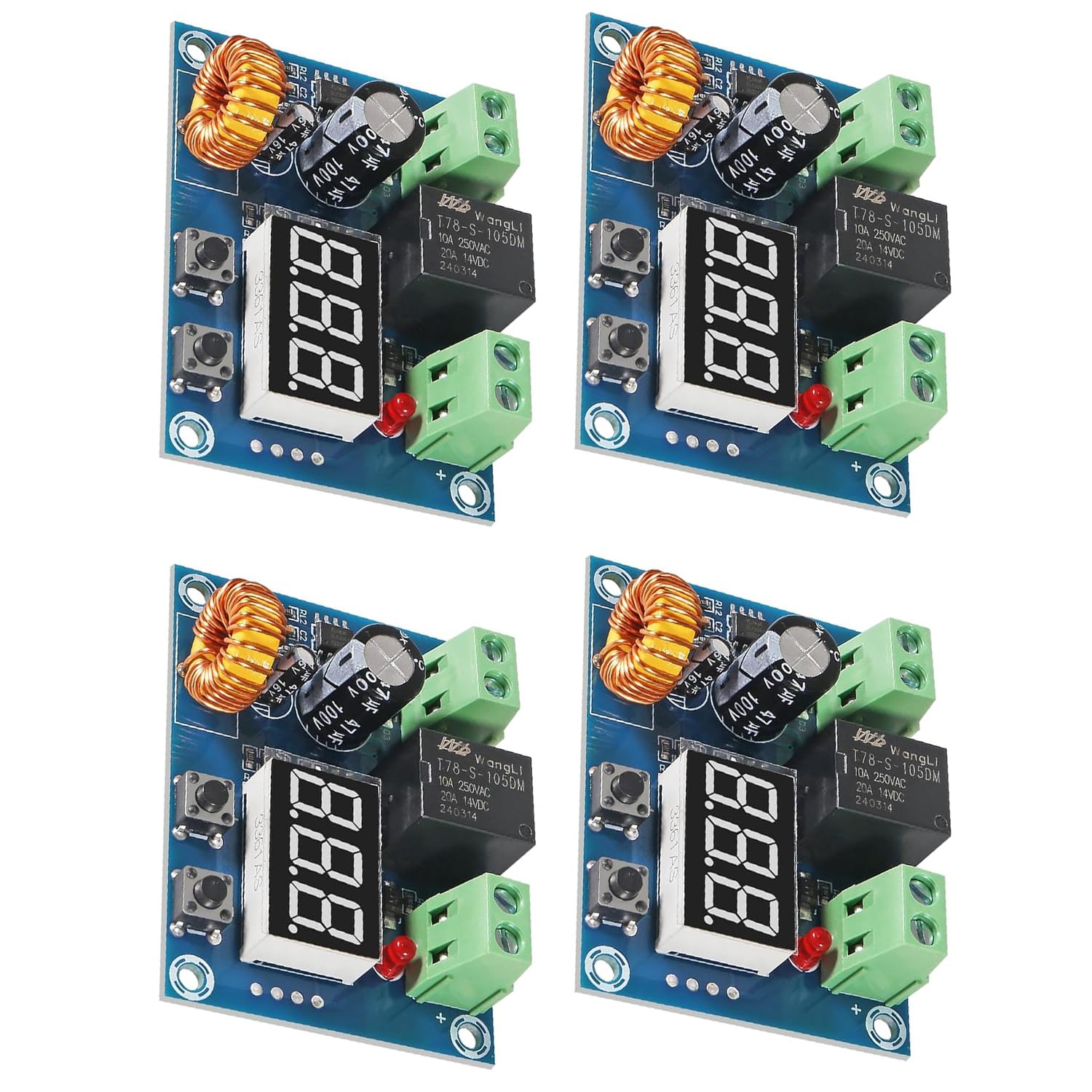

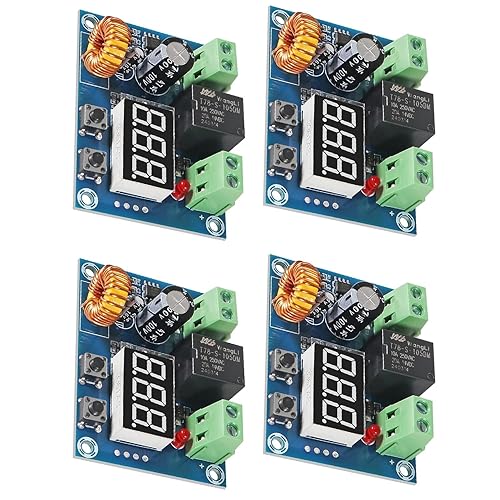

4pcs DC 12V-36V Voltage Protection Modules.
【Instruction】
Press + to view the disconnect voltage,press - to view the difference;
Press "+" twice.When the decimal point flashes, press "+"or "-"to set the disconnect voltage.
Double press "-";when the decimal point flashes, press "+" or "-"to set the difference.
Long press the "+" key, and when the LED screen flashes, press the "+" or "-" key to calibrate the input voltage.
Hold down the - key, and then press + or - to set the delay value T.
When the output voltage reaches the reconnection value, the load is reconnected after a delay of T minutes.
The delay time ranges from 000 to 010 minutes and is displayed as 000 or 001 or 005 or 010. The decimal point is not displayed.
【Example】
Setting below 13V will stop, higher than 14V will start.
Set the protection value: Press the "+" key once to display the protection value. Double-click the "+" key and the decimal point flashes. Press "+" and "-" to change the value to 13.
Set the return difference: Press the "-" key once to display the return difference, double-click the "-" key, the decimal point flashes, press the "+" and "-" keys to change the value to 1.5.
If there is no operation in 3 seconds, the module will automatically save and exit the setting mode.
• Feature:Made of good material,the voltage protection module is of high quality and can use a long time
• Application:It's a protection switch module and can effectively protect the circuit. Suitable for all kinds of batteries.Compatible Battery: lithium ion battery, solar panel battery
• Protection:Over Charger Protection,Over Discharge Protection Function, Short Circuit Protection Function,Over Current Protection Function
• Note:This is a voltage controller, which turns on and off the output through a relay but cannot change the voltage
• LED Screen Display:On-board instantaneous button to set low-voltage disconnect parameters, 3-bit red LED display parameters. When the battery voltage reaches the set value, the module automatically disconnects the load
Color: 4pcs
