Description
Brand: eSecure
Video

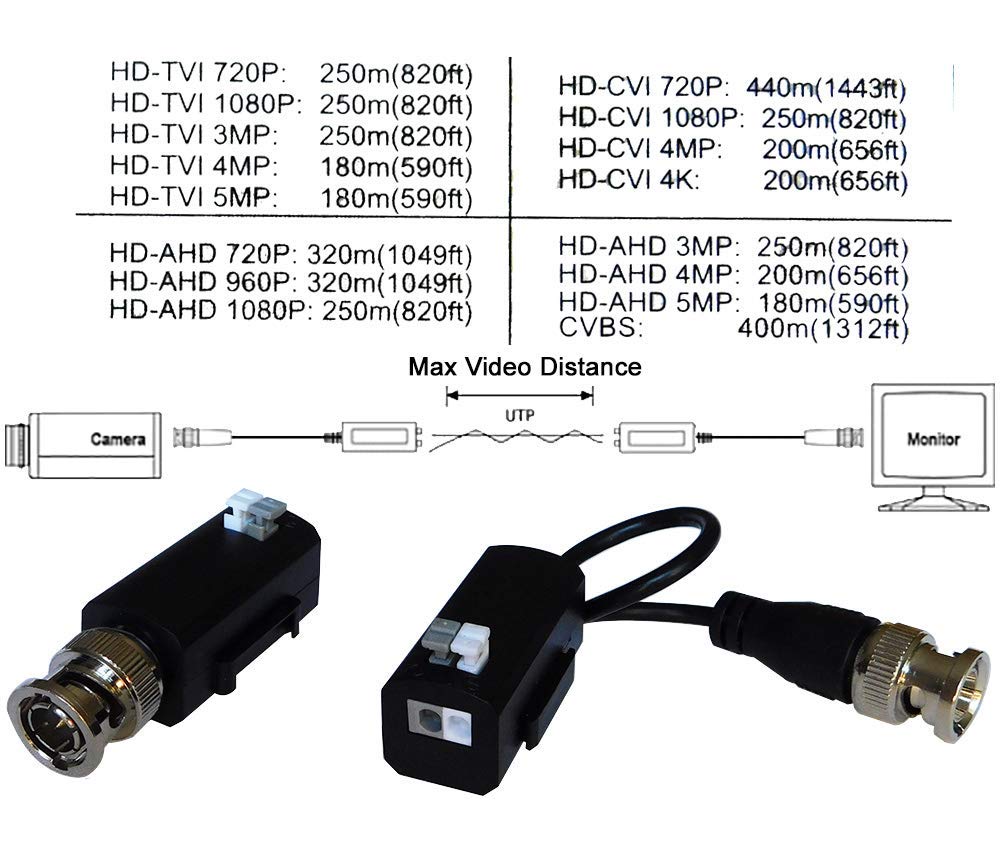

Max Distance:
HD-TVI 720P: 820ft (250m)
HD-TVI 1080P: 820ft (250m)
HD-TVI 3MP: 820ft (250m)
HD-TVI 4MP: 590ft (180m)
HD-TVI 5MP: 590ft (180m)
HD-CVI 720P:: 1443ft (440m)
HD-CVI 1080P: 820ft (250m)
HD-CVI 4MP: 656ft (200m)
HD-CVI 4K: 656ft (200m)
AHD 720P: 1049ft (320m)
AHD 960P: 1049ft (320m)
AHD 1080P: 820ft (250m)
AHD 3MP: 820ft (250m)
AHD 4MP: 656ft (200m)
AHD 5MP: 590ft (180m)
CVBS: 1312ft (400m)
Operating Frequency: DC to 71MHz Common Mode / Differential Mode Rejection:15KHz to 71MHz 60dB
Impedance: Coax., Male BNC: 75? unbalanced
UTP, push-pin terminal block: 100? balanced
Wire Type
Network Wiring:On unshielded twisted pair (for each video signal) 24-16AWG (0.5~ 1.31mm)
Category Type: UTP Cat5e/ 6
Impedance: 100 ± 20ohms
Connector
Video In / Out:Male BNC Connector
Video In / Out:Push-pin terminal block
Protection
Surge Protection: Built-in translent voltage surge protection Video Input: 2K (common mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999)
Video Output:2K (differential mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999)

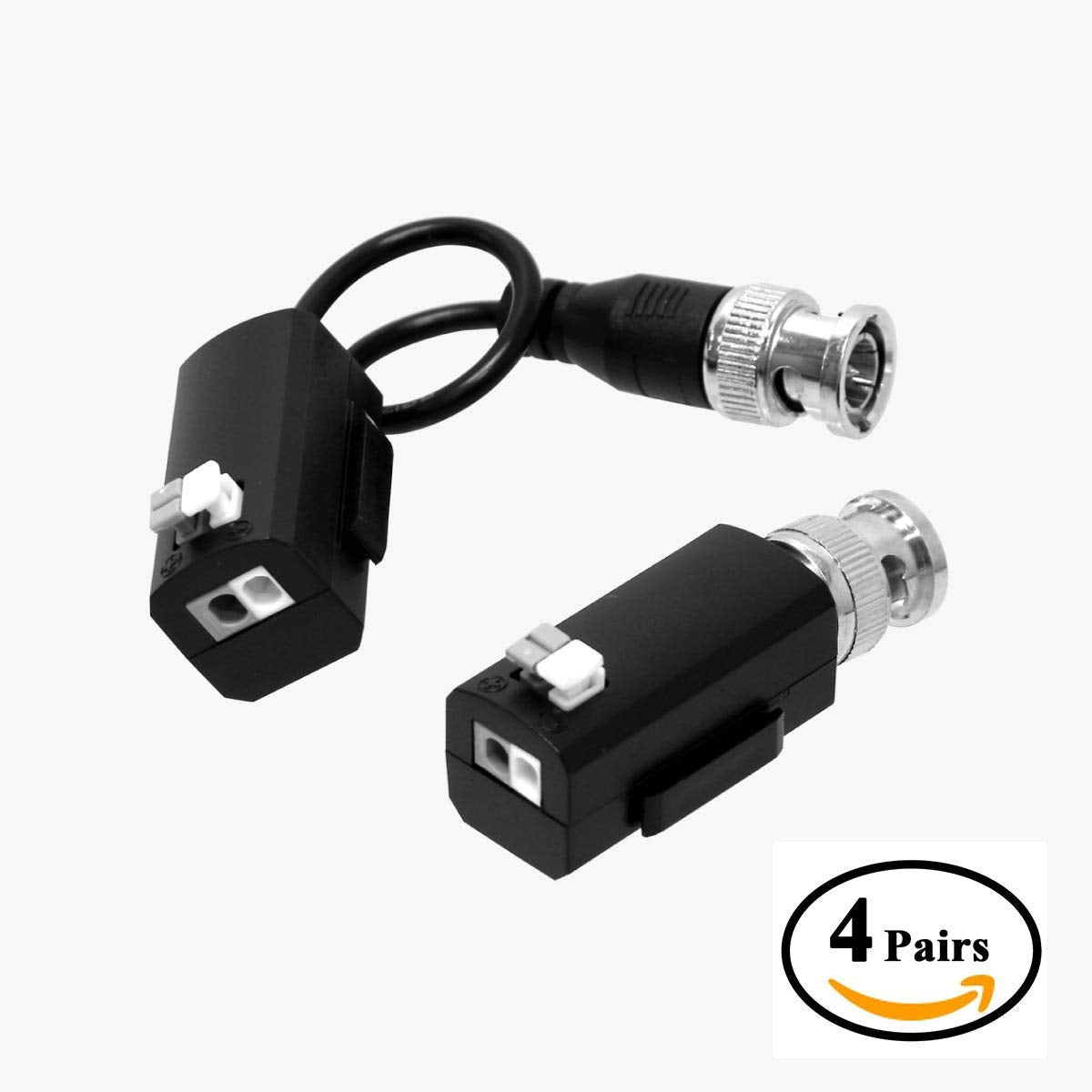

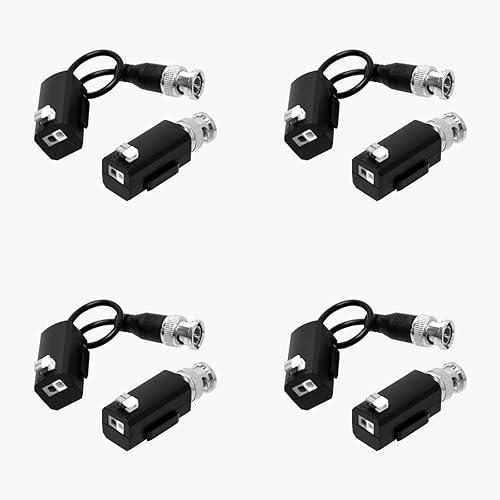

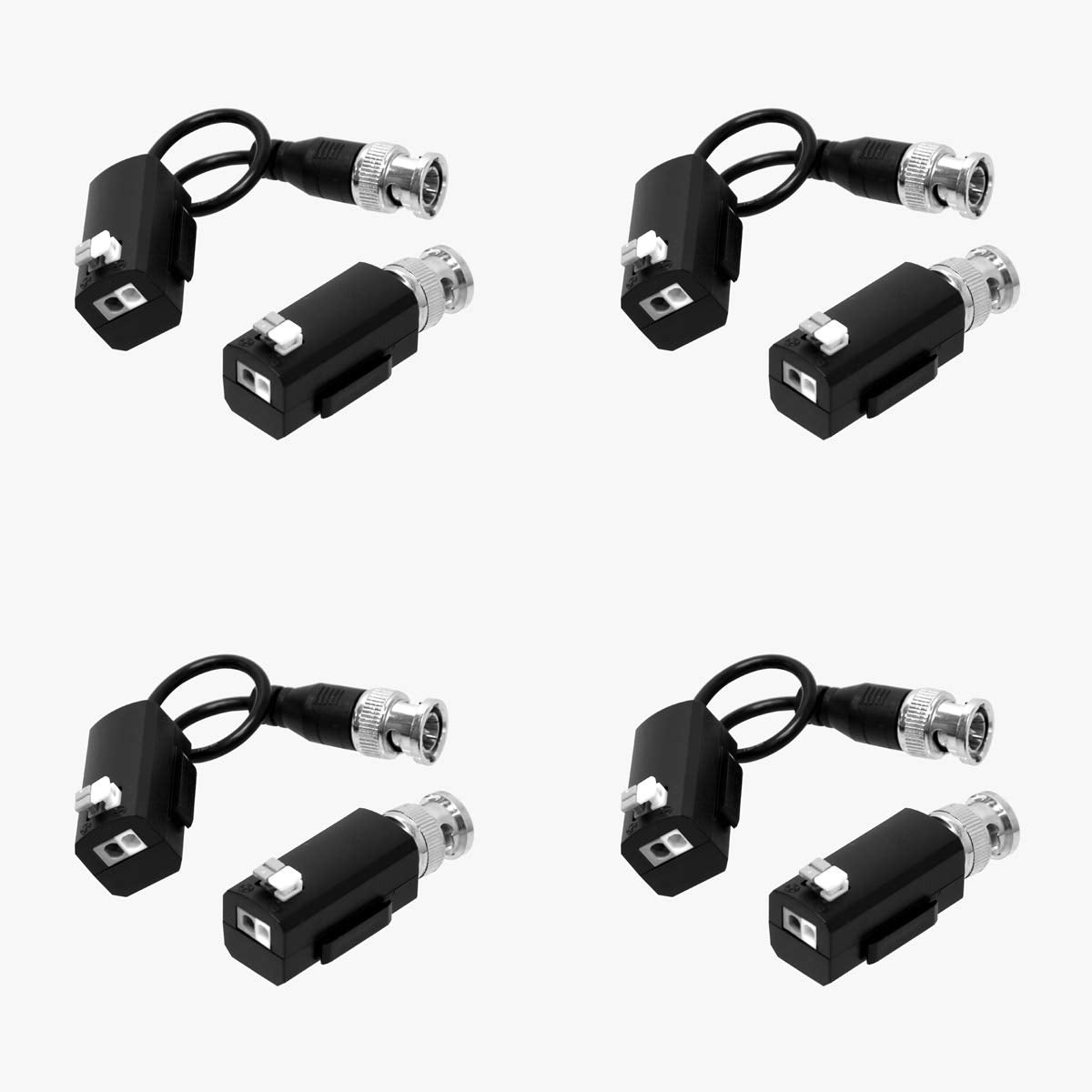

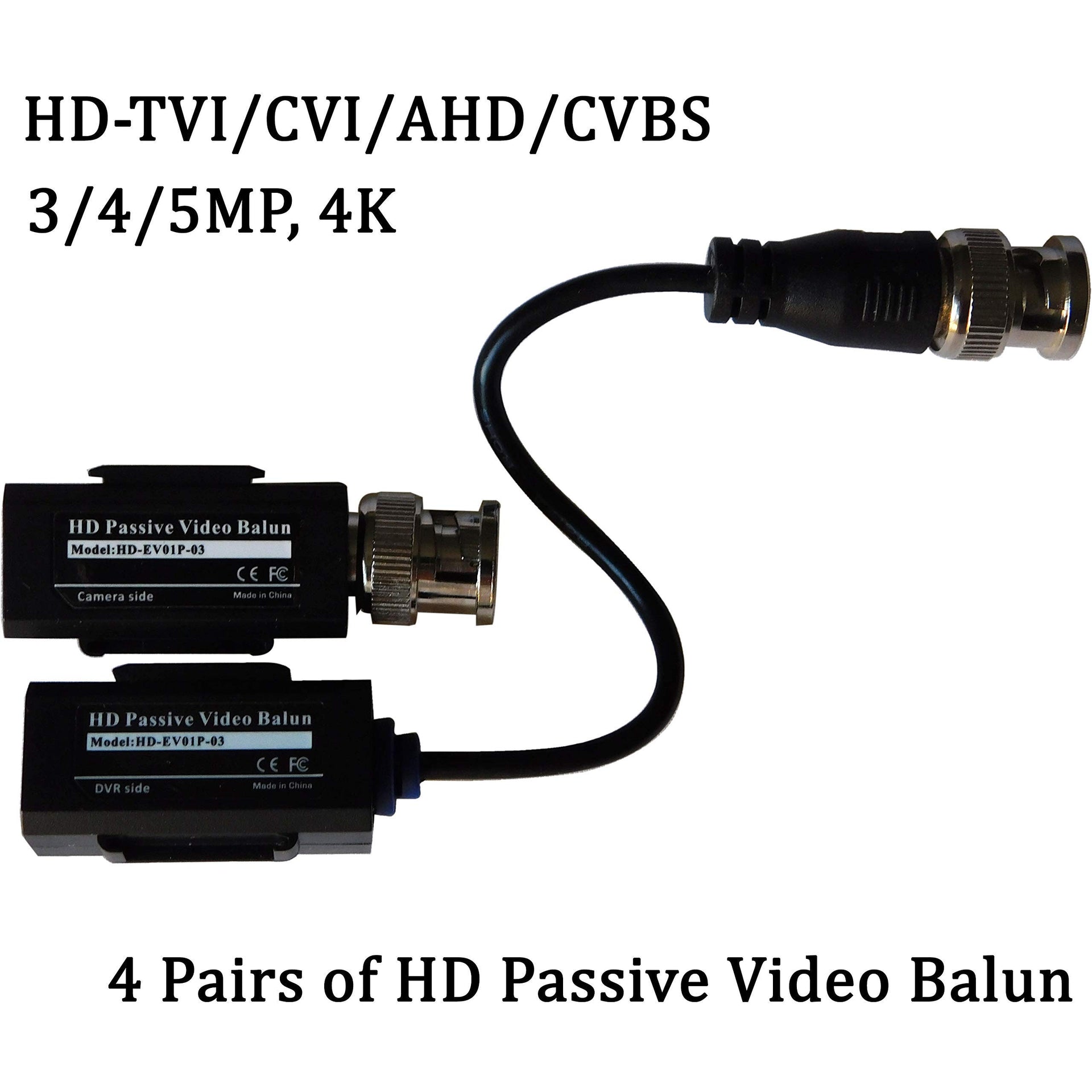

• 4 Pairs of 1CH HD-Video Passive Balun (8pc), transmit HD Video over UTP Cat5e/6 cable
• Each pack contains 2 connectors: a straight type and a tail type, BNC Male to RJ45 Push-pin Terminal Block
• Compatible with HDTVI / AHD / HDCVI / 960H
• Transmission Distance: 720P up to 1,443ft (440m) / 1080P up to 820ft (250m)
• Plug & Play, Built-in Transient Voltage Surge Protection
Video
Max Distance:
HD-TVI 720P: 820ft (250m)
HD-TVI 1080P: 820ft (250m)
HD-TVI 3MP: 820ft (250m)
HD-TVI 4MP: 590ft (180m)
HD-TVI 5MP: 590ft (180m)
HD-CVI 720P:: 1443ft (440m)
HD-CVI 1080P: 820ft (250m)
HD-CVI 4MP: 656ft (200m)
HD-CVI 4K: 656ft (200m)
AHD 720P: 1049ft (320m)
AHD 960P: 1049ft (320m)
AHD 1080P: 820ft (250m)
AHD 3MP: 820ft (250m)
AHD 4MP: 656ft (200m)
AHD 5MP: 590ft (180m)
CVBS: 1312ft (400m)
Operating Frequency: DC to 71MHz Common Mode / Differential Mode Rejection:15KHz to 71MHz 60dB
Impedance: Coax., Male BNC: 75? unbalanced
UTP, push-pin terminal block: 100? balanced
Wire Type
Network Wiring:On unshielded twisted pair (for each video signal) 24-16AWG (0.5~ 1.31mm)
Category Type: UTP Cat5e/ 6
Impedance: 100 ± 20ohms
Connector
Video In / Out:Male BNC Connector
Video In / Out:Push-pin terminal block
Protection
Surge Protection: Built-in translent voltage surge protection Video Input: 2K (common mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999)
Video Output:2K (differential mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999)
• 4 Pairs of 1CH HD-Video Passive Balun (8pc), transmit HD Video over UTP Cat5e/6 cable
• Each pack contains 2 connectors: a straight type and a tail type, BNC Male to RJ45 Push-pin Terminal Block
• Compatible with HDTVI / AHD / HDCVI / 960H
• Transmission Distance: 720P up to 1,443ft (440m) / 1080P up to 820ft (250m)
• Plug & Play, Built-in Transient Voltage Surge Protection
