Description
Brand: AOICRIE
<p>This bluetooth is good for adding bluetooth functionality for arduino project. Another use you will find for this bluetooth module</p> <p> </p> <p>is with your flight management controller on your quadcopter.</p> <p> </p> <p>It should be able to be used with several of the available options, so long as the control software supports bluetooth functionality.</p> <p><br></p> <p>With this module, you don't have to plug into your flight controller with a micro usb cable every time you want to tweak something,</p> <p><br></p> <p>upload a new configuration, or check data.</p> <p> </p> <p><b>Features:</b></p> <p>Works with Any USB Bluetooth Adapters</p> <p>Built in Antenna</p> <p>Bluetooth Version: V2.0+EDR</p> <p>Operating Voltage: 3.3V</p> <p>Default Baud Rate: 9600,8,1,n</p> <p>With LED Indicator Light, use 150mA and 3.3V Regulation Chip</p> <p><br></p> <p><b>Note:</b></p> <p>?SPP-CA Bluetooth Module Serial Port Level to 3.3V, if Connect 5V Level,the System Needs to Increase the Level Conversion Chip</p> <p>?The Bluetooth Signal is Greatly Affected by the Surrounding, Such as Trees, Metals, Walls and other Obstacles will have a Certain Bluetooth Signal Absorption or
• Works with any USB Bluetooth adapters, running in slave role: Pair with BT dongle. Led indicate Bluetooth connection status, flashing Bluetooth connectivity, lit the Bluetooth connection and open a port Backplane, when the bluetooth connection has not been established by pairing the AT command set

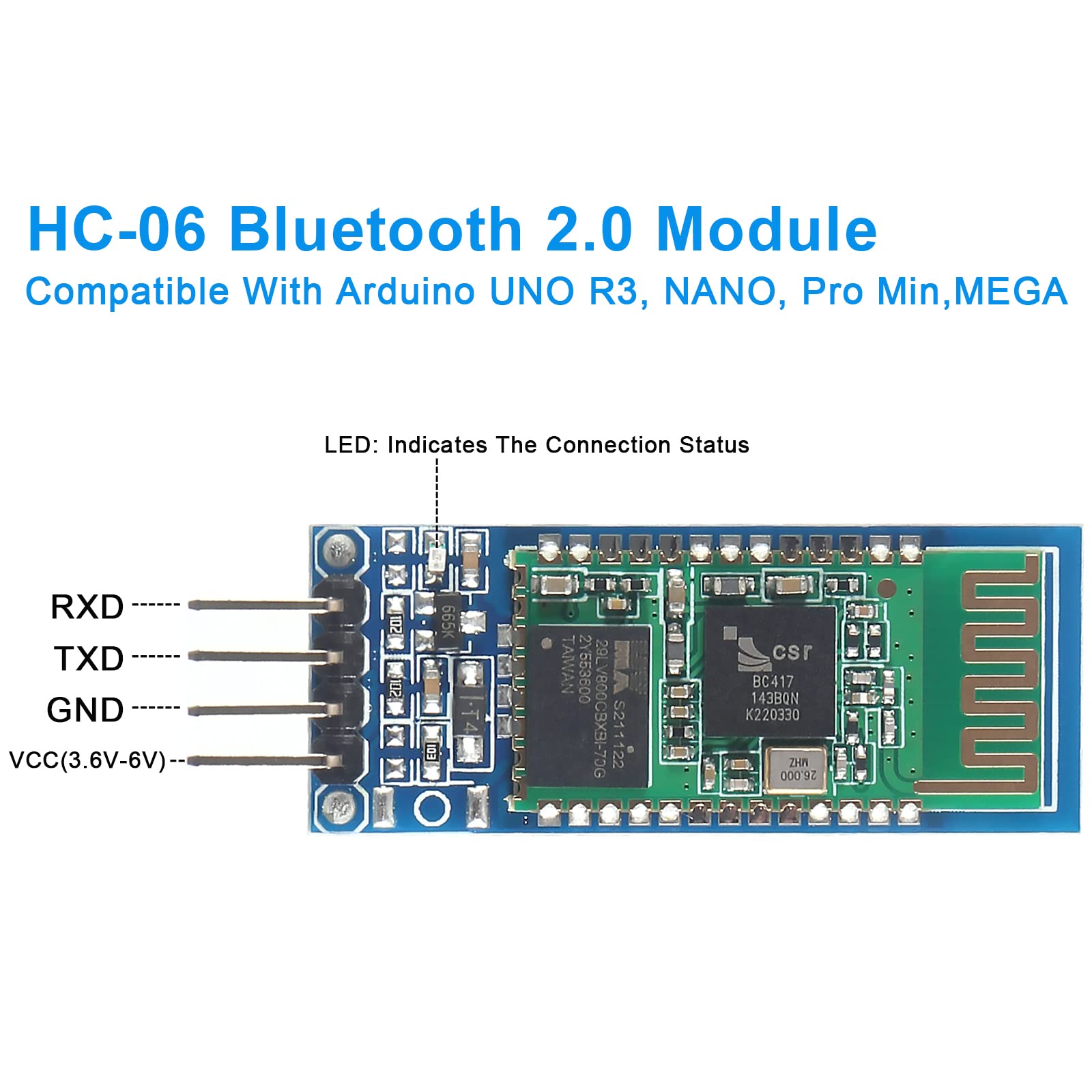

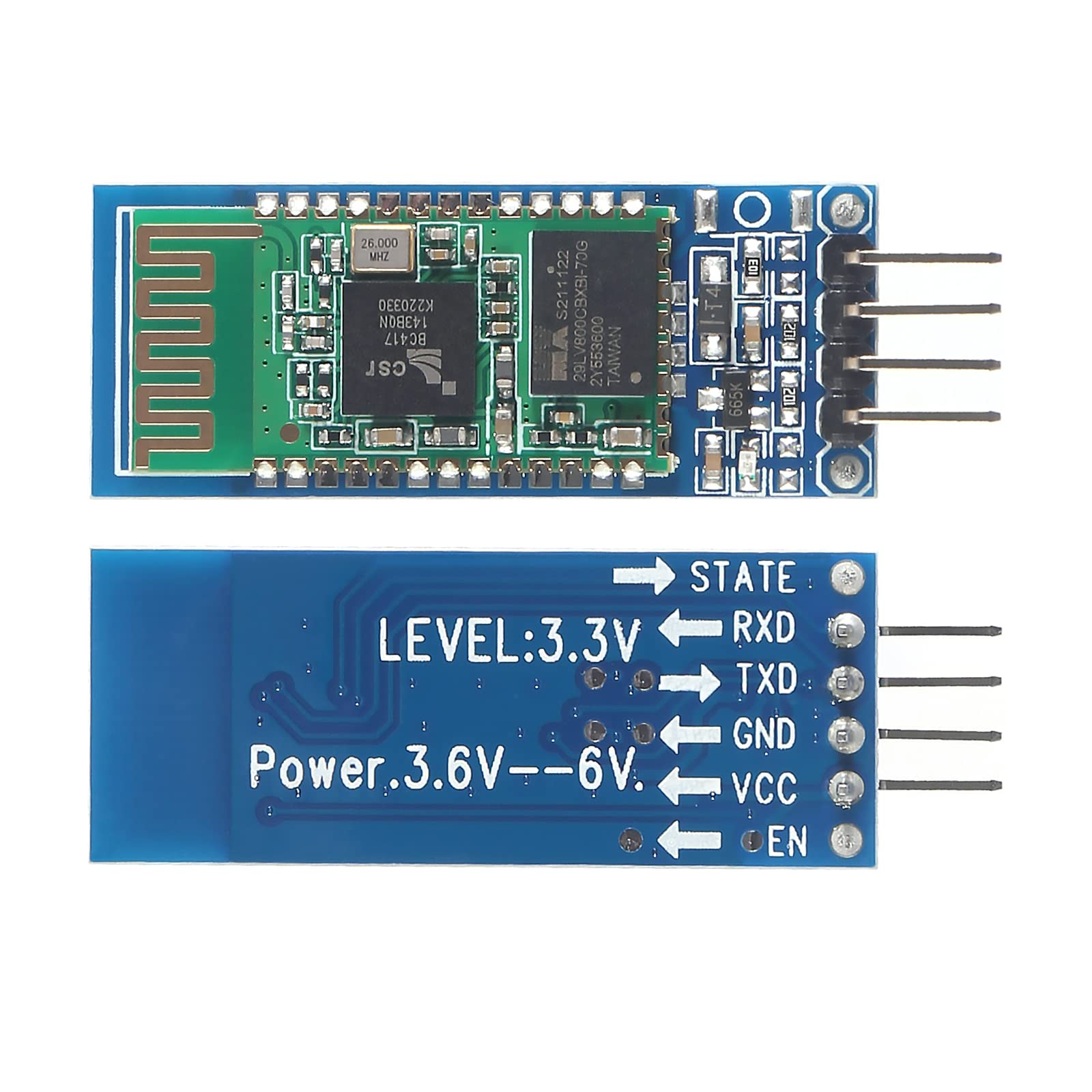

• Using HC - 06 from module , which leads to the interface includes VCC, GND, TXD, RXD, reserved LED state output pin, MCU can state whether the bluetooth is connected through the foot, from machine KEY pin is invalid.
• Interface level 3.3 V, the input voltage 3.6 ~ 6 V, current when the unpaired about 30 ma, matching after about 10 ma, no more than 7 V input voltage, can be connected directly to all kinds of single chip microcomputer, 5 V single chip can be connected directly, without MAX232 couldn't through
• The module is mainly used for short-range data wireless transmission,such as Bluetooth wireless data transmission,Industrial remote control, telemetry,Traffic, underground positioning, alarm,Smart home ect.
• Industrial serial port bluetooth, Drop-in replacement for wired serial connections, transparent usage. You can use it simply for a serial port replacement to establish connection between MCU and GPS, PC to your embedded project and etc.
Color: Black
<p>This bluetooth is good for adding bluetooth functionality for arduino project. Another use you will find for this bluetooth module</p> <p> </p> <p>is with your flight management controller on your quadcopter.</p> <p> </p> <p>It should be able to be used with several of the available options, so long as the control software supports bluetooth functionality.</p> <p><br></p> <p>With this module, you don't have to plug into your flight controller with a micro usb cable every time you want to tweak something,</p> <p><br></p> <p>upload a new configuration, or check data.</p> <p> </p> <p><b>Features:</b></p> <p>Works with Any USB Bluetooth Adapters</p> <p>Built in Antenna</p> <p>Bluetooth Version: V2.0+EDR</p> <p>Operating Voltage: 3.3V</p> <p>Default Baud Rate: 9600,8,1,n</p> <p>With LED Indicator Light, use 150mA and 3.3V Regulation Chip</p> <p><br></p> <p><b>Note:</b></p> <p>?SPP-CA Bluetooth Module Serial Port Level to 3.3V, if Connect 5V Level,the System Needs to Increase the Level Conversion Chip</p> <p>?The Bluetooth Signal is Greatly Affected by the Surrounding, Such as Trees, Metals, Walls and other Obstacles will have a Certain Bluetooth Signal Absorption or
• Works with any USB Bluetooth adapters, running in slave role: Pair with BT dongle. Led indicate Bluetooth connection status, flashing Bluetooth connectivity, lit the Bluetooth connection and open a port Backplane, when the bluetooth connection has not been established by pairing the AT command set
• Using HC - 06 from module , which leads to the interface includes VCC, GND, TXD, RXD, reserved LED state output pin, MCU can state whether the bluetooth is connected through the foot, from machine KEY pin is invalid.
• Interface level 3.3 V, the input voltage 3.6 ~ 6 V, current when the unpaired about 30 ma, matching after about 10 ma, no more than 7 V input voltage, can be connected directly to all kinds of single chip microcomputer, 5 V single chip can be connected directly, without MAX232 couldn't through
• The module is mainly used for short-range data wireless transmission,such as Bluetooth wireless data transmission,Industrial remote control, telemetry,Traffic, underground positioning, alarm,Smart home ect.
• Industrial serial port bluetooth, Drop-in replacement for wired serial connections, transparent usage. You can use it simply for a serial port replacement to establish connection between MCU and GPS, PC to your embedded project and etc.
Color: Black
