Description
Brand: FBHDZVV
Input voltage: DC 3.2V - 35V
Output Voltage: DC 1.25V - 35V (adjustable)
Output Current: 3A (max.)
Conversion Efficiency: 92% (max.)
Switching Frequency : 65KHz
Rectification: non-synchronous rectification
Module property: non-isolated buck module
Short circuit and over-temperature protection
Input voltage: DC 3.2V - 35V
Output Voltage: DC 1.25V - 35V (adjustable)
Output Current: 3A (max.)
Conversion Efficiency: 92% (max.)
Switching Frequency : 65KHz
Rectification: non-synchronous rectification
Module property: non-isolated buck module
Short circuit and over-temperature protection
Input: DC 3.2 V to 35 V (input voltage must be 1.5 V higher than the output voltage, no boost)
Output: DC 1.25 V to 35 V voltage is continuously adjustable, maximum output current is 3 A
Steps:

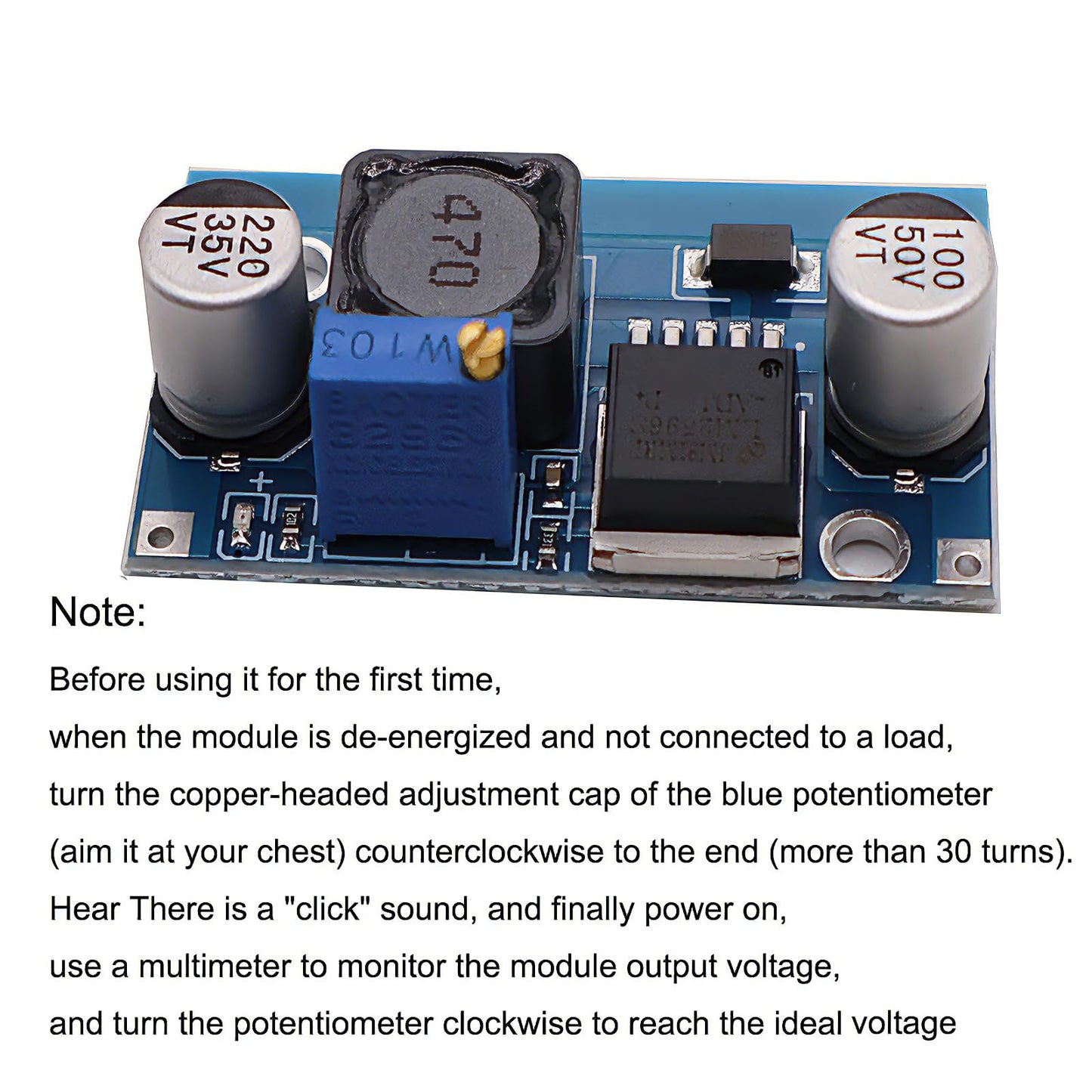

Connect to power source, adjust the swirl button on the blue potentiometer and monitor voltage with multimeter to get the needed voltage
(The factory have tested these at max voltage so they are very high by default, takes about 15-20 turns CCW before the voltage starts ramping down)
Package include:

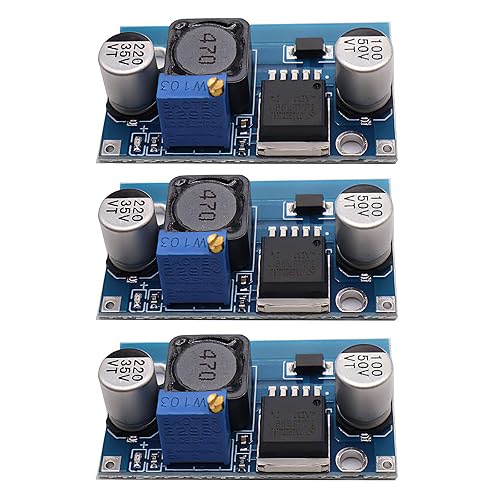

3 X LM2596S converter step down module
Note: 1.the input voltage should be higher than the output voltage
2.Input voltage must be 1.5 V higher than the output voltage, no boost
3.Do not reverse the input and output interface
4.Keep output under 2.5A and use a heat sink when for a long time working
• LM2596 buck converter supports 3.2V to 40V, adaptable to various power sources
• LM2596 with low ripple output, providing stable and reliable voltage performance, customize the output voltage with a precision multi-turn potentiometer
• LM2596 dc to dc buck converter with thermal shutdown and current limit protection devices from overheating and overload
• LM2596S step-down regulator achieve up to 92% conversion efficiency

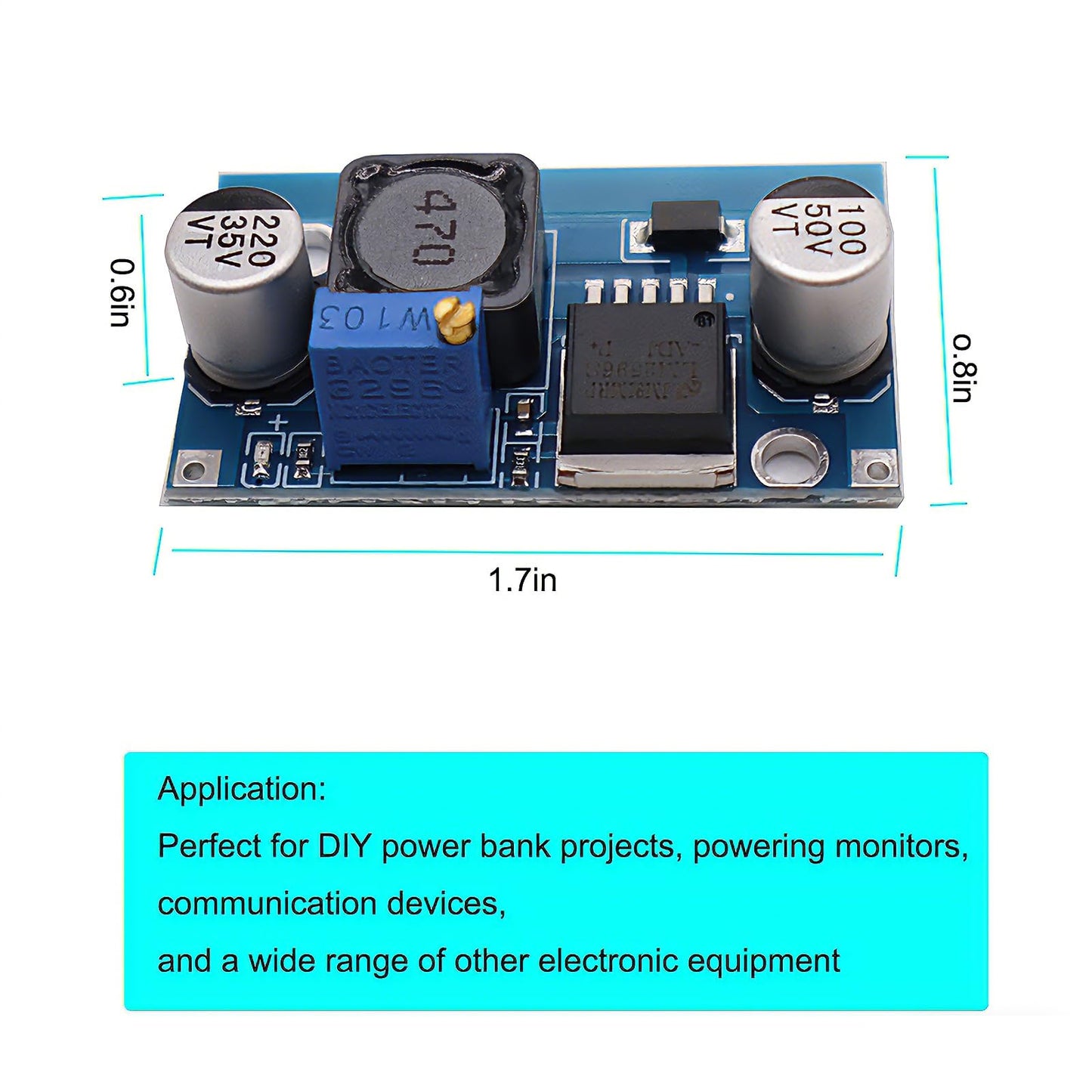

• Step-down module LM2596 providing flexibility for powering a wide range of electronic projects and devices, compatible with DIY mobile bank projects, monitors power supply, communication equipment supply
