Description
Brand: UCCKEYI

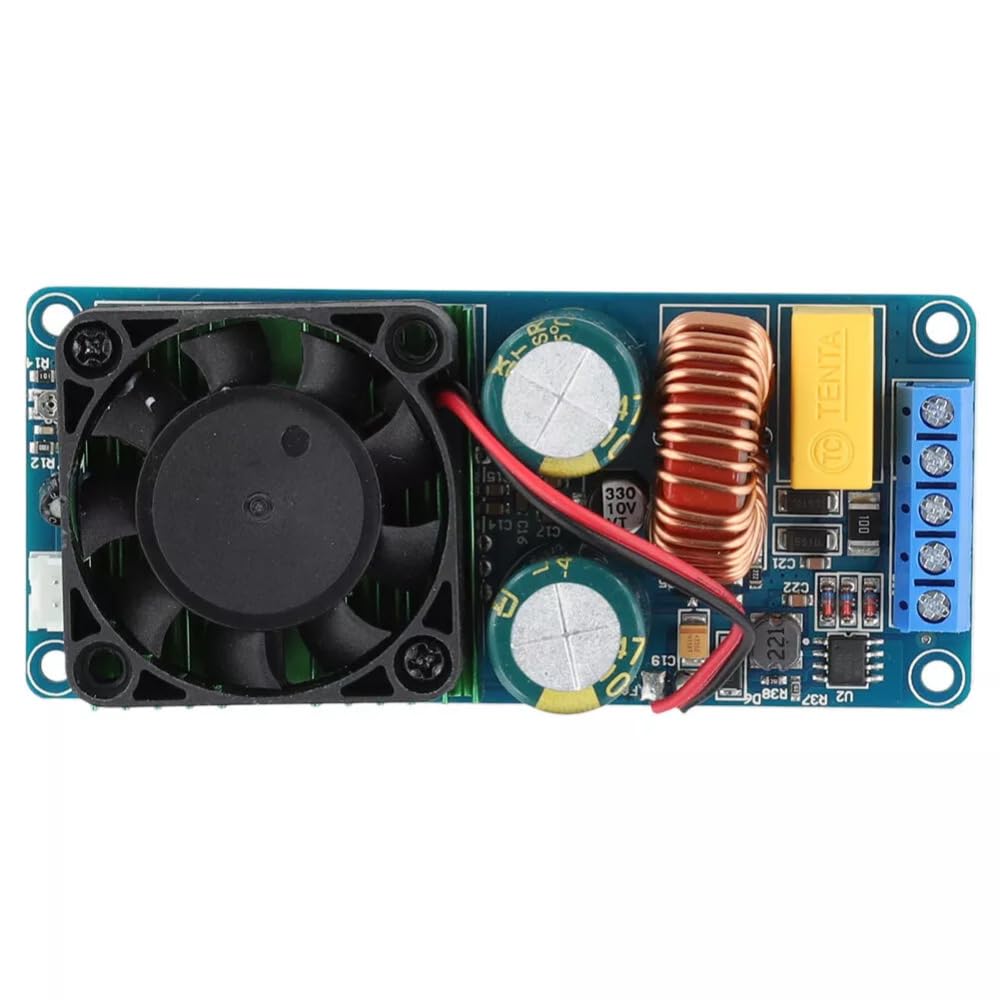

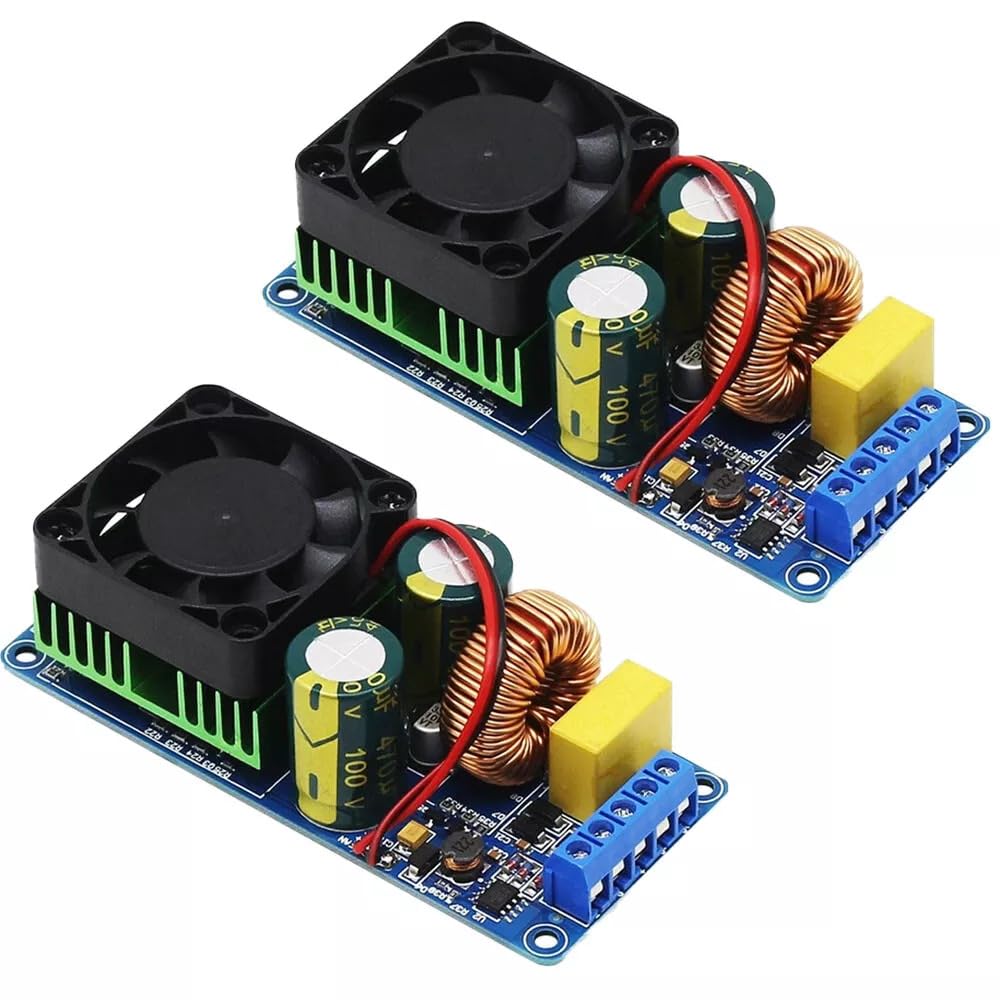

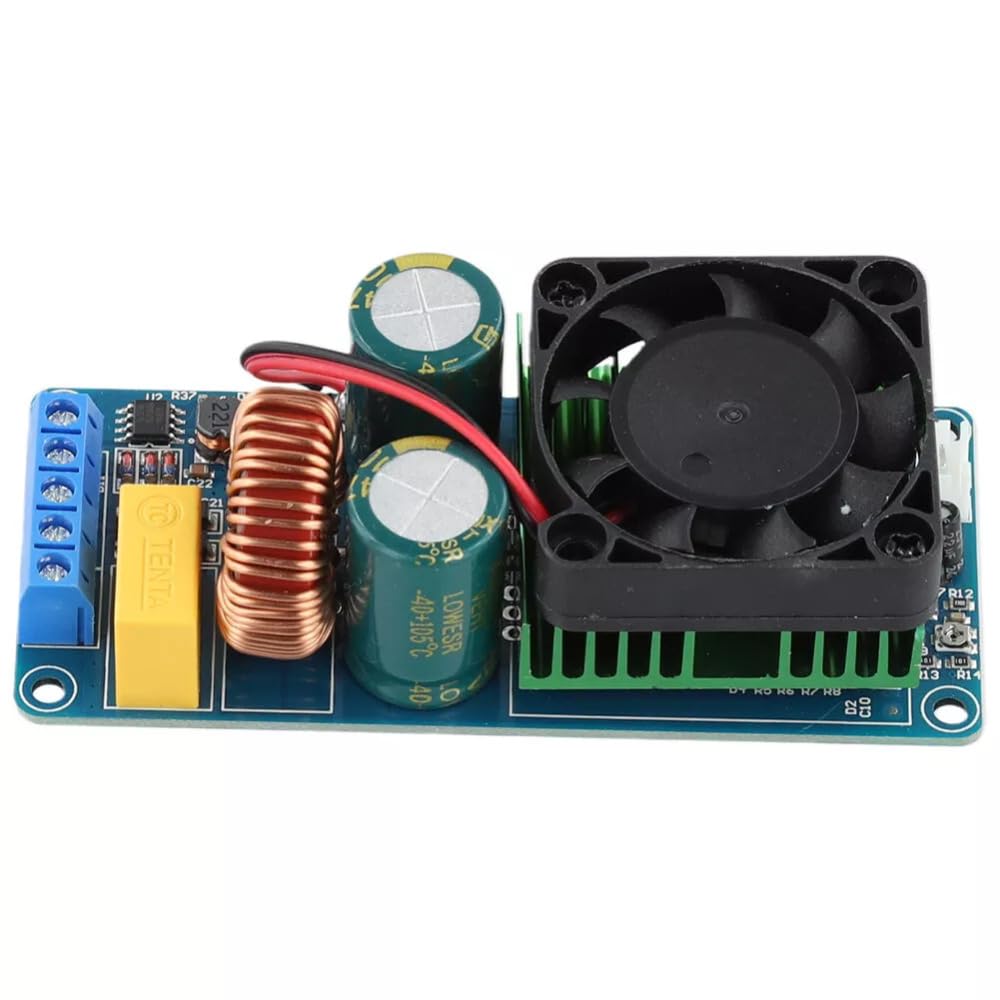

2Pcs IRS2092S 500W Mono Channel Digital Amplifier Class D HIFI Power Amp Board LM3886<br /><br />Specifications:<br />1. Power supply: dual DC power supply ± 58-± 70V<br />2. The rated output power: 500W (± 65V power supply, 4 ohm load, distortion 10%)<br />3. Efficiency:> = 90%<br />4. SNR: 90dB<br />5. The total harmonic distortion: 380W (± 65 power 4 ohm speaker, distortion <0.1%) 280W (± 65 power 8 ohm speaker, distortion <0.1%)<br />6. Frequency range: 20Hz-20KHz<br />7. Speaker: 4-8ohm<br />8. Voltage Magnification: 36 times<br />9. Input sensitivity 1.5V (RMS)<br />10. Output short circuit protection: Yes<br />11. That output DC bias protection speaker protection: Yes<br />12. Over-temperature protection: Yes, radiator FET temperature higher than 100 ° C, turn off the output!<br />13. Product Size: approx. 100*50*30mm/3.93*1.96*1.18''<br />14. Net weight: approx.100g<br />15. Qty:2Pcs<br /><br />Package included: <br />2Pcs Digital Amplifier Modules<br /><br />Note:<br />Please allow 1-3mm differs due to manual measurement.<br />Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.<br />
• Voltage Magnification:36 times
• Package included: 2Pcs Digital Amplifier Modules
• Frequency range:20Hz-20KHz

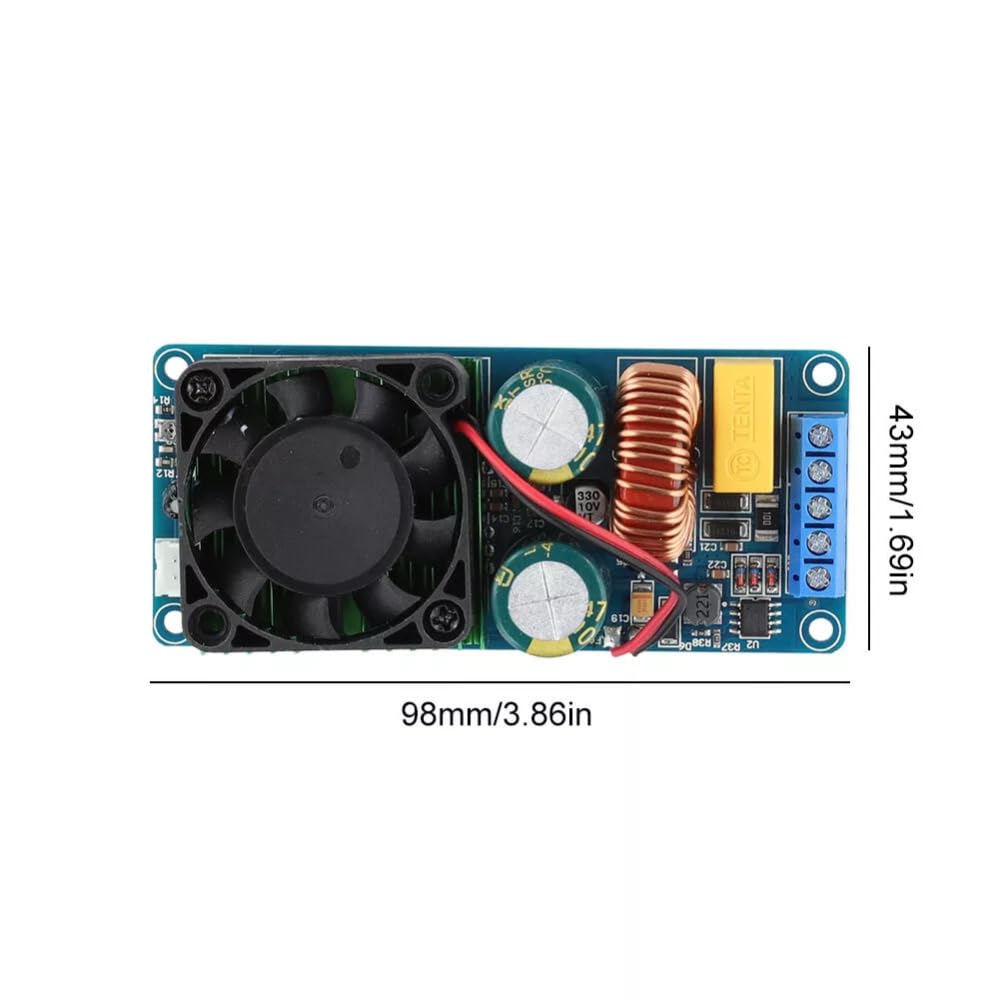

• Size:approx. 100*50*30mm/3.93*1.96*1.18''
Model: IRS2092S
2Pcs IRS2092S 500W Mono Channel Digital Amplifier Class D HIFI Power Amp Board LM3886<br /><br />Specifications:<br />1. Power supply: dual DC power supply ± 58-± 70V<br />2. The rated output power: 500W (± 65V power supply, 4 ohm load, distortion 10%)<br />3. Efficiency:> = 90%<br />4. SNR: 90dB<br />5. The total harmonic distortion: 380W (± 65 power 4 ohm speaker, distortion <0.1%) 280W (± 65 power 8 ohm speaker, distortion <0.1%)<br />6. Frequency range: 20Hz-20KHz<br />7. Speaker: 4-8ohm<br />8. Voltage Magnification: 36 times<br />9. Input sensitivity 1.5V (RMS)<br />10. Output short circuit protection: Yes<br />11. That output DC bias protection speaker protection: Yes<br />12. Over-temperature protection: Yes, radiator FET temperature higher than 100 ° C, turn off the output!<br />13. Product Size: approx. 100*50*30mm/3.93*1.96*1.18''<br />14. Net weight: approx.100g<br />15. Qty:2Pcs<br /><br />Package included: <br />2Pcs Digital Amplifier Modules<br /><br />Note:<br />Please allow 1-3mm differs due to manual measurement.<br />Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.<br />
• Voltage Magnification:36 times
• Package included: 2Pcs Digital Amplifier Modules
• Frequency range:20Hz-20KHz
• Size:approx. 100*50*30mm/3.93*1.96*1.18''
Model: IRS2092S
