Description
Brand: ALAMSCN
• Note:It is recommended to read the VL53L0X datasheet before using this product

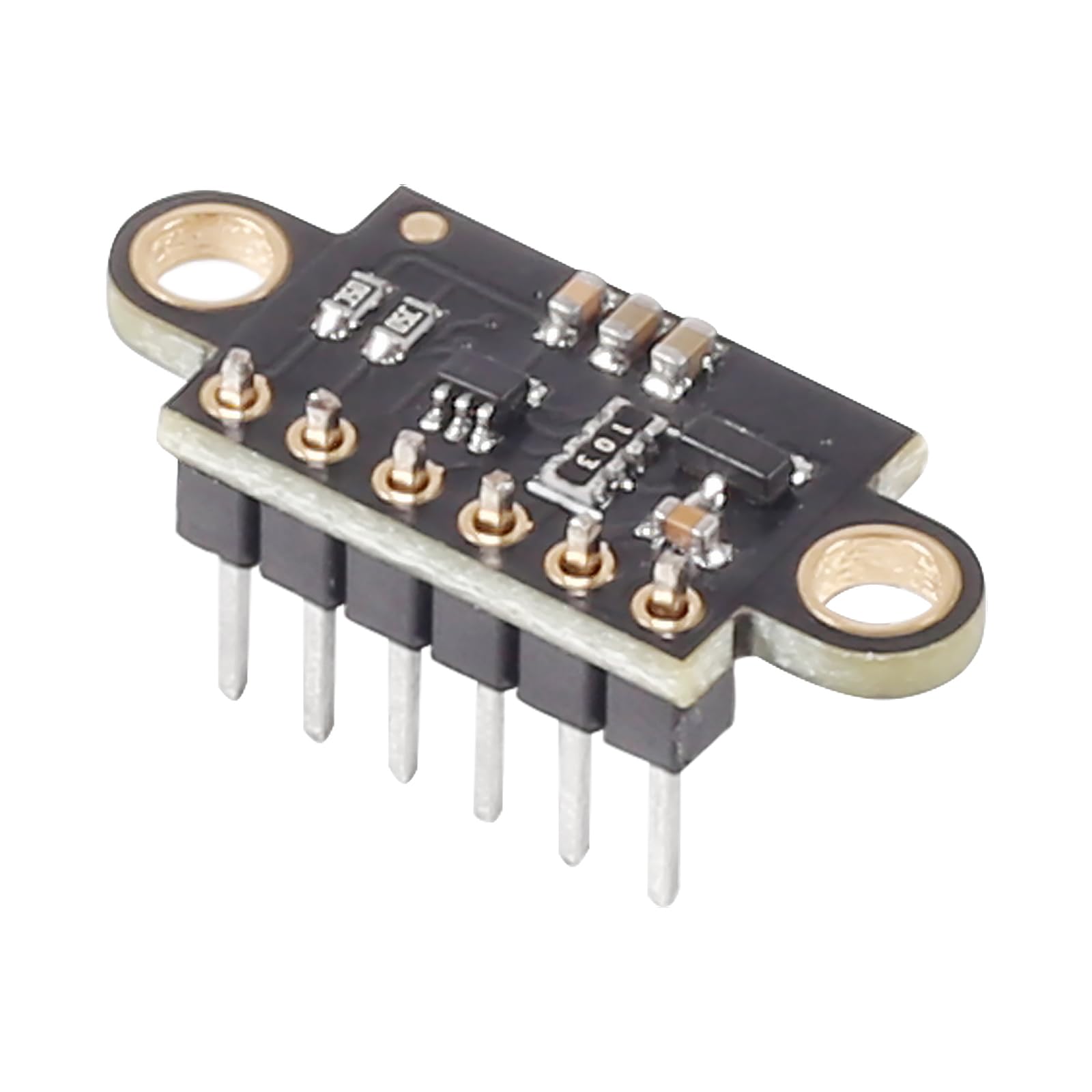

• VL53L0X:A time-of-flight ranging system integrated into a compact module
• Function:VL53L0 is a small self-contained liDAR system,which uses ST's FlightSense technology to measure the time it takes for emitted infrared laser pulses to reach the nearest object and reflect back to the detector
• Working Voltage: 2.8V-5V;Communication method: IIC communication protocol (compatible with 3-5V system)
• Package Includes:2 x VL53L0X Time-of-Flight Ranging Sensors
Ranging measurement is available through the sensor's I?2;C (TWI) interface,which can also be used to configure sensor settings.
The sensor provides 2 additional pins: a shutdown input and an interrupt output.
Application: Suitable for user detection PC,laptop, robots,drones obstacle detection.

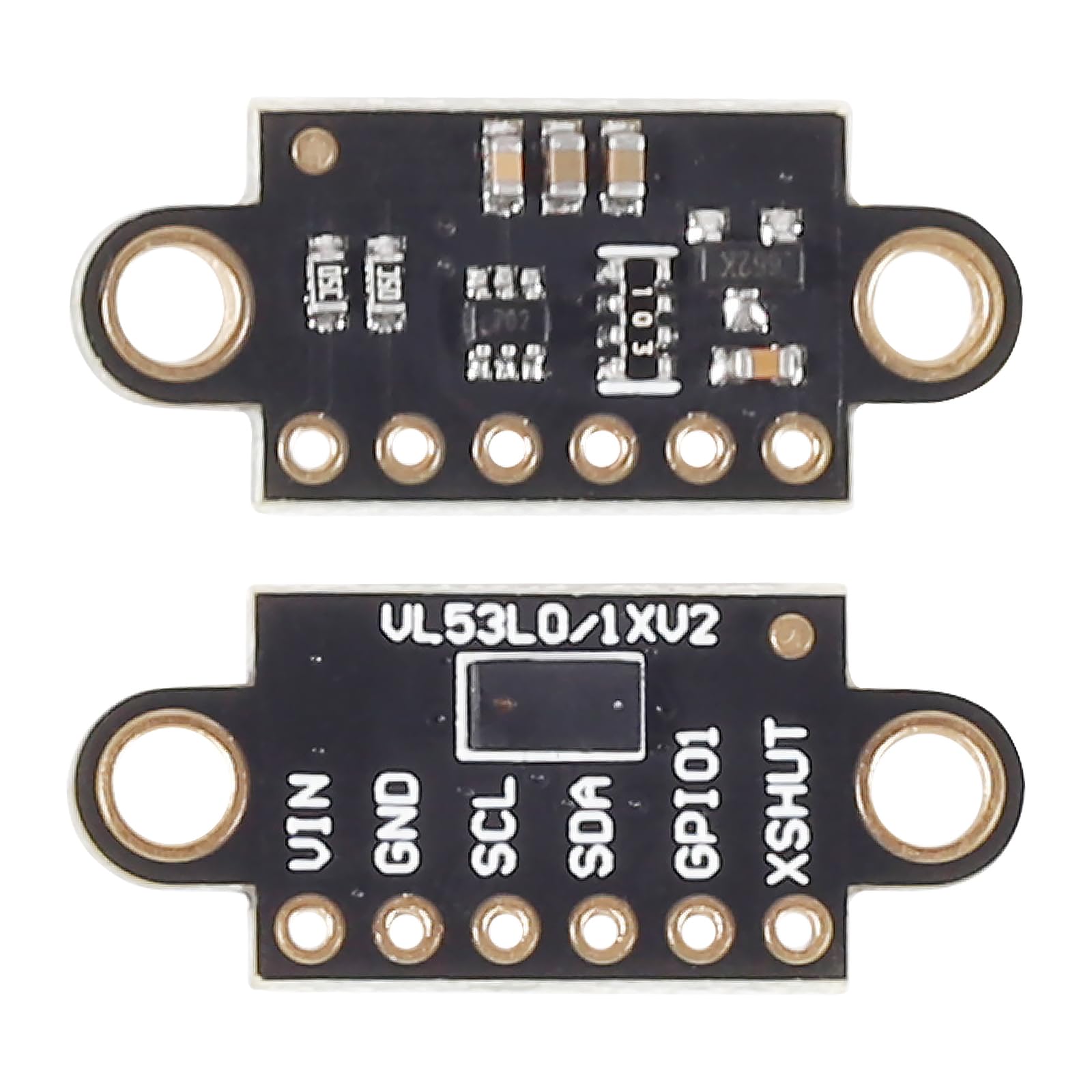

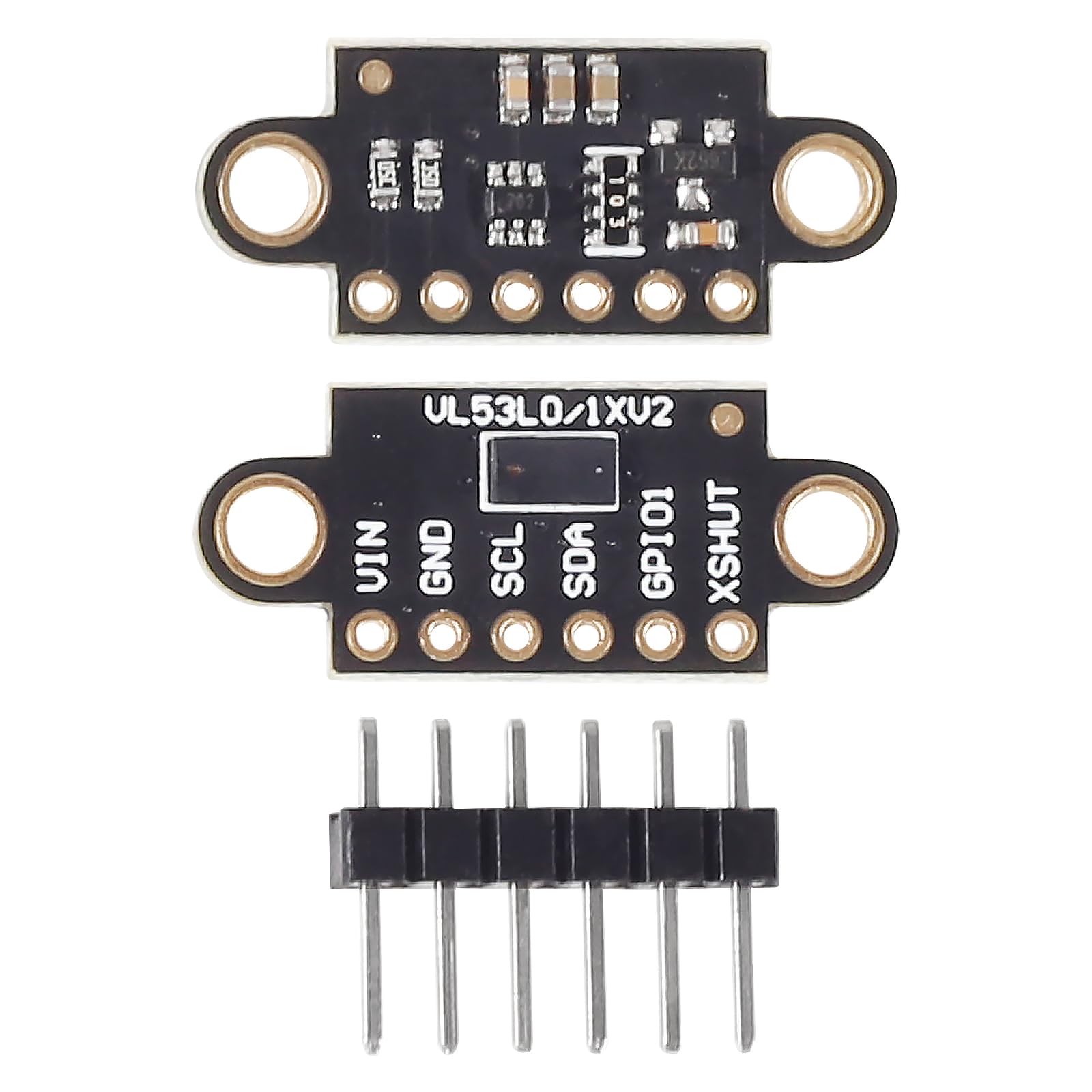

PIN Description:
VDD Regulated 2.8 V output. Almost 150 mA is available to power external components. (If you want to bypass the internal regulator,use this pin as a 2.8 V input with VIN disconnected.)
VIN:power supply connection. (The SCL and SDA level shifters pull the I2C lines high to this level.)
GND: Ground (0 V) connection for your power supply. ( Your I2C control source should also share a common ground with this board)
SDA Level-shifted I²C data line: HIGH is VIN, Low is 0 V
SCL Level-shifted I²C clock line: HIGH is VIN, Low is 0 V
XSHUT:An active-low shutdown input.
By default,the board pulls it up to VDD to enable the sensor.
Driving this pin low puts the sensor into hardware standby.
This input is not level-shifted.
Package:

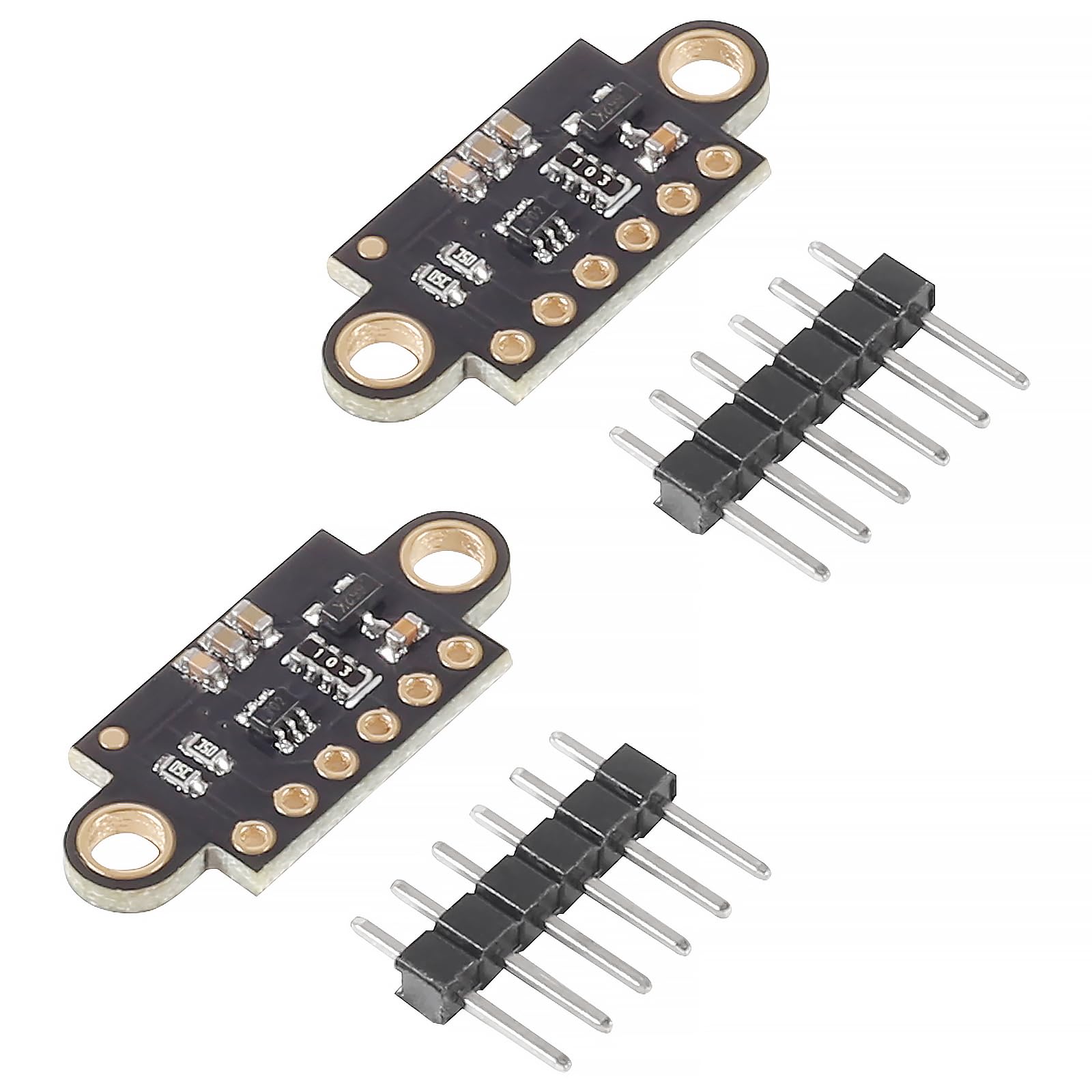

2x VL53L0X Time-of-Flight Ranging Sensor
• Note:It is recommended to read the VL53L0X datasheet before using this product
• VL53L0X:A time-of-flight ranging system integrated into a compact module
• Function:VL53L0 is a small self-contained liDAR system,which uses ST's FlightSense technology to measure the time it takes for emitted infrared laser pulses to reach the nearest object and reflect back to the detector
• Working Voltage: 2.8V-5V;Communication method: IIC communication protocol (compatible with 3-5V system)
• Package Includes:2 x VL53L0X Time-of-Flight Ranging Sensors
