Brand: E-Simpo

2pcs 9W G24 LED Bulb E-Simpo Horizontal Recessed 800-1000lm 2U CFL Retrofit PL-C 18W Equivalent 180 Degree Beam Pin Base LED Plug-in Bulb (Need Remove/Bypass The Ballast) <br><br><b/>Specification</b> <br>Input Voltage: 85-300V AC <br> Power: 9W LED, Can replace CFL 18W PLC Lamp <br> Non-Dimmable <br>CRI>82 <bR> Base: G24 <BR> Brightness: 9W: 800-1000Lumens; <br>Color Temperature: Warm White 3000-3500K; Cold White 6000-6500K <br><b/>Application: <br> 9W is used to Replace PL-C 18W 2U CFL. which are widely used in Use in Recessed/Surface-mounted Downlights, Recessed Cans, Table/Desk Lamps, Portables, Pendant Lamps, Ceiling Fixtures, Wall Washers, Wall Sconces, Family Rooms, Living Rooms, Kitchens, Dining Rooms, and Porches. <br> <br><br><b/>Note:</b> <br>THE BALLAST IN YOUR FIXTURE MUST BE REMOVED OR BYPASSED FOR THESE ADAPTERS TO FUNCTION PROPERLY. CONSULT AN ELECTRICIAN IF YOU ARE UNSURE. DO NOT OPERATE A LED BULB WITH A BALLAST IN THE FIXTURE,Otherwise the LED Lamp witll get flicking, burnt, smell, damaged. <br><Br><b/>How to bypass the ballast? <br>1. Turn Off the Power. <br>2. Find the Ballast. Usually it is embeded inside the ceiling fixture. Pls pull off the existing PL lamp, reflector. Leave wire in junction box. and find the ballast. <br>3. Normally, the Ballast has a black and white wire on the input side (AC input side, 100V -120V for North America). It also has two red and two blue output wires. To bypass this ballast, please cut all the Input and output wires, so total 6 wires cut. <br>4. Then, you can connect the two red wires to the black wire. <br>5. Next, connect the two blue wires to the white wire. now ballast is bypassed.</b>

Features:

• 2pcs 9W LED Bulb, Designed to replace 2U CFL PL-C 18W (Confirm acceptable length before ordering)
• Can Plug and play for INDUCTIVE/Magnetic ballast, But Need Remove the ELECTRONIC Ballast.

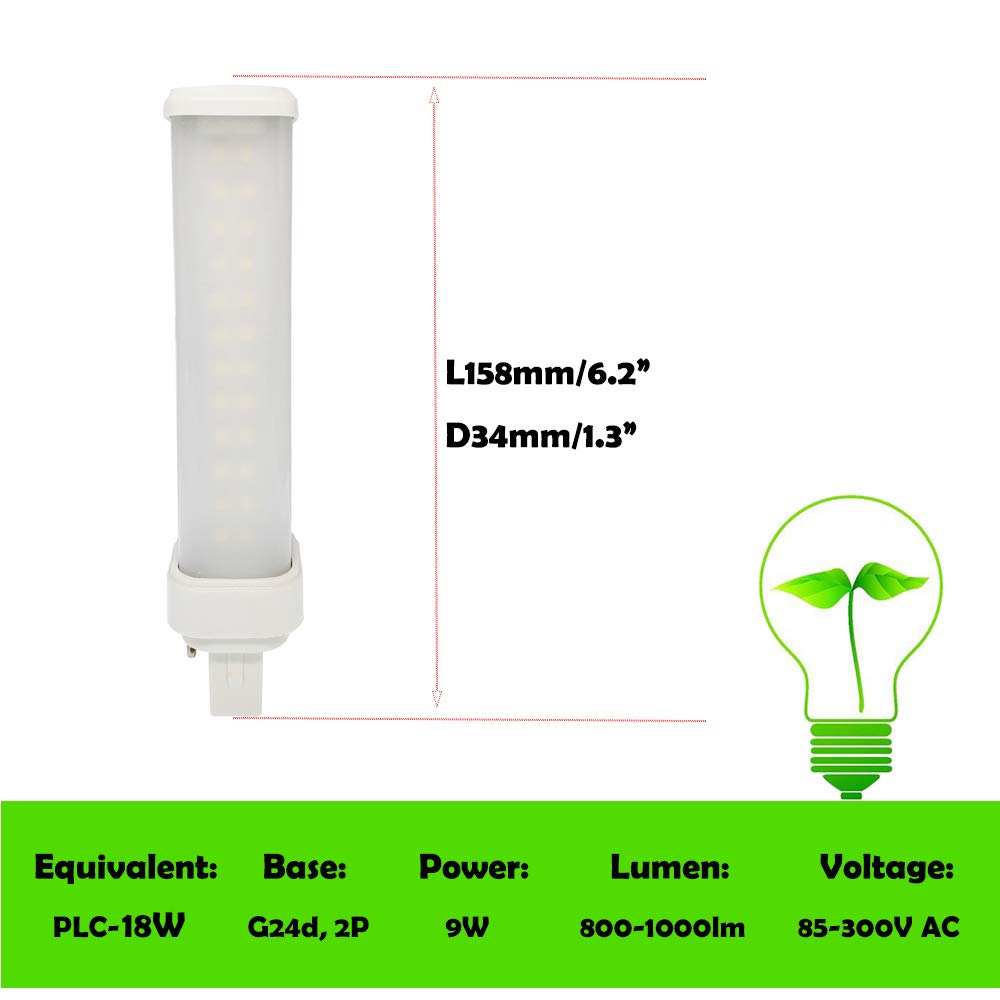

• Size: 2Pin G24D 158mm/6.2"*D34mm/1.4"
• 4Pin GX24Q 151mm/6.0"*D34mm/1.4"
• Replace Compact Fluorescent Lamps/CFL widely used in Recessed/Surface-mounted Down lights, Recessed Cans, Table/Desk Lamps, Portables, Pendant Lamps, Ceiling Fixtures, Wall Washers, Wall Sconces, Family Rooms, Living Rooms, Kitchens, Dining Rooms, and Porches.

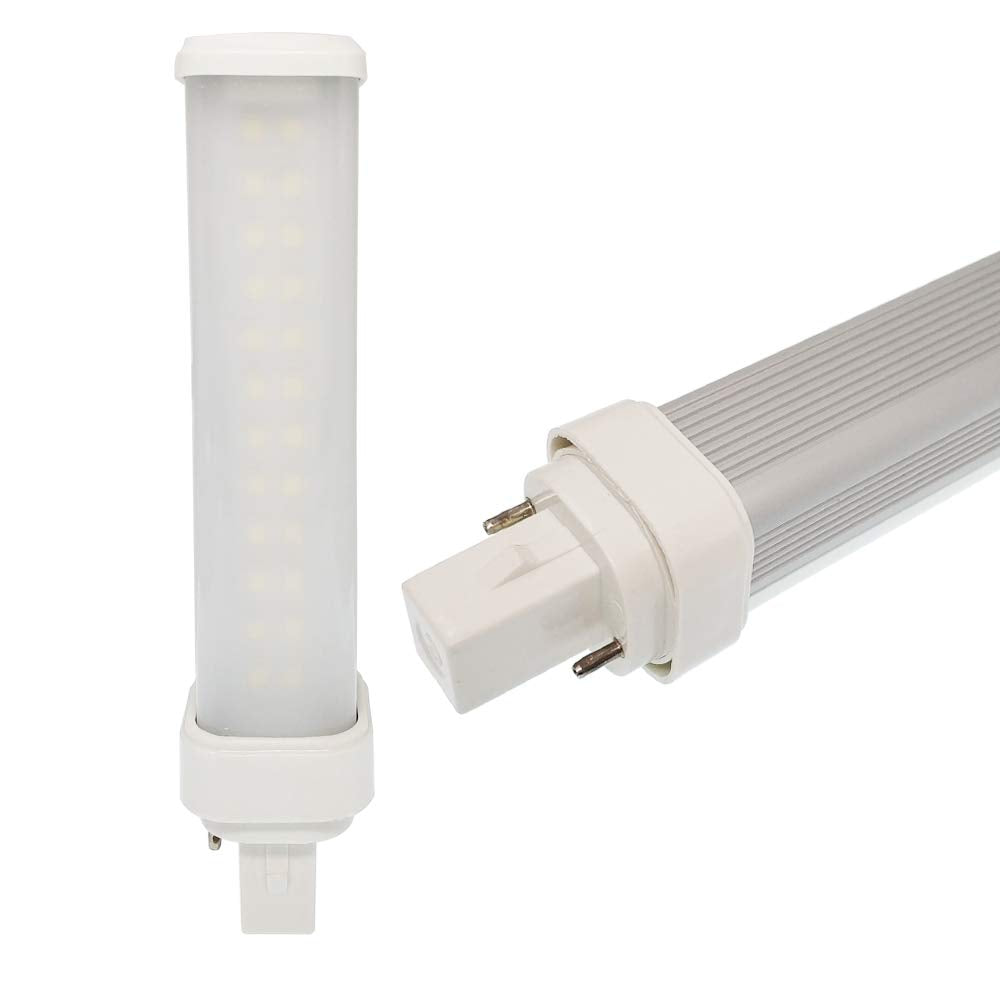

• Horizontal Plug-in Lamp, 180d beam angle

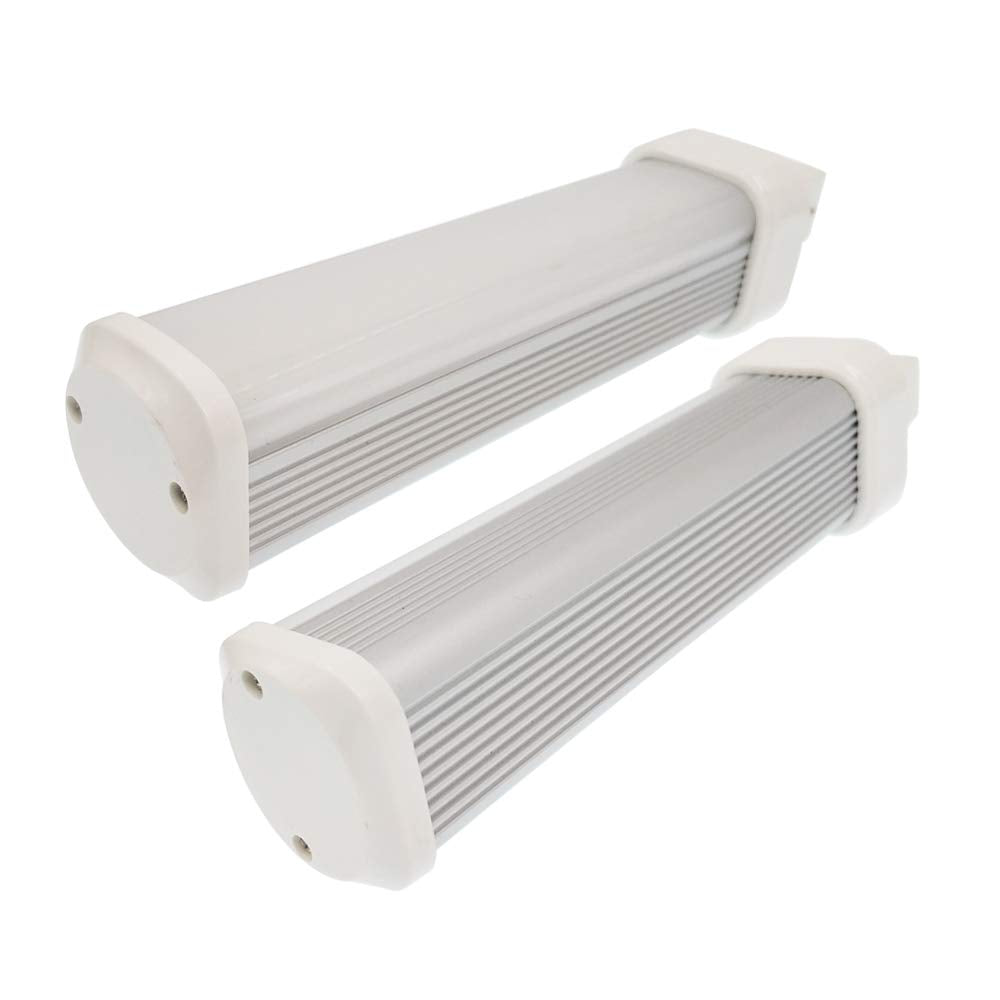

• Working voltage: AC 85-300V 50-60hz Aluminum Extrusion+Milky PC Cover

Product Details:

• Color: Daylight

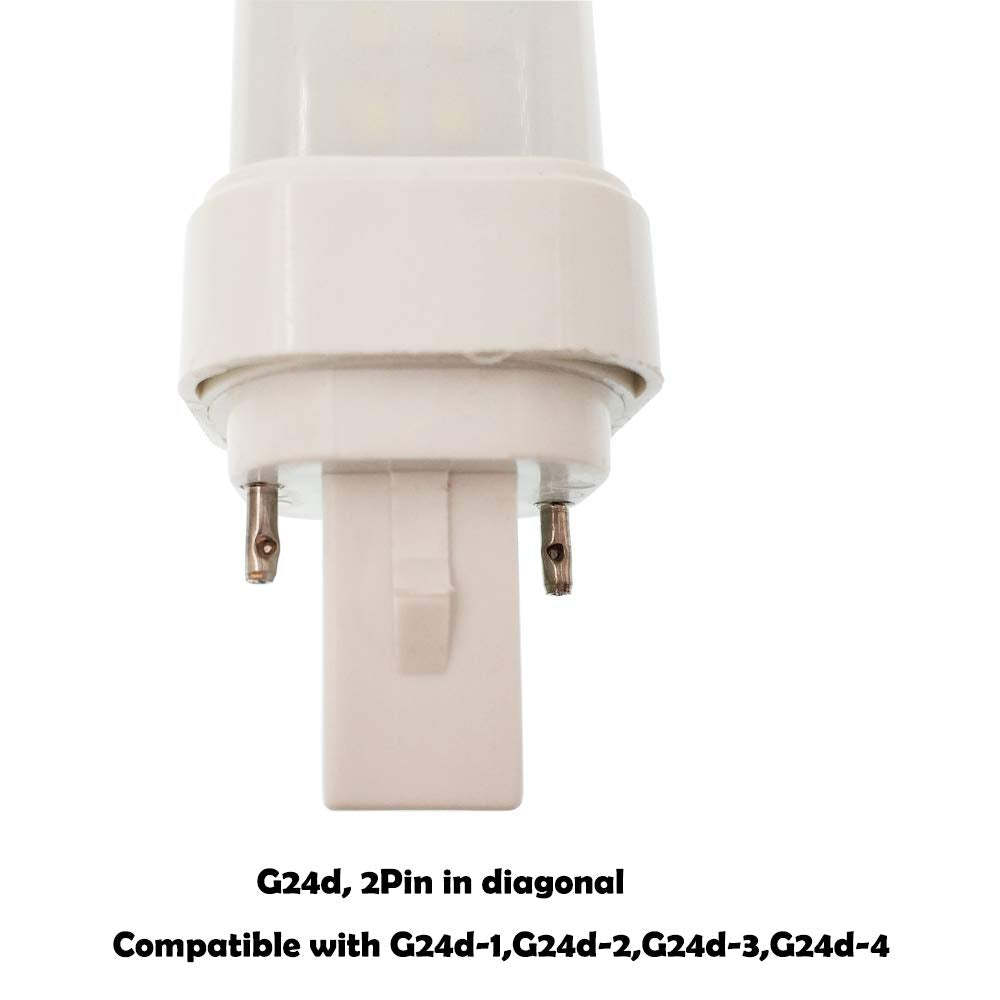

• Size: G24d 2Pin 21mm
• Package Quantity: 0
