Zoom
Description
Brand: Hereta

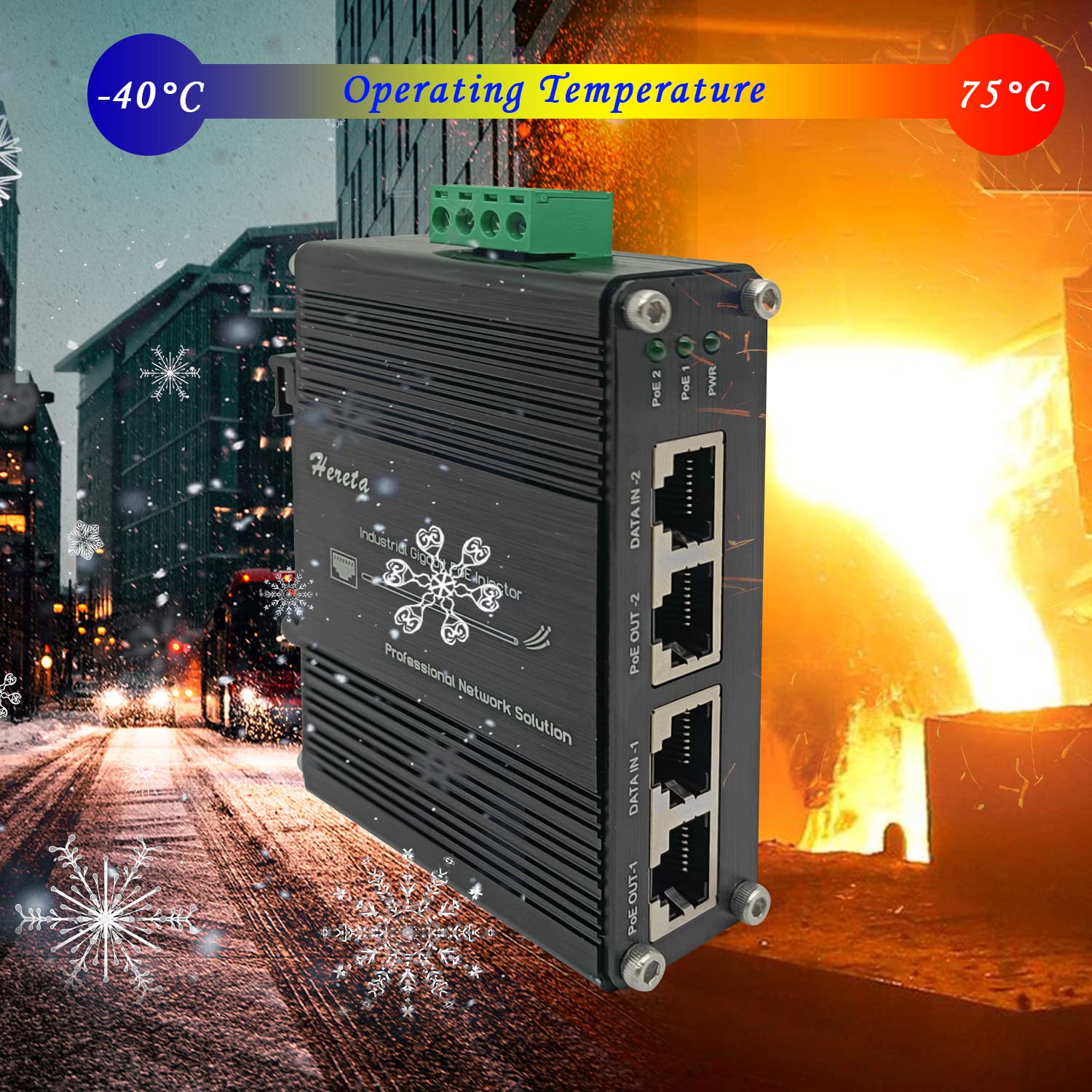

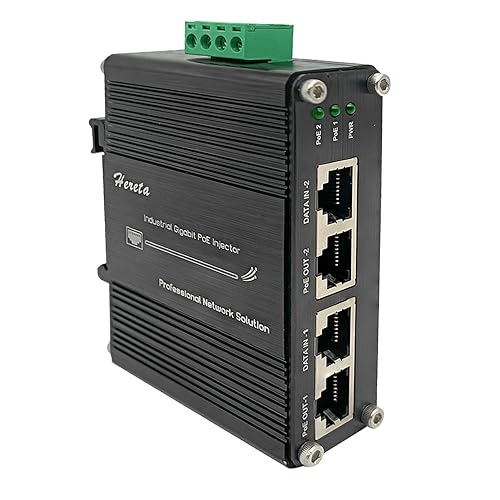

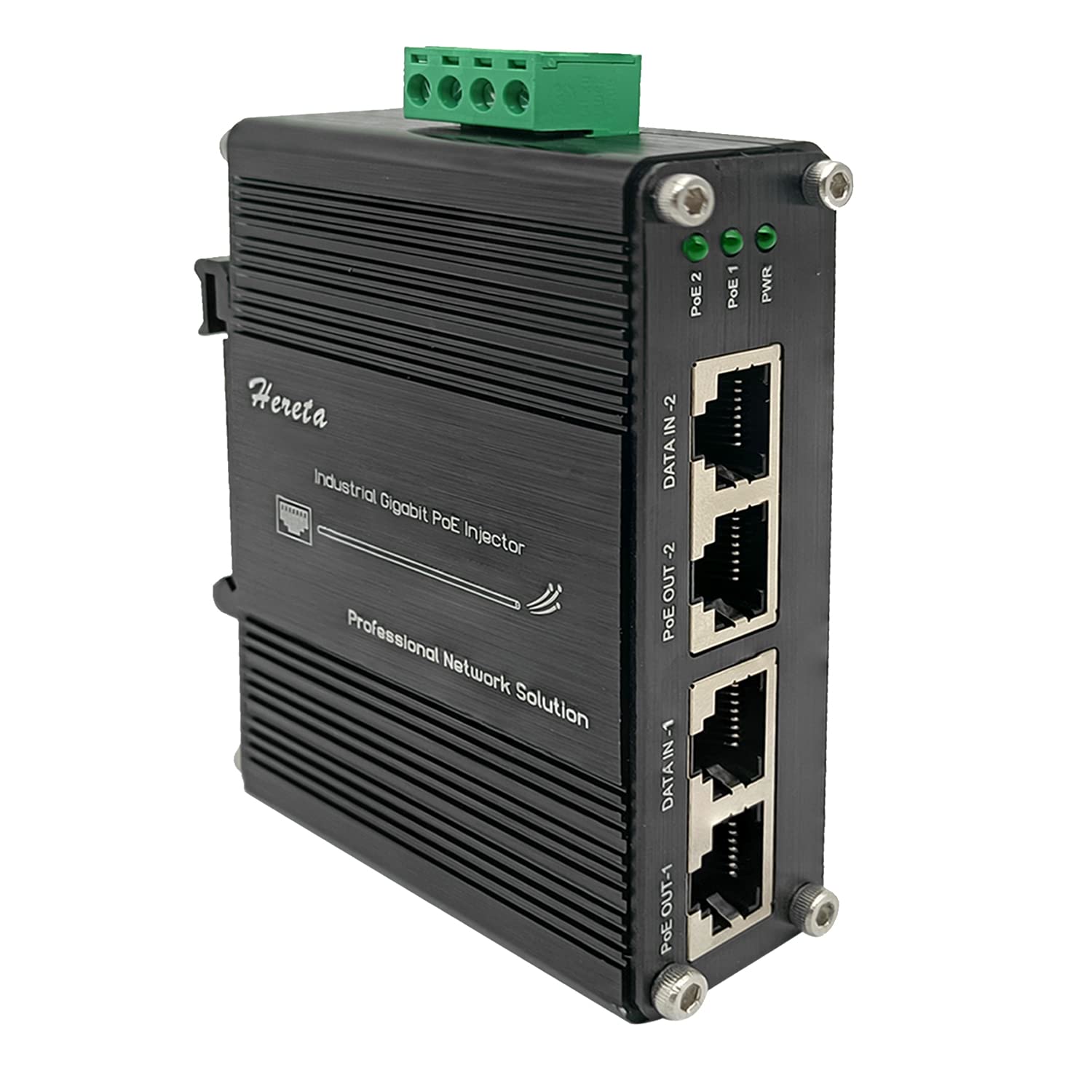

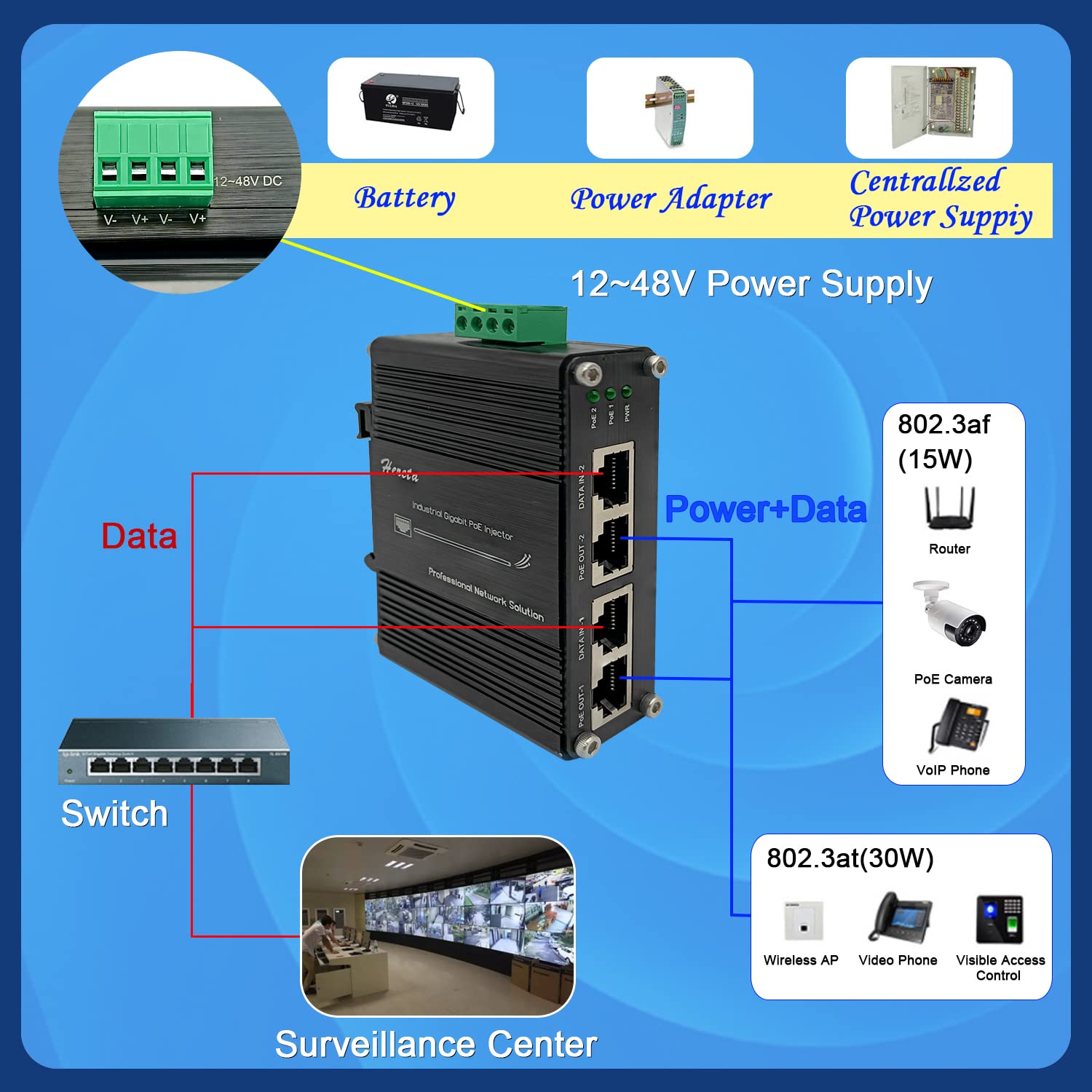

The LNK-INJ302 product is a Hardened 2 ports Gigabit High Power PoE+ Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. <br><br> Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at. <br><br> LNK-INJ302 provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications. <br><br> Product Features: <br> ?12~48VDC Power Input<br> ?2 RJ45 Ethernet Data Input Port + 2 RJ45 Power Over Ethernet Output Port(Data + Power) <br> ?Support IEEE802.3at Power over Ethernet(PoE+) Power Sourcing Equipment<br> ?Max 30W PoE at one ports, total POE power less than 60W <br> ?Support 10/100/1000Base-TX<br> ?Support DIN-Rail & Wall-mount installation. <br> ?Extensive LED indicators for PoE diagnostics<br> ?Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
• 2 RJ45 Ethernet Data Input Port + 2 RJ45 Power Over Ethernet Output Port (Data + Power), Support full/half-duplex(10/100Mbps half/full duplex and 1000Mbps full duplex)
• Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at
• The Gigabit PoE+ Injector provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications, Max 30W PoE at one ports, total POE power 60W, allows you to connect the IEEE 802.3 af/at PoE+ device

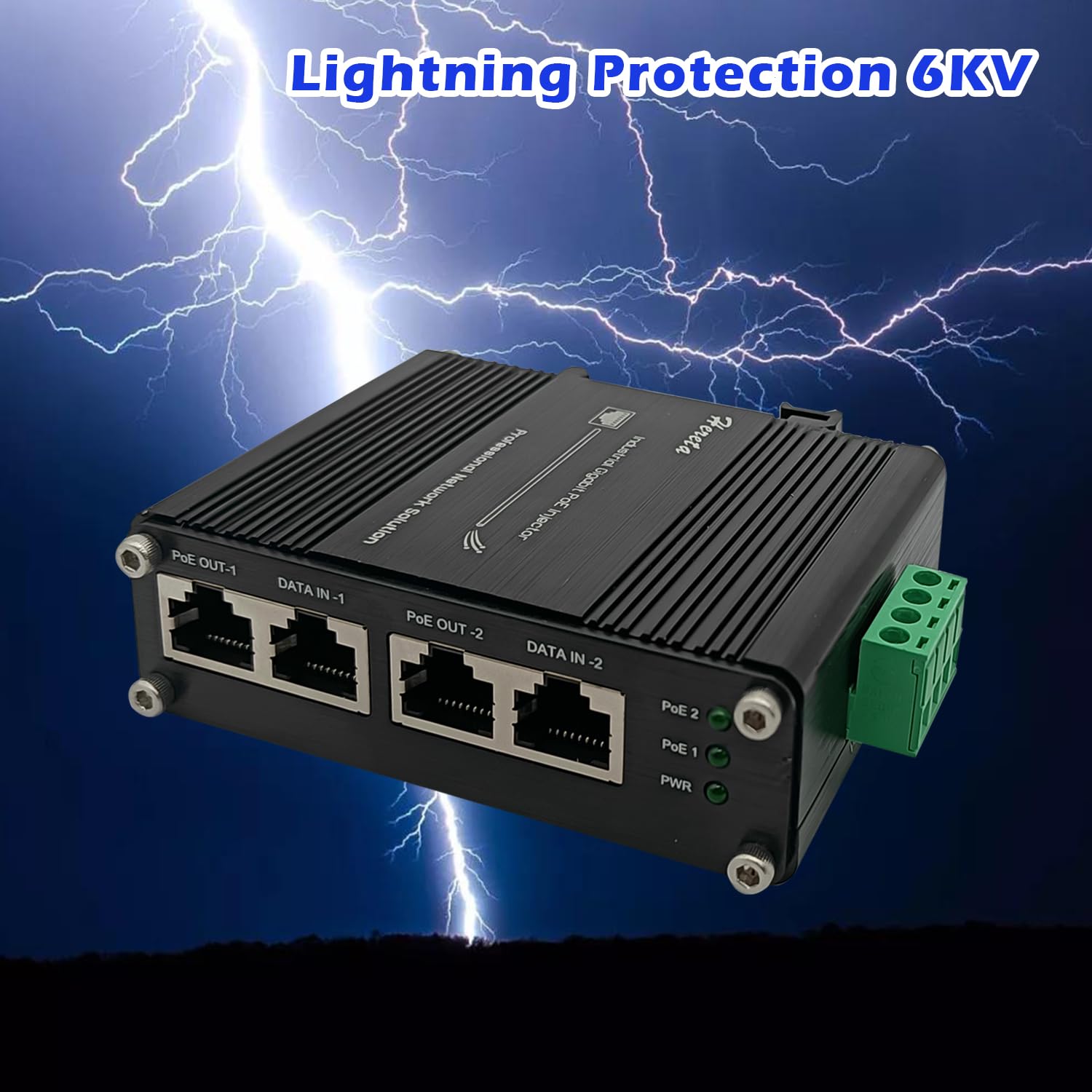

• Extensive LED indicators for PoE diagnostics, Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature, with surge Protection, RJ45:1KV, ESD: 4KV/8KV

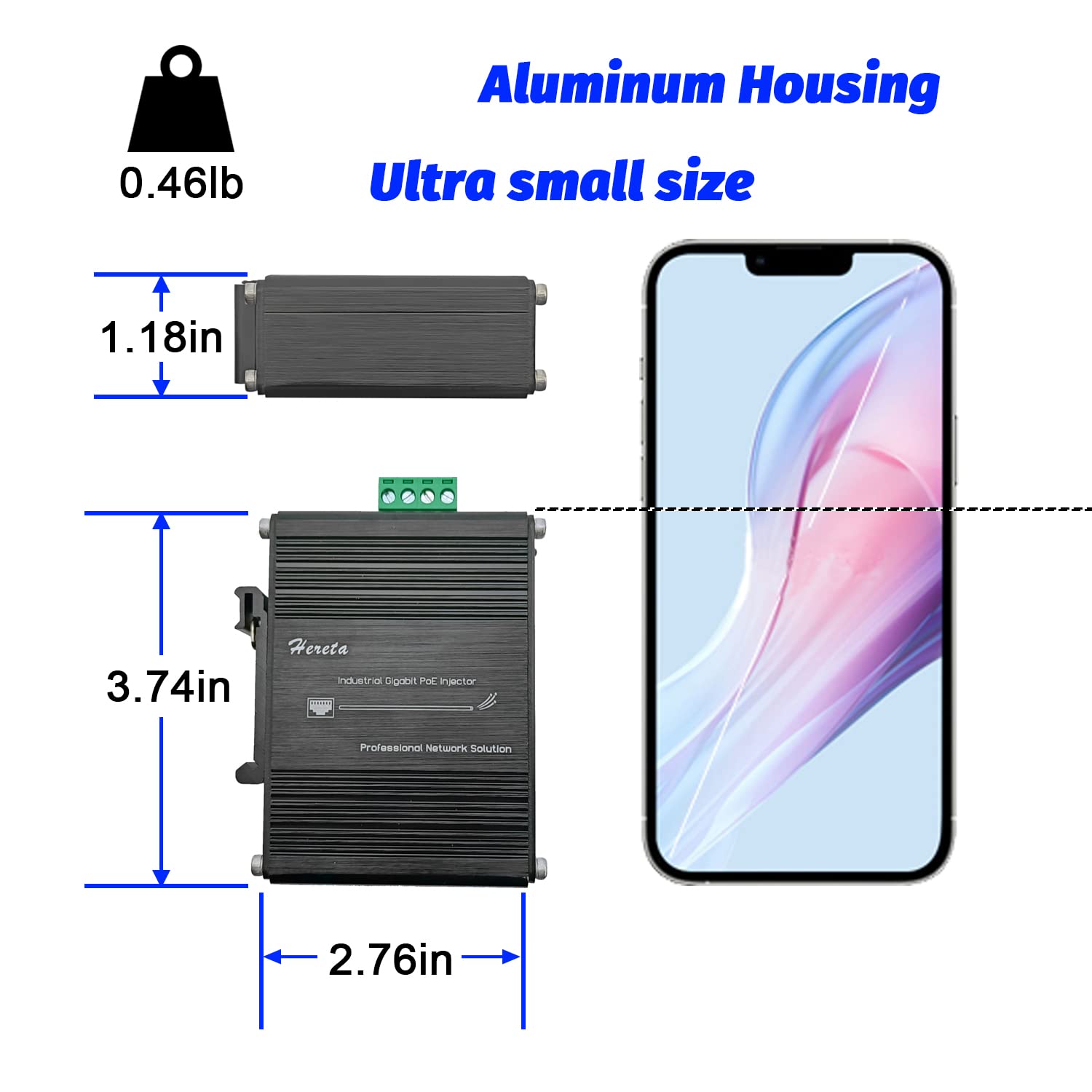

• The Industrial PoE Injector adopts the hard aluminum alloy, provide DIN-Rail & Wall-mount installation clips
Color: Black
The LNK-INJ302 product is a Hardened 2 ports Gigabit High Power PoE+ Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. <br><br> Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at. <br><br> LNK-INJ302 provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications. <br><br> Product Features: <br> ?12~48VDC Power Input<br> ?2 RJ45 Ethernet Data Input Port + 2 RJ45 Power Over Ethernet Output Port(Data + Power) <br> ?Support IEEE802.3at Power over Ethernet(PoE+) Power Sourcing Equipment<br> ?Max 30W PoE at one ports, total POE power less than 60W <br> ?Support 10/100/1000Base-TX<br> ?Support DIN-Rail & Wall-mount installation. <br> ?Extensive LED indicators for PoE diagnostics<br> ?Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
• 2 RJ45 Ethernet Data Input Port + 2 RJ45 Power Over Ethernet Output Port (Data + Power), Support full/half-duplex(10/100Mbps half/full duplex and 1000Mbps full duplex)
• Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at
• The Gigabit PoE+ Injector provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications, Max 30W PoE at one ports, total POE power 60W, allows you to connect the IEEE 802.3 af/at PoE+ device
• Extensive LED indicators for PoE diagnostics, Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature, with surge Protection, RJ45:1KV, ESD: 4KV/8KV
• The Industrial PoE Injector adopts the hard aluminum alloy, provide DIN-Rail & Wall-mount installation clips
Color: Black
