Description
Brand: Shutao
Model: 13397-1
Output current: 1A
Line adjustment rate: 0.2% (maximum)
Operating junction temperature range: -40 to 125°C
Welding temperature (25 seconds): 265°C
Storage temperature: - 65~150°C

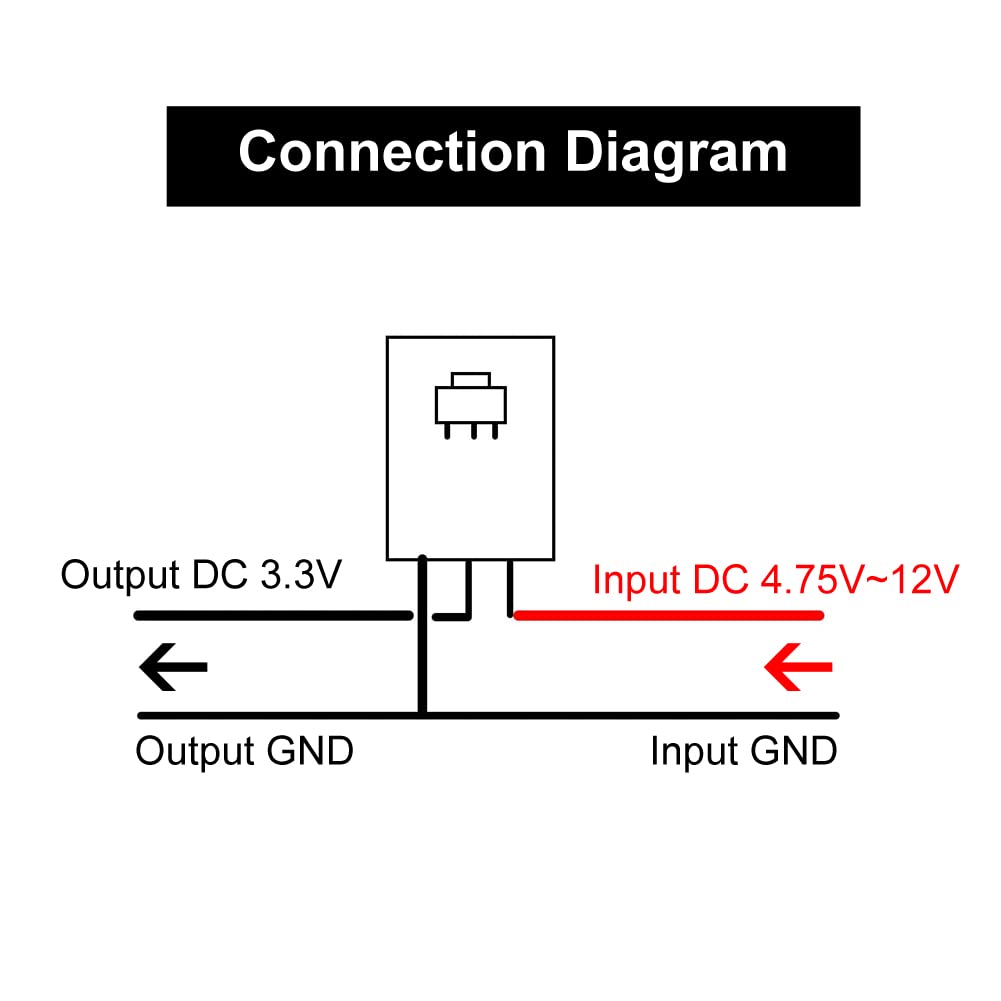

Output voltage: 3.267 to 3.333V (IOUT: 0 to 1A, VIN :4.75V to 12V)
Line adjustment (maximum): 10mV (VIN :4.75V to 12V)
Load regulation (maximum): 15mV (VIN = 5V, IOUT: 0 to 1A)
Voltage difference (maximum): 1.3V
Current limit: 900 ~ 1500mA
Quiescent Current (Max): 10mA
Ripple suppression (minimum): 60dB
Model: 13397-1
Output current: 1A
Line adjustment rate: 0.2% (maximum)
Operating junction temperature range: -40 to 125°C
Welding temperature (25 seconds): 265°C
Storage temperature: - 65~150°C
Output voltage: 3.267 to 3.333V (IOUT: 0 to 1A, VIN :4.75V to 12V)
Line adjustment (maximum): 10mV (VIN :4.75V to 12V)
Load regulation (maximum): 15mV (VIN = 5V, IOUT: 0 to 1A)
Voltage difference (maximum): 1.3V
Current limit: 900 ~ 1500mA
Quiescent Current (Max): 10mA
Ripple suppression (minimum): 60dB
Note:
Boost modules or buck module indicate the operating voltage, Please donot exceed operating voltage , or it will be damaged easily !
Boost module output voltage can only be greater than or equal to input voltage, cannot be less than the input voltage!
Buck module input voltage must be higher than output voltage of 1.5V or 2V, otherwise it can not output enough power!
Automatic Adjustable Boost or Buck module has start voltage and limit working voltage, Please donot exceed them , or it will be damaged easily !
Cannot reverse polarity , or it will be short circuit, or will be born easily !
Package include:

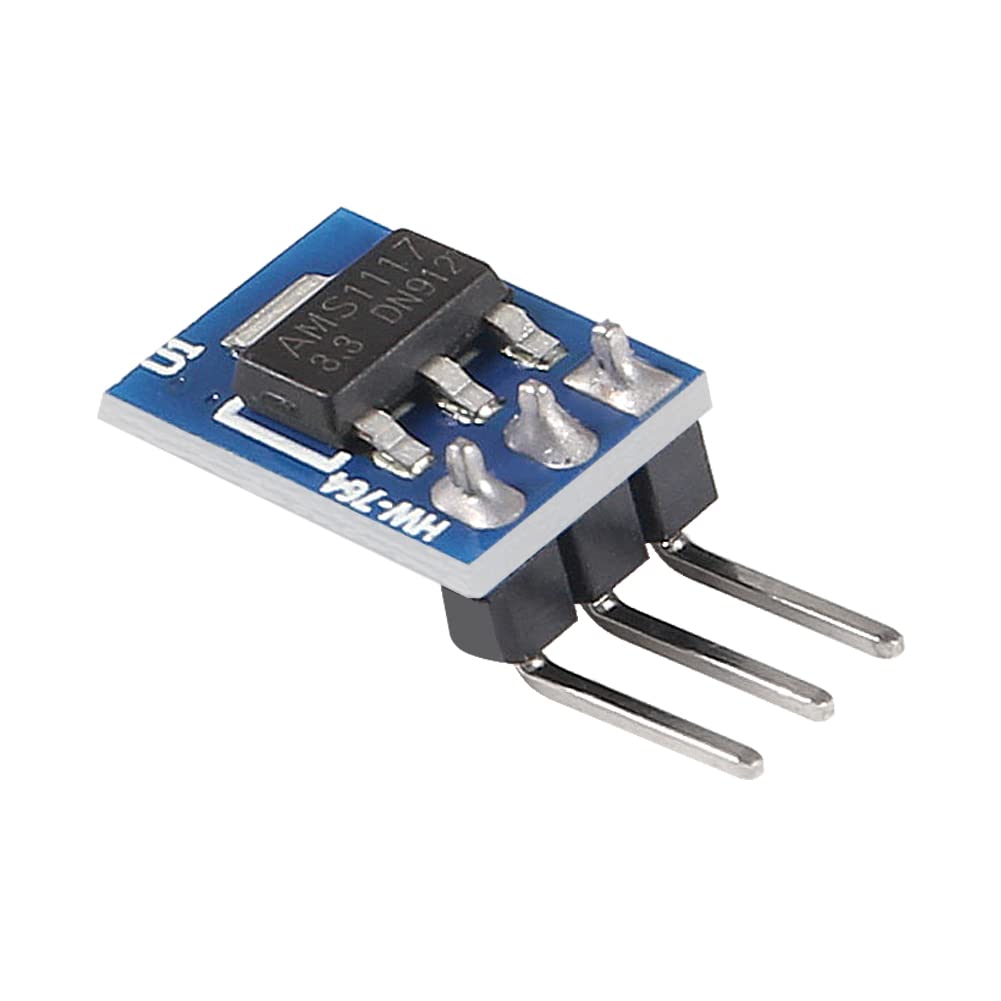

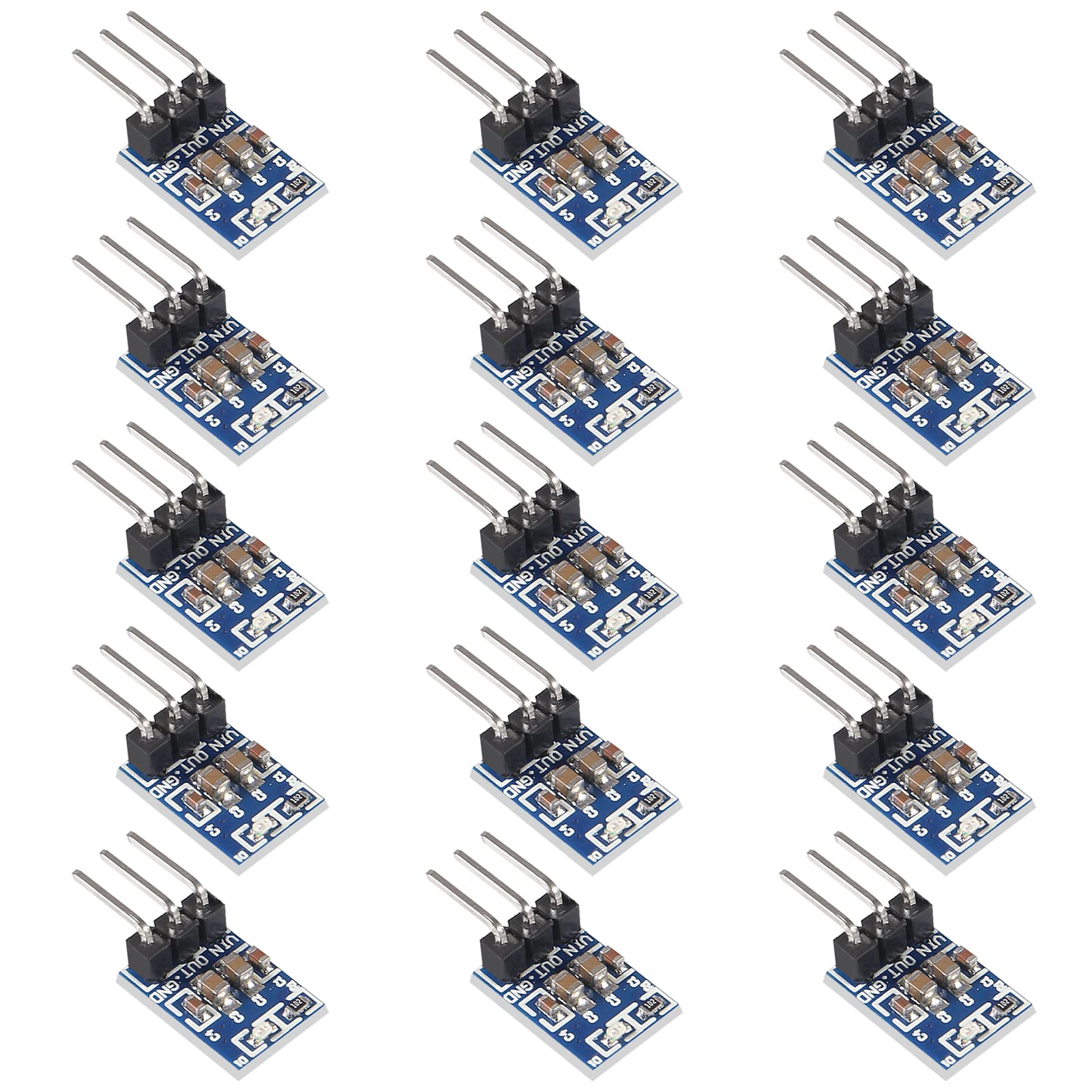

15 x 3 pins AMS1117 3.3v module
• AMS1117 step-down power supply buck module input: 4.5 V DC - 7 V (input voltage must be wining the to the output voltage high 1 V above.)
• AMS1117 step-down power supply buck module the output: 3.3 V, 800 mA (the load current can 't wining 800 mA)

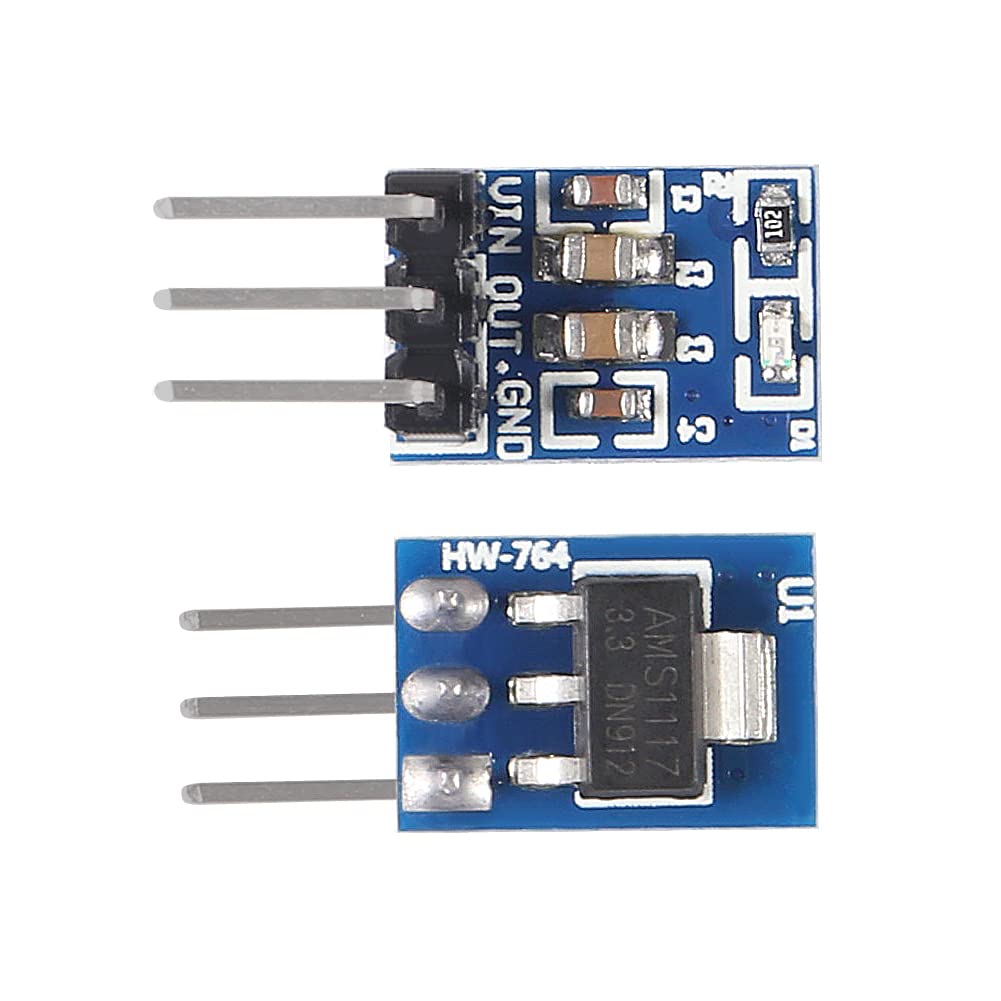

• The module is suitable for electronic devices such as SCM project design needs 5V power supply, It is simple Dual-panel design and the Input output using the 2 Pin single row pin for easy connection.
• Buck module input voltage must be who the output voltage of 1.5 V or 2 V, otherwise it can not output the enough power!

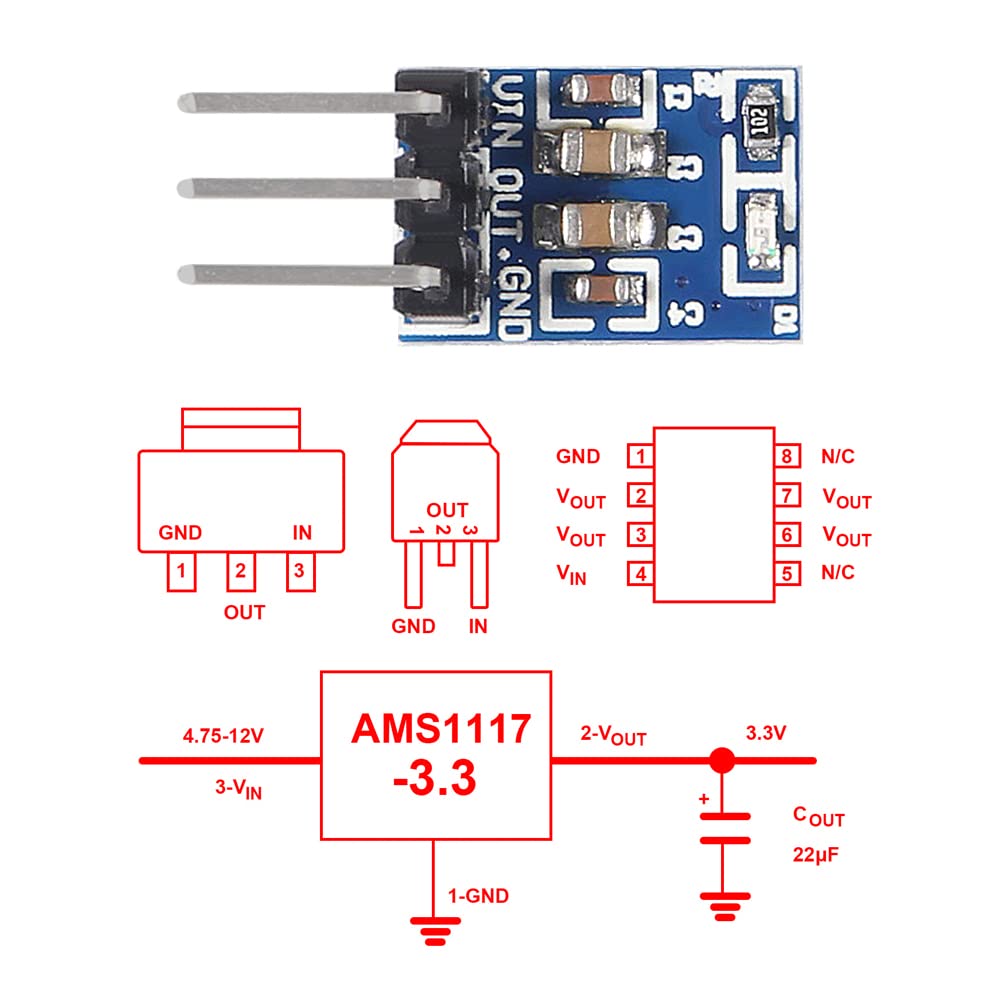

• AMS1117-3.3 pinout can be easy to connected with your MCU development and provide the contant power supply.
Color: Blue
