Description
Brand: Envistia
Model: 3V 3A DC-DC Converter
• Converts a 12V input voltage (will operate with any input voltage from 8V to 24V) to 3.3V DC (+2% -10%) output at up to 3A
• Up to 9W output power (3V at 3A)
• Fully sealed and waterproof
• Overload / over-current / over / low voltage protection, stable performance

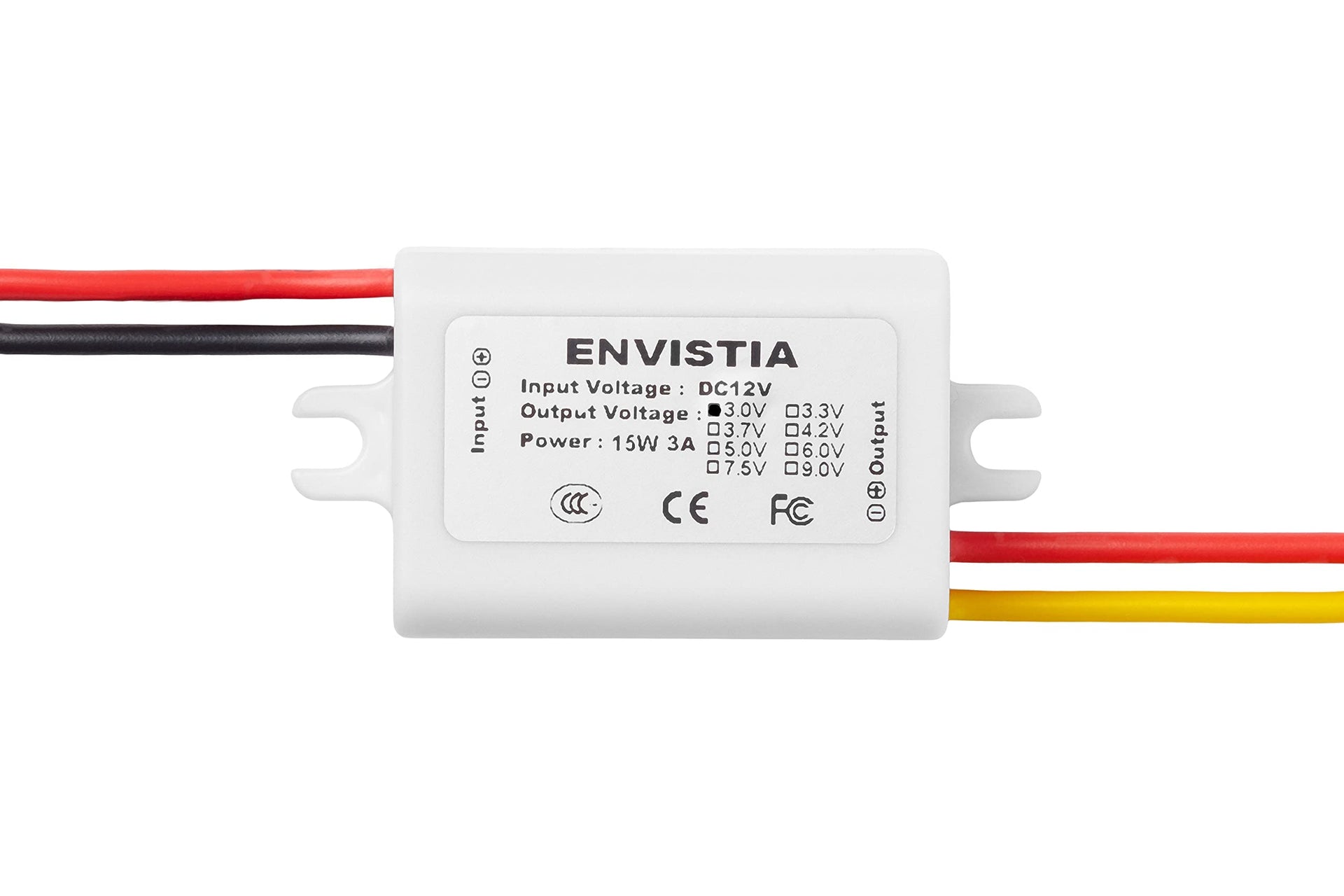

• The inputs and outputs are labeled on the sticker on top of the converter, the red and black wires are the + and - 12V input, and the red and yellow wires are the + and - 3V output.
Color: White
Model: 3V 3A DC-DC Converter

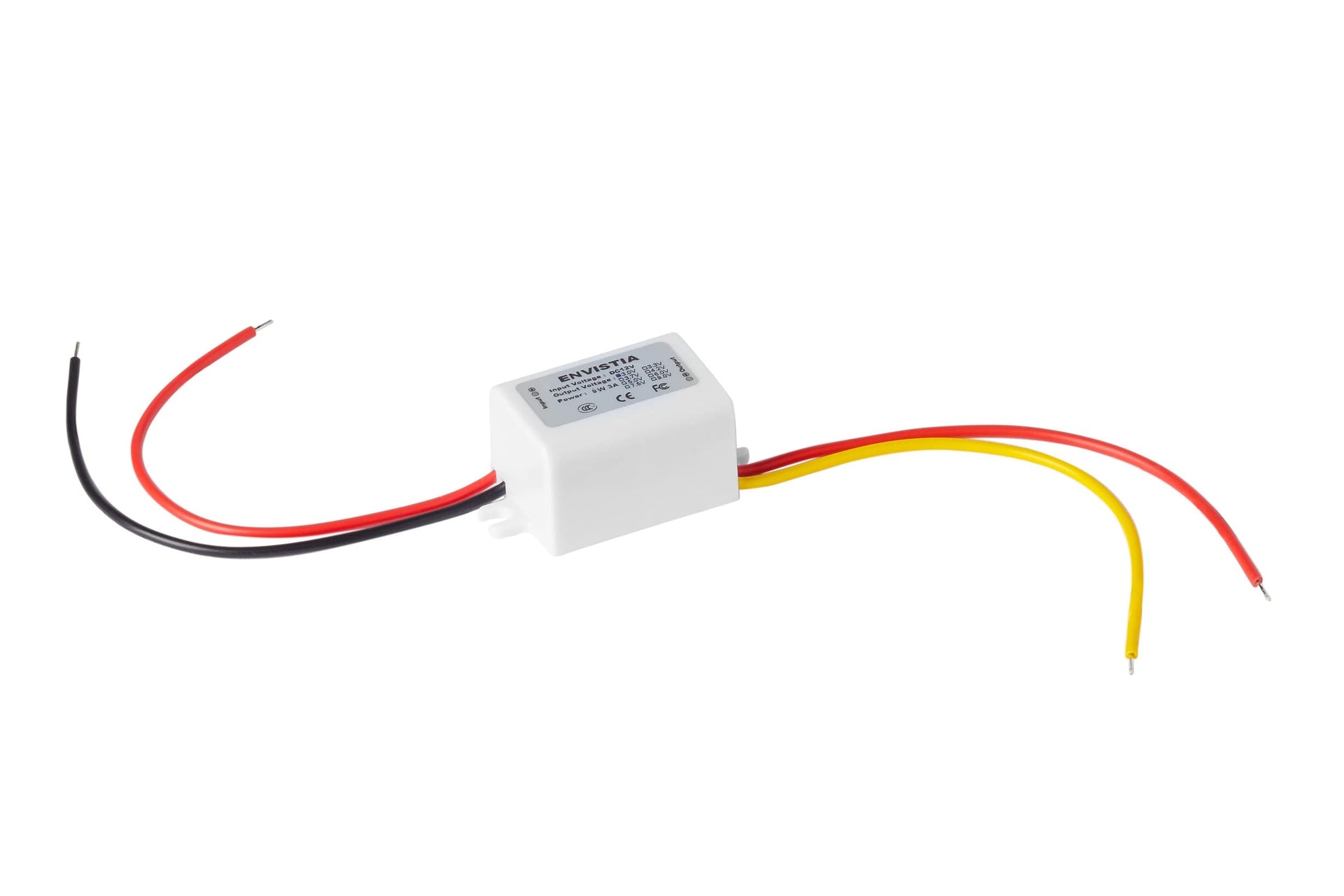

This miniature DC-DC step-down converter module converts a 12V DC input to 3.3V DC output at up to 3A current (9W maximum).
Specifications:
- Epoxy sealed waterproof housing
- Lightweight, compact, convenient to use and transport
- Non-isolated
- With overload / over-current / over / low voltage protection, stable performance
- Auto recovery
- Input voltage: DC 12V nominal, will operate on any input voltage from 8V to 24V DC
- Quiescent input current (no load attached): <10mA
- Maximum input current at 3A output: Approximately 0.75A at 12V input, 0.6A at 15V input
- Output voltage: 3.3V DC (+2% -10%)
- Maximum output current: 3A
- Maximum Output Power: 9W
- Efficiency: >96%

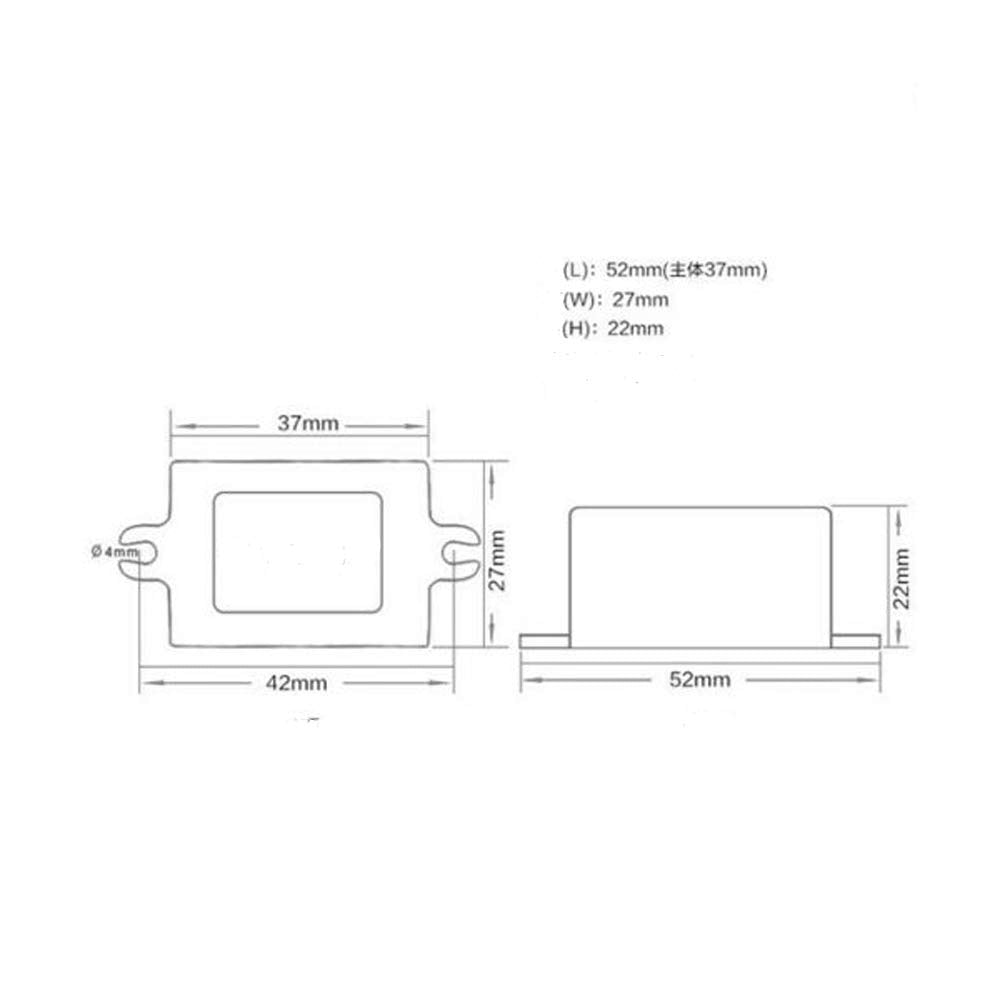

- Size (L x W x H): 38 * 27 * 23 mm (Length including mounting tabs is 52mm)
- Weight: 30g
- Case color: White
- Cable length: 12cm (approx)
Operating Notes:
As with any DC-DC converter, the input DC power supply powering this converter must be capable of providing the maximum power drawn by your load. If the input supply is not capable of providing the power, the converter will fold back the output voltage as necessary. Example: If your load draws 3A at 3V (9W), and the input supply is only capable of providing 12V at 0.5A (6W), the maximum output voltage the converter will deliver is 2V (6W/3A).
Package includes:

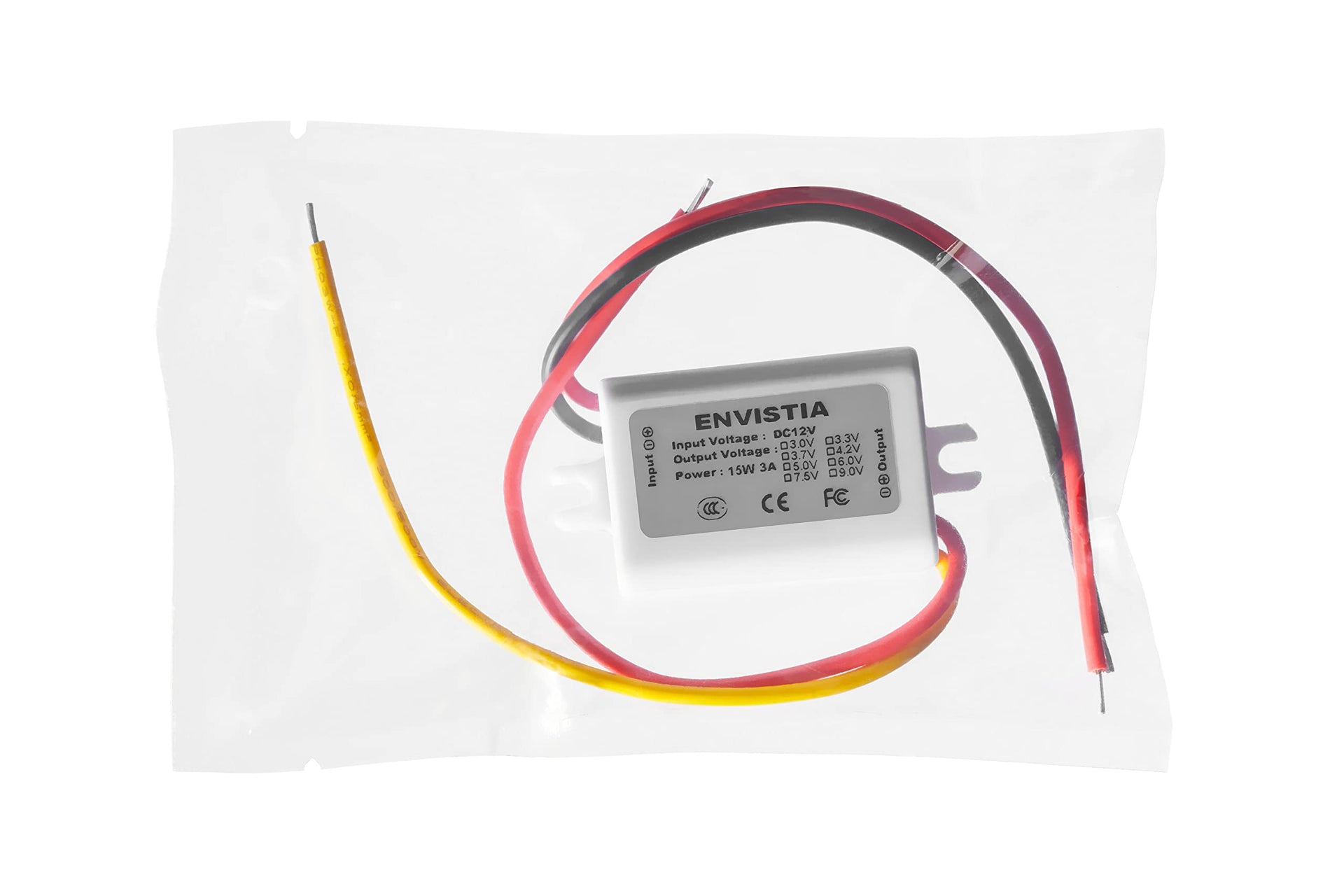

- 1X 12V to 3V 3A Mini DC-DC Step Down Converter
• Converts a 12V input voltage (will operate with any input voltage from 8V to 24V) to 3.3V DC (+2% -10%) output at up to 3A
• Up to 9W output power (3V at 3A)
• Fully sealed and waterproof
• Overload / over-current / over / low voltage protection, stable performance
• The inputs and outputs are labeled on the sticker on top of the converter, the red and black wires are the + and - 12V input, and the red and yellow wires are the + and - 3V output.
Color: White
