Brand: 101 AV Inc

101 Audio Video Inc.

101 AV Inc. provides various kinds of high-quality, delicate-look and reasonable-price security products.

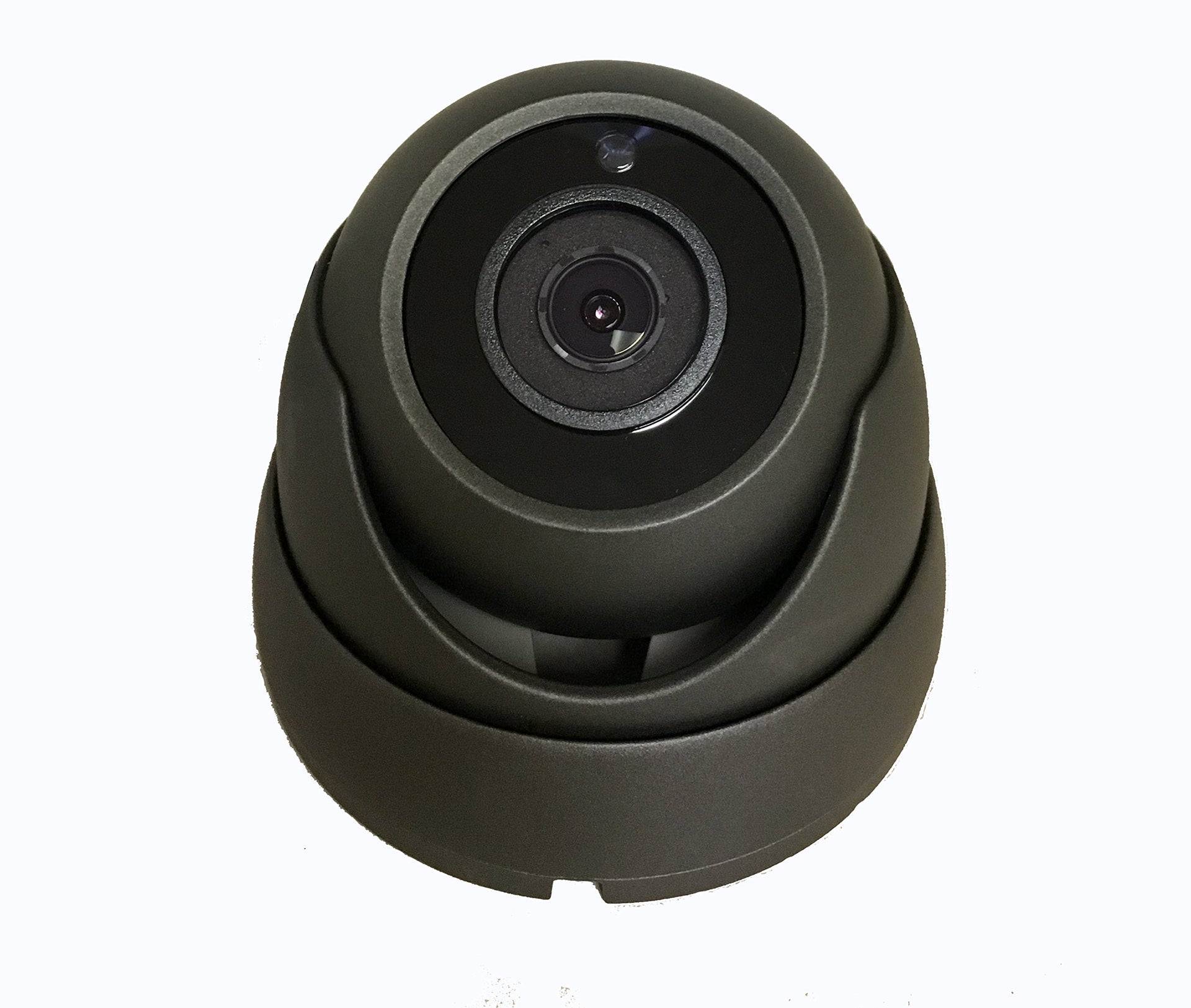

This professional 4 IN 1 True-HD IR Dome Security Camera is 1/2.9? SONY STARVIS CMOS Image Sensor with 2.4 Megapixel Resolution and an advanced circuit design. It adopts advanced image processing technology. The resolution is 1080p, which ensures clear and bright pictures. Built-in 2.8mm fixed lens, effectively extend your observation range. With 24 pcs IR infrared LEDs, it has 65 feet (20m) IR range, can change from color to black automatically and take clear picture during both day and night time. It has OSD Menu that can change the 4 different video output HD-TVI, HD-AHD, HD-CVI (True-HD) and CVBS (700TVL), and adjust the video setting. And the Smart IR function also enables it to catch clear face picture during nigh time. The camera has IP66 fully weatherproof rate and vandal proof metal housing. It’s easy to install. It can protect indoor outdoor effectively.

Specification

Model No.: FDT-28

Image Sensor: 1/2.9" SONY 2.4 Megapixel CMOS Sensor

Signal System: NTSC

Effective Pixels: 1930(H)*1088(V)

Sync System: Internal

Day/Night: Color/ B/W/ External

Resolution: 1080p/960H

HD Video Output: 1 Analog HD output

Mini Illumination: 0 Lux (IR on), F12

S/N Ratio: More than 50dB(AGC off)

Lens: 2.8mm

IR LED: 24PCS, 65ft (20m) IR distance

Weather Proof rate: IP66

Operation Temp: -10 °C ~ 50 °C (14 °F ~ 122 °F)

Power: DC12V±10%, 500mA

Dimension: 94 × 69 mm (3.7” × 2.7”)

Weight: 400g (0.88 lb)

What's in the box?

4 IN 1 (TVI, AHD, CVI, and CVBS) Mini True-HD Dome security camera x 1

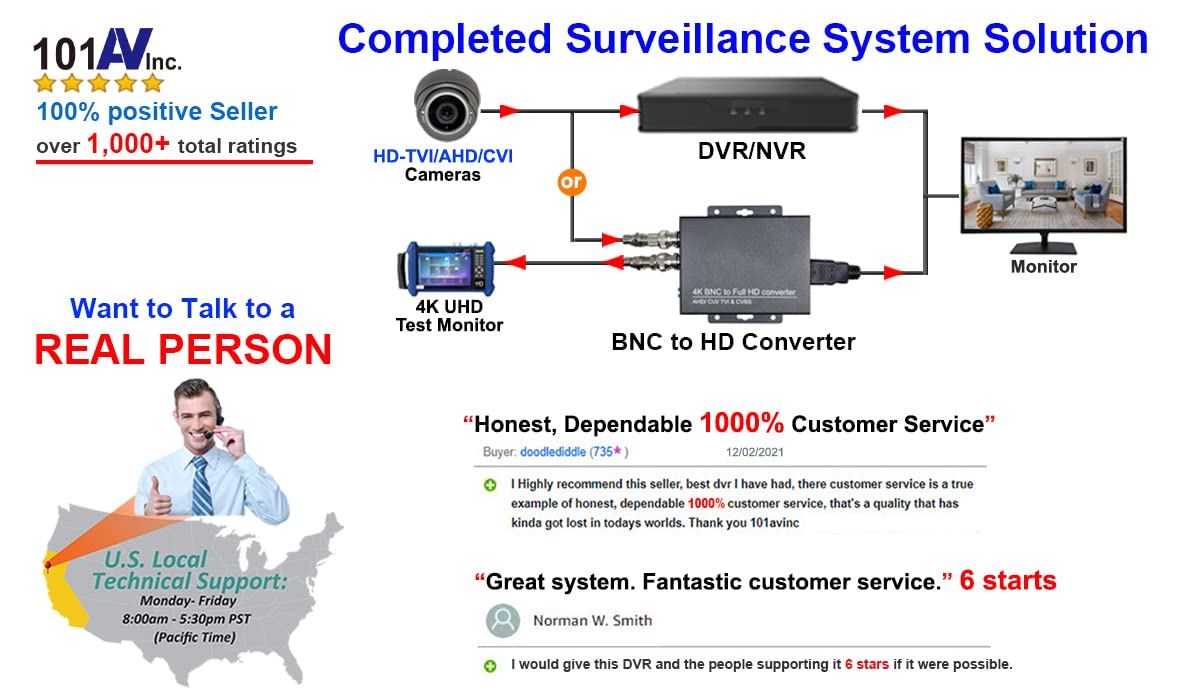

• 4 IN 1 HD-TVI, HD-AHD, HD-CVI (True-HD) and CVBS (700TVL), HD technology produces 1080P Full-HD Video with Sharp and Detailed Images. Most Advanced HD and Existing SD/960H Surveillance System Compatibility with multiple video formats, including the new high definition Full HD-TVI/AHD/CVI, and also the traditional SD/standard definition 960H/composite video recorder and monitor without any problem.
• 1/2.9? SONY STARVIS CMOS Image Sensor with 2.4 Megapixel Resolution, Built-in 2.8 mm Fixed Wide Angle Lens with 105° Field of View and Captures Images over Large Areas. Three (3X) More Times Visibility in Total Darkness. SONY STARVIS IMX290LQR CMOS sensor realizes 2 or more times the sensitivity in the Day/visible light and 3 or more in the Night/Infrared lightcomparing to the existing best EXview CCD product on the market.
• OSD Menu, IP66 weather/Vandal proof, Multi-Axis for Wall or Ceiling Mounting. Ultra Fine Full HD resolution for close viewing in crucial surveillance applications. Full HD Image Quality of 1920 x 1080 pixels, the newest high definition full HD-TVI, AHD and CVI formats, cameras look crisp and lifelike.

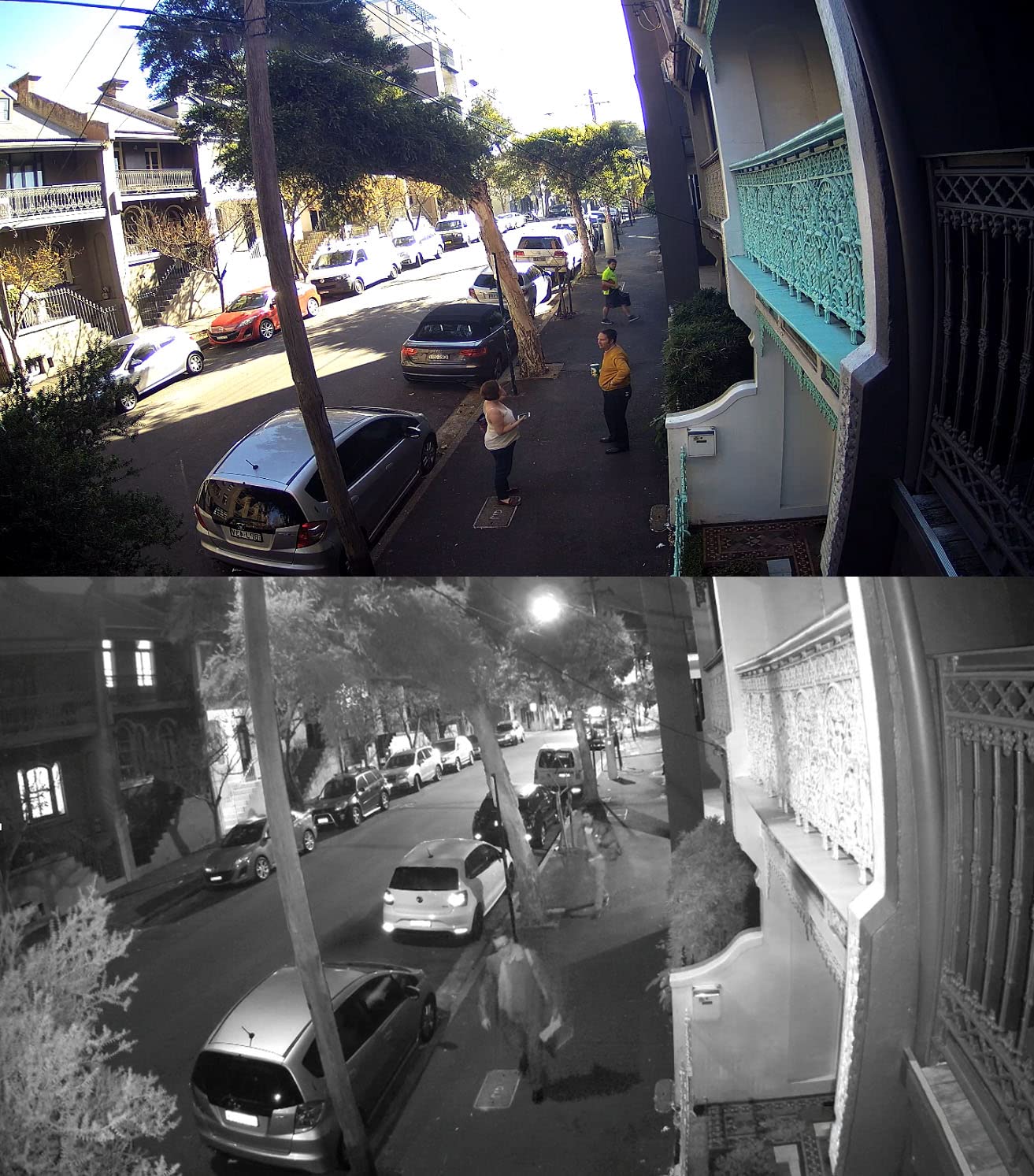

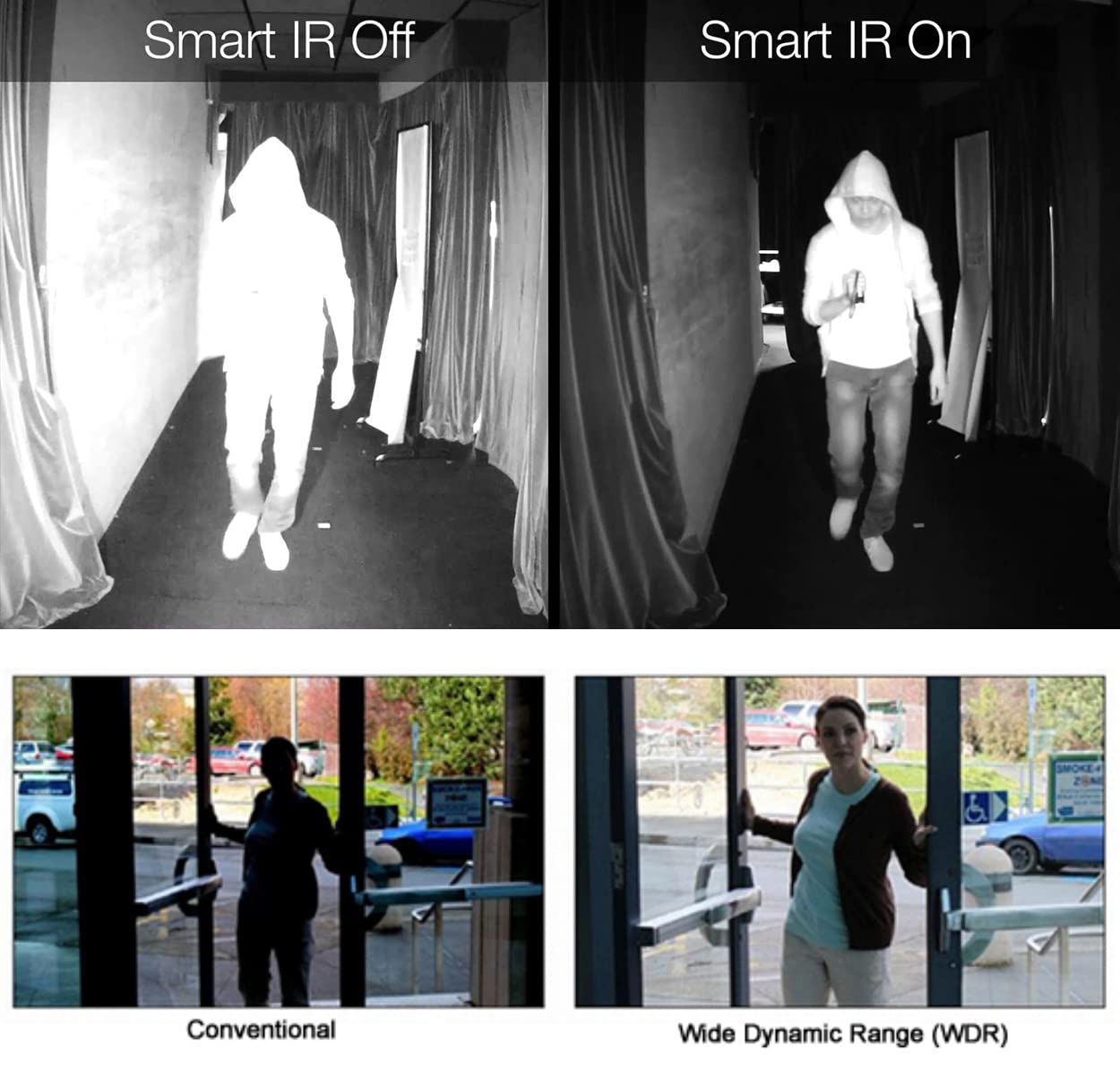

• 65ft (20m) IR range, 24pcs IR infrared LEDs, Day/Night, Smart IR, IR-Cut Filter: True day/night (ICR) Captures sharp, Clear Images in Low Light and at Night. Clarity Even At Night with Full HD 1080p resolution and night vision up to 65 feet in total darkness.
• Applicable in Finance, Supermarkets, telecommunications, hotels, offices, corridors, stairs, garage and other indoor/outdoor monitoring sites. Weatherproof Housing works in extreme temperatures outdoors or indoors, prevent tampering and vandalism on cameras with three-axis preassembled mounts. User Friendly push button and OSD menu operation. US Local Support and Service
