Brand: 101 AV Inc

101 Audio Video Inc.

101 AV Inc. provides various kinds of high-quality, delicate-look and reasonable-price security products.

This model,UND-04, 8CH HD TVI CVI AHD H.265/H.264 True-HD DVR/NVR is designed especially for CCTV system. It adopts high performance video processing chips and embedded Linux system. Meanwhile, it utilizes many most advanced technologies, such as standard H.265/H.264 with low bit rate, Dual stream, SATA interface, HDMI and VGA output mouse supported, mobile view (by phones), etc., which ensure its powerful functions and high stability. Due to these distinctive characteristics, it is widely used in banks, telecommunication, transportation, factories, warehouse, and irrigation and so on.

Features

H.265/H.264 compression with low bit rate and better image quality

HDMI & VGA Up to1920x1080P/60Hz Resolution.

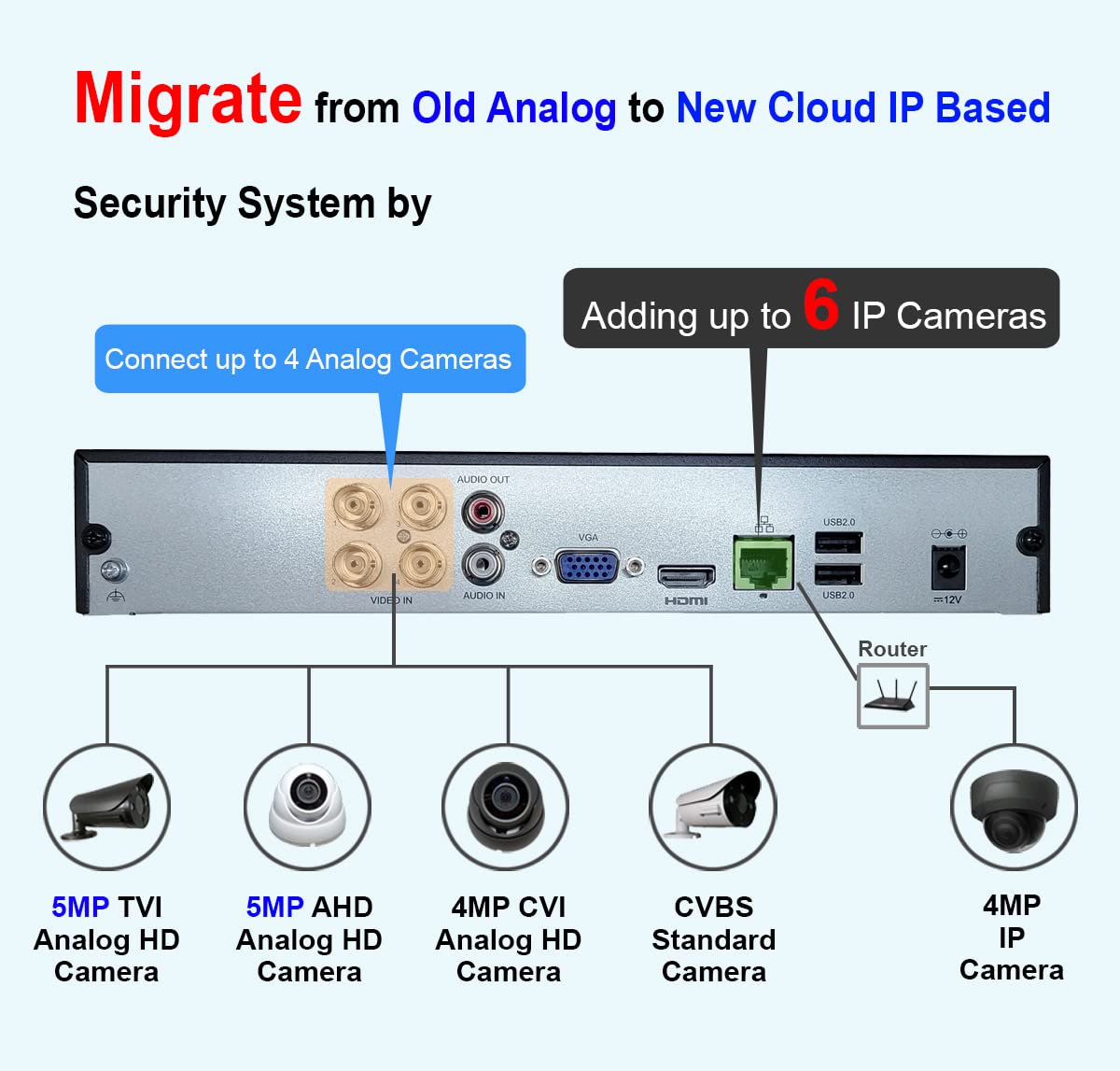

Combination of 6 total Analog + IP cameras; Supports 4 Analog + 2 IP cameras, 3 Analog + 3 IP ... or to 0 Analog + 6 IP cameras by IP Address

Support One SATA HDD to record for a longer time without any limitation; Each HDD up to 8TB storage (Without Hard Drive)

Support USB 2.0 devices, Easy backup with USB FLASH DRIVE and Network

Support schedule for motion detection, linked channels recording once motion triggered on certain channel

Up to 4 ch synchronous playback at 1080P

Support Cloud based cell Phone APPs for both Android & iPhone without confusing port forwarding

CMS to manage multi devices on internet

Support 1 Years Manufacturer Warranty

What's in the box?

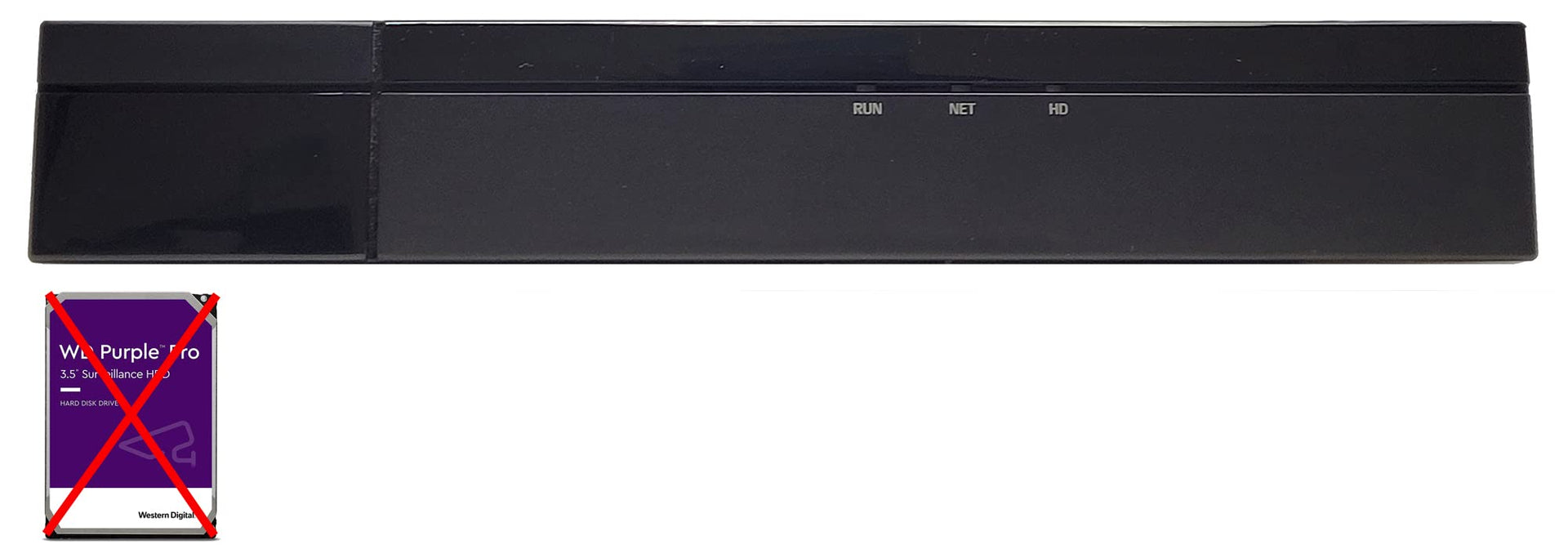

4ch HD H.265/H.264 DVR without HDD and Accessories(Power supply, Mouse, Quick Guide).

• a.4CH HD DVR/NVR without HDD. Standard H.265/H.264 Video Compression with low bit rate and better image quality. Keep your data secure with reliable, user-controlled, and confidential local storage. Support 1 x SATA HDDs, without Hard Drive (Each HDD can up to 8TB). Combination of 6 total Analog + IP cameras; Supports 4 Analog + 2 IP cameras, 3 Analog + 3 IP ... or to 0 Analog + 6 IP cameras by IP Address.

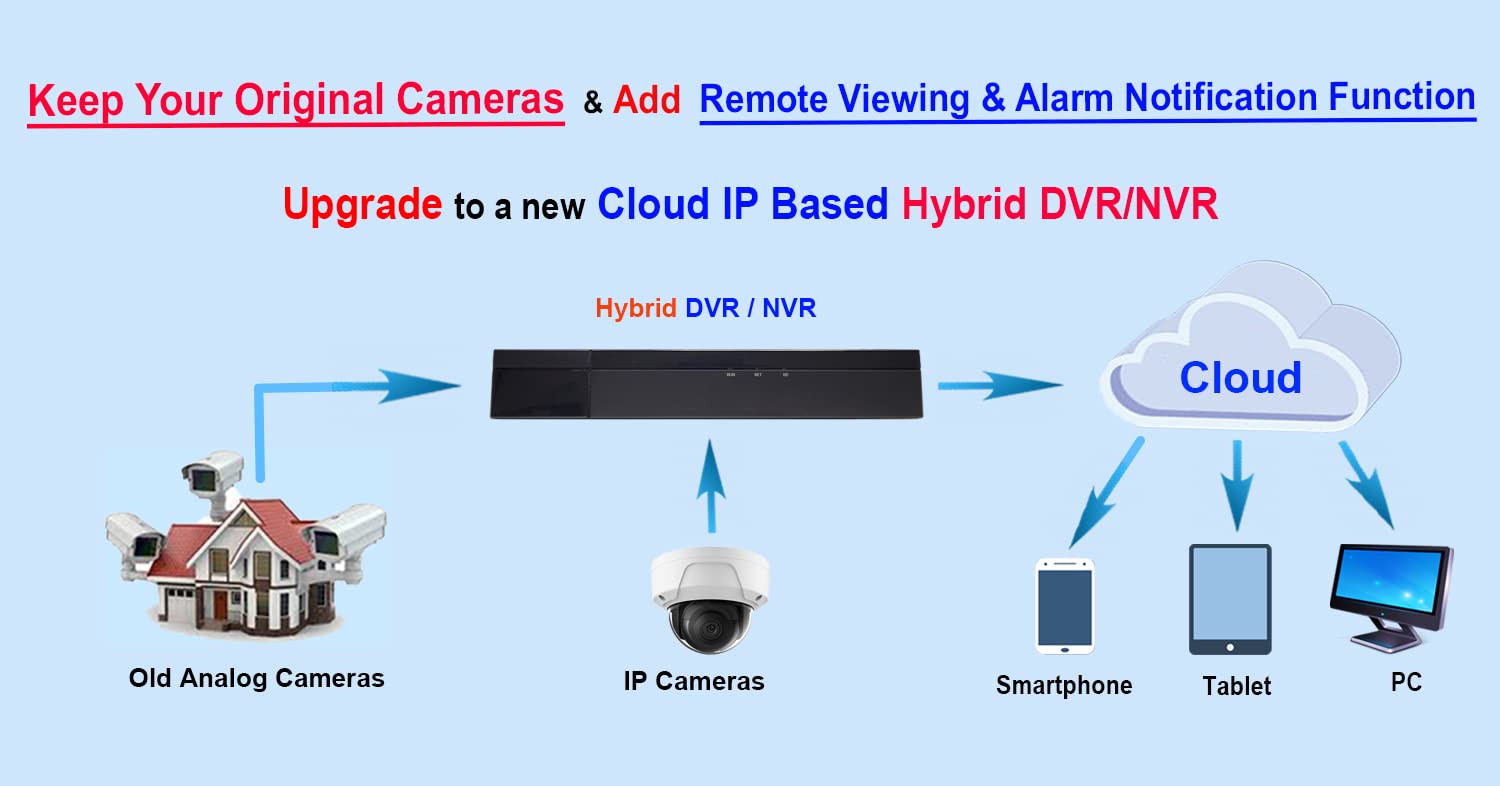

• b.Upgrade your existing analog camera system to a cloud-based IP network system with remote access capability. And enjoy video monitoring and alarm notifications from anywhere at anytime anywhere. Snapshot, and Email notifications for real time protection. Exceptionally strong password and anti-hacking protocols to increase privacy and security.
• c.Receive motion and alarm notifications on your cell phone, tablet, PC, or DVR, with audio beeping and full-page display call-ups on local monitors. Dual-stream: network video and local recording. CMS and web-based remote monitoring software on PC. Up to 1080P HDMI and VGA Video Output Resolution. USB Backup and USB Mouse. 5MP Lite@12fps, 4MP Lite@15fps, 1080P Lite (960x1080)@15fps, 1080P@15fps, and 720P@30FPS.
• d.Multiple video formats input including Full HD/TVI/CVI/AHD, SD/960H/composite video, and IP/network to work with various existing and new HD surveillance system. Full HD picture quality for solid day & night surveillance applications. TVI, AHD & CVI up to 5MP, and IP camera up to 4MP resolution. Multiple Video Out connectors for extra viewing needs including: HDMI/VGA/IP network video monitoring.
• e.Benefit from a comprehensive range of super high-definition video products, including cameras, DVR/NVR, and Super HD monitors. User friendly setup instructions including Quick Installation Guide for PC based VMS/CMS integration. Cloud based cell phone APPs for both Android and iPhone without confusing port forwarding. There are options to show 1, 4, 8, and 16 cameras simultaneously on both the mobile APP on cell phone and also the Central Monitoring Software (CMS) on PC.
