Brand: 101 AV Inc

101 Audio Video Inc.

101 AV Inc. provides various kinds of high-quality, delicate-look and reasonable-price security products.

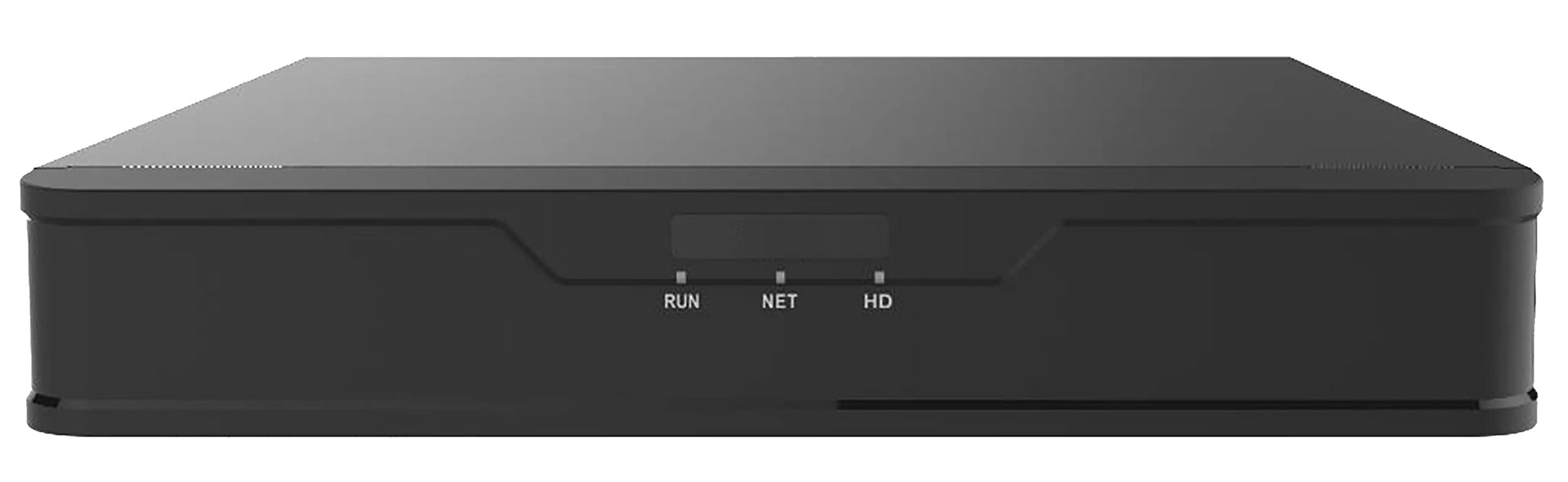

This model,UND-08, 8CH HD TVI CVI AHD H.265/H.264 True-HD DVR/NVR is designed especially for CCTV system. It adopts high performance video processing chips and embedded Linux system. Meanwhile, it utilizes many most advanced technologies, such as standard H.265/H.264 with low bit rate, Dual stream, SATA interface, HDMI and VGA output mouse supported, mobile view (by phones), etc., which ensure its powerful functions and high stability. Due to these distinctive characteristics, it is widely used in banks, telecommunication, transportation, factories, warehouse, and irrigation and so on.

Features

H.265/H.264 compression with low bit rate and better image quality

HDMI & VGA Up to1920x1080P/60Hz Resolution.

Combination of 12 total Analog + IP cameras; Supports 8 Analog + 4 IP cameras, 7 Analog + 5 IP ... or to 4 Analog + 8 IP cameras by IP Address

Support One SATA HDD to record for a longer time without any limitation; Each HDD up to 8TB storage (With Pre-Installed 2TB Hard Drive)

Support USB 2.0 devices, Easy backup with USB FLASH DRIVE and Network

Support schedule for motion detection, linked channels recording once motion triggered on certain channel

Up to 8 ch synchronous playback at 1080P

Support Cloud based cell Phone APPs for both Android & iPhone without confusing port forwarding

CMS to manage multi devices on internet

Support 1 Years Manufacturer Warranty

What's in the box?

8ch HD H.265/H.264 DVR with 2TB HDD and Accessories(Power supply, Mouse, Quick Guide). Digital video recorder, Security camera system, Home security system, Video surveillance, Hard drive, IP camera, CCTV camera, NVR, Monitor, Motion detection, Remote viewing, Storage, Backup, Access control, Alarm, Monitoring

• a. 8CH HD DVR/NVR w/ 2TB HDD. Combination of 12 total Analog + IP cameras; Supports 8 Analog + 4 IP cameras, 7 Analog + 5 IP ... or to 4 Analog + 8 IP cameras by IP Address. Triplex: Live / Playback, Record, Network. Standard H.265/H.264 Video Compression with low bit rate and better image quality. Support 1 x SATA HDDs (Each HDD can up to 8TB). Exceptionally strong password and anti-hacking protocols to increase privacy and security. Snapshot, and Email notifications for real time protection.
• b. Pre-Alarm Recording and Motion Detection. Motion activated full screen alarm call up protection with optional audible warning. Dual-stream: network video and local recording. CMS remote monitoring software on PC. Up to 1080P HDMI and VGA Video Output Resolution. USB Backup and USB Mouse.

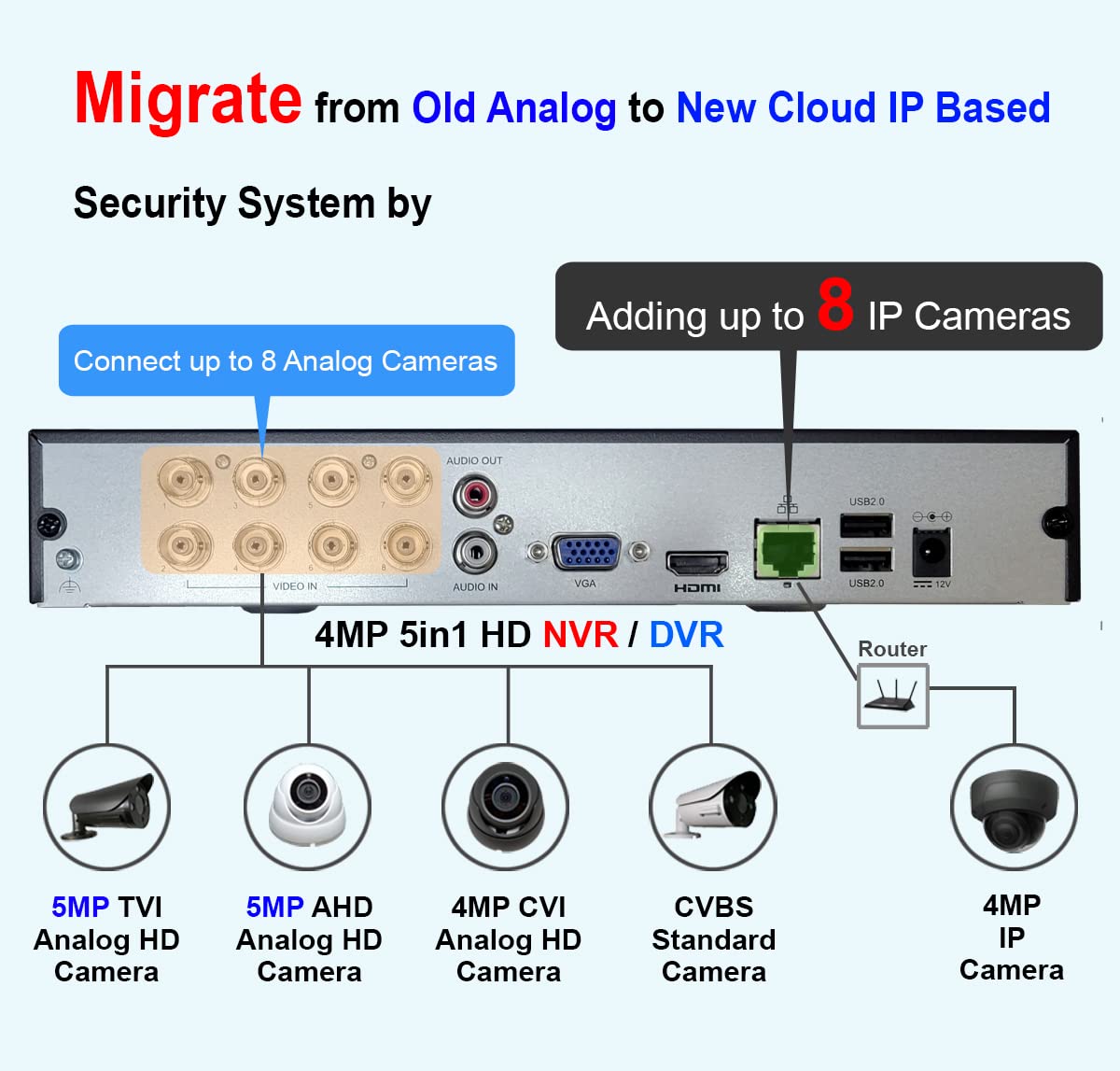

• c. Multiple video formats input including Full HD/TVI/CVI/AHD, SD/960H/composite video, and IP/network to work with various existing and new HD surveillance system. Full HD picture quality for solid day & night surveillance applications. TVI & AHD up to 5MP, CVI up to 4MP, and IP camera up to 4MP resolution. Multiple Video Out connectors for extra viewing needs including: HDMI/VGA/IP network video monitoring.
• d. Recording Resolution: 5MP Lite@6fps, 4MP Lite@8fps, 1080P Lite (960x1080)@15fps, 1080P@8fps, and 720P@15FPS. 1 Years DVR/2 Years HDD Manufacturer Warranty.
• e. User friendly setup instructions including QIG (Quick Installation Guide) for PC based VMS/CMS integration. Cloud based cell phone APPs for both Android and iPhone without confusing port forwarding, and real time Snapshot alarm notification. There are options to show 1, 4, and 8 cameras simultaneously on both the mobile APP on cell phone and also the Central Monitoring Software (CMS) on PC.

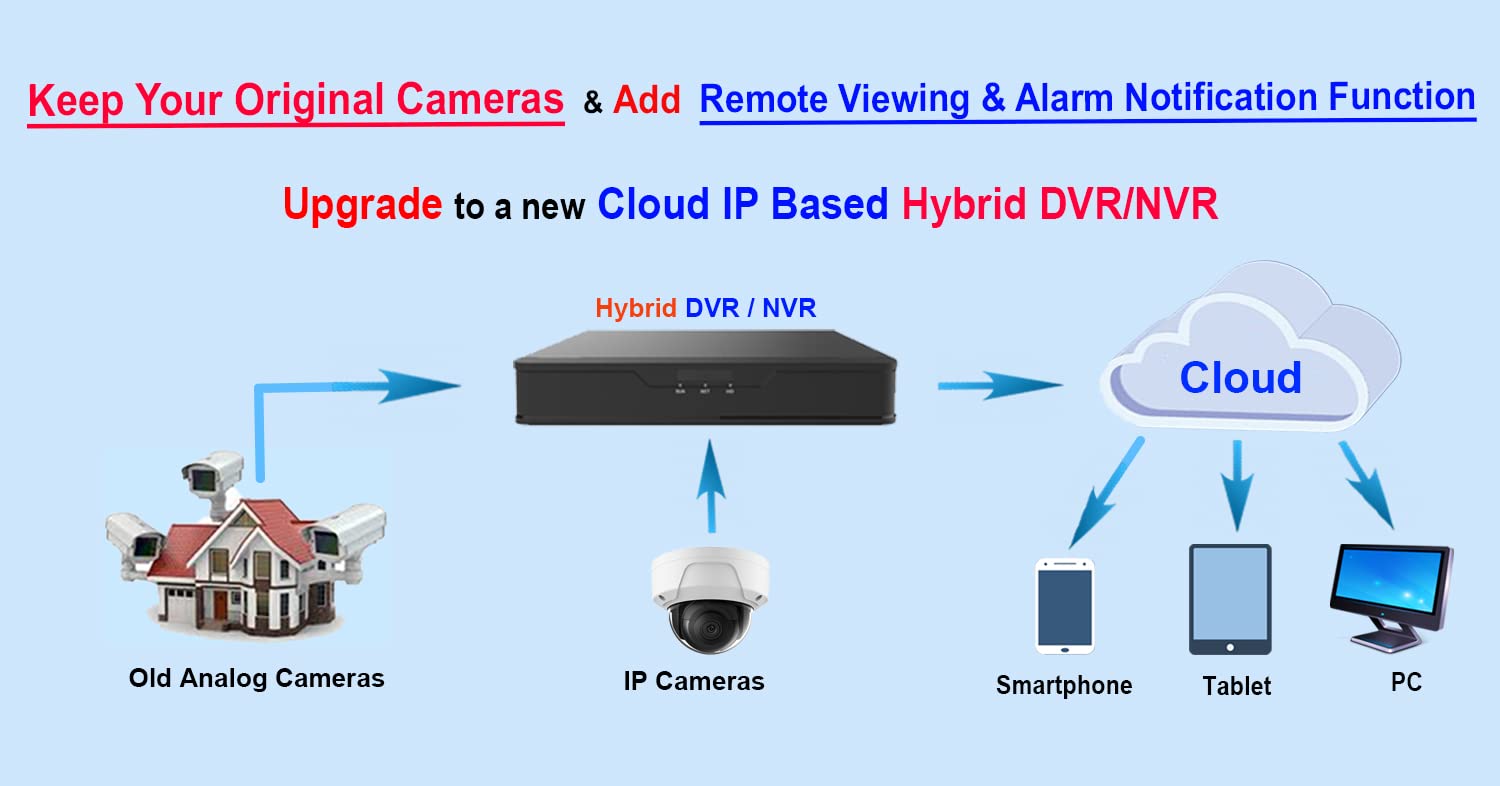

• f. Hybrid DVR/NVRs allow you to start with analog cameras and then gradually upgrade to IP cameras as your budget allows. This is a major advantage over software-dependent NVRs, which can only use IP cameras. This can save you money in the long run.
• g. Software-dependent NVRs are typically obsolete within a few years, as the software is updated and the OS is revised. Hybrid DVR/NVRs, on the other hand, are not dependent on software, so they can last for many years. This can save you money on replacement costs.
• h. Hybrid DVR/NVRs are typically more reliable than software-dependent NVRs. This is because they are not dependent on a single software platform, so they are less likely to be affected by software bugs or security vulnerabilities.
• i. Hybrid DVR/NVRs are typically easier to use than software-dependent NVRs. This is because they have a more intuitive user interface and they do not require any special knowledge of networking or IP addresses.
